THREE POINT LINK SYSTEM 1GROUP - CK30M-T790A

Kioti TRACTOR | CK Series | CK25

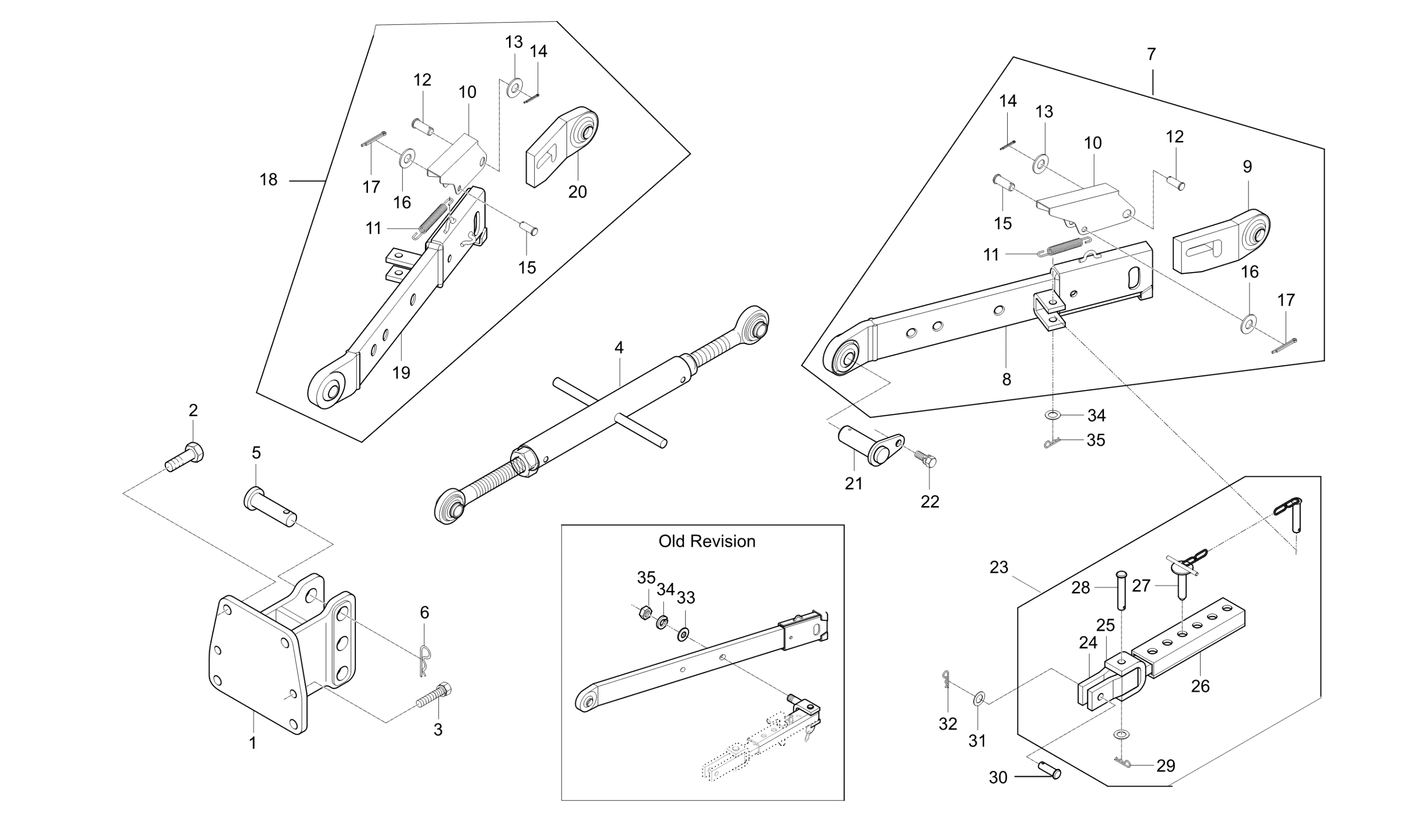

Diagram for THREE POINT LINK SYSTEM 1GROUP - CK30M-T790A
  • 1

    HOLDER,TOP LINK

    • Part No. T2185-71231
    • Serial No. Up to F70100660
    • * multiple options for #1
    • 1 shown on diagram
    $119.99
  • 1

    HOLDER,TOP LINK

    • Part No. T2185-71232
    • Compatibility New repl old
    • Applied Dates 2006-12-31 to 2008-11-10
    • Serial No. G70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $164.99
  • 2 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 4 shown on diagram
    $3.49
  • 3 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 4

    TOP LINK ASSY V

    • Part No. T2350-71102
    • * multiple options for #4
    • 1 shown on diagram
    $289.99
  • 4

    TOP-LINK ASSY

    • Part No. T2350-71211
    • Compatibility Interchngable
    • Applied Dates 2011-01-02 and up
    • * multiple options for #4
    • 1 shown on diagram
    $324.99
  • 5

    Top Link Pin (31150-7136-5)

    • Part No. 31150-7136-5
    • DIA19
    • 2 shown on diagram
    $15.99
  • 6

    PIN, CLIP dnr v

    • Part No. 34150-3764-4
    • DIA10.0
    • 2 shown on diagram
    $5.99
  • 7

    ASS’Y, LOWER LINK(LH)

    • Part No. T2625-93012
    • Applied Dates 2004-02-04 to 2004-04-28
    • Serial No. D70100001 to G70100180
    • * multiple options for #7
    • 1 shown on diagram
    $424.99
  • 7

    LOWER LINK ASSY LH v

    • Part No. T2625-93013
    • Compatibility No interchange
    • Applied Dates 2007-05-26 to 2008-10-30
    • Serial No. G70100181 and up
    • * multiple options for #7
    • 1 shown on diagram
    $374.99
  • 7

    ASSY LOWER LINK v

    • Part No. T2625-93014
    • Compatibility Interchngable
    • Applied Dates 2009-07-01 and up
    • * multiple options for #7
    • 1 shown on diagram
    $649.99
  • 8

    BODY, LOWER LINK(LH) obs v

    • Part No. T2625-93022
    • * multiple options for #8
    • 1 shown on diagram
    $144.99
  • 8

    BODY, LOWER LINK (LH) v

    • Part No. T2625-93023
    • Compatibility No interchange
    • * multiple options for #8
    • 1 shown on diagram
    $189.99
  • 8

    BODY LOWER LINK LH v

    • Part No. T2625-93024
    • Compatibility Interchngable
    • * multiple options for #8
    • 1 shown on diagram
    $399.99
  • 9

    HOUSING, LOWER LINK L, Replaced by T2615-93031BB

    • Part No. T2615-93031
    • 1 shown on diagram
    $99.99
  • 10

    COVER

    • Part No. T4680-93041
    • T2.3
    • 1 shown on diagram
    $29.99
  • 11

    SPRING

    • Part No. T4850-93051
    • DIA2
    • 1 shown on diagram
    $3.99
  • 12 PIN

    PIN

    • Part No. T4680-93061
    • 1 shown on diagram
    $19.99
  • 13

    Flat Washer M20

    • Part No. 04011-50200
    • M20
    • 1 shown on diagram
    $1.59
  • 14

    PIN, SPLIT

    • Part No. 05511-50445
    • DIA3.6XL45
    • 1 shown on diagram
    $0.47
  • 15

    Pin, Joint M12x50mm

    • Part No. 05122-51250
    • DIA12XL50
    • 1 shown on diagram
    $2.99
  • 16

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 1 shown on diagram
    $0.73
  • 17

    CARTER KEY v

    • Part No. 05511-50430
    • DIA3.6XL30
    • 1 shown on diagram
    $0.46
  • 18

    ASS’Y, LOWER LINK(RH) obs v

    • Part No. T2625-93112
    • Applied Dates 2004-02-04 to 2004-04-28
    • Serial No. D70100001 to G70100180
    • * multiple options for #18
    • 1 shown on diagram
    $384.99
  • 18

    LOWER LINK RH ASSY v

    • Part No. T2625-93113
    • Compatibility No interchange
    • Applied Dates 2007-05-26 to 2008-10-30
    • Serial No. G70100181 and up
    • * multiple options for #18
    • 1 shown on diagram
    $524.99
  • 18

    ASSY,LOWER LINK(RH)

    • Part No. T2625-93114
    • Compatibility Interchngable
    • Applied Dates 2009-07-01 and up
    • * multiple options for #18
    • 1 shown on diagram
    $654.99
  • 19

    BODY, LOWER LINK(RH)

    • Part No. T2625-93122
    • * multiple options for #19
    • 1 shown on diagram
    $274.99
  • 19

    LOWER LINK (RH) dnr v

    • Part No. T2625-93123
    • Compatibility No interchange
    • * multiple options for #19
    • 1 shown on diagram
    $179.99

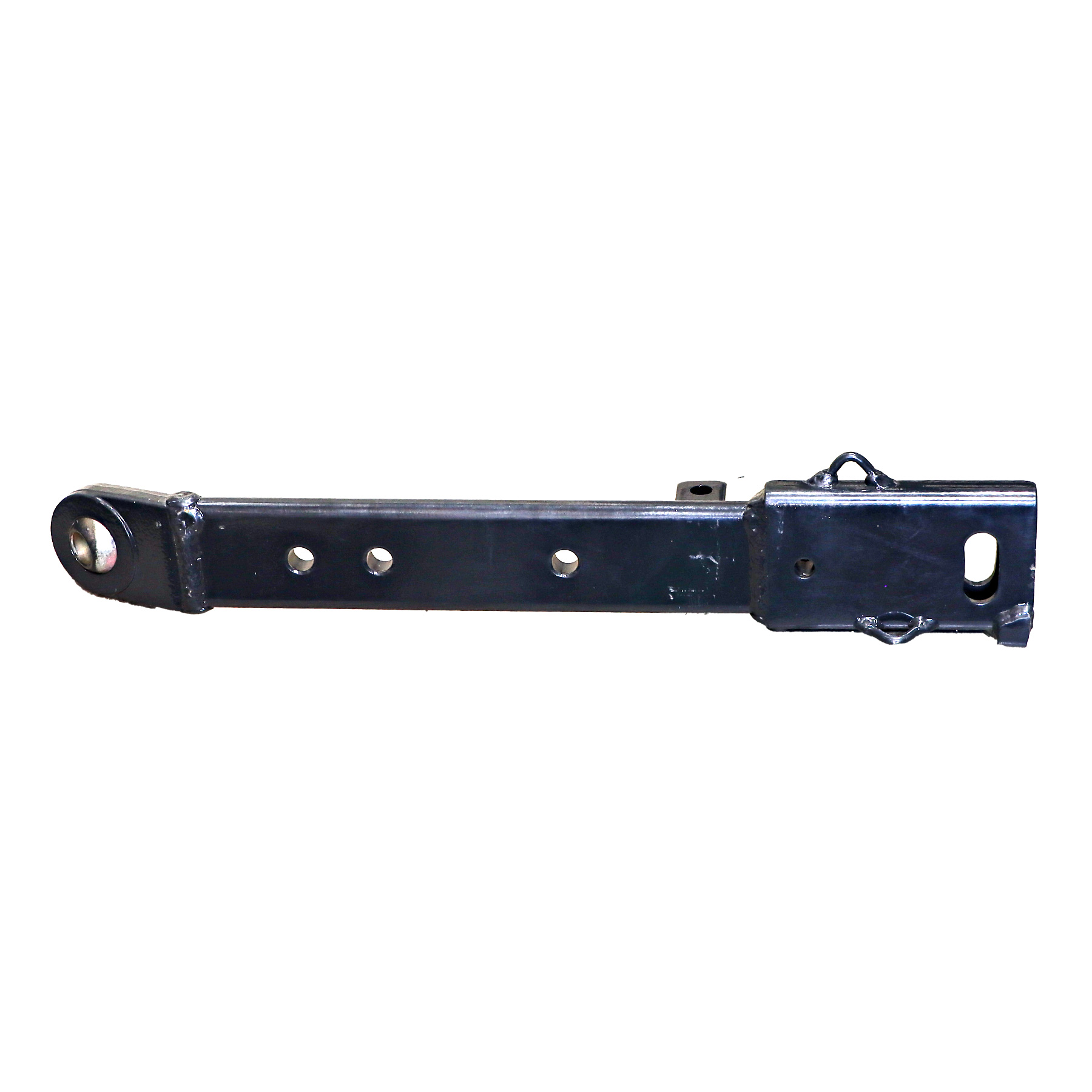

  • 19 LOWER LINK (RH) v

    LOWER LINK (RH) v

    • Part No. T2625-93124
    • Compatibility Interchngable
    • * multiple options for #19
    • 1 shown on diagram
    $394.99
  • 20

    HOUSHING, LOWER LINK, Replaced by T2615-93131BB

    • Part No. T2615-93131
    • 1 shown on diagram
    $0.00
  • 21

    PIN,LOWER LINK

    • Part No. T2445-29822
    • 2 shown on diagram
    $21.99
  • 22 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 23

    ASS’Y, CHECK LINK v, Replaced by T2625-91116

    • Part No. T2625-91114
    • Applied Dates 2004-01-08 to 2004-01-26
    • Serial No. D70100001 to E70100080
    • * multiple options for #23
    • 2 shown on diagram
    $0.00
  • 23

    Check Link Assy, Replaced by T2625-91116

    • Part No. T2625-91115
    • Compatibility Interchngable
    • Applied Dates 2005-05-01 to 2006-08-27
    • Serial No. E70100081 to F70100460
    • * multiple options for #23
    • 2 shown on diagram
    $0.00
  • 23 Check Link Assy

    Check Link Assy

    • Part No. T2625-91116
    • Compatibility Interchngable
    • Applied Dates 2006-08-28 to 2007-05-25
    • Serial No. F70100461 to G70100180
    • * multiple options for #23
    • 2 shown on diagram
    $159.99
  • 23

    Check Link Assy, Replaced by T2625-91118

    • Part No. T2625-91117
    • Compatibility No interchange
    • Applied Dates 2007-05-26 to 2008-04-30
    • Serial No. G70100181 and up
    • * multiple options for #23
    • 2 shown on diagram
    $0.00
  • 23 Check Link Assy

    Check Link Assy

    • Part No. T2625-91118
    • Compatibility New repl old
    • Applied Dates 2008-05-01 and up
    • * multiple options for #23
    • 2 shown on diagram
    $159.99

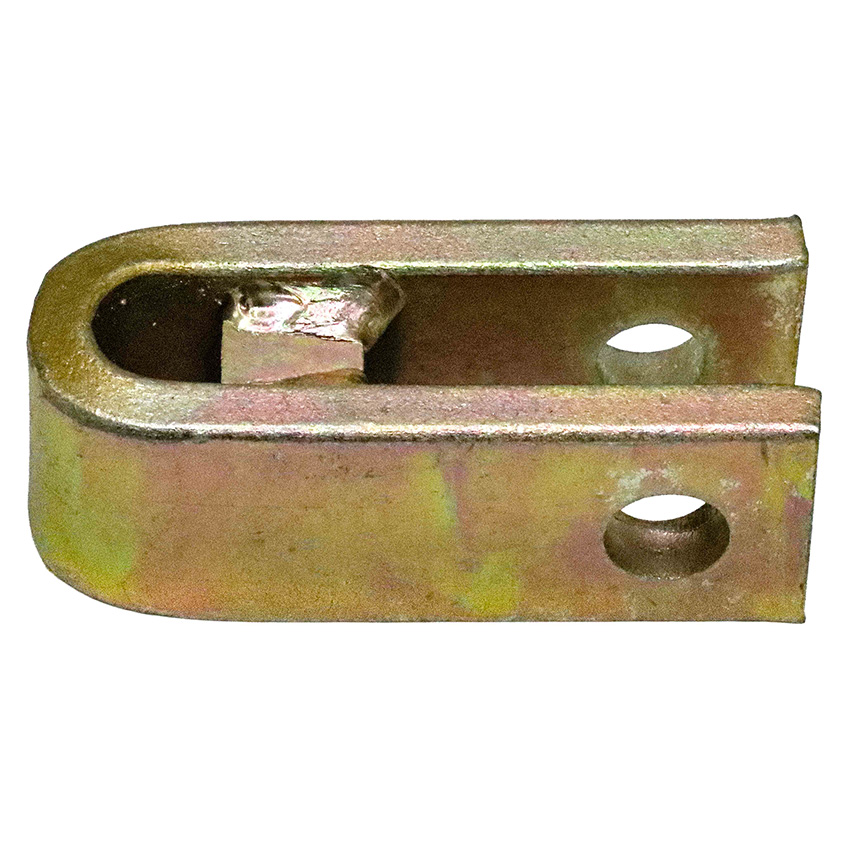

  • 24 Checklink Clevis 3-1/2″ overall

    Checklink Clevis 3-1/2″ overall

    • Part No. T2625-91122
    • 1 shown on diagram
    $19.99
  • 25

    ASS’Y, 2 BRACKET v

    • Part No. T2615-91132
    • * multiple options for #25
    • 1 shown on diagram
    $38.99
  • 25 ASSY 2 BRACKET 9.25″ overall

    ASSY 2 BRACKET 9.25″ overall

    • Part No. T2615-91133
    • Compatibility Interchngable
    • * multiple options for #25
    • 1 shown on diagram
    $46.99
  • 26

    ASS Y, HOUSING V, Replaced by T2615-91143

    • Part No. T2615-91142
    • * multiple options for #26
    • 1 shown on diagram
    $25.99
  • 26 ASSY,HOUSING

    ASSY,HOUSING

    • Part No. T2615-91143
    • Compatibility New repl old
    • * multiple options for #26
    • 1 shown on diagram
    $39.99
  • 27

    ASSY, HOLL V, Replaced by T4125-91162

    • Part No. T4125-91161
    • * multiple options for #27
    • 1 shown on diagram
    $0.00
  • 27 ASSY, HOLL

    ASSY, HOLL

    • Part No. T4125-91162
    • Compatibility New repl old
    • * multiple options for #27
    • 1 shown on diagram
    $34.99
  • 28 Pin, Joint M12x65mm

    Pin, Joint M12x65mm

    • Part No. 05122-51265
    • DIA12*65
    • 1 shown on diagram
    $4.99
  • 29 PIN,SNAP

    PIN,SNAP

    • Part No. 05525-51200
    • 1 shown on diagram
    $1.29
  • 30 Pin 12x45mm, Replaced by 32353-7189-3TP

    Pin 12x45mm, Replaced by 32353-7189-3TP

    • Part No. 32353-7189-3
    • 2 shown on diagram
    $12.99
  • 31 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • Applied Dates Up to 2008-02-03
    • M12
    • 2 shown on diagram
    $0.85
  • 32 PIN,SNAP

    PIN,SNAP

    • Part No. 05525-51200
    • 2 shown on diagram
    $1.29
  • 33

    Flat Washer M18

    • Part No. 04014-50180
    • Applied Dates Up to 2007-04-01
    • M18
    • 2 shown on diagram
    $1.79
  • 34 Washer, Spring M18

    Washer, Spring M18

    • Part No. 04512-50180
    • Applied Dates Up to 2007-04-01
    • M18
    • 2 shown on diagram
    $1.59

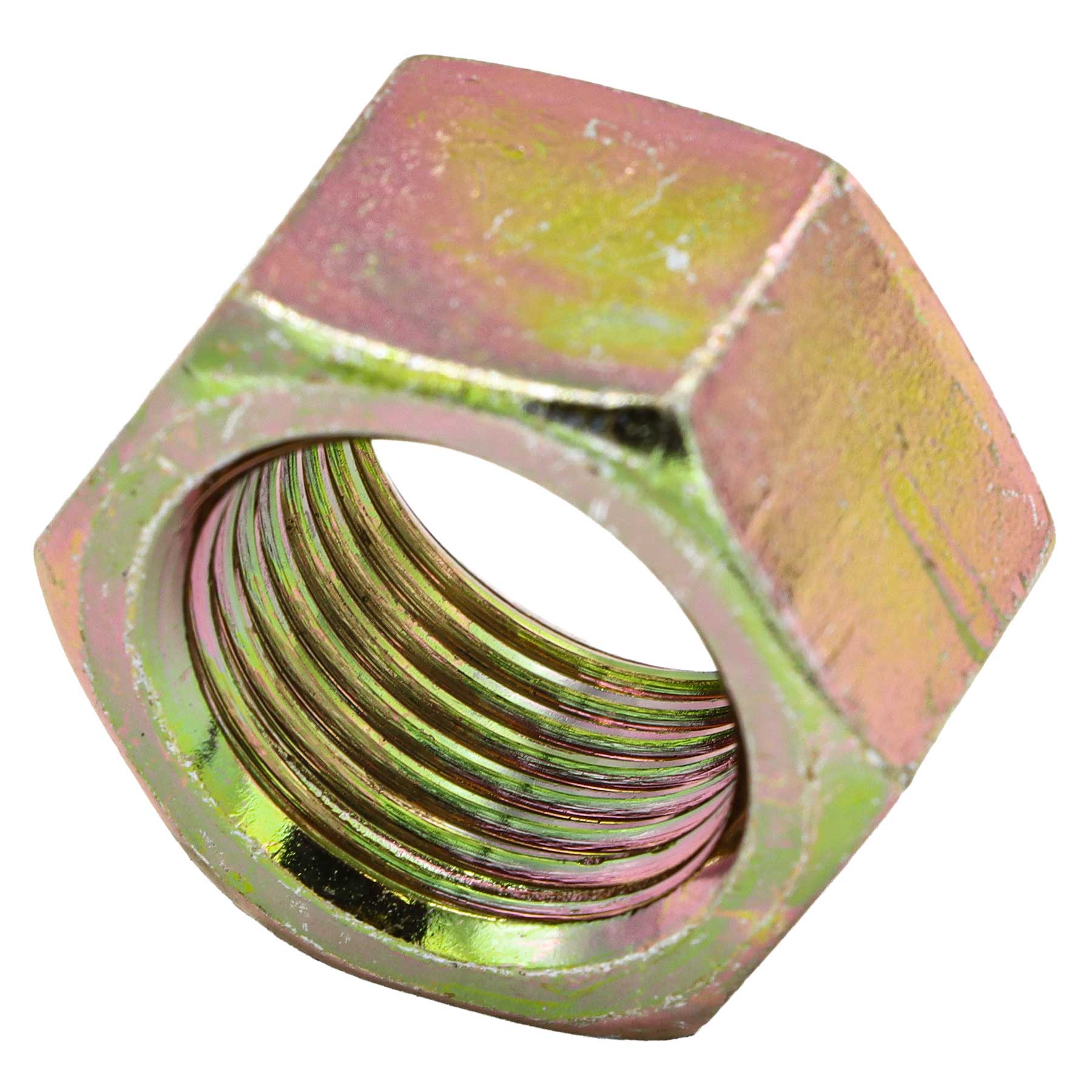

  • 35 NUT M18 P1.5

    NUT M18 P1.5

    • Part No. 02174-50180
    • Applied Dates Up to 2007-04-01
    • M18*P1.5
    • 2 shown on diagram
    $1.49
