AIR CONDITIONER HEATER GROUP(TC240) - TC2-G6C3505

Kioti TRACTOR | CK Series | CK3520CHSEB

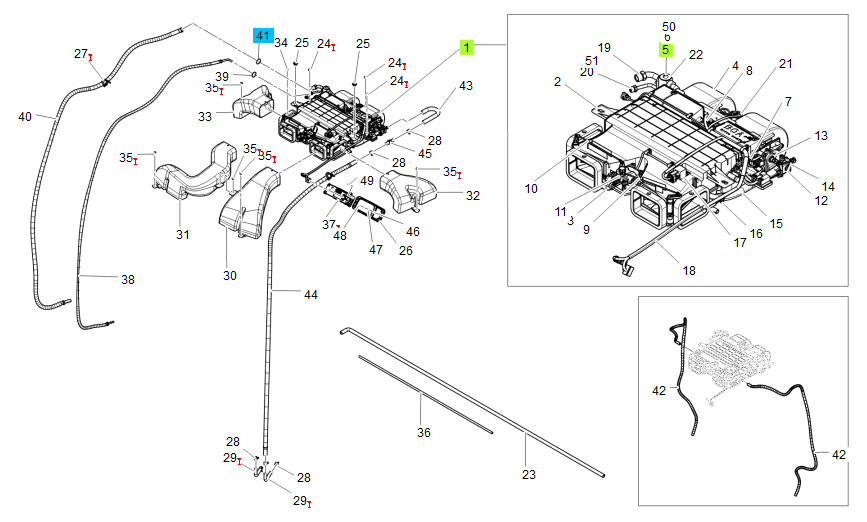

Diagram for AIR CONDITIONER HEATER GROUP(TC240) - TC2-G6C3505
  • 1

    ASSY AIR CONDITIONER

    • Part No. TD26-1417A
    • * multiple options for #1
    • 1 shown on diagram
    $1729.99
  • 1

    ASSY AIR CONDITIONER

    • Part No. TC26-2314A
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 2

    CASE-UPR

    • Part No. TD26-1454A
    • 1 shown on diagram
    $.00
  • 3

    CASE-LWR

    • Part No. TD26-1455A
    • 1 shown on diagram
    $.00
  • 4

    ASSY MOTOR-BLOWER

    • Part No. TD26-1456A
    • 1 shown on diagram
    $239.99
  • 5

    ASSY CORE-EVAP&HTR

    • Part No. TD26-1457A
    • * multiple options for #5
    • 1 shown on diagram
    $969.99
  • 5

    HVAC-UNIT

    • Part No. TC26-2333A
    • Compatibility New repl old
    • * multiple options for #5
    • 1 shown on diagram
    $1069.99
  • 6

    VALVE, EXPANSION

    • Part No. TG36-2243A
    • 1 shown on diagram
    $79.99
  • 7

    SENSOR-ICING

    • Part No. TG36-2246A
    • 1 shown on diagram
    $15.99
  • 8

    Resistor

    • Part No. TG36-2245A
    • 1 shown on diagram
    $25.99
  • 9

    LEVER-LH

    • Part No. TD26-1458A
    • 1 shown on diagram
    $.00
  • 10

    LEVER-RH

    • Part No. TD26-1459A
    • 1 shown on diagram
    $.00
  • 11

    ACTUATOR-MODE

    • Part No. TG36-2240A
    • 1 shown on diagram
    $51.99
  • 12 VALVE, WATER

    VALVE, WATER

    • Part No. TG36-2239A
    • 1 shown on diagram
    $47.99
  • 13

    ACTUATOR-TEMP.

    • Part No. TG36-2238A
    • 1 shown on diagram
    $53.99
  • 14

    ROD-TEMP

    • Part No. TD26-1460A
    • 1 shown on diagram
    $.00
  • 15

    HOSE, HEATER-IN

    • Part No. TD26-1461A
    • 1 shown on diagram
    $.00
  • 16

    CLIP-WATER VALVE

    • Part No. TD26-1462A
    • 2 shown on diagram
    $.00
  • 17

    RELAY

    • Part No. TG36-2235A
    • 1 shown on diagram
    $27.99
  • 18

    WIRE HARNESS-HVAC

    • Part No. TD26-1463A
    • 1 shown on diagram
    $159.99
  • 19

    PIPE, CONNECTING-IN

    • Part No. TD26-1464A
    • 1 shown on diagram
    $57.99
  • 20

    PIPE, CONNECTING-OUT

    • Part No. TD26-1465A
    • 1 shown on diagram
    $59.99
  • 21

    BRACKET-HVAC

    • Part No. TD26-1466A
    • 1 shown on diagram
    $.00
  • 22

    RUBBER

    • Part No. TD26-1467A
    • 2 shown on diagram
    $.00
  • 23

    HOSE, HEATER LT-UPR, Replaced by TB16-0580A

    • Part No. TC26-0685A
    • OD23 / ID16
    • 1 shown on diagram
    $.00
  • 24 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 3 shown on diagram
    $0.67
  • 25

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 26

    COVER, A/C

    • Part No. TD26-1420A
    • 1 shown on diagram
    $32.99
  • 27

    BAND, CABLE

    • Part No. P5370-82551
    • 2 shown on diagram
    $1.89
  • 28

    CLIP, HOSE

    • Part No. T4930-84141
    • DIA 19
    • 6 shown on diagram
    $1.49
  • 29

    CONNECTOR

    • Part No. T4810-86281
    • 2 shown on diagram
    $13.99
  • 30

    DUCT-FR LH

    • Part No. TC26-0558A
    • 1 shown on diagram
    $53.99
  • 31

    DUCT-FR RH

    • Part No. TC26-0559A
    • 1 shown on diagram
    $57.99
  • 32

    DUCT-RR LH

    • Part No. TC26-0560A
    • 1 shown on diagram
    $44.99
  • 33

    DUCT-RR RH

    • Part No. TC26-0561A
    • 1 shown on diagram
    $44.99
  • 34

    BOLT, SCREW obs

    • Part No. 84612-1823-0
    • M6X16
    • 4 shown on diagram
    $0.79
  • 35 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 5 shown on diagram
    $1.89
  • 36

    HOSE, DRAIN WATER

    • Part No. TC26-1205A
    • OD 13 / ID 8
    • 1 shown on diagram
    $9.99
  • 37

    CONTROLLER, A/C

    • Part No. TD26-1419A
    • 1 shown on diagram
    $634.99
  • 38 HOSE, A/C HP-UPR

    HOSE, A/C HP-UPR

    • Part No. TD26-1422A
    • 1 shown on diagram
    $214.99
  • 39

    O RING, A/C-JOIN-COND

    • Part No. TG36-2474A
    • 1 shown on diagram
    $1.19
  • 40

    HOSE, A/C HP-UPR

    • Part No. TD26-1423A
    • 1 shown on diagram
    $144.99
  • 41

    O RING, A/C-TO EVAP

    • Part No. TG36-2470A
    • OD12.1x2.4T
    • 1 shown on diagram
    $0.94
  • 42

    HOSE, DRAIN

    • Part No. TD26-1424A
    • 2 shown on diagram
    $.00
  • 43

    HOSE, HEATER-1

    • Part No. TD26-1426A
    • OD23/ID16
    • 1 shown on diagram
    $26.99
  • 44

    Hose, Heater-2

    • Part No. TD26-1427A
    • OD23/ID16
    • 1 shown on diagram
    $76.99
  • 45

    CONNECTOR-HOSE

    • Part No. TD26-1431A
    • 1 shown on diagram
    $13.99
  • 46

    COLLAR

    • Part No. TG16-1293A
    • T2.0
    • 2 shown on diagram
    $2.49
  • 47 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 2 shown on diagram
    $.73
  • 48

    SCREW v

    • Part No. 03054-50412
    • M4XP0.7
    • 2 shown on diagram
    $0.73
  • 49

    SCREW, BOLT

    • Part No. 03514-50416
    • 4 shown on diagram
    $0.46
  • 50

    ASSY CORE, EVAPORATOR

    • Part No. TC26-2334A
    • 1 shown on diagram
    $.00
  • 51

    PAD

    • Part No. TD26-1496A
    • 1 shown on diagram
    $.00
