DOUBLE ACTING VALVE LEVER GROUP - TC2-G641508

Kioti TRACTOR | CK Series | CK3520CHSEB

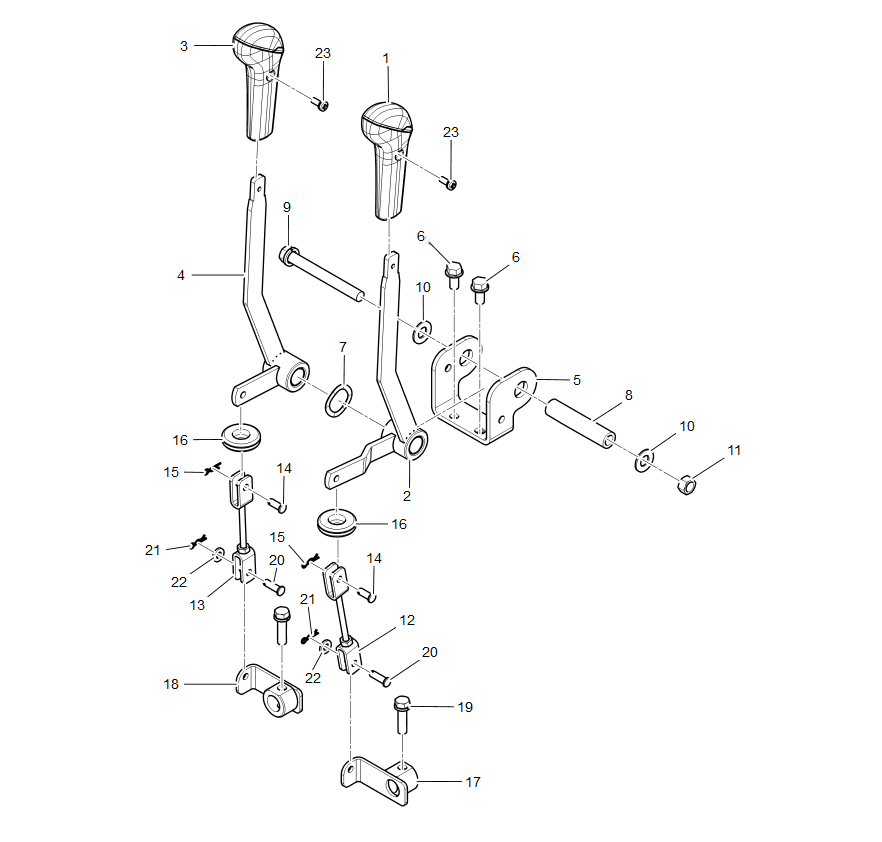

Diagram for DOUBLE ACTING VALVE LEVER GROUP - TC2-G641508
  • 1
    • Part No. TF26-2118A
    • 1 shown on diagram
  • 2
    • Part No. TC26-2301A
    • 1 shown on diagram
  • 3
    • Part No. TC26-2286A
    • 1 shown on diagram
  • 4
    • Part No. TC26-2299A
    • 1 shown on diagram
  • 5

    BRACKET

    • Part No. TC26-0478B
    • T4.5
    • 1 shown on diagram
    $28.99
  • 6 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 7

    WASHER, PLATE SPRING

    • Part No. TC26-1438A
    • T0.3
    • 1 shown on diagram
    $1.49
  • 8

    BUSH

    • Part No. U3215-52301
    • 1 shown on diagram
    $9.99
  • 9
    • Part No. 01133-51090
    • M10XP1.25
    • 1 shown on diagram
  • 10
    • Part No. 04014-50100
    • M10
    • 2 shown on diagram
  • 11 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 12
    • Part No. TC26-2302A
    • 1 shown on diagram
  • 13

    ROD, DOUBLE ACTING

    • Part No. TC26-1311A
    • 1 shown on diagram
    $29.99
  • 14

    Pin, Joint M6x16mm

    • Part No. 05122-50616
    • DIA6XL16
    • 2 shown on diagram
    $2.49
  • 15

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 2 shown on diagram
    $1.19
  • 16

    GROMMET

    • Part No. T2198-70471
    • 2 shown on diagram
    $3.49
  • 17

    LEVER, DOUBLE ACTING-1

    • Part No. TC26-0485A
    • 1 shown on diagram
    $29.99
  • 18

    LEVER, DOUBLE ACTING-2

    • Part No. TC26-0486A
    • 1 shown on diagram
    $29.99
  • 19 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 20

    Pin, Joint M6x20mm

    • Part No. 05122-50620
    • 2 shown on diagram
    $2.99
  • 21

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 2 shown on diagram
    $1.19
  • 22
    • Part No. T4930-66751
    • 2 shown on diagram
  • 23
    • Part No. 03024-50512
    • M5XP0.8
    • 2 shown on diagram
