FUEL TANK GROUP - TC2-G671006

Kioti TRACTOR | CK Series | CK3520CHSEB

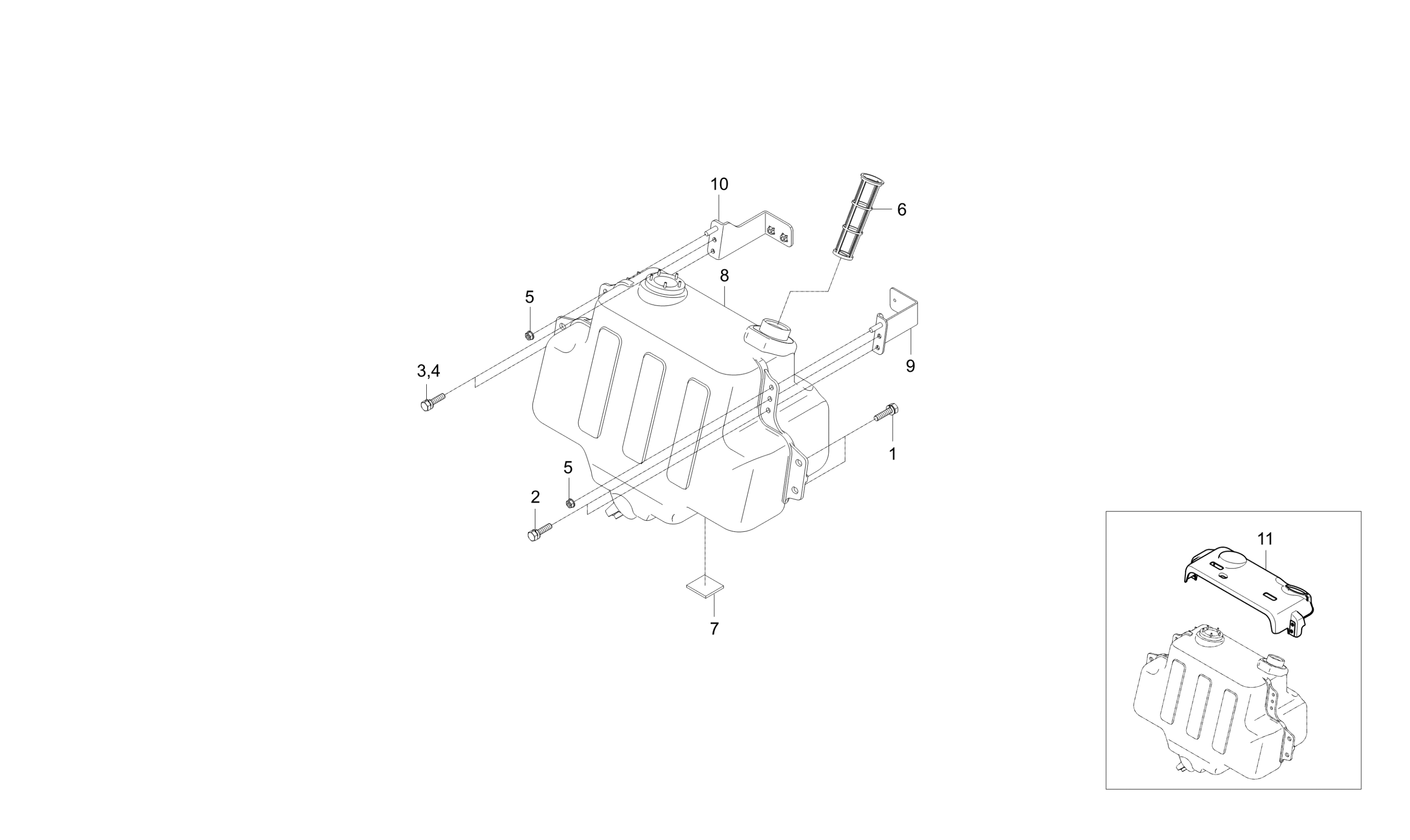

Diagram for FUEL TANK GROUP - TC2-G671006
  • 1

    BOLT WITH WASHER v

    • Part No. 01135-51025
    • M8*1.25
    • 4 shown on diagram
    $3.49
  • 2 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 4 shown on diagram
    $1.89
  • 3 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 4 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 5 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.85
  • 6 STRAINER,FUEL

    STRAINER,FUEL

    • Part No. T4686-41351
    • 1 shown on diagram
    $8.99
  • 7 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T4810-55312
    • 1 shown on diagram
    $2.49
  • 8

    FUEL TANK

    • Part No. T5855-52213
    • 1 shown on diagram
    $434.99
  • 9

    BRACKET, FUEL TANK-LH dnr v.

    • Part No. T5855-52223
    • 1 shown on diagram
    $54.99
  • 10

    BRACKET, FUEL TANK-RH dnr v.

    • Part No. T5855-52233
    • 1 shown on diagram
    $69.99
  • 11

    SHEILD,FUEL TANK

    • Part No. T5858-52211
    • 1 shown on diagram
    $44.99
