POSITION DRAFT CONTROL LEVER GROUP - TC2-G641009

Kioti TRACTOR | CK Series | CK3520CHSEB

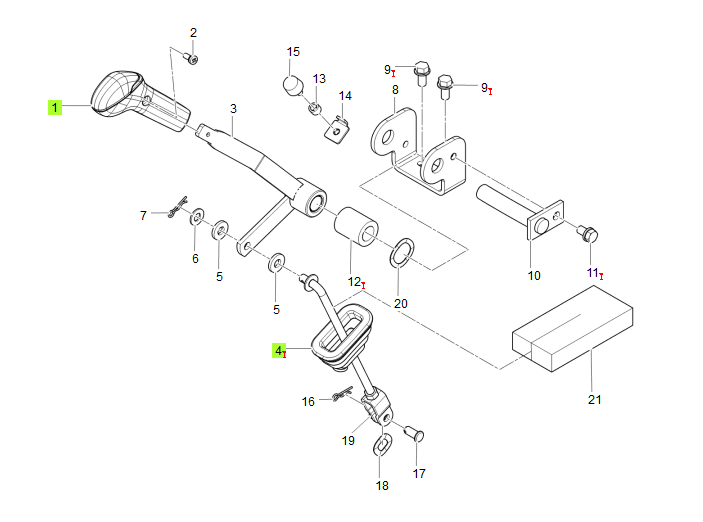

Diagram for POSITION DRAFT CONTROL LEVER GROUP - TC2-G641009
  • 1

    GRIP, RANGE SHIFT

    • Part No. TF26-1819B
    • 1 shown on diagram
    $.00
  • 2

    BOLT,SCREW

    • Part No. 03024-50512
    • M5XP0.8
    • 1 shown on diagram
    $0.68
  • 3

    LEVER, POSITION CONTROL

    • Part No. TC26-2279A
    • 1 shown on diagram
    $39.99
  • 4

    ASSY ROD, CONTROL POSITION v

    • Part No. TC26-1197A
    • 1 shown on diagram
    $48.99
  • 5

    WASHER 3

    • Part No. T4682-65311
    • 2 shown on diagram
    $0.79
  • 6

    Flat Washer M8

    • Part No. 04014-50080
    • M8
    • 1 shown on diagram
    $.67
  • 7 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 8

    BRACKET

    • Part No. TC26-0478B
    • T4.5
    • 1 shown on diagram
    $28.99
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 10

    SHAFT

    • Part No. TC26-0578A
    • 1 shown on diagram
    $14.99
  • 11

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 12

    BUSHING

    • Part No. T5715-53471
    • OD28,ID16.5
    • 1 shown on diagram
    $4.99
  • 13

    SPACER

    • Part No. T4520-83301
    • DIA10.5*T2.0
    • 1 shown on diagram
    $4.99
  • 14

    Lever Stopper (T2350-95472)

    • Part No. T2350-95472
    • 1 shown on diagram
    $3.49
  • 15 BOLT, RESIN M6 P1.00 x 13 v

    BOLT, RESIN M6 P1.00 x 13 v

    • Part No. 53415-4128-1
    • 1 shown on diagram
    $5.99
  • 16 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 17

    Pin, Joint M8x18mm

    • Part No. 05122-50818
    • DIA8XL18
    • 1 shown on diagram
    $2.99
  • 18

    SPRING

    • Part No. T4157-56111
    • 1 shown on diagram
    $1.89
  • 19

    WASHER 2

    • Part No. T4930-66741
    • 1 shown on diagram
    $3.49
  • 20

    WASHER, PLATE SPRING

    • Part No. TC26-1438A
    • T0.3
    • 1 shown on diagram
    $1.49
  • 21

    SPONGE

    • Part No. TC26-2679A
    • T20
    • 1 shown on diagram
    $.00
