ROOF GROUP - TC2-G6C2513

Kioti TRACTOR | CK Series | CK3520CHSEB

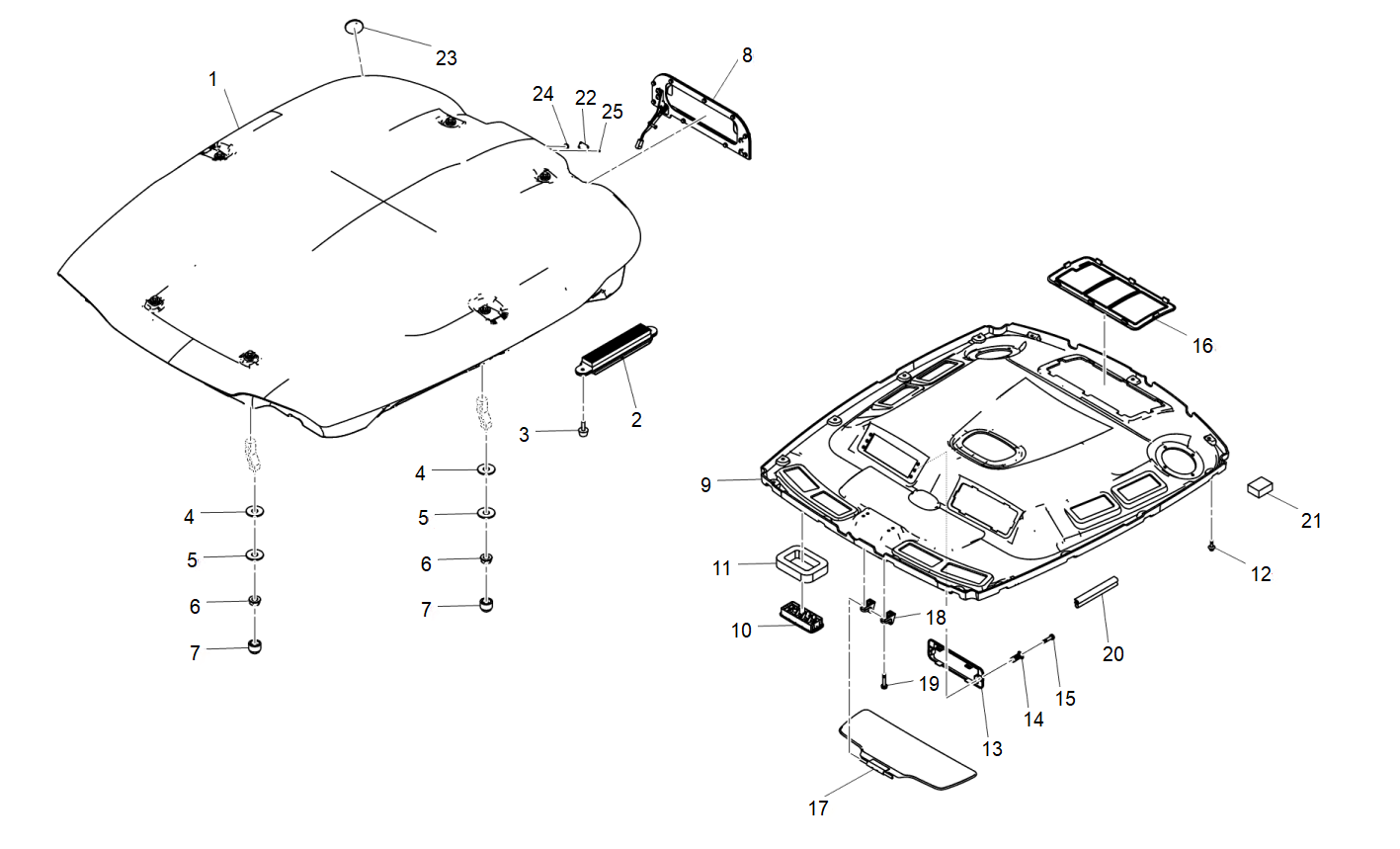

Diagram for ROOF GROUP - TC2-G6C2513
  • 1

    ROOF ASSY

    • Part No. TC26-2272A
    • 1 shown on diagram
    $1,484.99

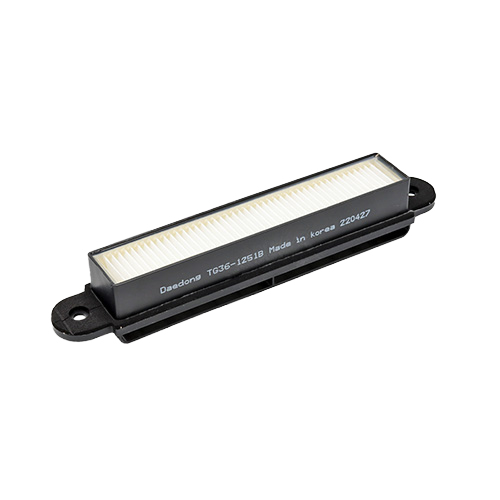

  • 2 FILTER, EXTERNAL CAB AIR

    FILTER, EXTERNAL CAB AIR

    • Part No. TG36-1251B
    • Serial No. PA4DA0271 to RA4DA0189
    • 4 shown on diagram
    $37.99
  • 3 BOLT, RESIN M6 P1.00 x 13 v

    BOLT, RESIN M6 P1.00 x 13 v

    • Part No. 53415-4128-1
    • 8 shown on diagram
    $5.99
  • 4

    COLLAR

    • Part No. T4681-83431
    • 6 shown on diagram
    $3.49
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 6 shown on diagram
    $1.09
  • 6 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 6 shown on diagram
    $0.85
  • 7 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 6 shown on diagram
    $1.49
  • 8

    BRACKET

    • Part No. T5525-84903
    • 1 shown on diagram
    $349.99
  • 9

    CEILING dnr v

    • Part No. TC26-1620A
    • T5.0
    • 1 shown on diagram
    $484.99
  • 10

    GRILL, AIR CONDITIONER

    • Part No. TC26-0679A
    • 8 shown on diagram
    $28.99
  • 11 SPONGE

    SPONGE

    • Part No. T4145-81532
    • 8 shown on diagram
    $11.99
  • 12

    BOLT, SPECIAL v

    • Part No. TC26-0916A
    • 15 shown on diagram
    $1.29
  • 13 Stereo Cover (T4145-82072 )

    Stereo Cover (T4145-82072 )

    • Part No. T4145-82072
    • 1 shown on diagram
    $9.99
  • 14 NUT, INSERT obs

    NUT, INSERT obs

    • Part No. T5210-82011002
    • 6 shown on diagram
    $0.79
  • 15 OB Screw (03054-50420)

    OB Screw (03054-50420)

    • Part No. 03054-50420
    • M4XP0.7
    • 2 shown on diagram
    $0.68
  • 16 COVER

    COVER

    • Part No. T5525-84854
    • T3.0
    • 1 shown on diagram
    $27.99
  • 17

    SUNVISOR

    • Part No. TC26-0591B
    • 1 shown on diagram
    $149.99
  • 18

    BRACKET, SUN VISOR FIXED

    • Part No. T4930-80143
    • 2 shown on diagram
    $12.99
  • 19

    SCREW

    • Part No. 03004-50640
    • M6XP1.0
    • 2 shown on diagram
    $0.79
  • 20

    RUBBER, ROOF SEAING

    • Part No. TE16-0003A
    • 25X25
    • 2 shown on diagram
    $43.99
  • 21

    SPONGE, B PILLAR

    • Part No. TC26-1255A
    • 2 shown on diagram
    $19.99
  • 22

    PLATE, BLOCK

    • Part No. TG36-1854A
    • T2.3
    • 1 shown on diagram
    $7.49
  • 23

    PACKING

    • Part No. T4145-81961
    • T3.0
    • 1 shown on diagram
    $12.99
  • 24

    GROMMET

    • Part No. T4935-78122
    • 1 shown on diagram
    $4.99
  • 25 OB Screw (03054-50420)

    OB Screw (03054-50420)

    • Part No. 03054-50420
    • M4XP0.7
    • 4 shown on diagram
    $0.68
