RADIATOR GROUP - TC2-G612518

Kioti TRACTOR | CK Series | CK3520CHSEB

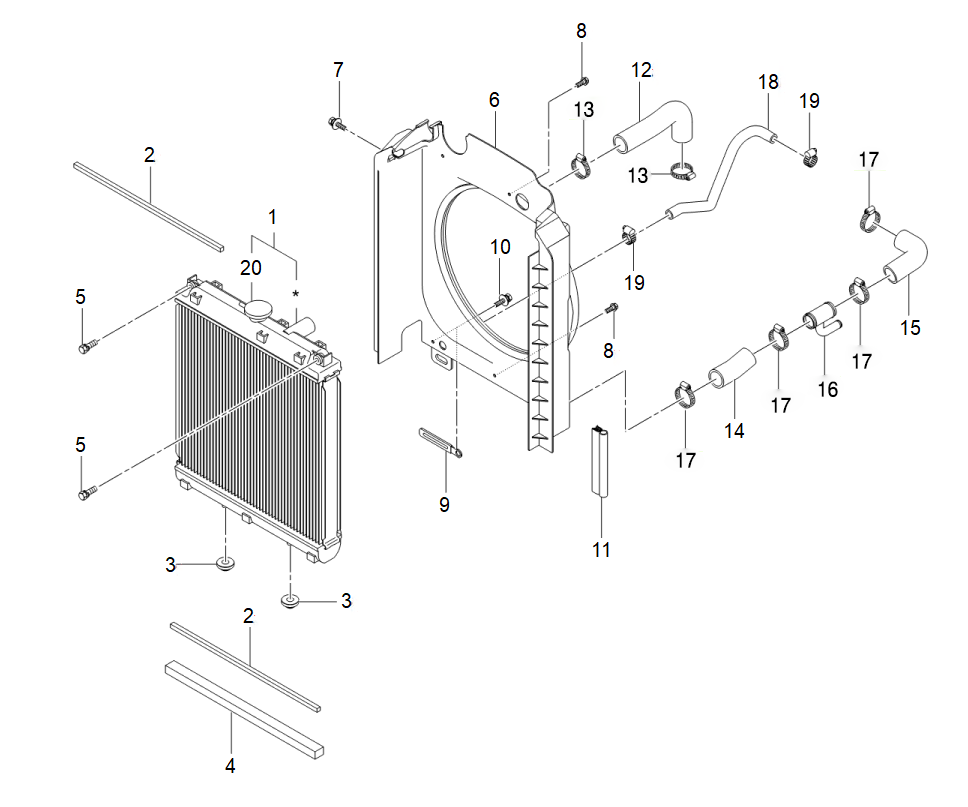

Diagram for RADIATOR GROUP - TC2-G612518
  • 1

    ASSY RADIATOR – OS v

    • Part No. TC26-1800A
    • 1 shown on diagram
    $649.99
  • 2

    SPONGE

    • Part No. T4931-72091
    • Serial No. PA4DA0001 to RA4DA0087
    • 2 shown on diagram
    $5.49
  • 3

    CUSHION

    • Part No. T4125-13561
    • Serial No. PA4DA0001 and up
    • 2 shown on diagram
    $5.99
  • 4

    SPONGE, 5

    • Part No. T5855-50571
    • High foaming PU foam
    • 1 shown on diagram
    $26.99
  • 5
    • Part No. 01754-50622
    • M6XP1.0
    • 2 shown on diagram
  • 6

    SHROUD

    • Part No. TC26-0417A
    • T2.5
    • 1 shown on diagram
    $92.99
  • 7

    BOLT, WASHER

    • Part No. 01027-50616
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 9

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 10

    BOLT, WASHER

    • Part No. 01027-50620
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 11

    RUBBER,RADIATOR

    • Part No. T5855-50552
    • Serial No. PA4DA0001 to RA4DA0189
    • 2 shown on diagram
    $21.99
  • 12
    • Part No. TC26-0420C
    • Serial No. PA4DA0001 and up
    • OD46/ID35
    • 1 shown on diagram
  • 13

    CLAMP BAND

    • Part No. E1500-18411
    • * multiple options for #13
    • 2 shown on diagram
    $4.49
  • 13

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchngable
    • 25-40mm
    • * multiple options for #13
    • 1 shown on diagram
    $2.99
  • 13
    • Part No. CE11-0011A
    • Compatibility Interchngable
    • 32-50mm
    • * multiple options for #13
    • 2 shown on diagram
  • 14

    HOSE, COOLING WATER-LWR 3

    • Part No. TC26-1044B
    • OD 44 / ID 34
    • 1 shown on diagram
    $13.99
  • 15
    • Part No. TC26-1045B
    • OD44 / ID34
    • 1 shown on diagram
  • 16

    PIPE, COOLING WATER

    • Part No. TC26-1046A
    • Serial No. PA4DA0001 to RA4DA0222
    • * multiple options for #16
    • 1 shown on diagram
    $52.99
  • 16

    PIPE, COOLING WATER

    • Part No. TC26-1046B
    • Compatibility Interchngable
    • Serial No. PA4DA0654 to RA4DA0222
    • * multiple options for #16
    • 1 shown on diagram
    $.00
  • 17

    CLAMP BAND

    • Part No. E1500-18411
    • * multiple options for #17
    • 4 shown on diagram
    $4.49
  • 17

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchngable
    • 25-40mm
    • * multiple options for #17
    • 1 shown on diagram
    $2.99
  • 17
    • Part No. CE11-0011A
    • Compatibility Interchngable
    • 32-50mm
    • * multiple options for #17
    • 4 shown on diagram
  • 18 CAP, SEALING

    CAP, SEALING

    • Part No. T5535-50451
    • 1 shown on diagram
    $4.49
  • 19

    BAND, HOSE

    • Part No. 66204-3623-1
    • Serial No. PA4DA0001 and up
    • 1 shown on diagram
    $3.99
  • 20

    Radiator Cap

    • Part No. U3215-77501
    • 1 shown on diagram
    $27.99
