FRONT WHEEL DRIVE LEVER GROUP - TC2-G644502

Kioti TRACTOR | CK Series | CK3520CHSEB

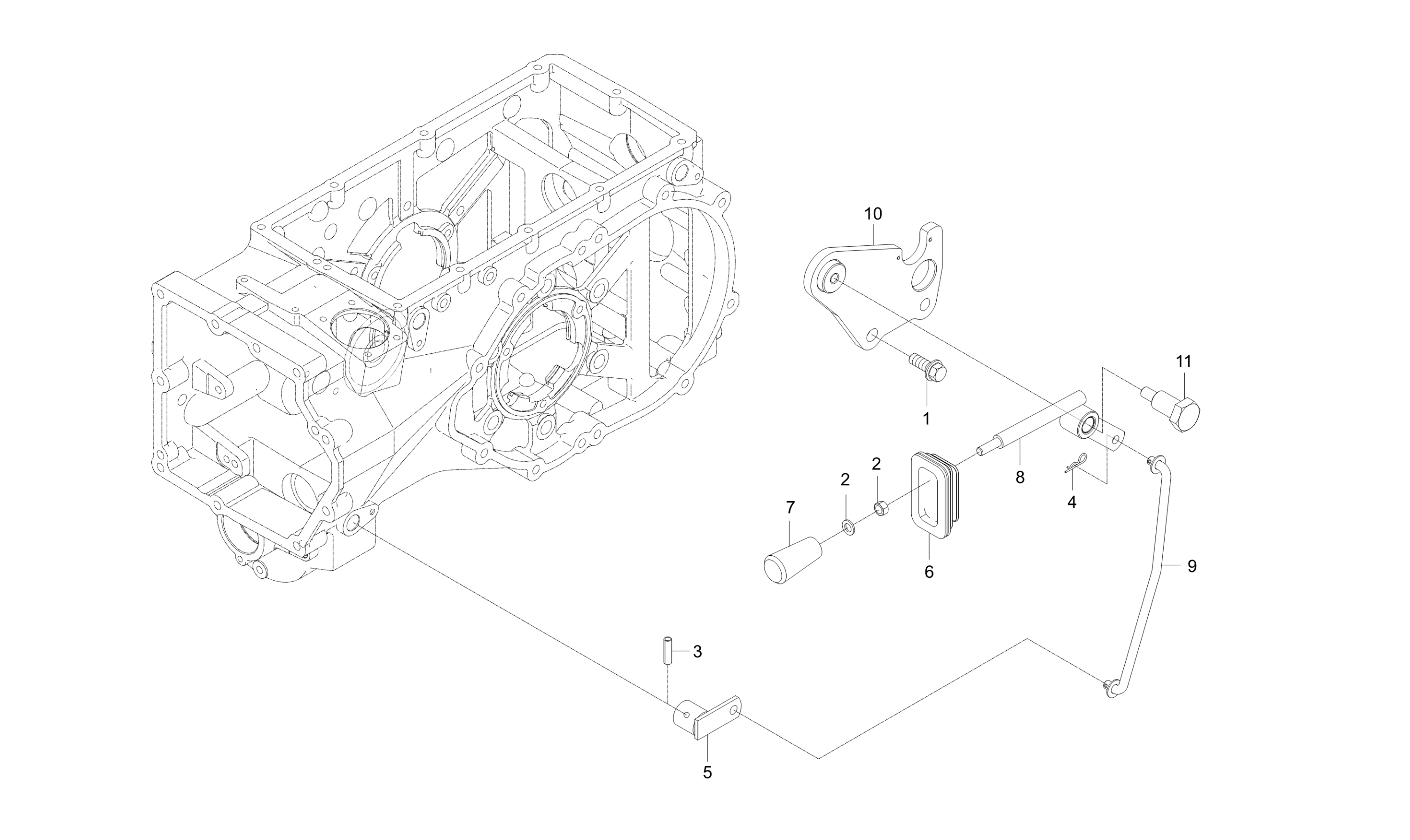

Diagram for FRONT WHEEL DRIVE LEVER GROUP - TC2-G644502
  • 1 Bolt w/Lock Washer M12 P1.25x25mm

    Bolt w/Lock Washer M12 P1.25x25mm

    • Part No. 01133-51225
    • M12XP1.25
    • 2 shown on diagram
    $3.49
  • 2 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
  • 4

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 5

    4wd-Link Arm 1, Replaced by T2185-44764BB

    • Part No. T2185-44764
    • 1 shown on diagram
    $0.00
  • 6

    BOOT

    • Part No. T4620-65031
    • 1 shown on diagram
    $18.99
  • 7

    GRIP

    • Part No. T5715-53611
    • 1 shown on diagram
    $11.99
  • 8

    4WD LEVER dnr v

    • Part No. T5855-57612
    • 1 shown on diagram
    $53.99
  • 9

    ROD ,FRONT DRIVE

    • Part No. T5855-57632
    • 1 shown on diagram
    $31.99
  • 10

    BRACKET, 4WD

    • Part No. TC26-0489ABB
    • 1 shown on diagram
    $0.00
  • 11

    BOLT- 4WD

    • Part No. TC26-0490A
    • HEX 27
    • 1 shown on diagram
    $23.99
