EXTERNAL POSITION ADJUSTING LEVER GROUP - TC2-G648501

Kioti TRACTOR | CK Series | CK3520CHSEB

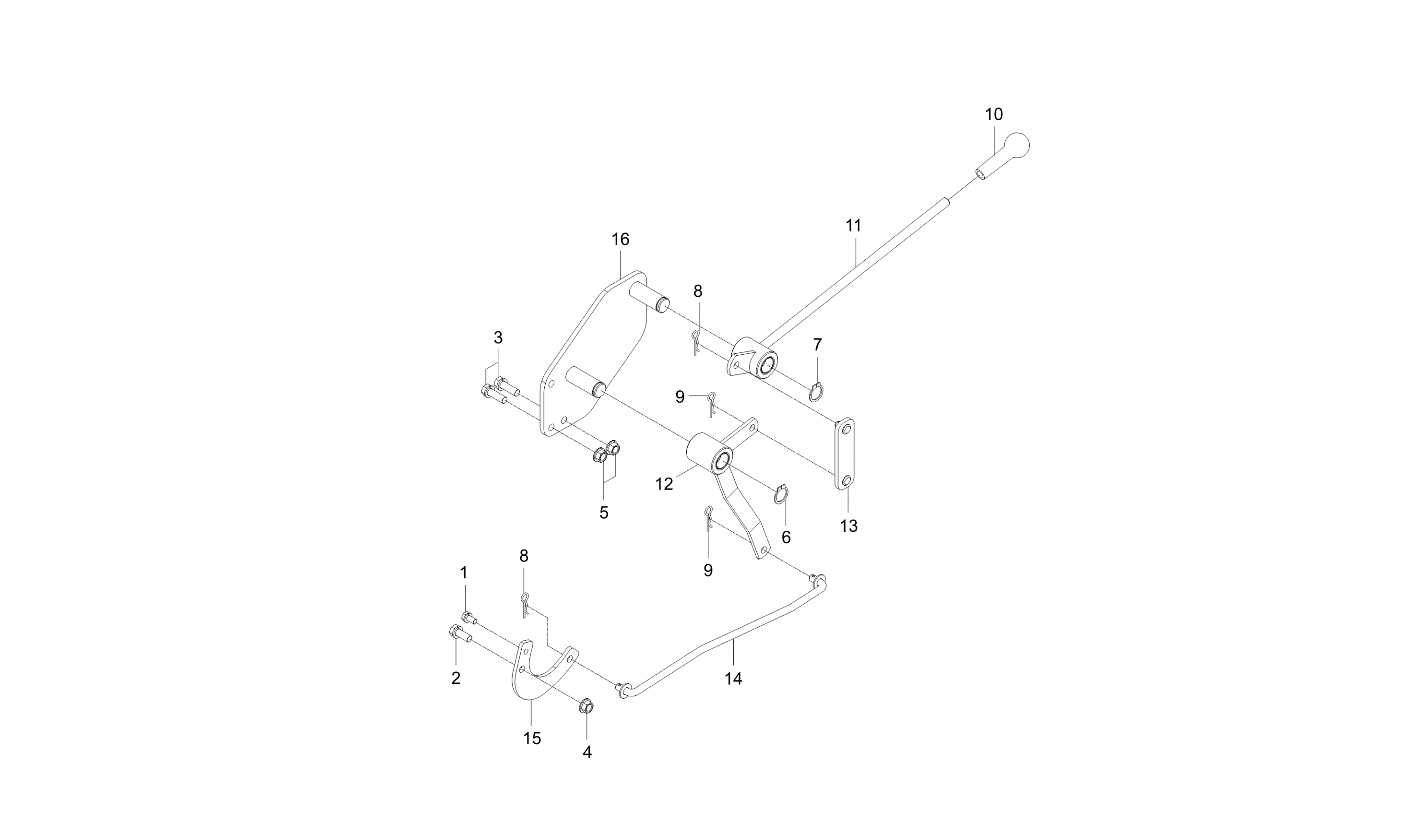

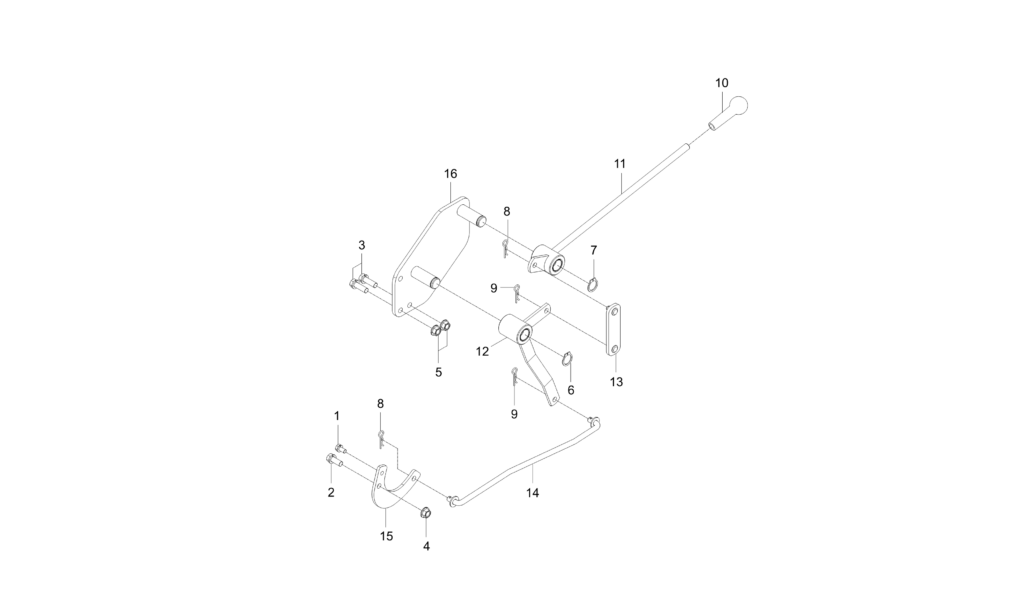

Diagram for EXTERNAL POSITION ADJUSTING LEVER GROUP - TC2-G648501
  • 1

    BOLT, WASHER v

    • Part No. 01023-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 2 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 3 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 4
    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
  • 5
    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
  • 6
    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
  • 7
    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
  • 8

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 9

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 10

    GRIP

    • Part No. T4818-71221
    • 1 shown on diagram
    $8.49
  • 11

    LEVER, POSITION CONTROL

    • Part No. TC26-1397ABB
    • 1 shown on diagram
    $.00
  • 12

    ARM, CONNECTING

    • Part No. TC26-1401ABB
    • 1 shown on diagram
    $73.99
  • 13

    ROD, CONNECTING

    • Part No. TC26-1417B
    • 1 shown on diagram
    $23.99
  • 14

    BRACKET, ROD CONNECTING

    • Part No. TC26-1419A
    • 1 shown on diagram
    $28.99
  • 15

    BRACKET, CONNECTING

    • Part No. TC26-1421A
    • T4.5
    • 1 shown on diagram
    $16.99
  • 16

    BRACKET, POSITION

    • Part No. TC26-1422B
    • 1 shown on diagram
    $77.99
