AIR CONDITIONER DRIVE GROUP - TC2-G614001

Kioti TRACTOR | CK Series | CK3520CHSEB

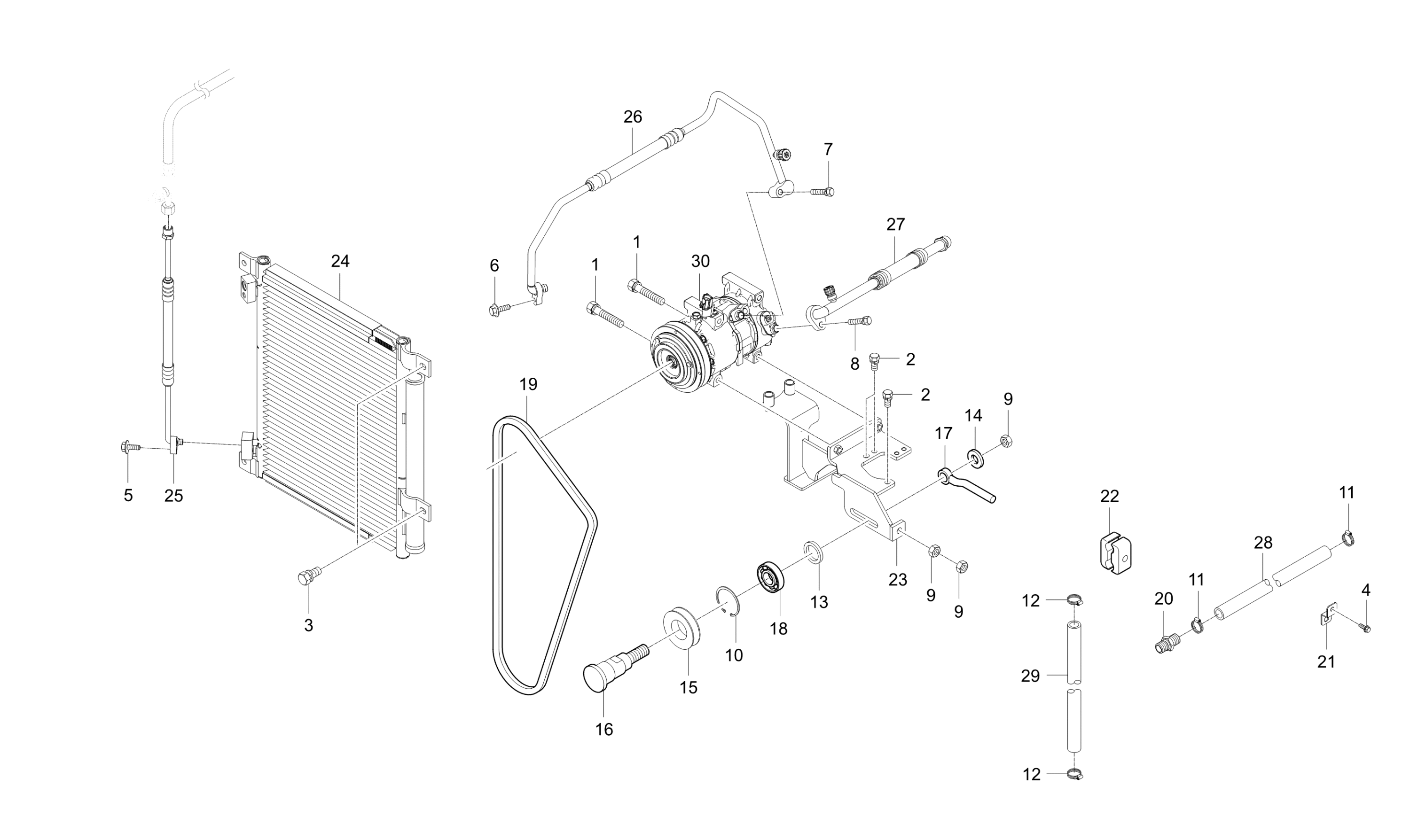

Diagram for AIR CONDITIONER DRIVE GROUP - TC2-G614001
  • 1
    • Part No. 01123-50800
    • M8*1.25
    • 2 shown on diagram
  • 2 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 5 shown on diagram
    $1.09
  • 3 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 4 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 5

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 6 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 7
    • Part No. 01754-50622
    • 1 shown on diagram
  • 8
    • Part No. 01754-50622
    • 1 shown on diagram
  • 9 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 3 shown on diagram
    $.98
  • 10 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • SK5M
    • 1 shown on diagram
    $1.39
  • 11

    BAND, HOSE

    • Part No. 66204-3623-1
    • 2 shown on diagram
    $3.99
  • 12

    BAND, HOSE

    • Part No. 66204-3623-1
    • 2 shown on diagram
    $3.99
  • 13
    • Part No. 76KB-0511
    • DIA25*10
    • 1 shown on diagram
  • 14
    • Part No. 76KB-0512
    • 10.5*22*T3.2
    • 1 shown on diagram
  • 15
    • Part No. E2101-05312ED
    • 1 shown on diagram
  • 16 SHAFT, PULLEY

    SHAFT, PULLEY

    • Part No. E7300-05304
    • 1 shown on diagram
    $17.99
  • 17

    BOLT, TENSION dnr v

    • Part No. E7310-76161
    • 1 shown on diagram
    $22.99
  • 18 BEARING, BALL

    BEARING, BALL

    • Part No. E7310-76191
    • 1 shown on diagram
    $15.99
  • 19 BELT, FAN

    BELT, FAN

    • Part No. E7318-72531
    • REC A-56
    • 1 shown on diagram
    $25.99
  • 20

    CONNECTOR, COOLANT

    • Part No. F6810-13411
    • 1 shown on diagram
    $19.99
  • 21

    BRACKET

    • Part No. T5250-68771
    • t1.6
    • 1 shown on diagram
    $9.49
  • 22

    HOLDER v

    • Part No. T5310-84111
    • 2 shown on diagram
    $8.99
  • 23
    • Part No. TC26-1648ABB
    • 1 shown on diagram

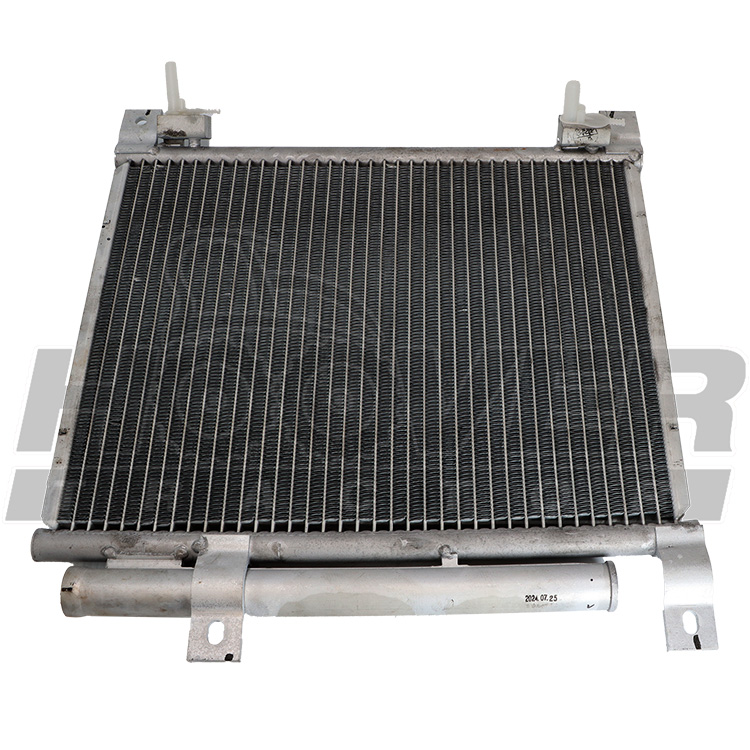

  • 24 ASSY CONDENSER v

    ASSY CONDENSER v

    • Part No. TC26-0416B
    • 1 shown on diagram
    $524.99
  • 25

    HOSE, A/C HP1

    • Part No. TC26-0448A
    • 1 shown on diagram
    $244.99

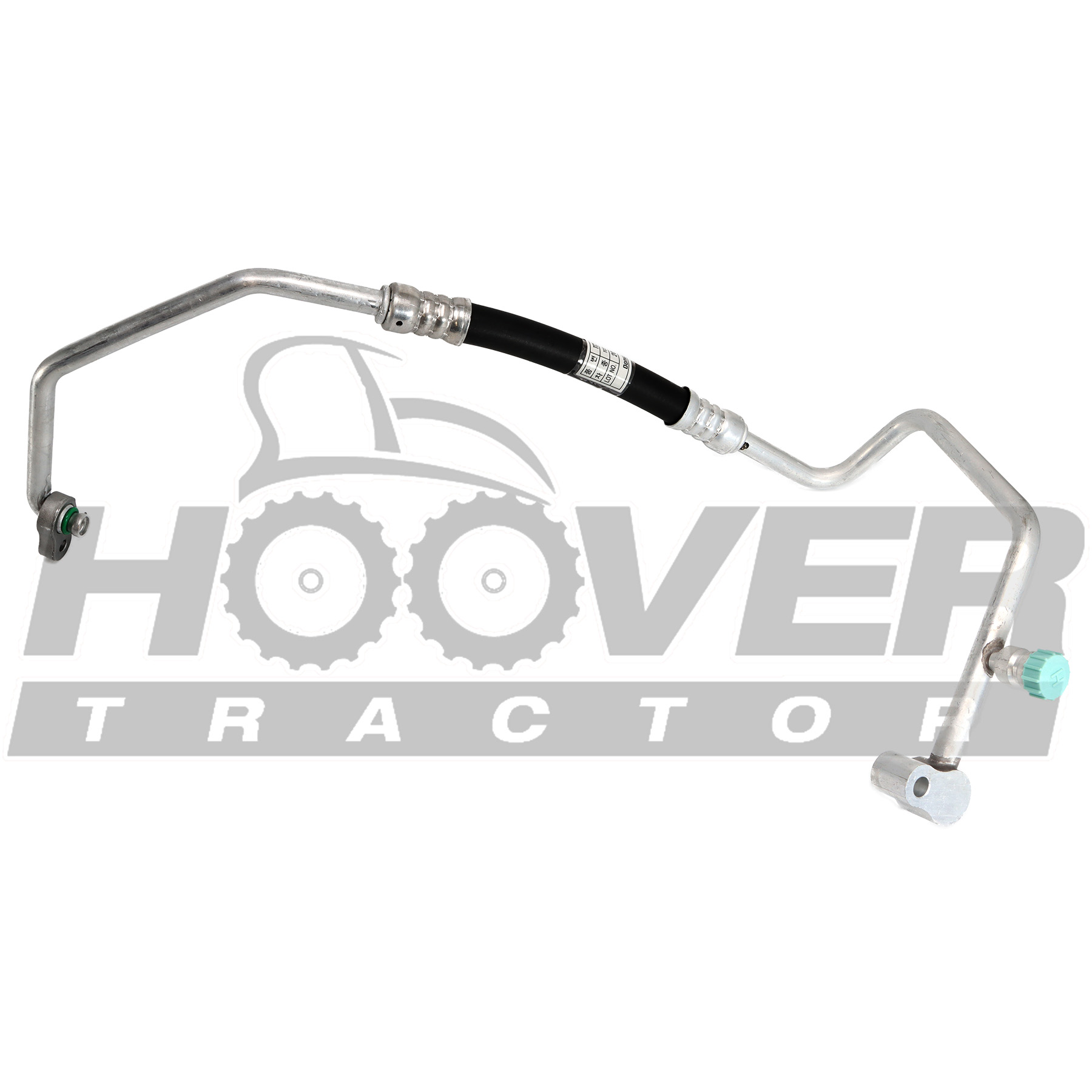

  • 26 HOSE, A/C HP-2 v

    HOSE, A/C HP-2 v

    • Part No. TC26-0449B
    • 1 shown on diagram
    $199.99
  • 27

    HOSE, A/C LP-3

    • Part No. TC26-0450A
    • 1 shown on diagram
    $254.99
  • 28

    HOSE, HEATER-A

    • Part No. TC26-0451C
    • OD23 / ID16
    • 1 shown on diagram
    $68.99
  • 29

    HOSE, HEATER-B

    • Part No. TC26-0452C
    • OD23 / ID16
    • 1 shown on diagram
    $67.99
  • 30
    • Part No. TE16-0023A
    • 1 shown on diagram
