POSITION DRAFT CONTROL LEVER GROUP - TC2-G641003

Kioti TRACTOR | CK Series | CK3520CHSEB

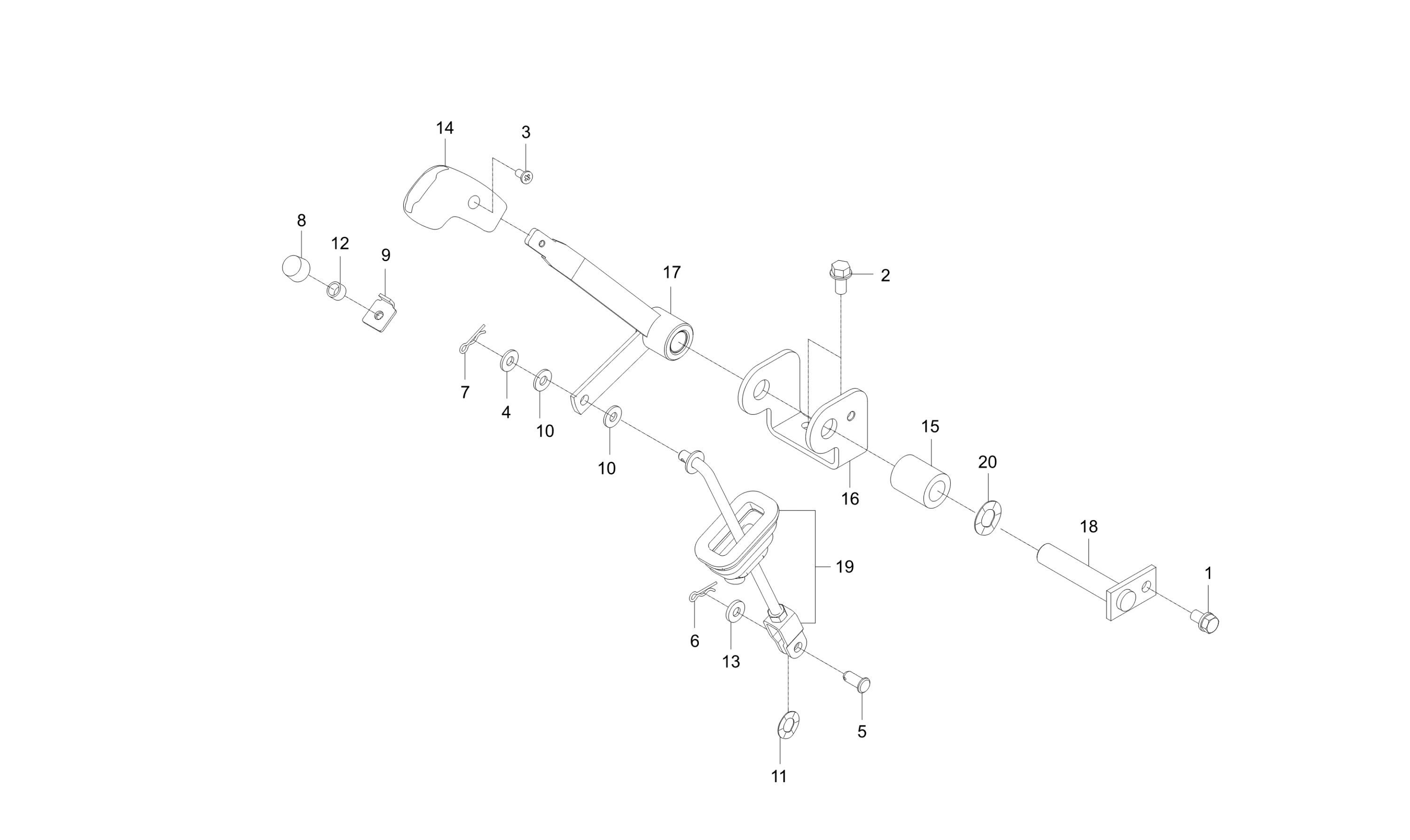

Diagram for POSITION DRAFT CONTROL LEVER GROUP - TC2-G641003
  • 1

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 3 SCREW

    SCREW

    • Part No. 03056-50510
    • M5XP0.8
    • 1 shown on diagram
    $0.62
  • 4

    Flat Washer M8

    • Part No. 04014-50080
    • 1 shown on diagram
    $.67
  • 5
    • Part No. 05122-50818
    • 1 shown on diagram
  • 6
    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
  • 7
    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
  • 8
    • Part No. 53415-4128-1
    • 1 shown on diagram
  • 9
    • Part No. T2350-95472
    • 1 shown on diagram
  • 10

    WASHER 3

    • Part No. T4682-65311
    • 2 shown on diagram
    $0.79
  • 11
    • Part No. T4157-56111
    • 1 shown on diagram
  • 12

    SPACER

    • Part No. T4520-83301
    • DIA10.5*T2.0
    • 1 shown on diagram
    $4.99
  • 13

    WASHER 2

    • Part No. T4930-66741
    • 1 shown on diagram
    $3.49
  • 14

    GRIP

    • Part No. T5710-53471
    • 1 shown on diagram
    $19.99
  • 15
    • Part No. T5715-53471
    • OD28,ID16.5
    • 1 shown on diagram
  • 16

    BRACKET

    • Part No. TC26-0478B
    • T4.5
    • 1 shown on diagram
    $28.99
  • 17
    • Part No. TC26-0479ABB
    • 1 shown on diagram
  • 18

    SHAFT

    • Part No. TC26-0578A
    • 1 shown on diagram
    $14.99
  • 19

    ASSY ROD, CONTROL POSITION v

    • Part No. TC26-1197A
    • 1 shown on diagram
    $48.99
  • 20

    WASHER, PLATE SPRING

    • Part No. TC26-1438A
    • T0.3
    • 1 shown on diagram
    $1.49
