BONNET SUPPORT GROUP - TC2-G616001

Kioti TRACTOR | CK Series | CK3520CHSEB

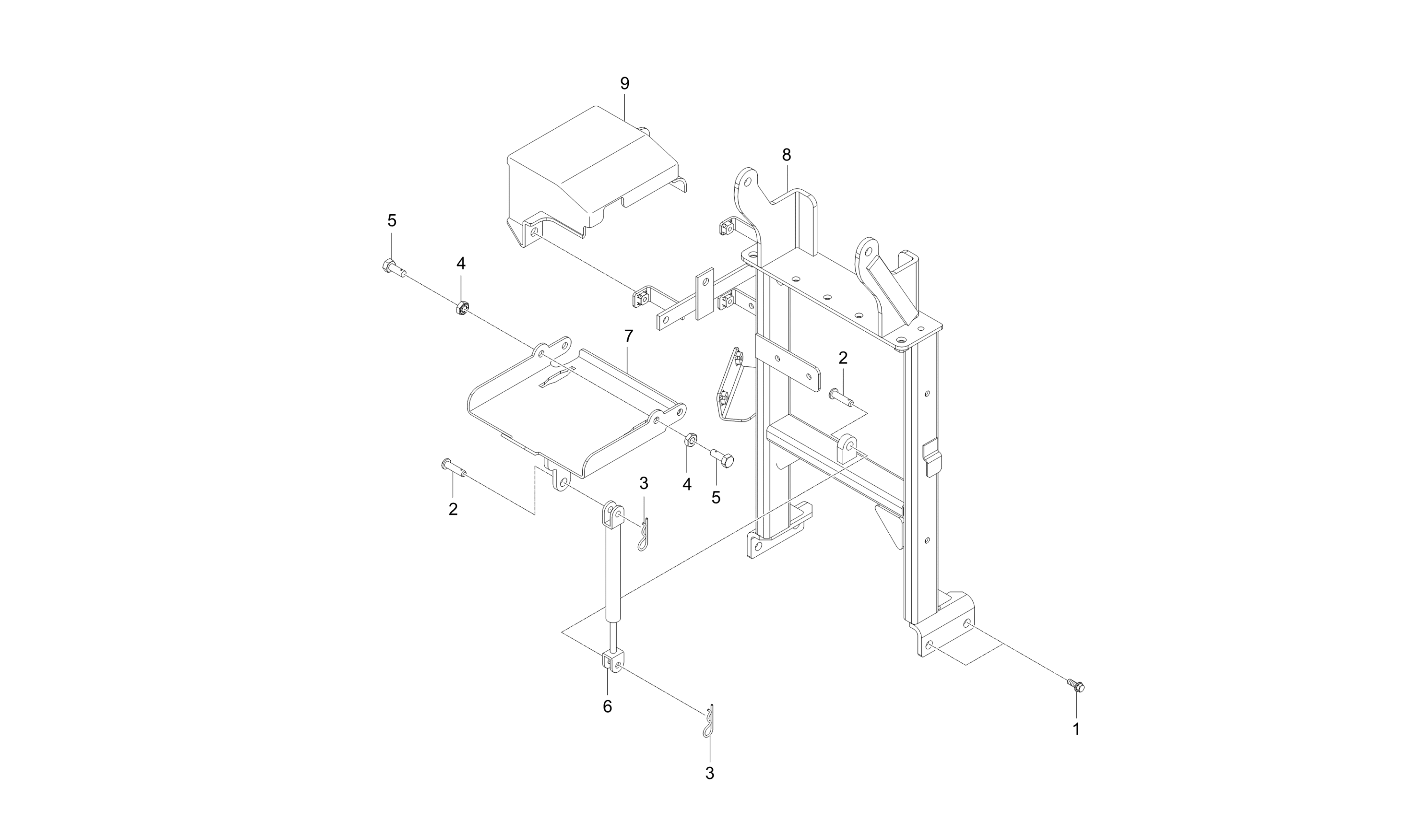

Diagram for BONNET SUPPORT GROUP - TC2-G616001
  • 1

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 2
    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
  • 3

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 4 NUT, LOCK(M8)

    NUT, LOCK(M8)

    • Part No. 41011-5151-4
    • 2 shown on diagram
    $2.49
  • 5

    BOLT, BONNET

    • Part No. T2350-50633
    • 2 shown on diagram
    $3.49
  • 6

    AIR CYLINDER

    • Part No. T5710-51191
    • 1 shown on diagram
    $99.99
  • 7

    BRACKET, HINGE BONNET

    • Part No. TC26-0429B
    • 1 shown on diagram
    $73.99
  • 8

    ASSY SUPPORT, BONNET

    • Part No. TC26-0432E
    • * multiple options for #8
    • 1 shown on diagram
    $254.99
  • 8

    ASSY SUPPORT, BONNET

    • Part No. TC26-0432F
    • Compatibility Interchngable
    • * multiple options for #8
    • 1 shown on diagram
    $334.99
  • 9

    COVER, PROTECTING

    • Part No. TC26-1918A
    • T2.5
    • 1 shown on diagram
    $21.99
