STEERING COLUMN GROUP - TC2-G653014

Kioti TRACTOR | CK Series | CK3520CHSEB

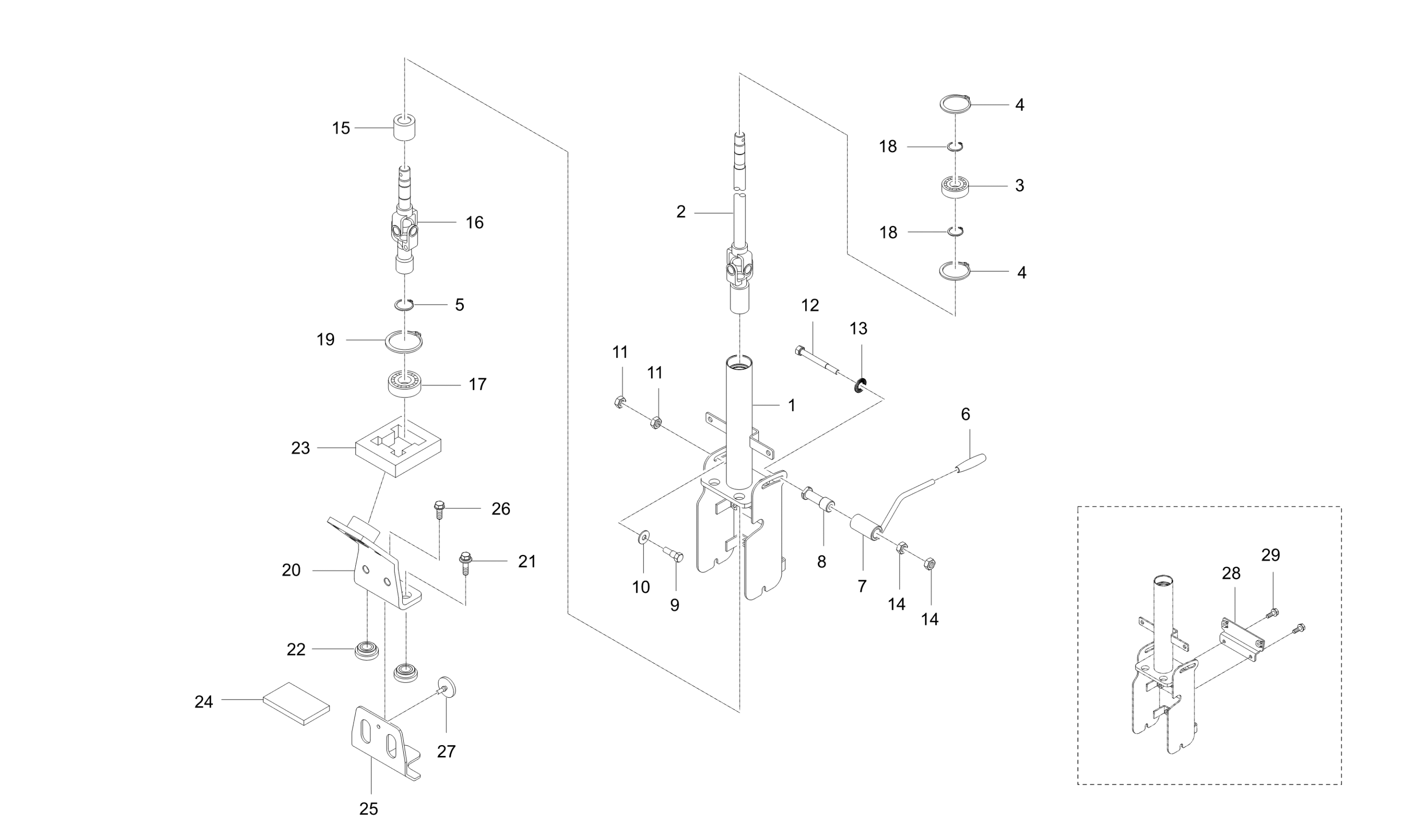

Diagram for STEERING COLUMN GROUP - TC2-G653014
  • 1

    ASSY COLUMN, STEERING-US

    • Part No. TC26-2040A
    • 1 shown on diagram
    $.00
  • 2

    SHAFT, HANDLE-UPR

    • Part No. TC26-1222A
    • 1 shown on diagram
    $409.99
  • 3 BEARING,BALL 17x35x10

    BEARING,BALL 17x35x10

    • Part No. 08111-06003
    • 1 shown on diagram
    $11.99
  • 4 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • SK5M
    • 2 shown on diagram
    $1.39
  • 5 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 1 shown on diagram
    $0.98
  • 6

    GRIP, DARK BLUE

    • Part No. T2185-71241
    • 1 shown on diagram
    $4.49
  • 7
    • Part No. T5710-80841
    • N
    • 1 shown on diagram
  • 8

    BOLT, HOLDER

    • Part No. T5710-80852
    • 1 shown on diagram
    $29.99
  • 9

    BOLT

    • Part No. T5710-80861
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 10
    • Part No. 04015-50080
    • M8
    • 1 shown on diagram
  • 11
    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
  • 12

    BOLT

    • Part No. T5710-80871
    • M8XP1.25
    • 1 shown on diagram
    $4.49

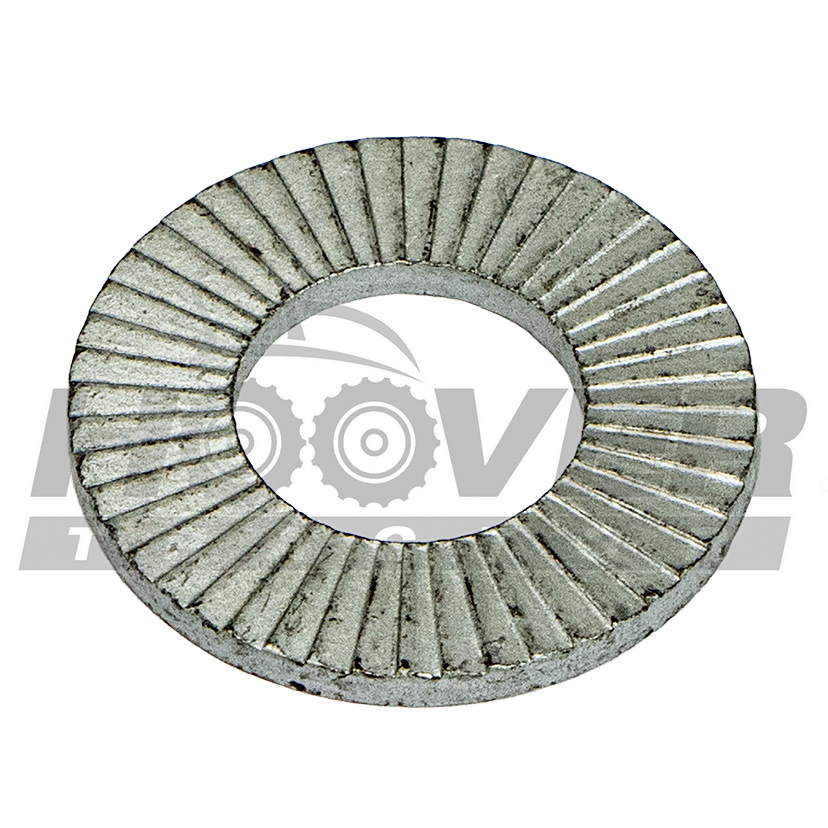

  • 13 WASHER

    WASHER

    • Part No. T5715-80691
    • T2.0
    • 1 shown on diagram
    $17.99
  • 14
    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
  • 15 RUBBER CUSHION

    RUBBER CUSHION

    • Part No. T4260-50100
    • L3503, D4351
    • 1 shown on diagram
    $9.49
  • 16

    SHAFT, HANDLE

    • Part No. T5270-66263
    • 1 shown on diagram
    $364.99
  • 17

    BEARING, BALL

    • Part No. 08141-06203
    • DIA17
    • 1 shown on diagram
    $15.99
  • 18 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 2 shown on diagram
    $0.98
  • 19

    CIR CLIP, INTERNAL

    • Part No. 04611-00400
    • DIA40
    • 1 shown on diagram
    $2.49
  • 20

    BRACKET, SHAFT SUPPORT

    • Part No. TC26-1234B
    • 1 shown on diagram
    $92.99
  • 21

    BOLT, WASHER

    • Part No. 01135-51035
    • 2 shown on diagram
    $3.99
  • 22

    BUSHING

    • Part No. T5520-80531
    • 4 shown on diagram
    $7.49
  • 23

    PAD, SEALING-UPR

    • Part No. TC26-1244A
    • 130X110xT30
    • 1 shown on diagram
    $42.99
  • 24

    CUSHION-LWR

    • Part No. TC26-1245A
    • 95X60, T10
    • 1 shown on diagram
    $7.49
  • 25

    BRACKET

    • Part No. TC26-1502A
    • T3.2
    • 1 shown on diagram
    $35.99
  • 26

    BOLT, FLANGE

    • Part No. 01774-51020
    • M10P1.25
    • 1 shown on diagram
    $2.99
  • 27

    CUSHION v

    • Part No. T4520-26931
    • 1 shown on diagram
    $6.49
  • 28

    BRACKET

    • Part No. TC26-2041A
    $9.49
  • 29 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 2 shown on diagram
    $1.89
