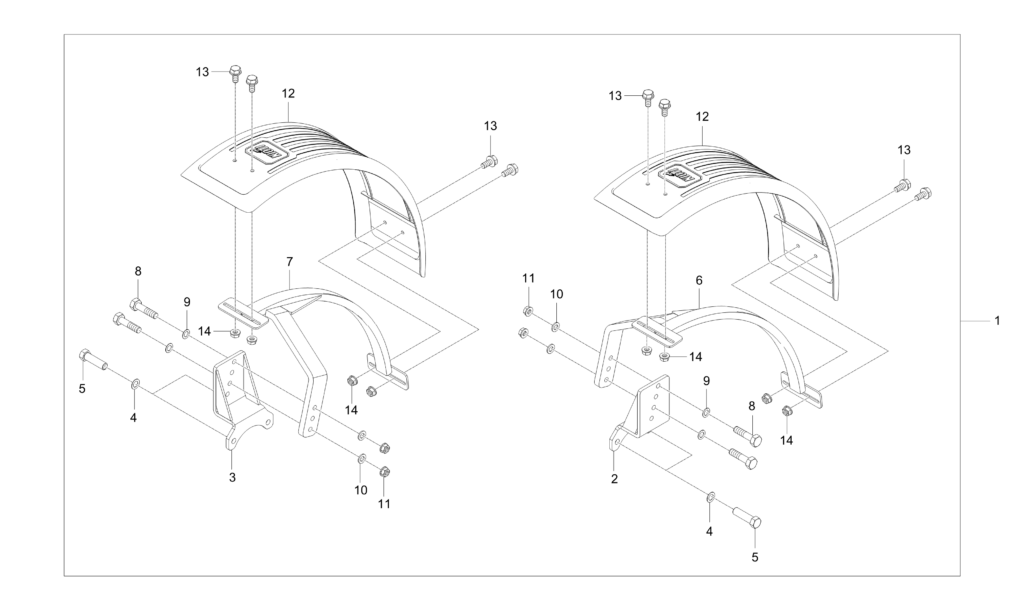

FRONT FENDER GROUP - TC2-G6G0501
Kioti TRACTOR | CK Series | CK3520CHSEB
-
FRONT FENDER ASSY KIT
- Part No. TC26-A0134B
- 1 shown on diagram
$0.00 -
BRACKET, FRONT FENDER-LH
- Part No. TC26-1932A
- 1 shown on diagram
$89.99 -
BRACKET, FRONT FENDER-RH
- Part No. TC26-1941A
- 1 shown on diagram
$89.99 -
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 4 shown on diagram
$0.90 -
Bolt M14 P1.50x50mm
- Part No. 01173-51450
- M14*P1.5*50
- 4 shown on diagram
$5.99 -
SUPPORT, FRONT FENDER-LH
- Part No. TC26-1936A
- 1 shown on diagram
$194.99 -
SUPPORT, FRONT FENDER-RH
- Part No. TC26-1942A
- 1 shown on diagram
$194.99 -
Bolt M10 P1.25x45mm
- Part No. 01173-51045
- 4 shown on diagram
$2.99 -
Flat Washer M10
- Part No. 04013-50100
- M10
- 4 shown on diagram
$0.73 -
Lock Washer M10
- Part No. 04512-50100
- M10
- 4 shown on diagram
$0.79 -
Nut M10 P1.25
- Part No. 02176-50100
- M10XP1.25
- 4 shown on diagram
$0.98 -
FENDER, AUX-FR
- Part No. TC26-1931B
- 2 shown on diagram
$41.99 -
FLANGE BOLT, HEX HEAD M8
- Part No. 01754-50820
- M8XP1.25
- 8 shown on diagram
$1.19 -
NUT, FLANGE
- Part No. 02763-50080
- M8XP1.25
- 8 shown on diagram
$0.85
