AIR CONDITIONER DRIVE GROUP(CABIN ELT HST) - TC2-G614007

Kioti TRACTOR | CK Series | CK3520CHSEB

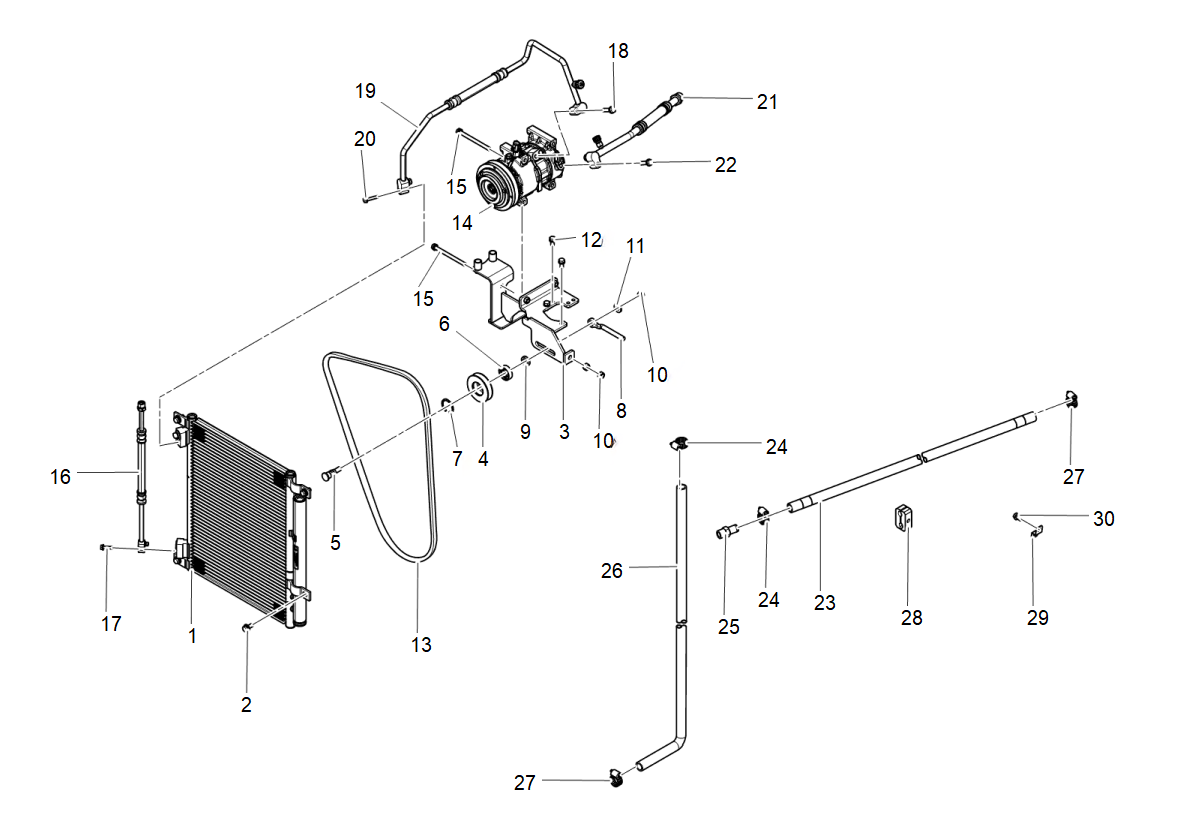

Diagram for AIR CONDITIONER DRIVE GROUP(CABIN ELT HST) - TC2-G614007
  • 1
    • Part No. TC26-2242A
    • 1 shown on diagram
  • 2

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 3

    BRACKET, COMPRESSOR-F.HEATER

    • Part No. TC26-1648A
    • Serial No. PA4DA0001 and up
    • 1 shown on diagram
    $134.99
  • 4

    Pulley, Replaced by E2101-05312BB

    • Part No. E2101-05312
    • 1 shown on diagram
    $.00
  • 5 SHAFT, PULLEY

    SHAFT, PULLEY

    • Part No. E7300-05304
    • 1 shown on diagram
    $17.99

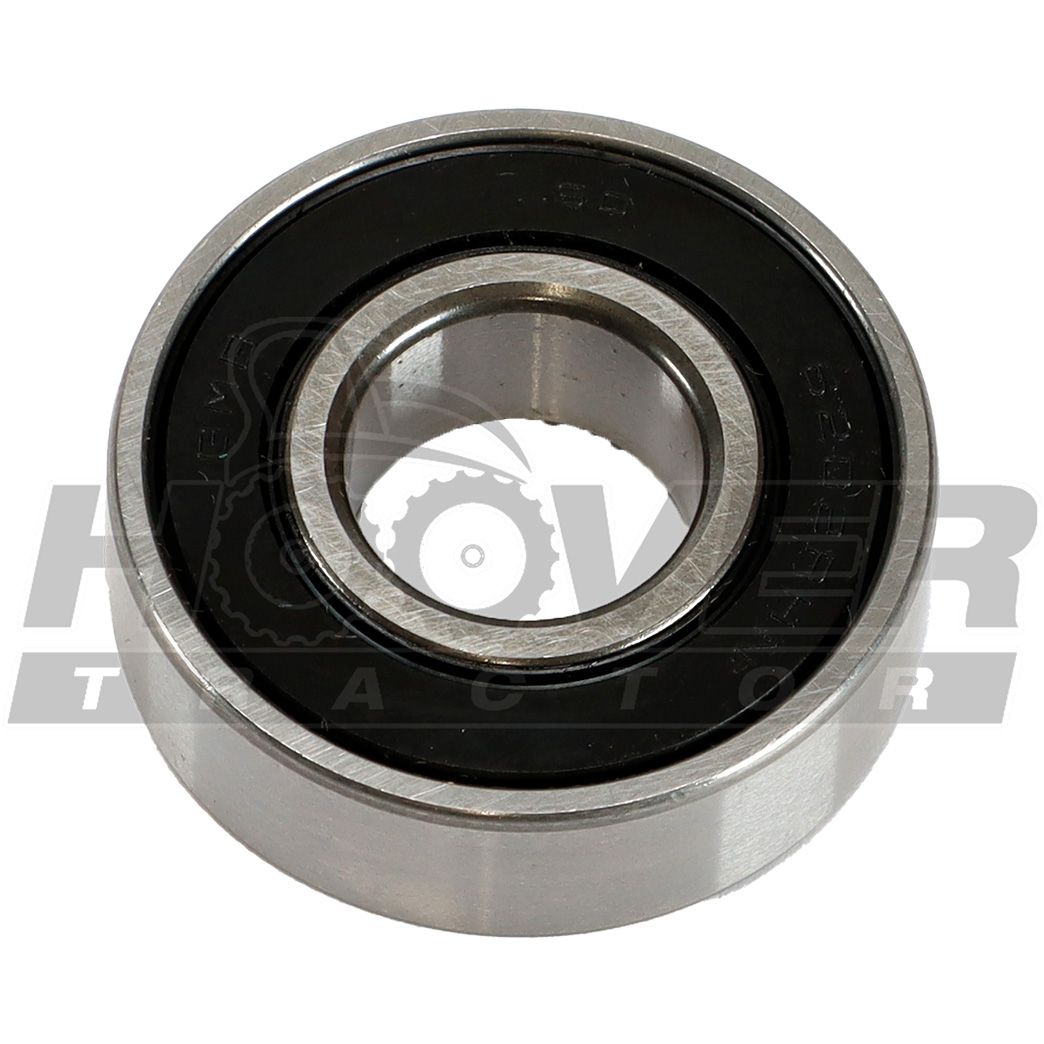

  • 6 BEARING, BALL

    BEARING, BALL

    • Part No. E7310-76191
    • 1 shown on diagram
    $15.99
  • 7 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • DIA35
    • 1 shown on diagram
    $1.39
  • 8

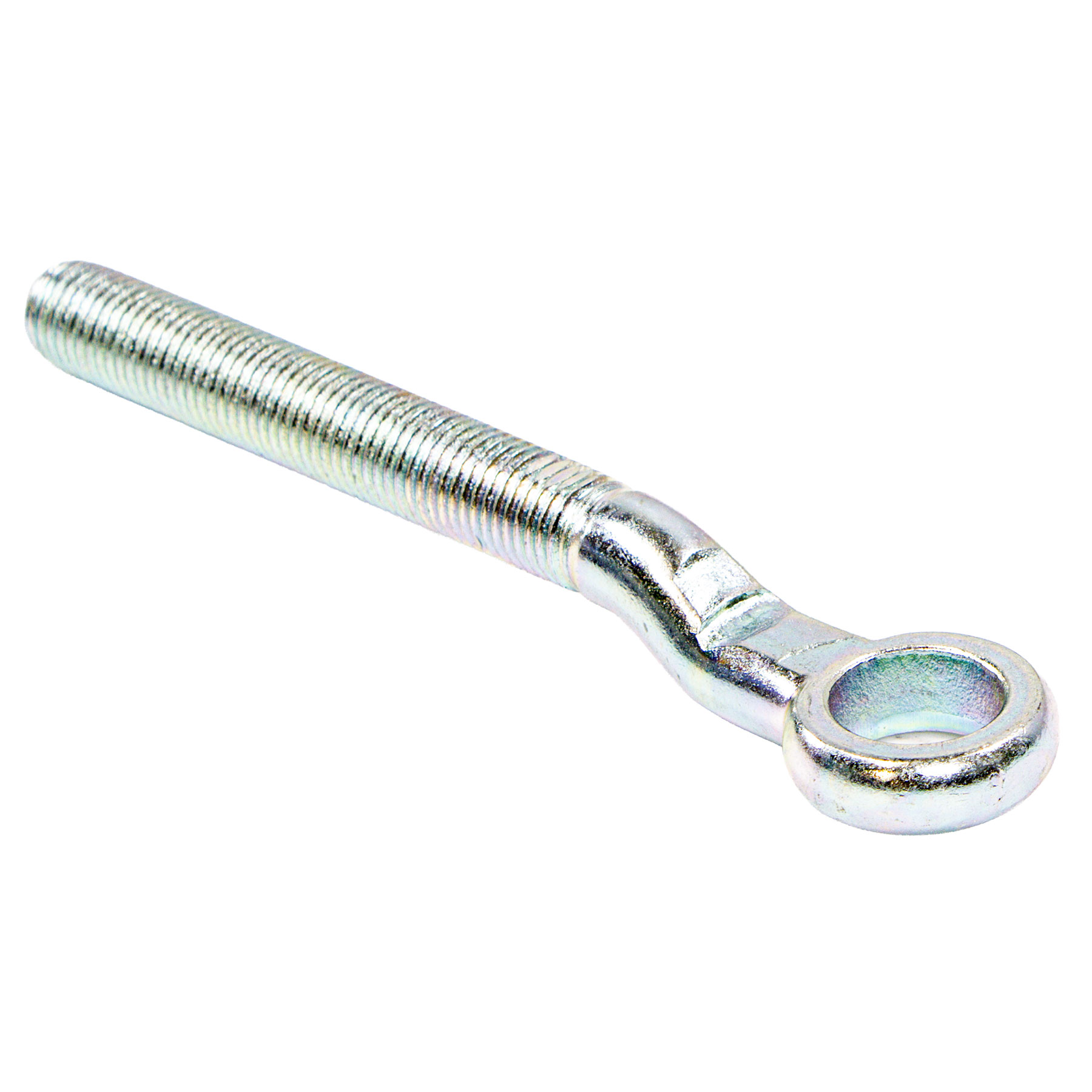

    BOLT, TENSION dnr v

    • Part No. E7310-76161
    • 1 shown on diagram
    $22.99
  • 9
    • Part No. 76KB-0511
    • DIA25*10
    • 1 shown on diagram
  • 10 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 3 shown on diagram
    $.98
  • 11
    • Part No. 76KB-0512
    • 10.5*22*T3.2
    • 1 shown on diagram
  • 12 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 5 shown on diagram
    $1.09

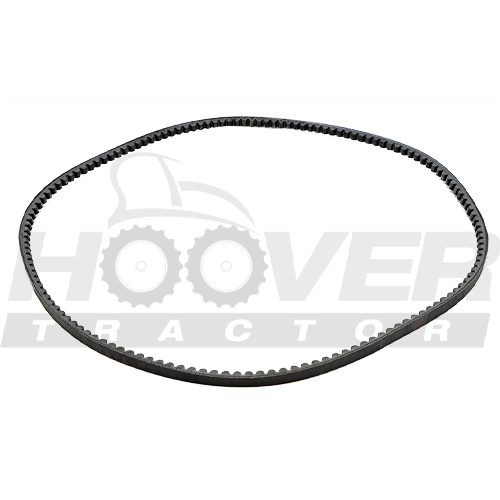

  • 13 BELT, FAN

    BELT, FAN

    • Part No. E7318-72531
    • REC A-56
    • 1 shown on diagram
    $25.99
  • 14
    • Part No. TD26-1411A
    • 1 shown on diagram
  • 15
    • Part No. 01123-50800
    • M8XP1.25
    • 2 shown on diagram
  • 16
    • Part No. TC26-2238A
    • 1 shown on diagram
  • 17
    • Part No. 01754-50622
    • M6XP1.0
    • 1 shown on diagram
  • 18 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 19
    • Part No. TC26-2239A
    • 1 shown on diagram
  • 20

    FLANGE BOLT

    • Part No. 01754-50630
    • M6XP1.0
    • 1 shown on diagram
    $0.92
  • 21
    • Part No. TC26-2241A
    • 1 shown on diagram
  • 22 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 23

    HOSE, HEATER-A

    • Part No. TC26-0451C
    • OD23 / ID16
    • 1 shown on diagram
    $68.99
  • 24

    BAND, HOSE

    • Part No. 66204-3623-1
    • Serial No. PA4DA0001 to SA4DA0067
    • 2 shown on diagram
    $3.99
  • 25

    CONNECTOR, COOLANT

    • Part No. F6810-13411
    • Serial No. PA4DA0001 to RA4DA0933
    • 1 shown on diagram
    $19.99
  • 26

    HOSE, HEATER-B

    • Part No. TC26-0452C
    • OD23 / ID16
    • 1 shown on diagram
    $67.99
  • 27

    BAND, HOSE

    • Part No. 66204-3623-1
    • Serial No. PA4DA0001 to SA4DA0067
    • 2 shown on diagram
    $3.99
  • 28

    HOLDER v

    • Part No. T5310-84111
    • 55x15x22
    • 2 shown on diagram
    $8.99
  • 29

    BRACKET

    • Part No. T5250-68771
    • t1.6
    • 1 shown on diagram
    $9.49
  • 30 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
