CLUTCH GROUP - CK30M-T100A

Kioti TRACTOR | CK Series | CK25

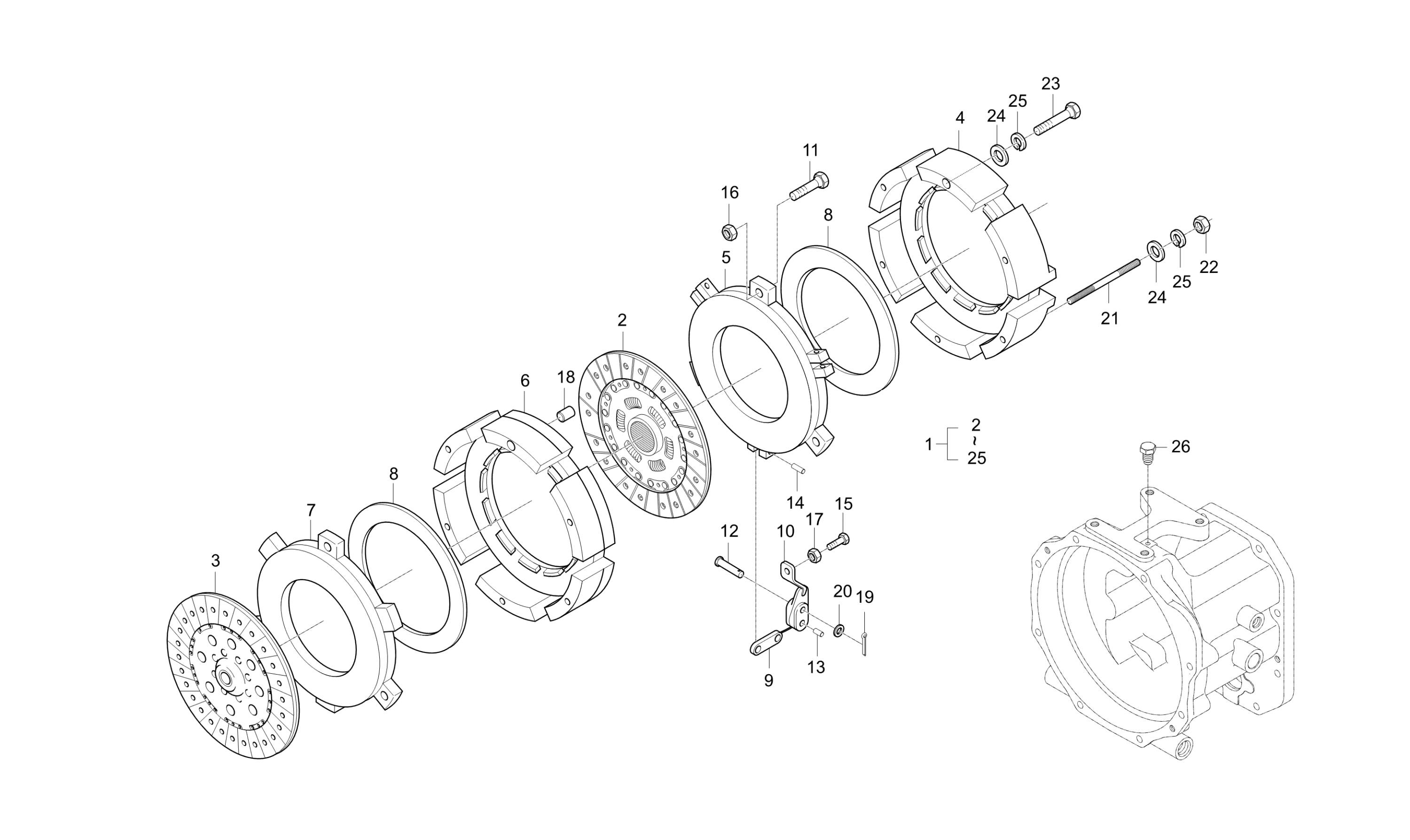

Diagram for CLUTCH GROUP - CK30M-T100A
  • 1

    DUAL CLUTCH ASSY v

    • Part No. T2185-14351
    • Applied Dates 2004-02-23 to 2005-01-30
    • Serial No. D70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,874.99

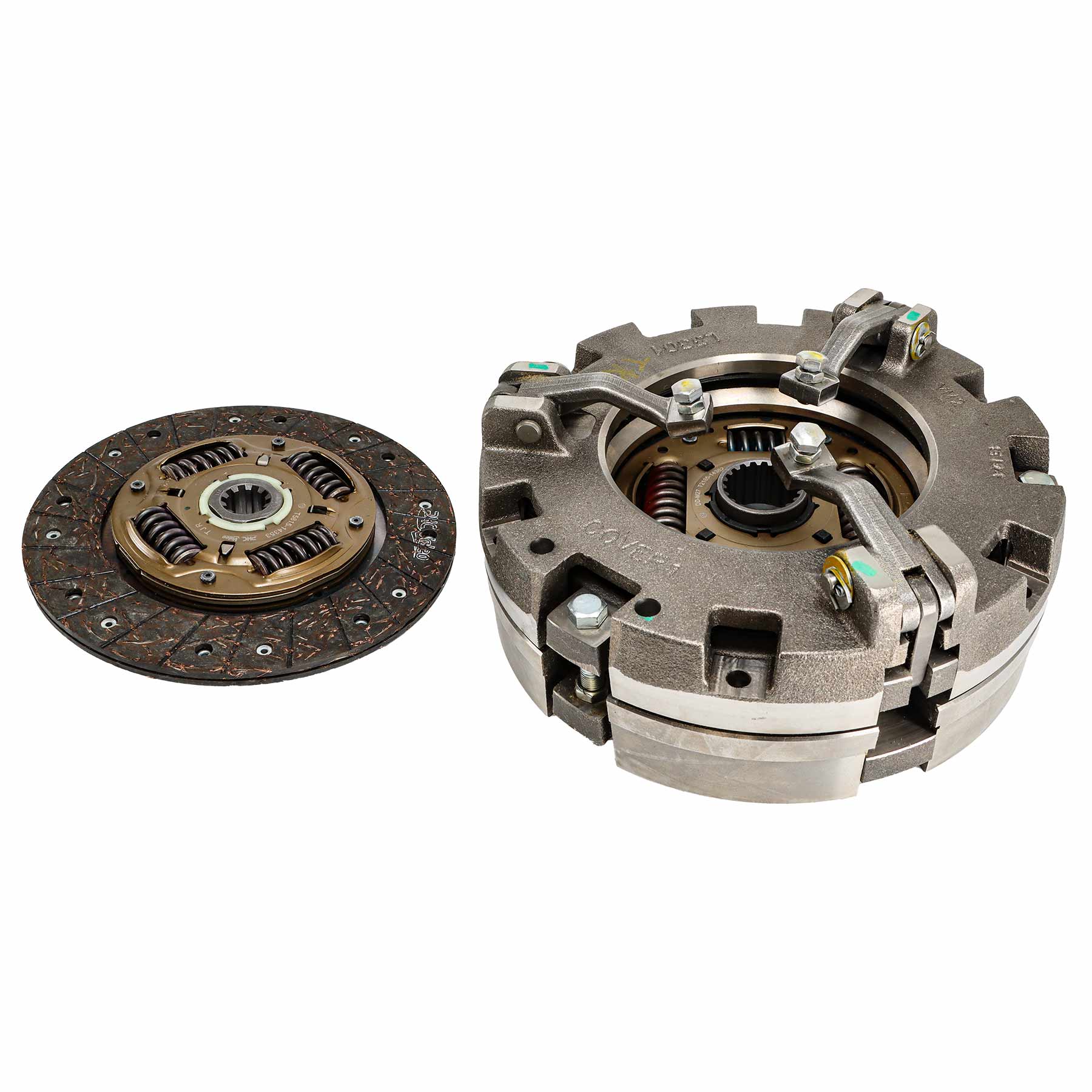

  • 1 DUAL CLUTCH ASSY 9″

    DUAL CLUTCH ASSY 9″

    • Part No. T2185-14352
    • Compatibility Interchngable
    • Applied Dates 2005-01-31 and up
    • Serial No. E70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,959.99
  • 2

    DISC ASS’Y (TRAVELING) v

    • Part No. T2185-14361
    • * multiple options for #2
    • 1 shown on diagram
    $369.99
  • 2 DISC ASS’Y TRAVELING 9″, 20 spl 36.6mm, Spring center

    DISC ASS’Y TRAVELING 9″, 20 spl 36.6mm, Spring center

    • Part No. T2185-14362
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $774.99
  • 3

    ASS Y, CLUTCH DISC PTO

    • Part No. T2565-14371
    • 1 shown on diagram
    $374.99
  • 4

    COVER 1

    • Part No. T2565-14411
    • 1 shown on diagram
    $419.99
  • 5

    PLATE 1,PRESSURE

    • Part No. T2565-14431
    • 1 shown on diagram
    $329.99
  • 6

    COVER 2

    • Part No. T2565-14421
    • 1 shown on diagram
    $369.99
  • 7

    PLATE 2,PRESSURE

    • Part No. T2565-14441
    • 1 shown on diagram
    $299.99

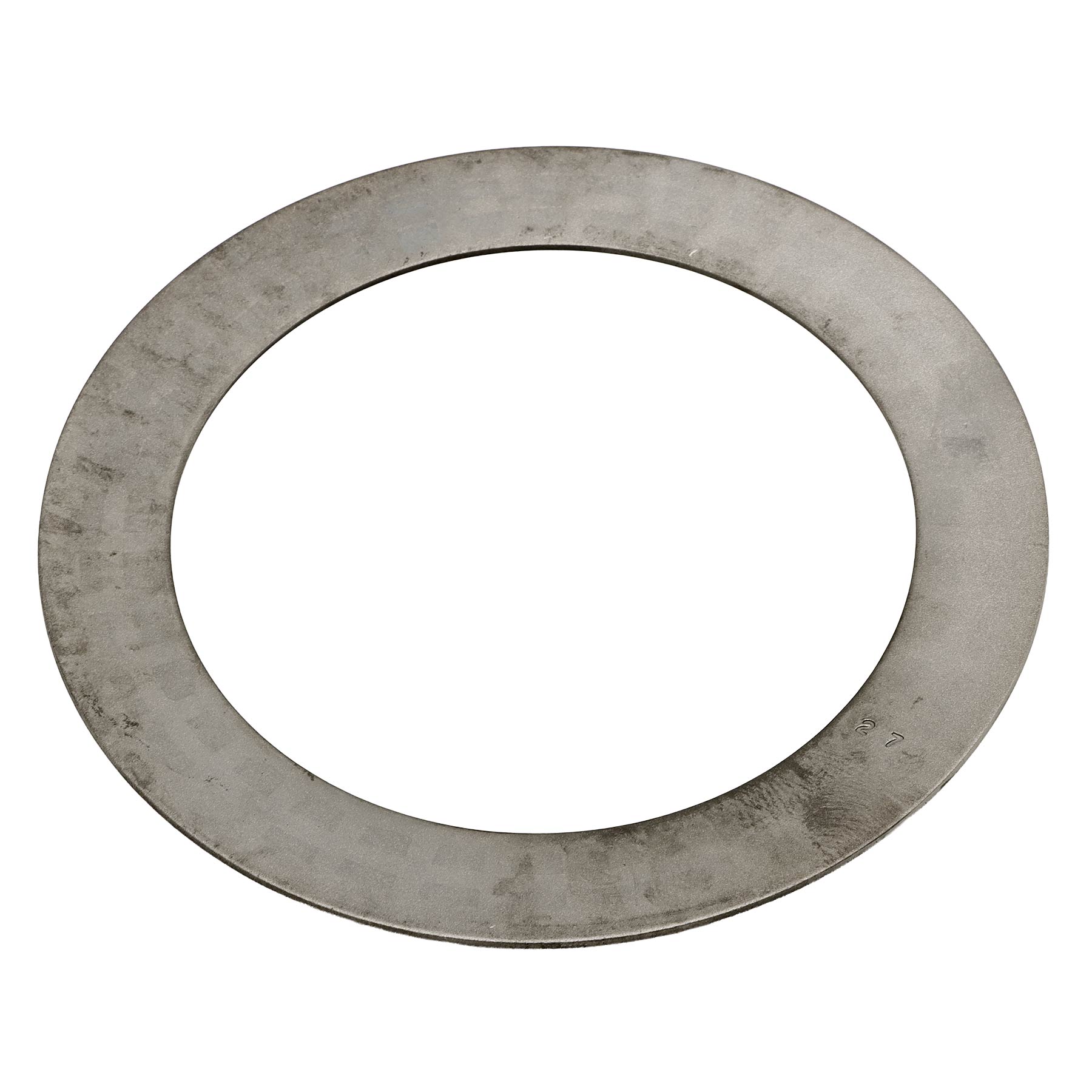

  • 8 DIAPHRAGM SPRING V

    DIAPHRAGM SPRING V

    • Part No. T2185-14521
    • 2 shown on diagram
    $159.99
  • 9

    RELEASE ROD ASS’Y

    • Part No. T2440-14552
    • 3 shown on diagram
    $22.99
  • 10

    ASS Y LEVER RELEASE

    • Part No. T2440-14542
    • 3 shown on diagram
    $45.99
  • 11

    BOLT

    • Part No. T2440-14581
    • 3 shown on diagram
    $3.49

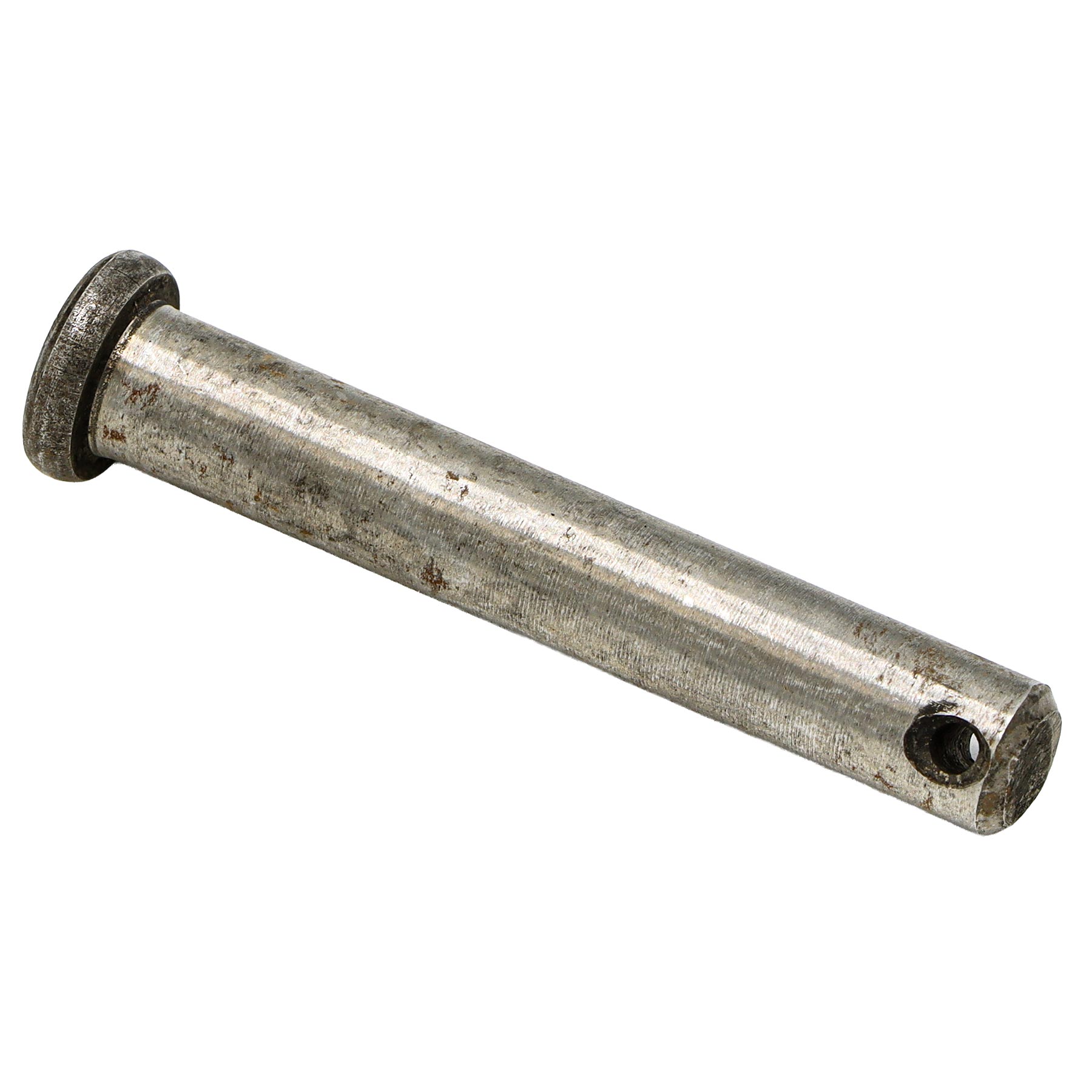

  • 12 PIN,JOINT

    PIN,JOINT

    • Part No. T2440-14561
    • 3 shown on diagram
    $9.99

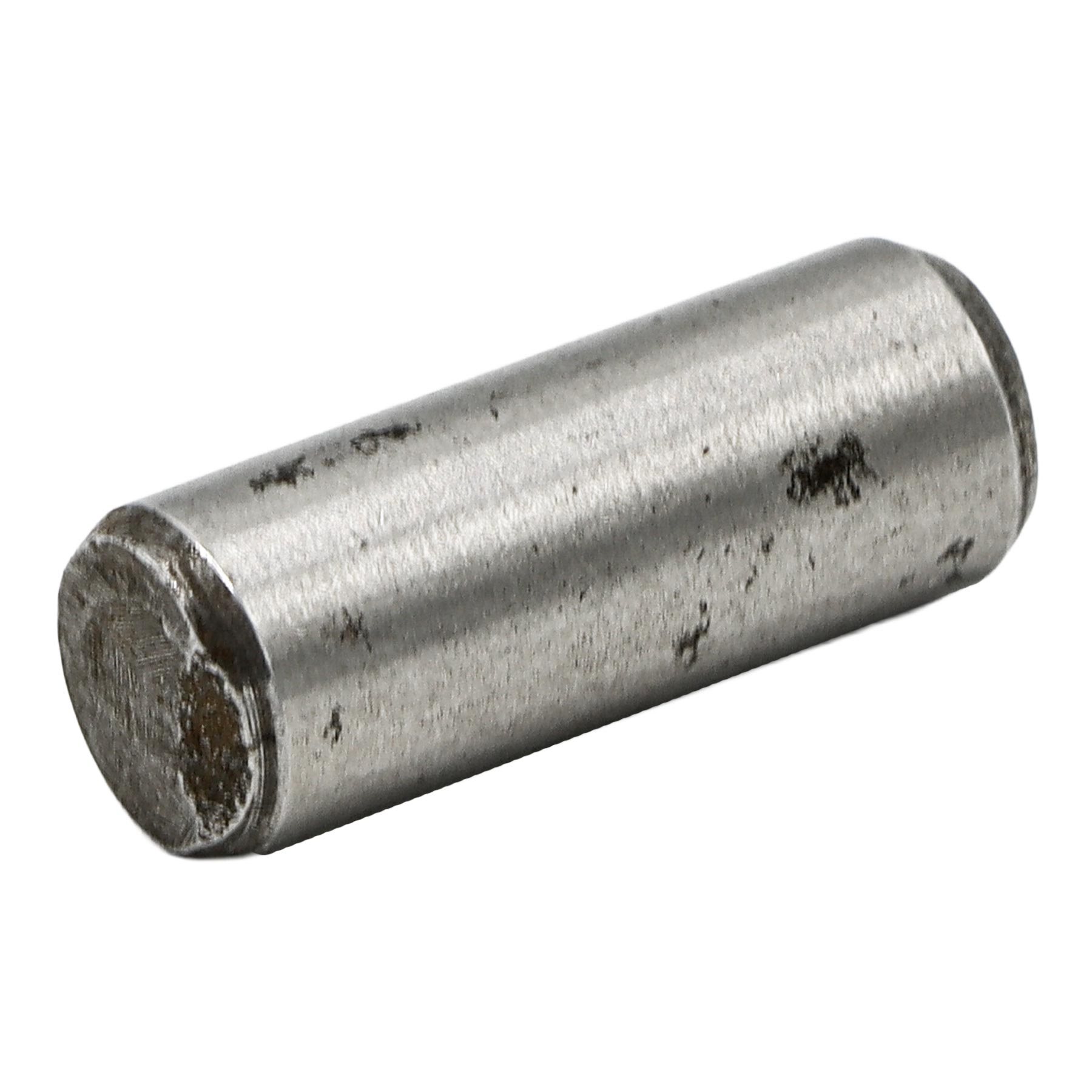

  • 13 PIN,STRAIGHT

    PIN,STRAIGHT

    • Part No. T2440-14571
    • 3 shown on diagram
    $7.49
  • 14

    PIN,STRAIGHT

    • Part No. T2440-14591
    • 3 shown on diagram
    $7.99

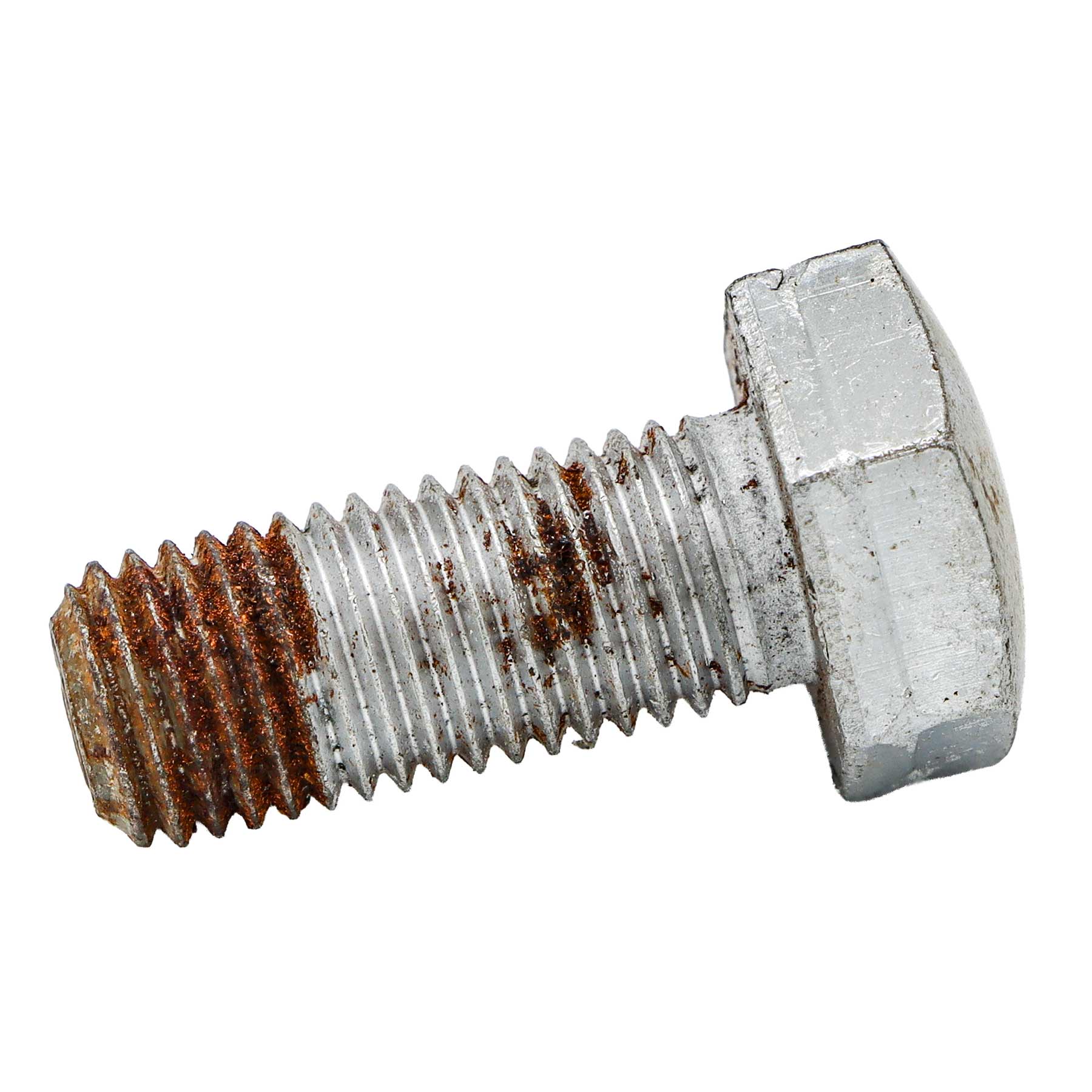

  • 15 BOLT,ADJUSTING

    BOLT,ADJUSTING

    • Part No. T2440-14621
    • 3 shown on diagram
    $15.99
  • 16 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 3 shown on diagram
    $0.98

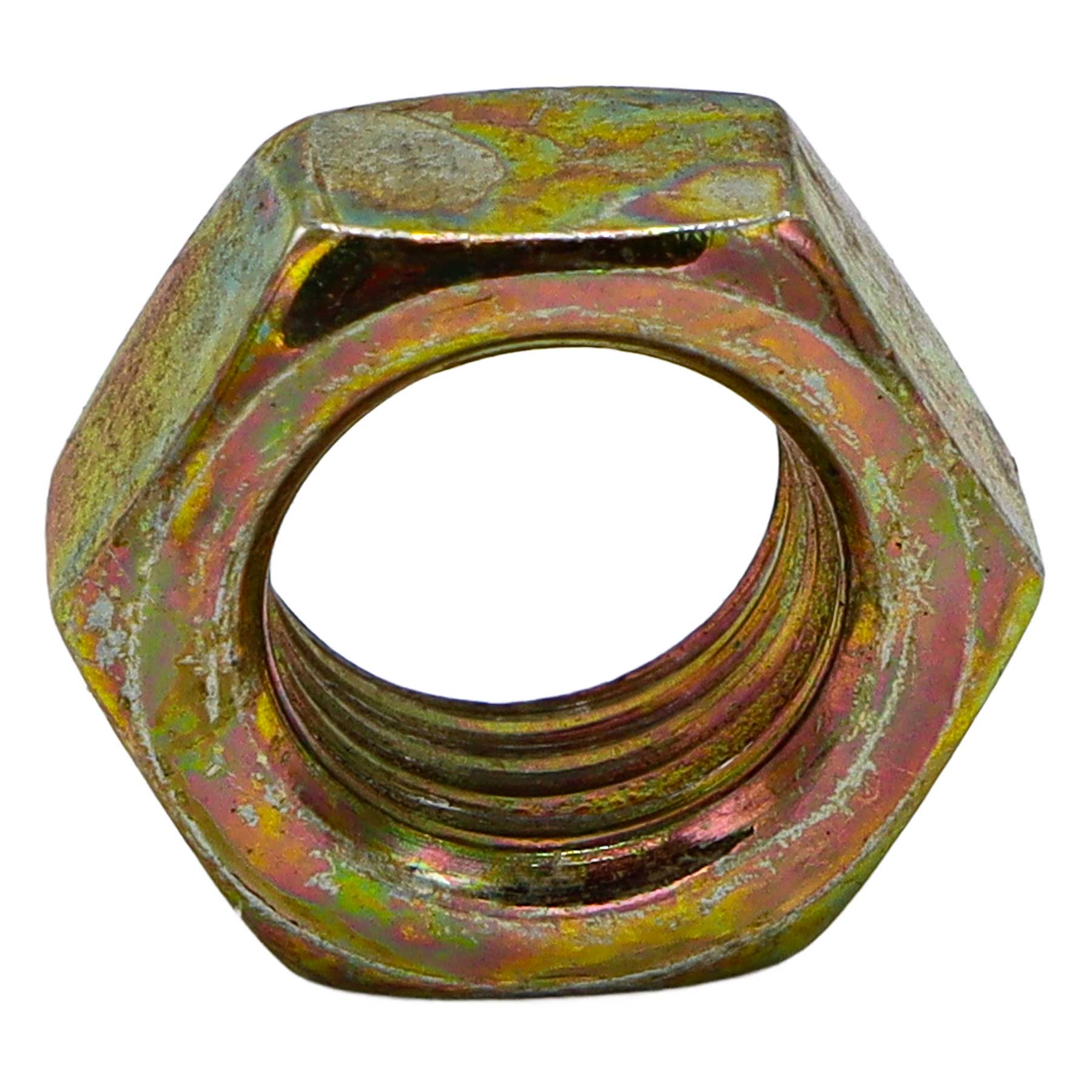

  • 17 NUT

    NUT

    • Part No. T2440-14531
    • 3 shown on diagram
    $5.49
  • 18

    TUBE,KNOCK

    • Part No. T2440-14671
    • 3 shown on diagram
    $2.49
  • 19

    PIN,SPLIT

    • Part No. T2440-14641
    • 3 shown on diagram
    $0.68
  • 20 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 3 shown on diagram
    $0.67
  • 21

    STUD

    • Part No. 01513-50880
    • 2 shown on diagram
    $4.99
  • 22 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 23

    Bolt, M8 P1.25 x 80mm

    • Part No. 01153-50880
    • Applied Dates 2004-02-23 to 2008-04-09
    • HEX12*91
    • 4 shown on diagram
    $3.49
  • 24 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 6 shown on diagram
    $0.79
  • 25 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 26

    PLUG v

    • Part No. T2305-43883
    • 1 shown on diagram
    $7.49
