TRANSMISSION CASE GROUP - CK30M-T170A

Kioti TRACTOR | CK Series | CK25

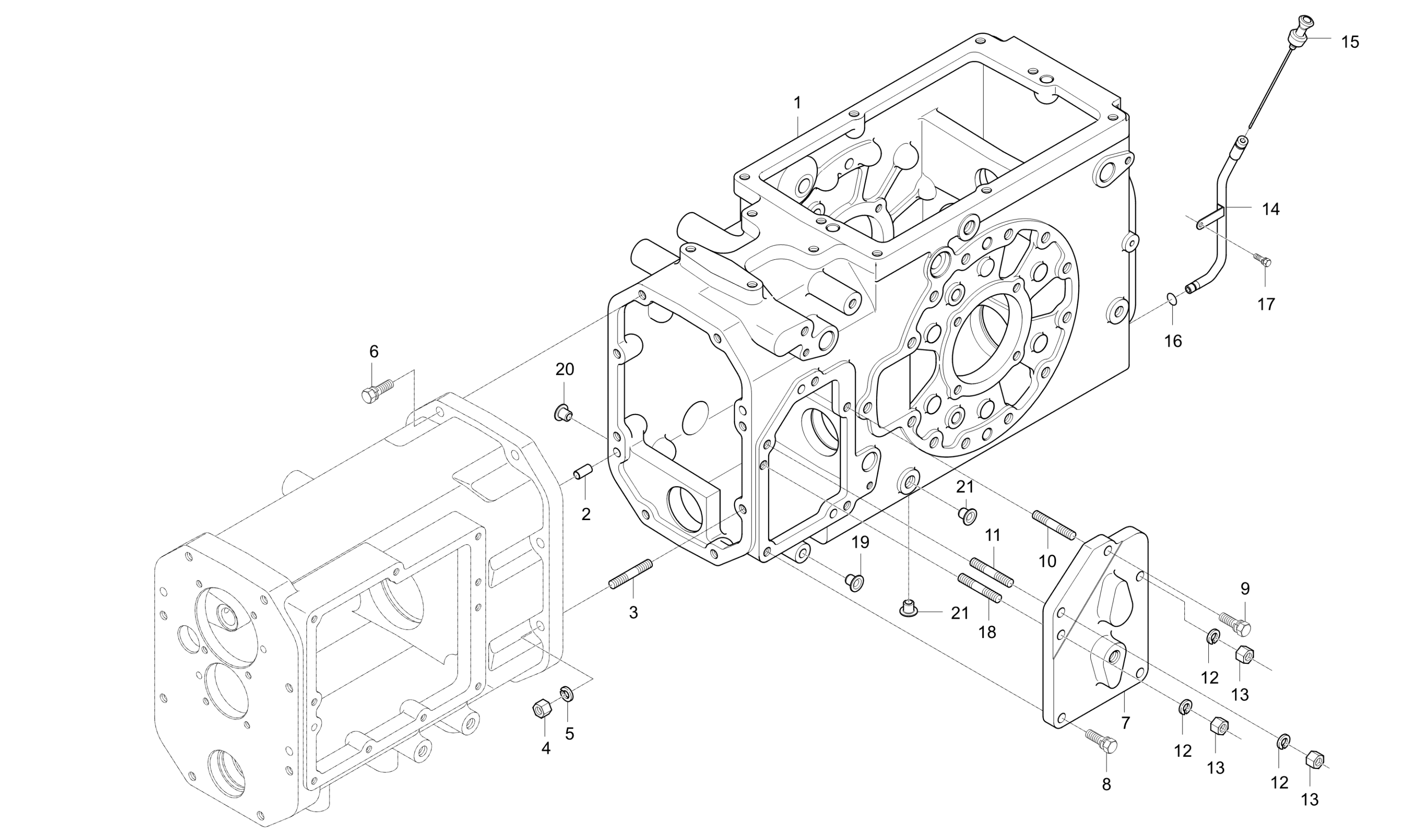

Diagram for TRANSMISSION CASE GROUP - CK30M-T170A
  • 1

    CASE, TRANSMISSION

    • Part No. T2185-21112
    • Applied Dates 2003-12-30 to 2004-04-28
    • * multiple options for #1
    • 1 shown on diagram
    $1,349.99
  • 1

    CASE, TRANSMISSION

    • Part No. T2185-21113
    • Compatibility New repl old
    • Applied Dates Up to 2003-12-31
    • * multiple options for #1
    • 1 shown on diagram
    $1,364.99
  • 1

    Transmission Case, Replaced by T2185-21117

    • Part No. T2185-21114
    • Compatibility New repl old
    • Applied Dates Up to 2005-08-29
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    CASE, TRANSMISSION v

    • Part No. T2185-21115
    • Compatibility New repl old
    • Applied Dates 2005-08-29 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,399.99
  • 1

    CASE,TRANSMISSION

    • Part No. T2185-21116
    • Compatibility New repl old
    • Applied Dates Up to 2006-09-08
    • * multiple options for #1
    • 1 shown on diagram
    $1,899.99
  • 1

    TRK CASE,TRANSMISSION

    • Part No. T2185-21117
    • Compatibility Interchngable
    • Applied Dates 2006-12-05 and up
    • Serial No. Up to G70100180
    • * multiple options for #1
    • 1 shown on diagram
    $2,684.99
  • 1

    CASE,TRANSMISSION

    • Part No. T2185-21118
    • Compatibility Call for compat
    • Applied Dates Up to 2006-12-31
    • Serial No. G70100181 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,364.99
  • 1

    TRK, Transmission Case

    • Part No. T2185-21119
    • Compatibility New repl old
    • Applied Dates Up to 2009-12-31
    • * multiple options for #1
    • 1 shown on diagram
    $1,749.99
  • 1

    TRK CASE, TRANSMISSION V

    • Part No. T2185-2111A
    • Compatibility New repl old
    • Applied Dates 2010-01-15 and up
    • * multiple options for #1
    • 1 shown on diagram
    $2,699.99
  • 2

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 3

    STUD

    • Part No. 01517-51035
    • M10XP1.25
    • 2 shown on diagram
    $5.99
  • 4 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 5 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 6

    WASHER BOLT v

    • Part No. 01133-51040
    • Applied Dates 2004-02-24 and up
    • Serial No. D70100001 and up
    • M10XP1.25
    • * multiple options for #6
    • 6 shown on diagram
    $3.49
  • 6

    BOLT

    • Part No. 01177-51045
    • Compatibility New repl old
    • Applied Dates 2010-01-15 and up
    • M10XP1.25 (9T/SP
    • * multiple options for #6
    • 6 shown on diagram
    $2.99
  • 7

    USE T2185-23232 v

    • Part No. T2185-23231
    • Applied Dates 2010-01-15 and up
    • * multiple options for #7
    • 1 shown on diagram
    $72.99
  • 7

    COVER

    • Part No. T2185-23232
    • Compatibility No interchange
    • Applied Dates 2010-01-15 and up
    • * multiple options for #7
    • 1 shown on diagram
    $114.99
  • 7

    COVER

    • Part No. T2185-23233
    • Compatibility Interchngable
    • Applied Dates 2006-09-08 and up
    • * multiple options for #7
    • 1 shown on diagram
    $89.99
  • 8

    BOLT

    • Part No. 01133-51032
    • M10XP1.25
    • 2 shown on diagram
    $3.99
  • 9

    WASHER BOLT v

    • Part No. 01133-51040
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 10

    STUD

    • Part No. 01517-51035
    • M10XP1.25
    • * multiple options for #10
    • 1 shown on diagram
    $5.99
  • 10

    STUD

    • Part No. 01517-51030
    • Compatibility Interchngable
    • Applied Dates 2004-04-30 to 2004-04-30
    • * multiple options for #10
    • 1 shown on diagram
    $4.99
  • 11

    STUD

    • Part No. 01517-51040
    • Applied Dates 2007-12-04 and up
    • 1 shown on diagram
    $4.49
  • 12 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 3 shown on diagram
    $0.79
  • 13 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 3 shown on diagram
    $0.98
  • 14

    Oil Guage Guide

    • Part No. T2185-25452
    • Applied Dates Up to 2007-12-05
    • * multiple options for #14
    • 1 shown on diagram
    $61.99
  • 14

    GUIDE

    • Part No. T2185-25453
    • Compatibility Interchngable
    • Applied Dates 2007-06-27 and up
    • * multiple options for #14
    • 1 shown on diagram
    $61.99
  • 15

    GAUGE,OIL v, Replaced by T2185-25902OE

    • Part No. T2185-25902
    • Applied Dates 2007-06-27 and up
    • * multiple options for #15
    • 1 shown on diagram
    $13.80
  • 15

    GAUGE, OIL v

    • Part No. T2185-25902OE
    • Compatibility New repl old
    • Applied Dates 2004-04-26 and up
    • * multiple options for #15
    • 1 shown on diagram
    $24.99
  • 15

    OIL GAUGE

    • Part No. T2185-25903
    • Compatibility Interchngable
    • Applied Dates 2004-04-26 and up
    • * multiple options for #15
    • 1 shown on diagram
    $16.99
  • 16

    O-RING

    • Part No. 04811-10110
    • Applied Dates 2004-04-26 and up
    • DIA10.7
    • 1 shown on diagram
    $0.62
  • 17

    BOLT, WASHER v

    • Part No. 01023-50612
    • Applied Dates 2003-12-30 and up
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 18

    STUD

    • Part No. 01517-51030
    • 1 shown on diagram
    $4.99
  • 19

    PLUG

    • Part No. 34150-2758-1
    • 5 shown on diagram
    $2.49
  • 20

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 21

    PLUG

    • Part No. 31220-1429-3
    • 4 shown on diagram
    $3.49
