PTO SHAFT GROUP - CK30M-T250A

Kioti TRACTOR | CK Series | CK25

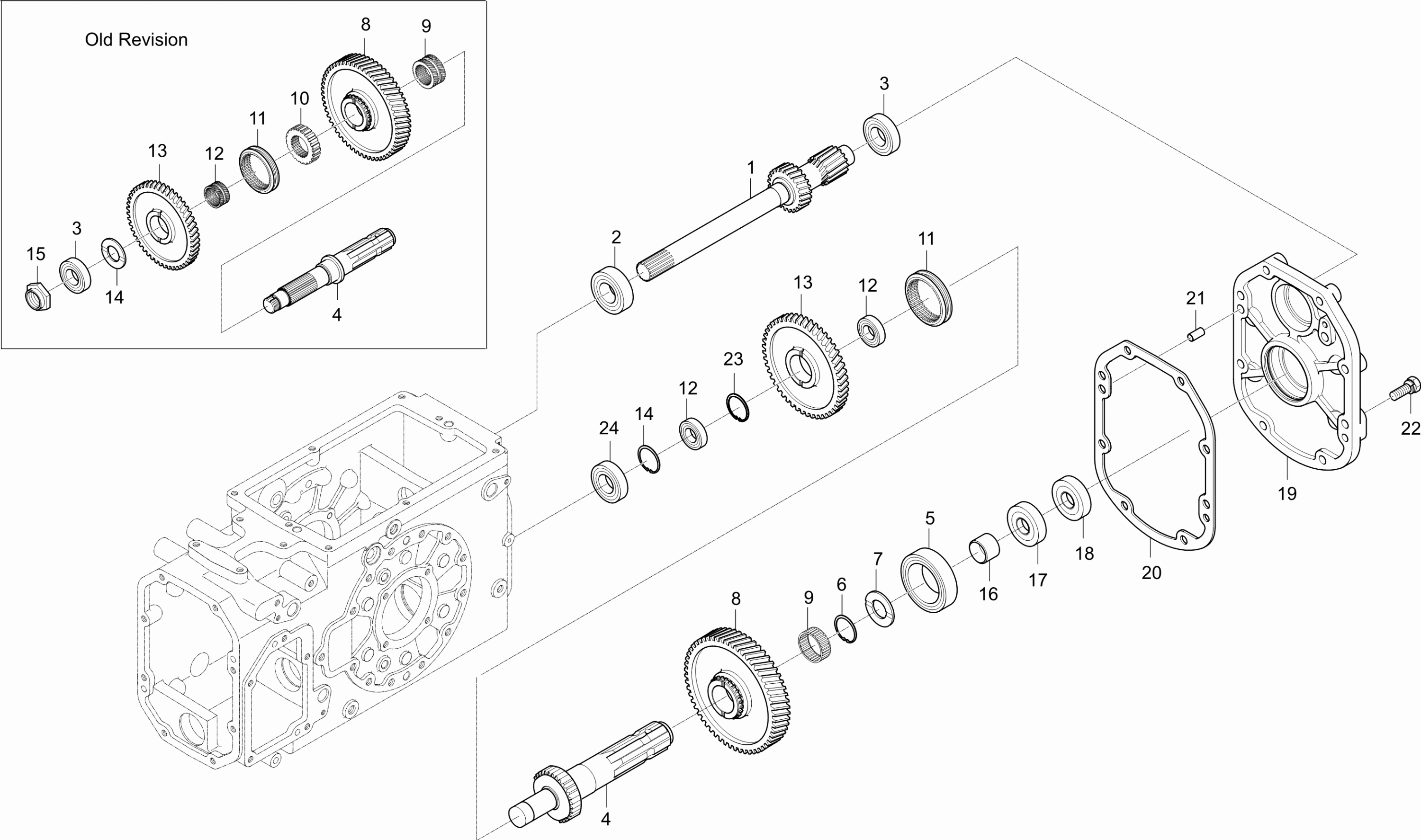

Diagram for PTO SHAFT GROUP - CK30M-T250A
  • 1

    SHAFT, PTO DRIVE

    • Part No. T2185-25231
    • 1 shown on diagram
    $314.99
  • 2 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • Applied Dates 2004-07-02 and up
    • DIA25
    • 1 shown on diagram
    $17.99
  • 3

    BEARING,BALL

    • Part No. 08101-06305
    • Applied Dates 2005-09-30 and up
    • DIA25
    • 1 shown on diagram
    $24.99
  • 4

    SHAFT, P.T.O v

    • Part No. T2185-25311
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100350
    • * multiple options for #4
    • 1 shown on diagram
    $289.99
  • 4

    PTO Shaft

    • Part No. T2185-25312
    • Compatibility No interchange
    • Applied Dates Up to 2005-08-29
    • Serial No. E70100351 to F70100394
    • * multiple options for #4
    • 1 shown on diagram
    $129.99
  • 4

    SHAFT v

    • Part No. T2185-25313
    • Compatibility No interchange
    • Applied Dates Up to 2005-08-29
    • Serial No. F70100395 and up
    • * multiple options for #4
    • 1 shown on diagram
    $109.99
  • 4

    SHAFT,PTO dnr v

    • Part No. T2185-25314
    • Compatibility Old repl new
    • Applied Dates Up to 2007-08-09
    • * multiple options for #4
    • 1 shown on diagram
    $329.99
  • 5 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 6 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • Applied Dates Up to 2005-09-29
    • DIA72
    • 1 shown on diagram
    $7.99
  • 7

    COLLAR, THRUST

    • Part No. T2185-25161
    • Applied Dates Up to 2003-12-31
    • * multiple options for #7
    • 1 shown on diagram
    $18.99
  • 7

    COLLAR,THRUST

    • Part No. T2440-21681
    • Compatibility New repl old
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100260
    • * multiple options for #7
    • 1 shown on diagram
    $16.99
  • 7

    COLLAR, THRUST v

    • Part No. T4620-21521
    • Compatibility No interchange
    • Applied Dates 2004-05-31 and up
    • Serial No. E70100261 and up
    • * multiple options for #7
    • 1 shown on diagram
    $24.99
  • 8

    GEAR, 56

    • Part No. T2185-25121
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100350
    • * multiple options for #8
    • 1 shown on diagram
    $239.99
  • 8

    GEAR, 56

    • Part No. T2185-25122
    • Compatibility No interchange
    • Applied Dates 2005-11-22 and up
    • Serial No. E70100351 and up
    • * multiple options for #8
    • 1 shown on diagram
    $324.99
  • 9

    RING,INNER

    • Part No. T2440-25131
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100260
    • * multiple options for #9
    • 1 shown on diagram
    $59.99
  • 9

    BEARING,NEEDLE v

    • Part No. 08824-04527
    • Compatibility No interchange
    • Applied Dates 2005-11-22 and up
    • Serial No. E70100261 and up
    • * multiple options for #9
    • 1 shown on diagram
    $44.99
  • 10

    BOSS, SPLINE

    • Part No. 38450-2197-1
    • Applied Dates Up to 2005-08-29
    • 1 shown on diagram
    $56.99
  • 11

    SHIFTER

    • Part No. T2440-21981
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100350
    • * multiple options for #11
    • 1 shown on diagram
    $62.99
  • 11 SHIFTER

    SHIFTER

    • Part No. T2185-21981
    • Compatibility No interchange
    • Applied Dates 2005-11-22 and up
    • Serial No. E70100351 and up
    • * multiple options for #11
    • 1 shown on diagram
    $98.99
  • 12

    RING,INNER

    • Part No. T2440-21901
    • Applied Dates 2005-03-14 and up
    • Serial No. Up to E70100260
    • * multiple options for #12
    • 1 shown on diagram
    $63.99
  • 12 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • Compatibility No interchange
    • Applied Dates 2004-07-02 and up
    • Serial No. E70100261 and up
    • DIA25
    • * multiple options for #12
    • 2 shown on diagram
    $17.99
  • 13

    GEAR, 48 v

    • Part No. T2185-25141
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100350
    • * multiple options for #13
    • 1 shown on diagram
    $849.99
  • 13

    GEAR, 48

    • Part No. T2185-25142
    • Compatibility No interchange
    • Applied Dates 2005-11-22 and up
    • Serial No. E70100351 and up
    • * multiple options for #13
    • 1 shown on diagram
    $344.99
  • 14

    COLLAR,THRUST dnr v

    • Part No. T2305-21761
    • Applied Dates Up to 2003-12-31
    • T3.2
    • * multiple options for #14
    • 1 shown on diagram
    $12.99
  • 14

    COLLAR, THRUST v

    • Part No. T2305-21762
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • Serial No. Up to E70100260
    • T3.2
    • * multiple options for #14
    • 1 shown on diagram
    $18.99
  • 14

    COLLAR v

    • Part No. 34150-2156-1
    • Compatibility No interchange
    • Applied Dates 2004-05-31 and up
    • Serial No. E70100261 to F70100394
    • T2*42*42
    • * multiple options for #14
    • 1 shown on diagram
    $3.49
  • 14

    SNAP RING v

    • Part No. C7910-95382
    • Compatibility No interchange
    • Applied Dates 2006-09-08 and up
    • Serial No. F70100395 and up
    • * multiple options for #14
    • 1 shown on diagram
    $9.99
  • 15 NUT, 24

    NUT, 24

    • Part No. T2350-25361
    • Applied Dates Up to 2005-09-29
    • 1 shown on diagram
    $18.99
  • 16

    SLEEVE

    • Part No. T4620-25383
    • 1 shown on diagram
    $39.99

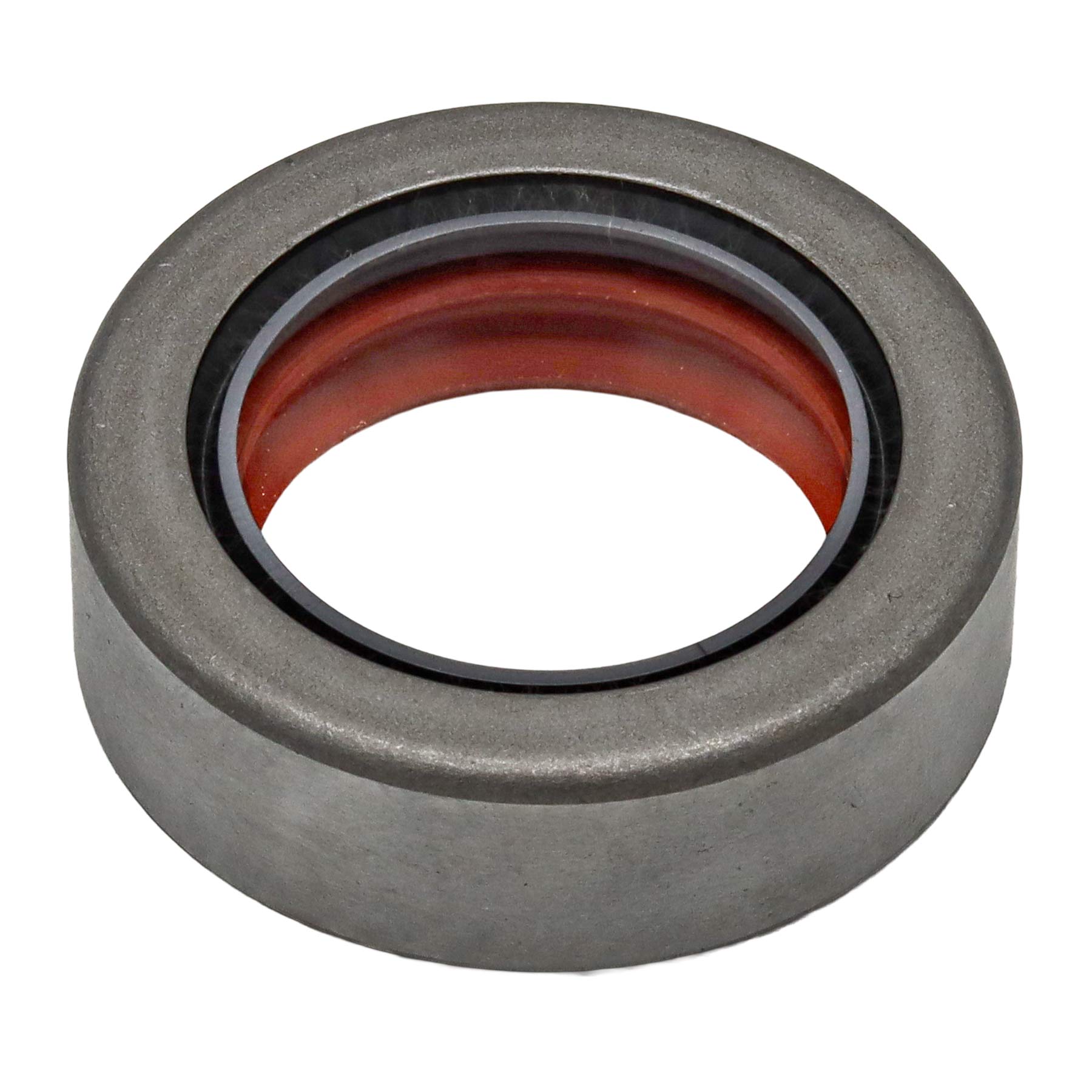

  • 17 SEAL, OIL V

    SEAL, OIL V

    • Part No. T4620-25452
    • 1 shown on diagram
    $56.99
  • 18 SEAL, OIL V

    SEAL, OIL V

    • Part No. T4620-25442
    • 1 shown on diagram
    $25.99
  • 19

    CASE, BEARING (PTO) v

    • Part No. T2185-25411
    • Applied Dates Up to 2004-12-31
    • * multiple options for #19
    • 1 shown on diagram
    $209.99
  • 19

    CASE, BEARING (PTO)

    • Part No. T2185-25412
    • Compatibility New repl old
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100350
    • * multiple options for #19
    • 1 shown on diagram
    $189.99
  • 19

    CASE, BEARING (PTO) v

    • Part No. T2185-25413
    • Compatibility No interchange
    • Applied Dates Up to 2007-02-25
    • Serial No. E70100351 to G70100046
    • * multiple options for #19
    • 1 shown on diagram
    $189.99
  • 19

    CASE, BEARING (PTO) v

    • Part No. T2185-25414
    • Compatibility No interchange
    • Applied Dates 2007-05-07 and up
    • Serial No. G70100047 and up
    • * multiple options for #19
    • 1 shown on diagram
    $339.99

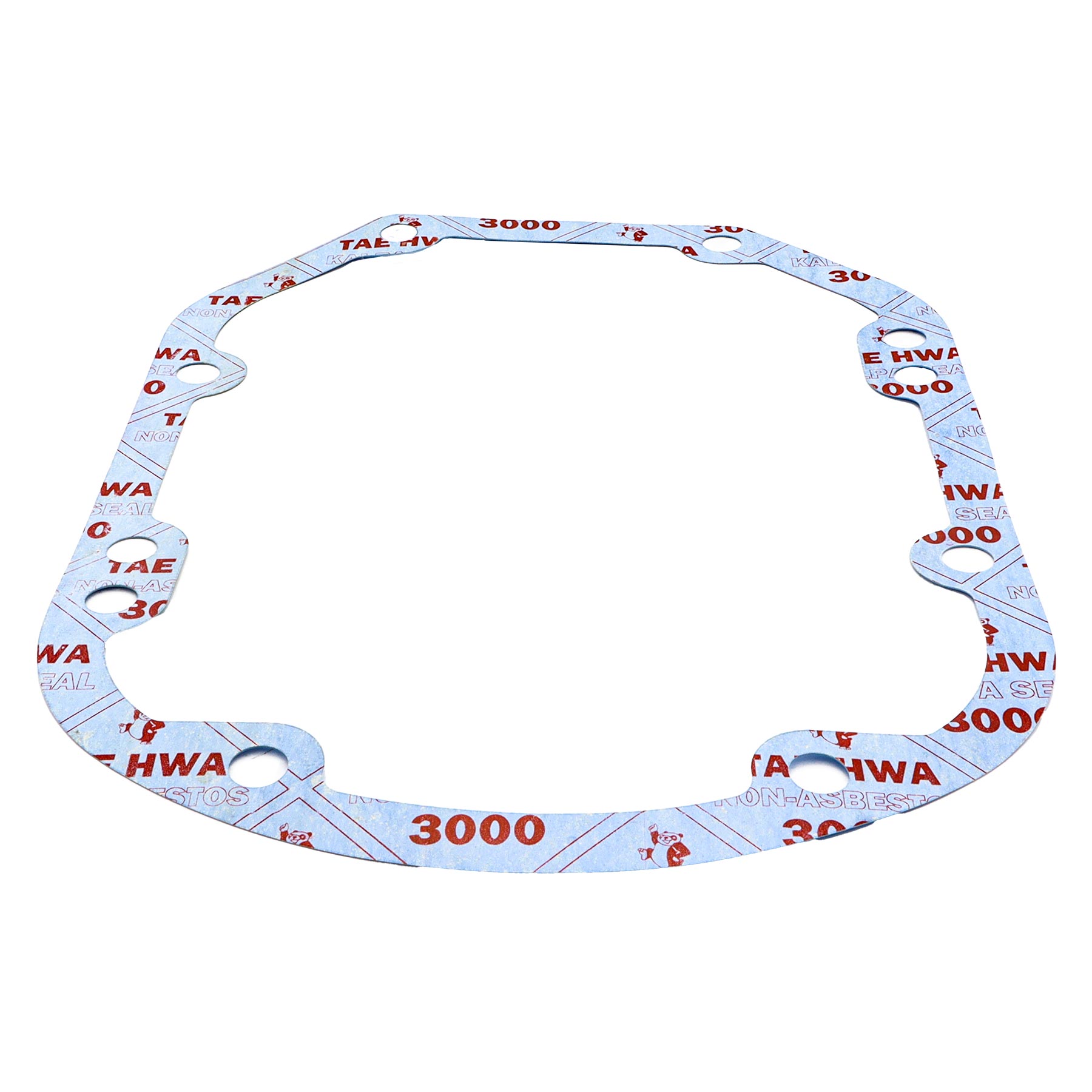

  • 20 PACKING

    PACKING

    • Part No. T2185-25461
    • Applied Dates Up to 2006-12-31
    • T0.5
    • 1 shown on diagram
    $14.99
  • 21 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • Applied Dates Up to 2007-02-25
    • DIA10XL18
    • 2 shown on diagram
    $1.79
  • 22

    BOLT

    • Part No. 01133-51045
    • 8 shown on diagram
    $3.99
  • 23 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • Applied Dates 2004-07-02 and up
    • DIA52
    • 1 shown on diagram
    $2.49
  • 24

    BEARING, BALL

    • Part No. 08151-06305
    • Applied Dates 2005-09-30 and up
    • #6305NR
    • 1 shown on diagram
    $32.99
