SHAFT 1 GROUP - CK30M-T210A

Kioti TRACTOR | CK Series | CK25

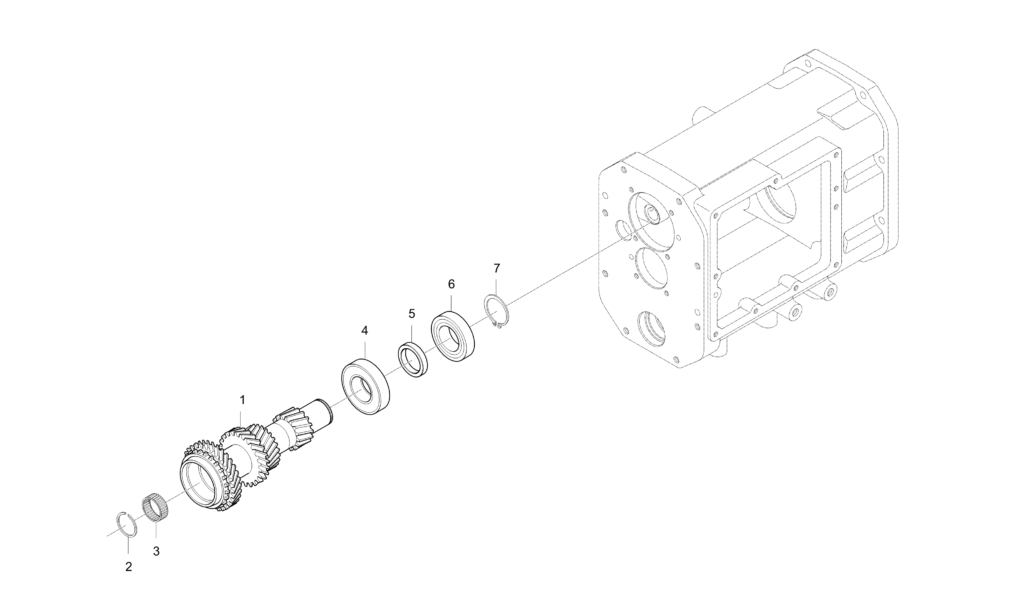

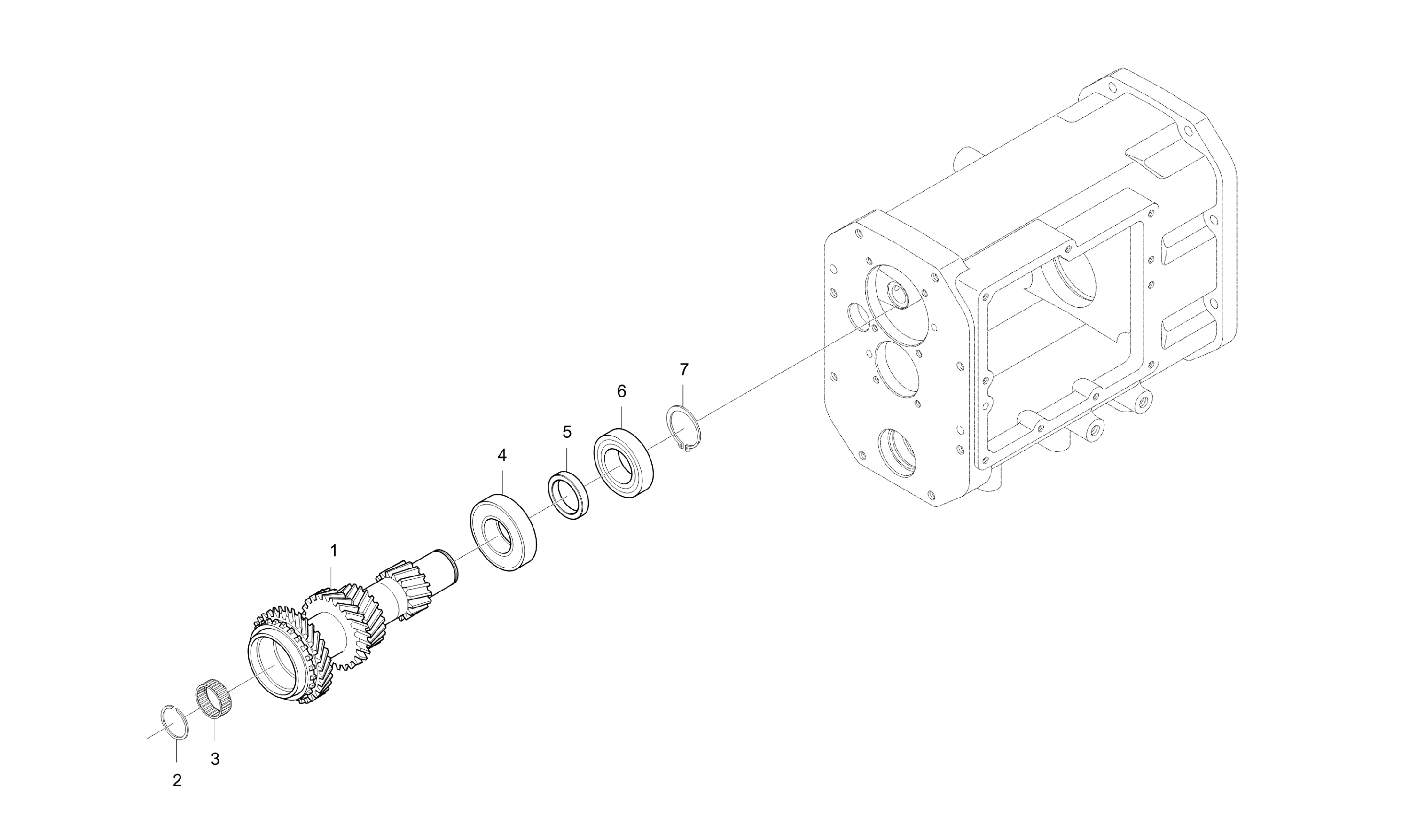

Diagram for SHAFT 1 GROUP - CK30M-T210A
  • 1

    SHAFT, MAIN SHIFT GEAR

    • Part No. T2185-21712
    • Applied Dates Up to 2004-05-31
    • * multiple options for #1
    • 1 shown on diagram
    $324.99
  • 1

    SHAFT, MAIN SHIFT GEAR obs v

    • Part No. T2185-21713
    • Compatibility New repl old
    • Applied Dates Up to 2005-03-14
    • Serial No. Up to E70100080
    • * multiple options for #1
    • 1 shown on diagram
    $794.99
  • 1

    MAIN SHIFT GEAR SHAFT dnr v

    • Part No. T2185-21714
    • Compatibility No interchange
    • Applied Dates Up to 2009-11-30
    • Serial No. E70100081 and up
    • * multiple options for #1
    • 1 shown on diagram
    $634.99
  • 2 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. T2305-21891
    • 1 shown on diagram
    $6.49
  • 3

    NEEDLE BEARING

    • Part No. 08822-53017
    • Inner diameter 25
    • 1 shown on diagram
    $19.99
  • 4 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 5

    SPACER

    • Part No. T2185-21781
    • 1 shown on diagram
    $22.99
  • 6 BEARING BALL 40x67x19

    BEARING BALL 40x67x19

    • Part No. 08101-06007
    • DIA35
    • 1 shown on diagram
    $26.99
  • 7 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • Applied Dates Up to 2009-11-30
    • DIA35
    • 1 shown on diagram
    $1.89
