PTO DRIVE SHAFT GROUP - CK30M-T240A

Kioti TRACTOR | CK Series | CK25

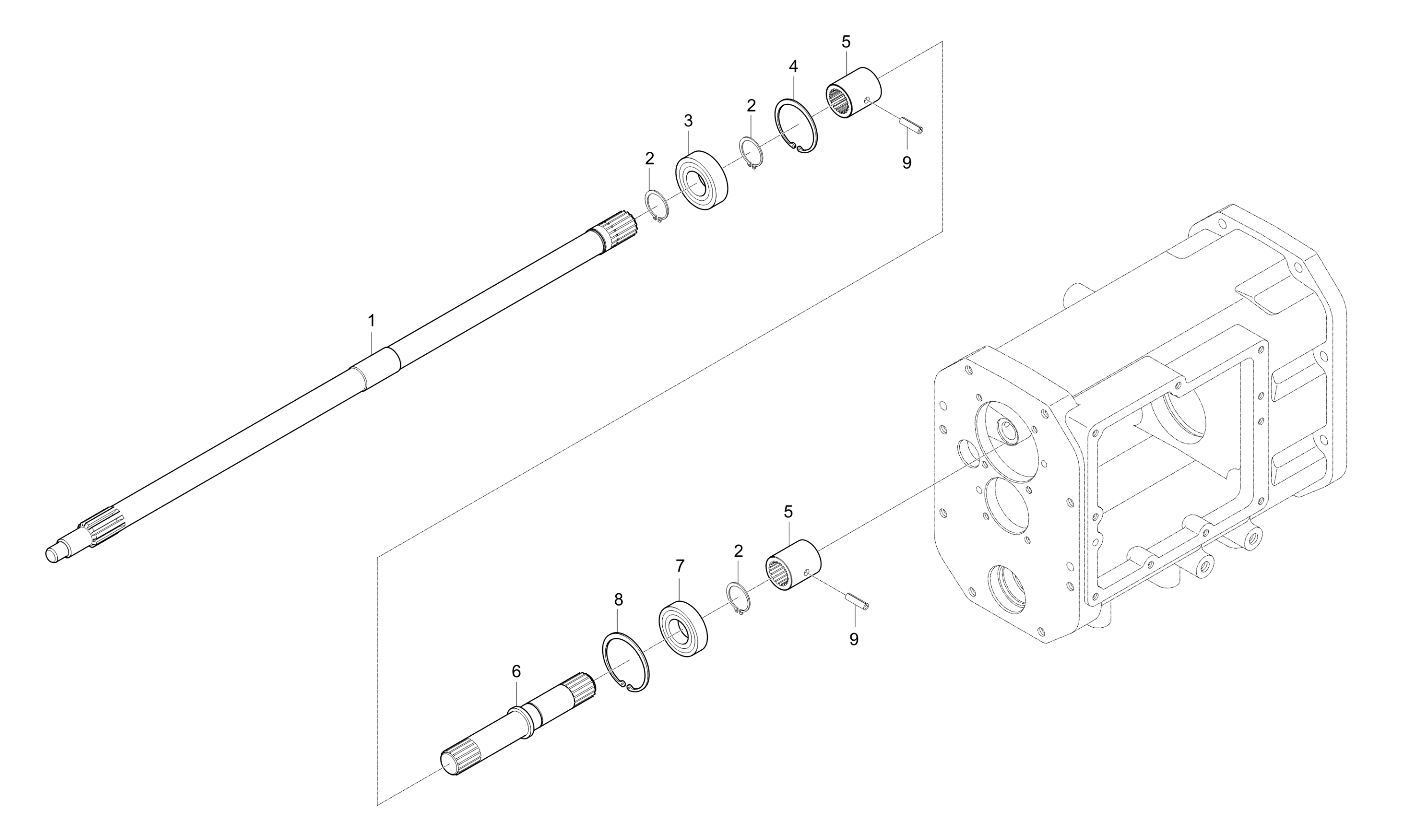

Diagram for PTO DRIVE SHAFT GROUP - CK30M-T240A
  • 1

    SHAFT1, PTO DRIVE

    • Part No. T2185-25211
    • 1 shown on diagram
    $234.99
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 3 shown on diagram
    $1.09
  • 3 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • Applied Dates 2004-07-02 and up
    • DIA25
    • 1 shown on diagram
    $17.99
  • 4 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • Applied Dates 2004-07-02 and up
    • DIA52
    • 1 shown on diagram
    $2.49
  • 5

    COUPLING

    • Part No. 37805-4452-1
    • 2 shown on diagram
    $52.99
  • 6

    SHAFT2, PTO DRIVE

    • Part No. T2185-25221
    • 1 shown on diagram
    $78.99
  • 7 BALL BEARING 25x47x12

    BALL BEARING 25x47x12

    • Part No. 08101-06005
    • DIA25
    • 1 shown on diagram
    $16.99
  • 8

    RING,SNAP

    • Part No. 04611-00470
    • DIA47
    • 1 shown on diagram
    $2.99
  • 9 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00636
    • Applied Dates 2003-12-30 and up
    • 2 shown on diagram
    $0.90
