PTO SHIFT FORK GROUP - CK30M-T380A

Kioti TRACTOR | CK Series | CK25

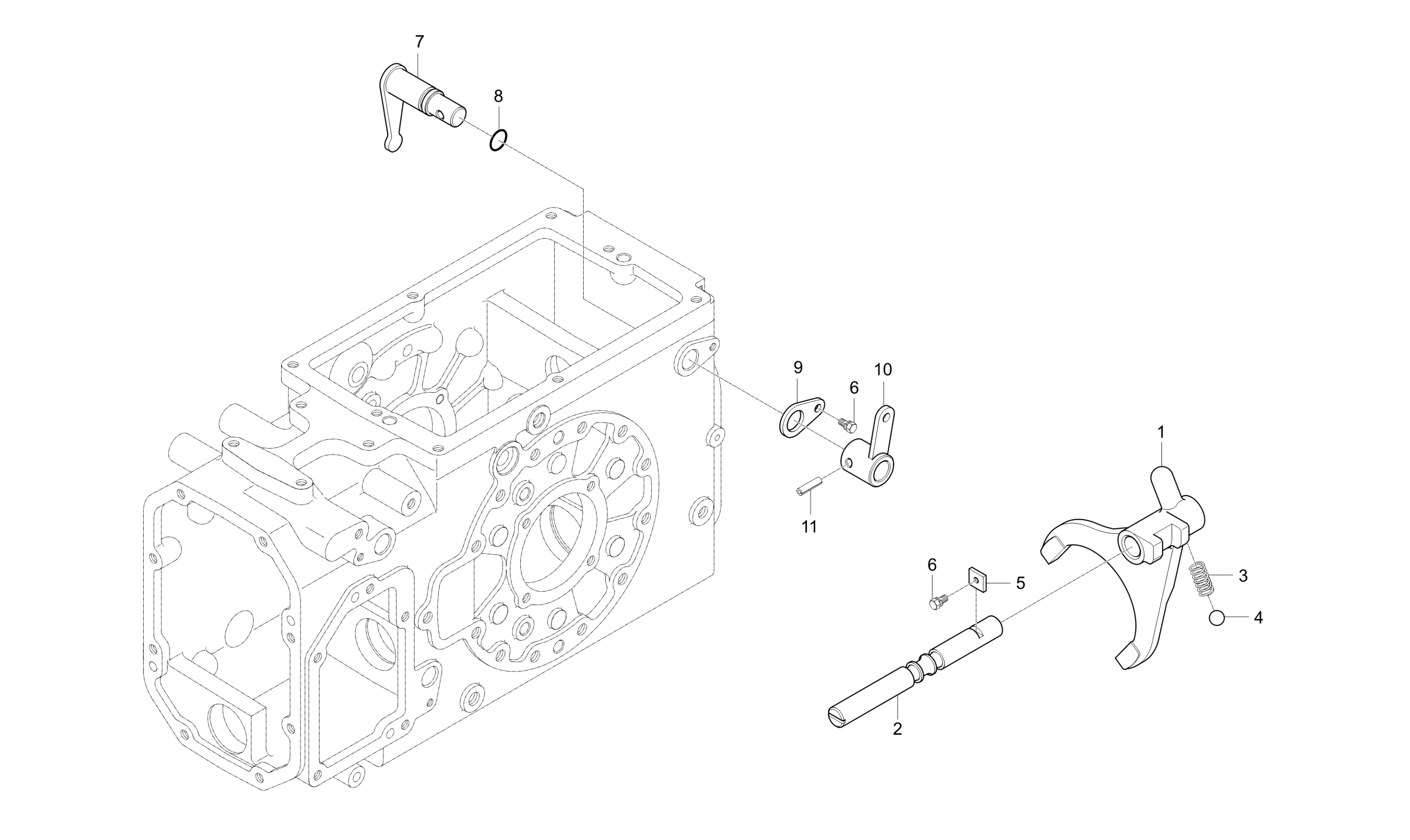

Diagram for PTO SHIFT FORK GROUP - CK30M-T380A
  • 1

    FORK, SHIFT (PTO)

    • Part No. T2185-25813
    • Applied Dates 2005-11-22 and up
    • 1 shown on diagram
    $149.99
  • 2

    ROD,FORK

    • Part No. T2445-24652
    • Applied Dates Up to 2005-08-29
    • Serial No. Up to E70100260
    • * multiple options for #2
    • 1 shown on diagram
    $26.99
  • 2

    ROD, FORK v

    • Part No. T2185-24651
    • Compatibility No interchange
    • Applied Dates Up to 2005-08-29
    • Serial No. E70100261 and up
    • * multiple options for #2
    • 1 shown on diagram
    $24.99
  • 2

    ROD, FORK obs

    • Part No. T2185-24652
    • Compatibility Interchngable
    • Applied Dates 2006-09-08 and up
    • * multiple options for #2
    • 1 shown on diagram
    $59.99
  • 3 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 4 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • Applied Dates 2004-07-02 and up
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 5

    STOPPER v

    • Part No. 35265-2321-1
    • Applied Dates Up to 2005-03-14
    • T3.2
    • 1 shown on diagram
    $3.99
  • 6 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2004-05-31 and up
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 7

    ARM, SHIFT (PTO)

    • Part No. T2185-25842
    • Applied Dates 2003-12-30 and up
    • 1 shown on diagram
    $38.99
  • 8 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
    $1.09
  • 9

    STOPPER v

    • Part No. 31355-4433-1
    • Applied Dates 2004-07-02 and up
    • T1.4
    • 1 shown on diagram
    $4.99
  • 10

    ARM, PTO SHIFT v

    • Part No. T2185-25762
    • Applied Dates 2004-04-26 and up
    • 1 shown on diagram
    $24.99
  • 11 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • Applied Dates 2004-07-02 and up
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
