BRAKE CASE GROUP - CK30M-T460A

Kioti TRACTOR | CK Series | CK25

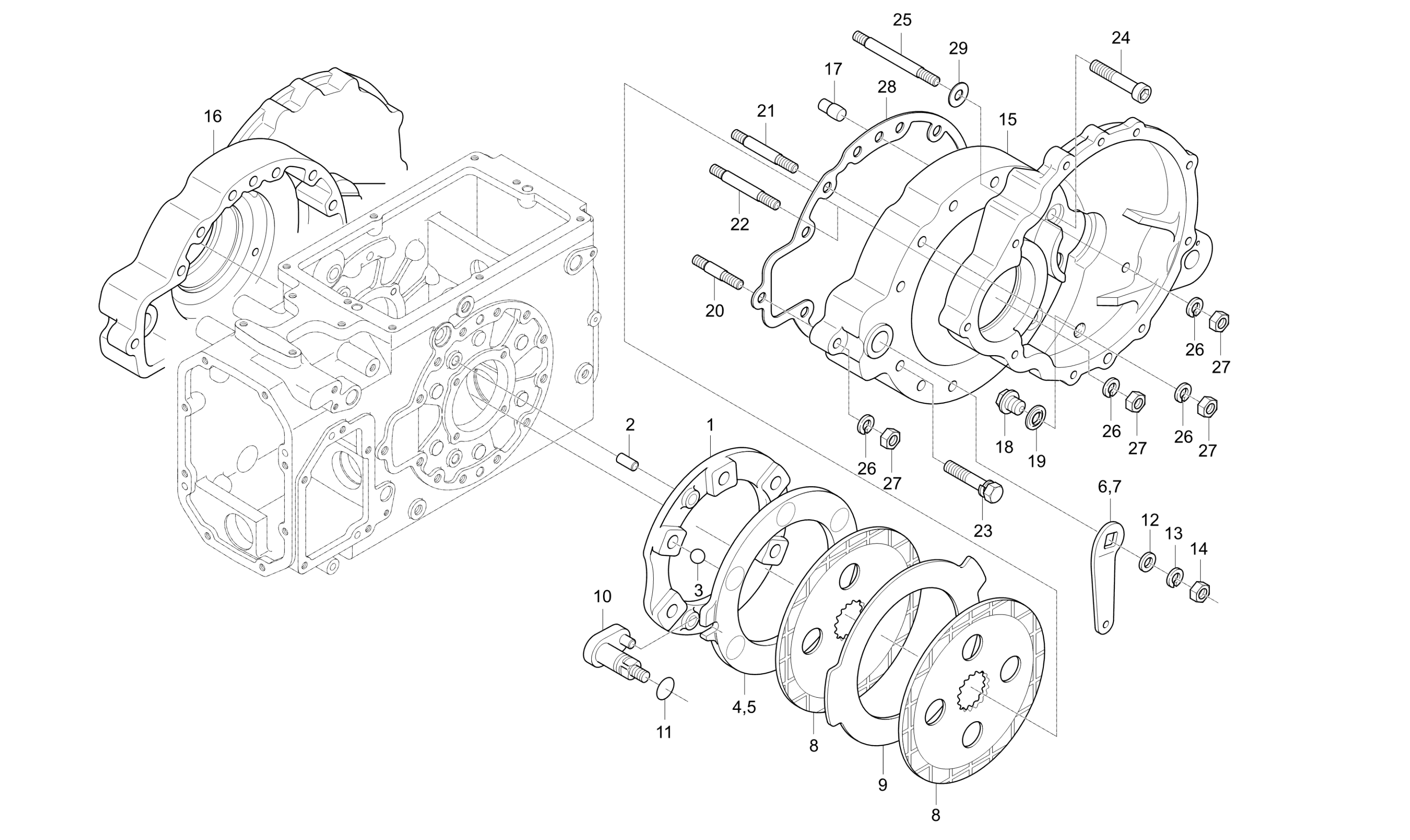

Diagram for BRAKE CASE GROUP - CK30M-T460A
  • 1

    GUIDE,BALL

    • Part No. T2440-26572
    • 2.1KG
    • 2 shown on diagram
    $134.99
  • 2 PIN, DOWEL

    PIN, DOWEL

    • Part No. 37805-4350-1
    • 4 shown on diagram
    $5.99
  • 3

    BALL,STEEL v

    • Part No. 07715-00805
    • DIA15.875
    • 12 shown on diagram
    $2.49
  • 4

    (RH) Cam Plate, Replaced by T4125-28271

    • Part No. T2240-28272
    • Applied Dates Up to 2008-12-31
    • 1 shown on diagram
    $84.99
  • 5

    (LH) cam Plate, Replaced by T4125-28241

    • Part No. T2240-28242
    • Applied Dates Up to 2008-12-31
    • 1 shown on diagram
    $89.99
  • 6

    LEVER, BRAKE CAM (LH)

    • Part No. T2185-28221
    • T9
    • 1 shown on diagram
    $29.99
  • 7

    LEVER, BRAKE CAM (RH)

    • Part No. T2185-28231
    • T9
    • 1 shown on diagram
    $29.99
  • 8

    DISK,BRAKE v

    • Part No. T2440-28202
    • Applied Dates Up to 2006-12-31
    • * multiple options for #8
    • 4 shown on diagram
    $56.99
  • 8

    BREAK DISC v

    • Part No. T2440-28203
    • Compatibility Interchngable
    • Applied Dates 2007-08-09 and up
    • * multiple options for #8
    • 4 shown on diagram
    $87.99
  • 9

    PLATE

    • Part No. T2440-28182
    • T2.6
    • 2 shown on diagram
    $29.99
  • 10

    CAM,BRAKE

    • Part No. 37720-2821-7
    • Applied Dates Up to 2007-01-28
    • * multiple options for #10
    • 2 shown on diagram
    $63.99
  • 10

    CAM,BRAKE

    • Part No. T2546-28211
    • Compatibility Interchngable
    • Applied Dates 2007-01-29 and up
    • * multiple options for #10
    • 2 shown on diagram
    $74.99
  • 11 O-Ring P18

    O-Ring P18

    • Part No. 04811-00180
    • P18
    • 2 shown on diagram
    $1.09
  • 12

    Flat Washer M14

    • Part No. 04015-50140
    • M14
    • 2 shown on diagram
    $2.49
  • 13

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.90
  • 14

    NUT M14 P1.5

    • Part No. 02174-50140
    • Applied Dates Up to 2007-09-03
    • M14*P1.5
    • * multiple options for #14
    • 2 shown on diagram
    $1.09
  • 14 NUT

    NUT

    • Part No. 02176-50140
    • Compatibility Interchngable
    • Applied Dates 2007-09-04 to 2004-01-27
    • M14XP1.5
    • * multiple options for #14
    • 2 shown on diagram
    $1.79
  • 15

    CASE, BRAKE (LH), Replaced by T2445-28147

    • Part No. T2445-28146
    • Applied Dates Up to 2003-12-31
    • * multiple options for #15
    • 1 shown on diagram
    $0.00
  • 15

    CASE, BRAKE-LH obs

    • Part No. T2445-28147
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • 21.6KG
    • * multiple options for #15
    • 1 shown on diagram
    $699.99
  • 16

    CASE, BRAKE(RH) v

    • Part No. T2445-28156
    • Applied Dates Up to 2003-12-31
    • * multiple options for #16
    • 1 shown on diagram
    $299.99
  • 16

    CASE,BRAKE RH

    • Part No. T2445-28157
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • 21.6KG
    • * multiple options for #16
    • 1 shown on diagram
    $639.99
  • 17

    PIN, PARALLEL v

    • Part No. 37305-2817-1
    • 4 shown on diagram
    $9.99
  • 18

    PLUG, OIL DRAIN v

    • Part No. 34150-1426-1
    • DIA30X34
    • 2 shown on diagram
    $6.99
  • 19 WASHER,SEAL

    WASHER,SEAL

    • Part No. 04717-02150
    • PS1/2
    • 2 shown on diagram
    $2.49
  • 20

    STUD

    • Part No. 01574-51240
    • M12*1.25*30
    • 2 shown on diagram
    $6.99
  • 21

    STUD

    • Part No. 01574-51265
    • Applied Dates Up to 2006-12-31
    • Serial No. Up to F70100690
    • M12XP1.25
    • * multiple options for #21
    • 12 shown on diagram
    $7.49
  • 21

    BOLT

    • Part No. 01173-51265
    • Compatibility Call for compat
    • Applied Dates 2007-05-07 and up
    • Serial No. G70100001 and up
    • M12*1.25
    • * multiple options for #21
    • 12 shown on diagram
    $4.49
  • 22

    STUD

    • Part No. 01574-51270
    • Applied Dates Up to 2006-12-31
    • Serial No. Up to F70100690
    • M12*1.25*70
    • * multiple options for #22
    • 4 shown on diagram
    $7.49
  • 22

    BOLT v

    • Part No. 01173-51270
    • Compatibility Call for compat
    • Applied Dates 2007-05-07 and up
    • Serial No. G70100001 and up
    • * multiple options for #22
    • 4 shown on diagram
    $6.49
  • 23

    BOLT

    • Part No. 01173-51265
    • Applied Dates 2007-05-07 and up
    • M12*1.25
    • 4 shown on diagram
    $4.49
  • 24

    BOLT

    • Part No. 01173-51260
    • Applied Dates Up to 2004-01-07
    • M12*1.25*60
    • * multiple options for #24
    • 4 shown on diagram
    $3.99
  • 24

    BOLT, HEX. SOCKET

    • Part No. T2185-28351
    • Compatibility New repl old
    • Applied Dates 2004-04-26 and up
    • * multiple options for #24
    • 4 shown on diagram
    $8.99
  • 25

    STUD

    • Part No. 01574-51285
    • M12*1.25*85
    • 2 shown on diagram
    $9.99
  • 26 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates 2004-01-08 and up
    • M12
    • 24 shown on diagram
    $0.95
  • 27 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • Applied Dates 2006-10-16 and up
    • M12XP1.25
    • 4 shown on diagram
    $1.49

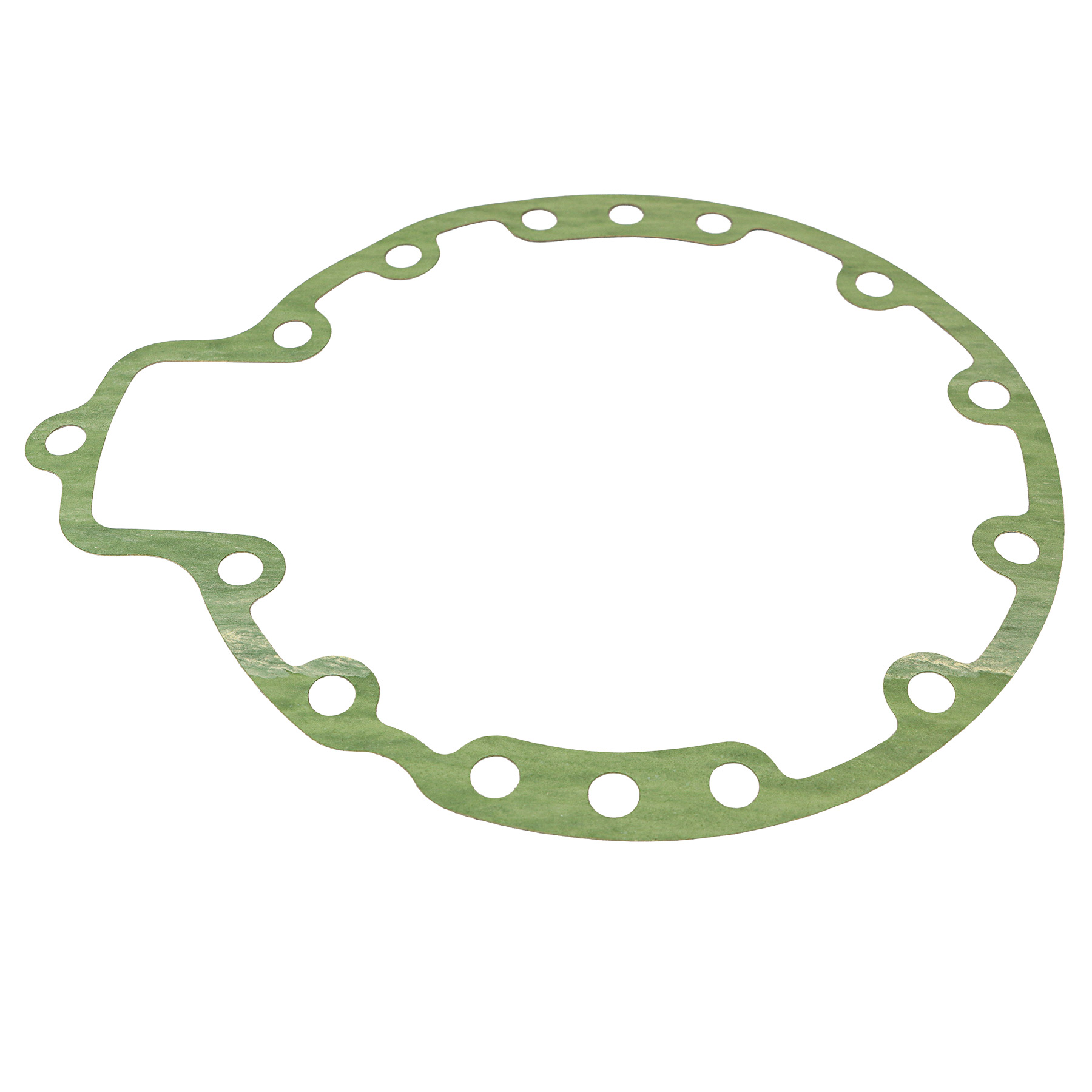

  • 28 PACKING

    PACKING

    • Part No. T2440-28162
    • Applied Dates Up to 2006-12-31
    • T0.5
    • 2 shown on diagram
    $21.99
  • 29

    PACKING

    • Part No. T2440-28192
    • Applied Dates Up to 2006-12-31
    • T0.5
    • 2 shown on diagram
    $2.49
