SPEED SHIFT FORK GROUP - CK30M-T330A

Kioti TRACTOR | CK Series | CK25

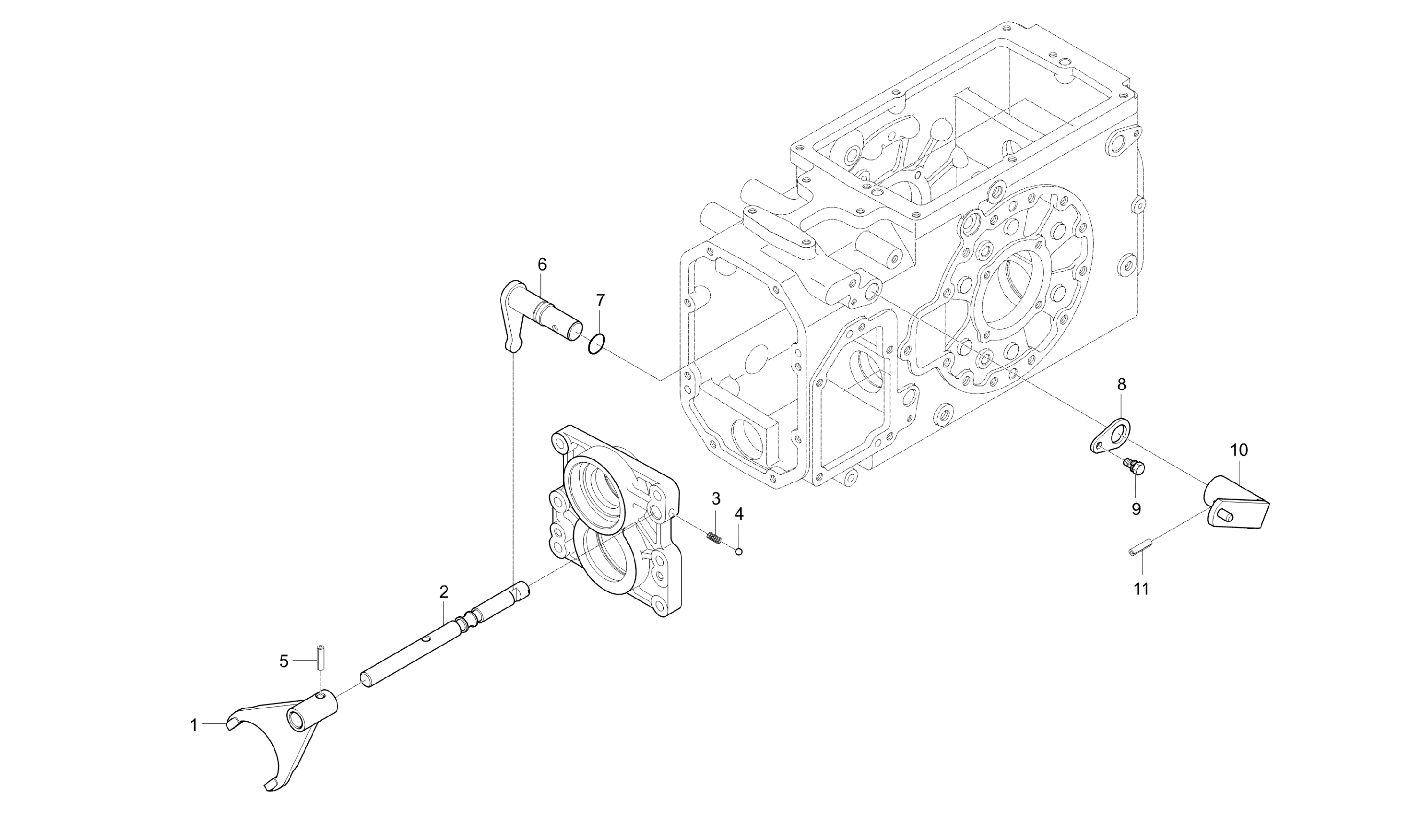

Diagram for SPEED SHIFT FORK GROUP - CK30M-T330A
  • 1

    FORK, SHIFT(RANGE)

    • Part No. T2185-23111
    • Applied Dates Up to 2004-05-31
    • * multiple options for #1
    • 1 shown on diagram
    $76.99
  • 1

    Shift Fork (Range) Obs

    • Part No. T2185-23112
    • Compatibility New repl old
    • Applied Dates 2004-07-02 and up
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 2

    ROD, FORK (RANGE)

    • Part No. T2185-23121
    • 1 shown on diagram
    $59.99
  • 3 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 4 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • Applied Dates 2004-07-02 and up
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 5 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • DIA6.4XL25
    • 1 shown on diagram
    $1.09
  • 6

    ARM, SHUTTLE SHIFT obs

    • Part No. T2185-22171
    • 1 shown on diagram
    $44.99
  • 7 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
    $1.09
  • 8

    STOPPER

    • Part No. T4620-44331
    • T2.0
    • 1 shown on diagram
    $9.99
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2004-05-31 and up
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 10

    ARM, RANGE SHIFT

    • Part No. T2185-24324
    • Applied Dates 2004-04-26 and up
    • 1 shown on diagram
    $22.99
  • 11 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • Applied Dates 2004-07-02 and up
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
