REAR DIFF SYSTEM GROUP - CK30M-T440A

Kioti TRACTOR | CK Series | CK25

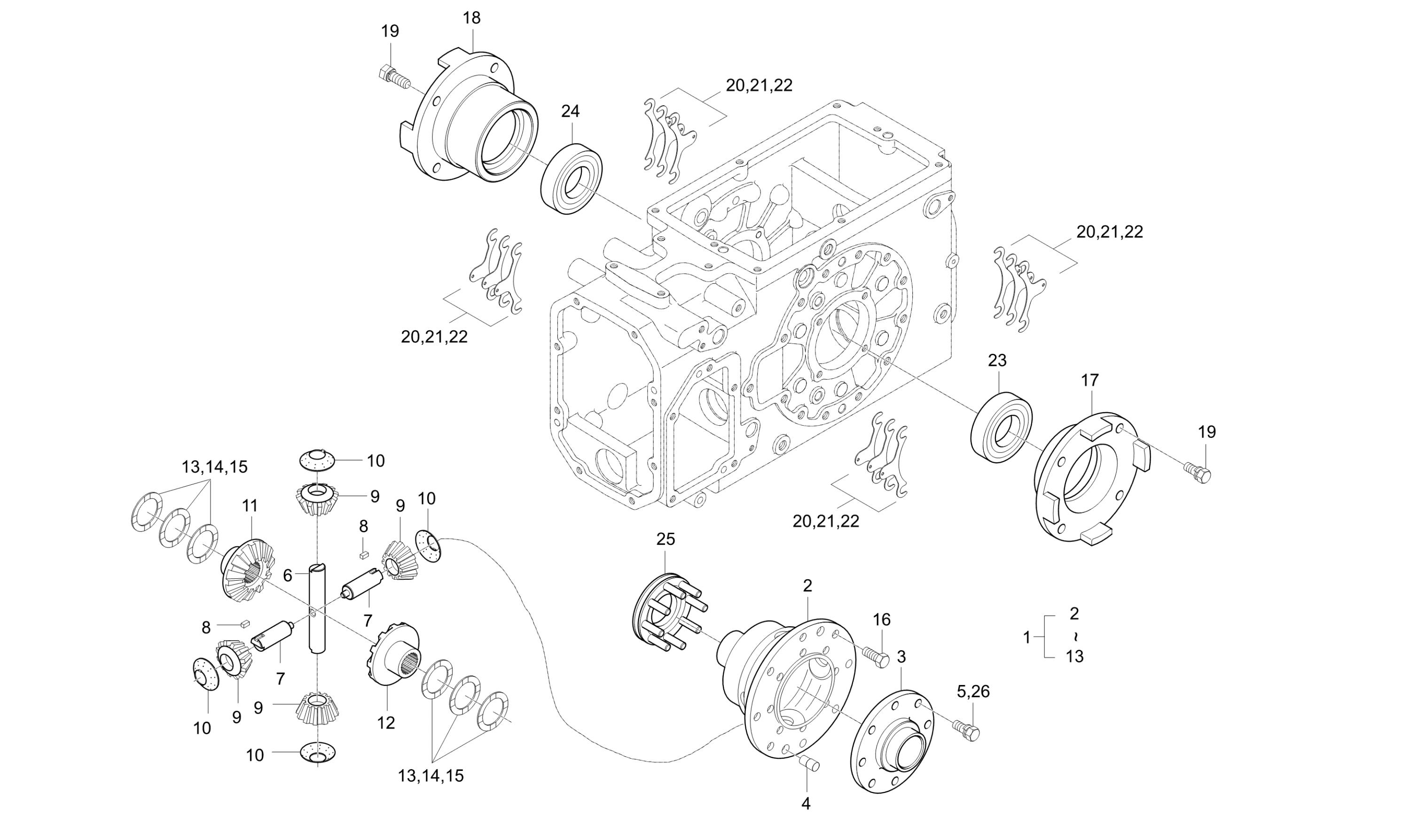

Diagram for REAR DIFF SYSTEM GROUP - CK30M-T440A
  • 1

    ASS’Y, REAR DIFF.

    • Part No. T2185-26101
    • Applied Dates 2004-01-05 to 2007-03-04
    • * multiple options for #1
    • 1 shown on diagram
    $819.99
  • 1

    ASSY DIFFRENTIAL

    • Part No. T2185-26102
    • Compatibility Interchngable
    • Applied Dates 2007-03-05 to 2007-06-25
    • Serial No. Up to G70100404
    • * multiple options for #1
    • 1 shown on diagram
    $664.99
  • 1

    ASSY DIFFRENTIAL

    • Part No. T2185-26103
    • Compatibility Call for compat
    • Applied Dates Up to 2007-08-09
    • Serial No. G70100405 and up
    • * multiple options for #1
    • 1 shown on diagram
    $729.99
  • 1

    ASSY DIFFRENTIAL

    • Part No. T2185-26104
    • Compatibility Interchngable
    • Applied Dates Up to 2016-12-31
    • * multiple options for #1
    • 1 shown on diagram
    $1,184.99
  • 1

    ASSY DIFFRENTIAL

    • Part No. T2195-26101
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY DIFFERENTIAL

    • Part No. T2195-26102
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $814.99
  • 1

    ASSY DIFFRENTIAL

    • Part No. T2195-26103
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $814.99
  • 2

    DIFFERENTIAL SYSTEM CASE

    • Part No. 38240-2651-5
    • Applied Dates Up to 2005-08-29
    • * multiple options for #2
    • 1 shown on diagram
    $399.99
  • 2

    CASE, DIFFRENTIAL v

    • Part No. T2185-26511
    • Compatibility Old repl new
    • Applied Dates Up to 2016-12-31
    • * multiple options for #2
    • 1 shown on diagram
    $294.99
  • 2

    CASE,DIFFRENTIAL v

    • Part No. T2195-26511
    • Compatibility Call for compat
    • * multiple options for #2
    • 1 shown on diagram
    $224.99
  • 2

    CASE, DIFFRENTIAL v

    • Part No. T2185-26511
    • Compatibility Call for compat
    • * multiple options for #2
    • 1 shown on diagram
    $294.99
  • 3

    CAP, DIFFERENTIAL CASE v

    • Part No. T2185-26521
    • Applied Dates 2004-01-05 and up
    • * multiple options for #3
    • 1 shown on diagram
    $86.99
  • 3

    CAP, DIFFERENTIAL CASE dnr v

    • Part No. T2195-26521
    • Compatibility Call for compat
    • * multiple options for #3
    • 1 shown on diagram
    $55.99
  • 3

    CAP, DIFFERENTIAL CASE v

    • Part No. T2185-26521
    • Compatibility Call for compat
    • * multiple options for #3
    • 1 shown on diagram
    $86.99
  • 4

    PIN, DOWEL

    • Part No. 37300-2817-2
    • Applied Dates 2004-01-05 and up
    • 2 shown on diagram
    $11.99
  • 5 BOLT

    BOLT

    • Part No. 01133-51025
    • Applied Dates 2004-01-05 and up
    • M10XP1.25
    • 8 shown on diagram
    $3.49
  • 6

    DIFF PINION SHAFT 1

    • Part No. 38430-2634-3
    • Applied Dates 2004-01-05 to 2006-06-25
    • Serial No. Up to G70100404
    • * multiple options for #6
    • 1 shown on diagram
    $48.99

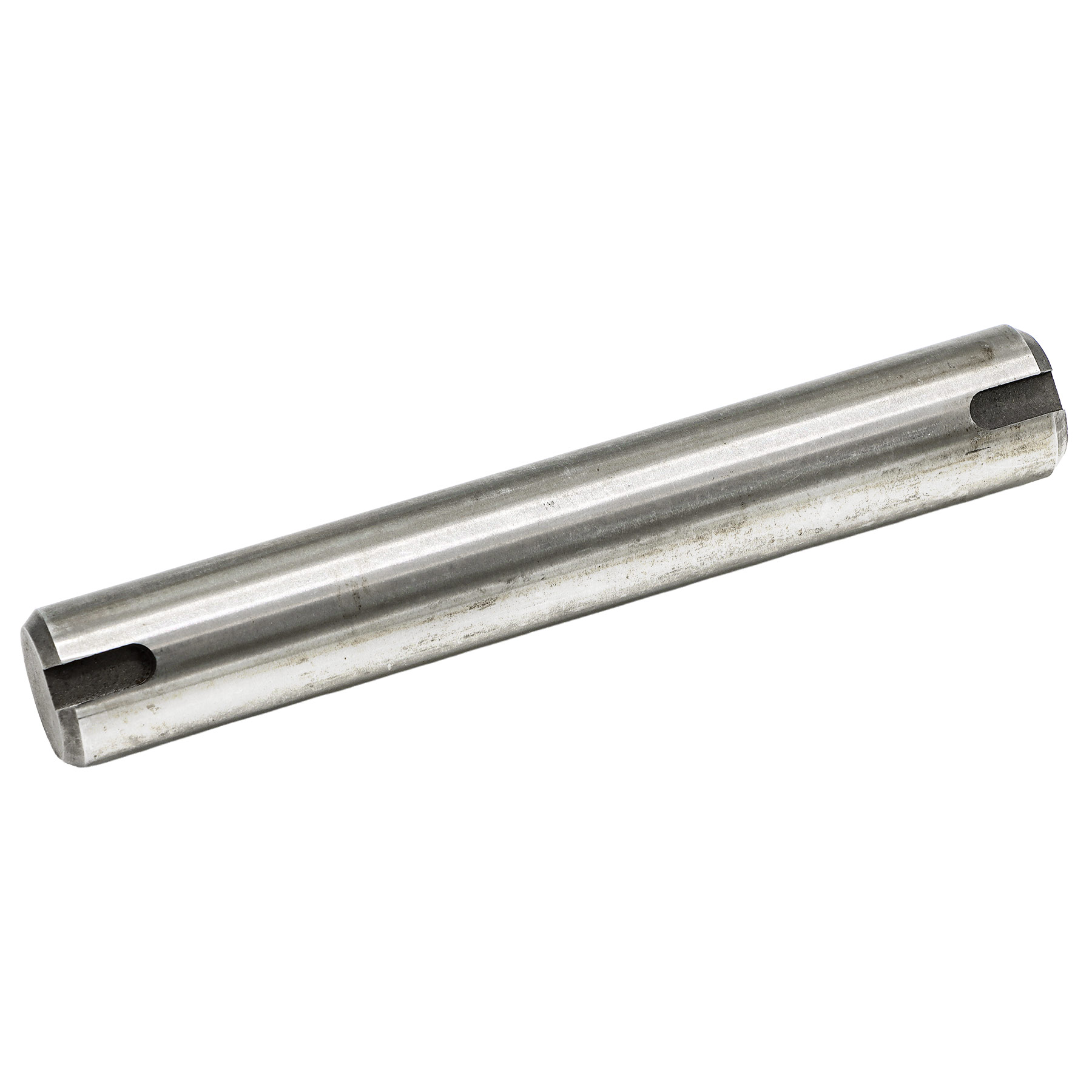

  • 6 SHAFT 1 DIFFERENTIAL

    SHAFT 1 DIFFERENTIAL

    • Part No. T2185-26341
    • Compatibility No interchange
    • Applied Dates 2007-06-26 and up
    • Serial No. G70100405 and up
    • * multiple options for #6
    • 1 shown on diagram
    $64.99
  • 7

    DIFF PINION SHAFT 2

    • Part No. 38430-2633-3
    • Applied Dates 2004-01-05 to 2007-03-04
    • 2 shown on diagram
    $22.99
  • 8

    KEY

    • Part No. 31220-2628-1
    • Applied Dates 2004-01-05 to 2007-03-04
    • 2 shown on diagram
    $2.99
  • 9

    PINION DIFFERENTIAL v

    • Part No. T2240-26353
    • Applied Dates 2004-01-05 to 2007-03-04
    • * multiple options for #9
    • 4 shown on diagram
    $84.99

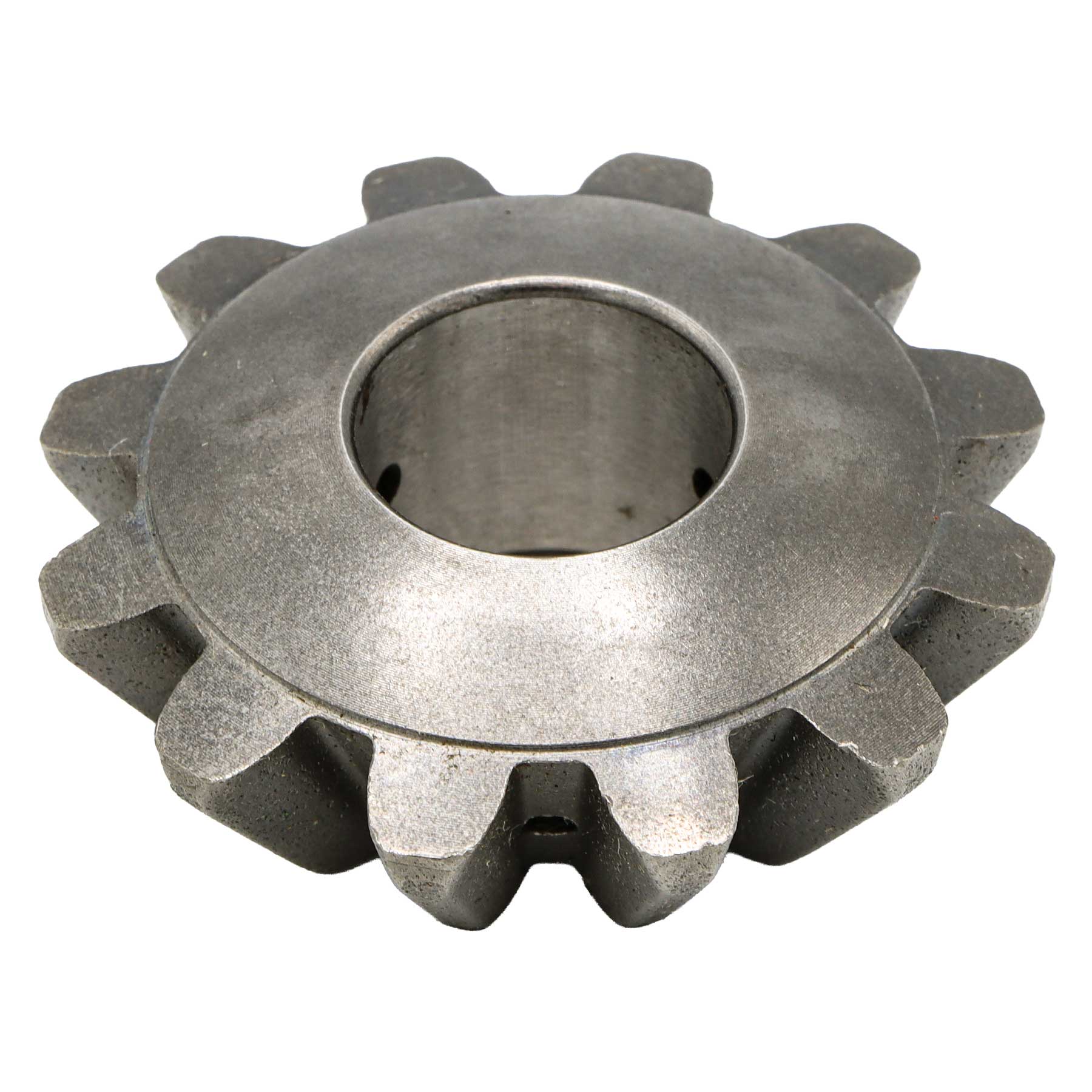

  • 9 PINION, DIFFERENTIAL

    PINION, DIFFERENTIAL

    • Part No. T2240-26354
    • Compatibility Interchngable
    • Applied Dates 2008-03-04 and up
    • * multiple options for #9
    • 2 shown on diagram
    $94.99
  • 10

    WASHER, DIFF PINION

    • Part No. 31220-2639-2
    • Applied Dates 2007-03-05 and up
    • 2 shown on diagram
    $16.99
  • 11

    GEAR, DIFF RH

    • Part No. 37300-2643-2
    • Applied Dates 2004-01-05 and up
    • 1 shown on diagram
    $139.99
  • 12

    DIFF GEAR LH

    • Part No. 37300-2644-2
    • Applied Dates 2004-01-05 and up
    • 1 shown on diagram
    $154.99
  • 13

    WASHER, DIFF-1 v

    • Part No. 37300-2648-1
    • Applied Dates 2004-01-05 and up
    • 2 shown on diagram
    $21.99
  • 14

    WASHER, DIFFERENTIAL-2 dnr v

    • Part No. 37300-2649-1
    • Applied Dates 2004-01-05 and up
    • 2 shown on diagram
    $18.99
  • 15

    WASHER, DIFF-3 obs v, Replaced by 37300-2648-1

    • Part No. 38240-2647-2
    • Applied Dates 2004-01-05 and up
    • 2 shown on diagram
    $0.00
  • 16

    BOLT

    • Part No. 37800-4387-1
    • M10xP1.25
    • * multiple options for #16
    • 8 shown on diagram
    $3.49
  • 16

    BOLT dnr v

    • Part No. T4115-43871
    • Compatibility Call for compat
    • * multiple options for #16
    • 8 shown on diagram
    $2.49
  • 16

    BOLT

    • Part No. 37800-4387-1
    • Compatibility Call for compat
    • M10xP1.25
    • * multiple options for #16
    • 8 shown on diagram
    $3.49
  • 17

    CASE, BEARING(LH)

    • Part No. T2185-26561
    • 1 shown on diagram
    $66.99
  • 18

    Bearing Case (RH)

    • Part No. T2185-26551
    • 1 shown on diagram
    $93.99
  • 19 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 8 shown on diagram
    $2.99
  • 20 SHIM 0.2

    SHIM 0.2

    • Part No. 37150-2616-1
    • 12 shown on diagram
    $3.99
  • 21 SHIM 0.1

    SHIM 0.1

    • Part No. 37150-2617-1
    • 8 shown on diagram
    $3.99
  • 22 SHIM 0.5

    SHIM 0.5

    • Part No. 37150-2618-1
    • 4 shown on diagram
    $3.49
  • 23 BEARING,BALL 50x80x16

    BEARING,BALL 50x80x16

    • Part No. 08101-06010
    • #6010
    • 1 shown on diagram
    $49.99
  • 24

    BEARING,BALL

    • Part No. 08101-06009
    • #6009
    • 1 shown on diagram
    $45.99
  • 25

    SHAFT, DIFF. LOCK

    • Part No. 37300-2661-4
    • 1 shown on diagram
    $96.99
  • 26 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 8 shown on diagram
    $3.49
