MID PTO SHAFT GROUP - CK30M-T260A

Kioti TRACTOR | CK Series | CK25

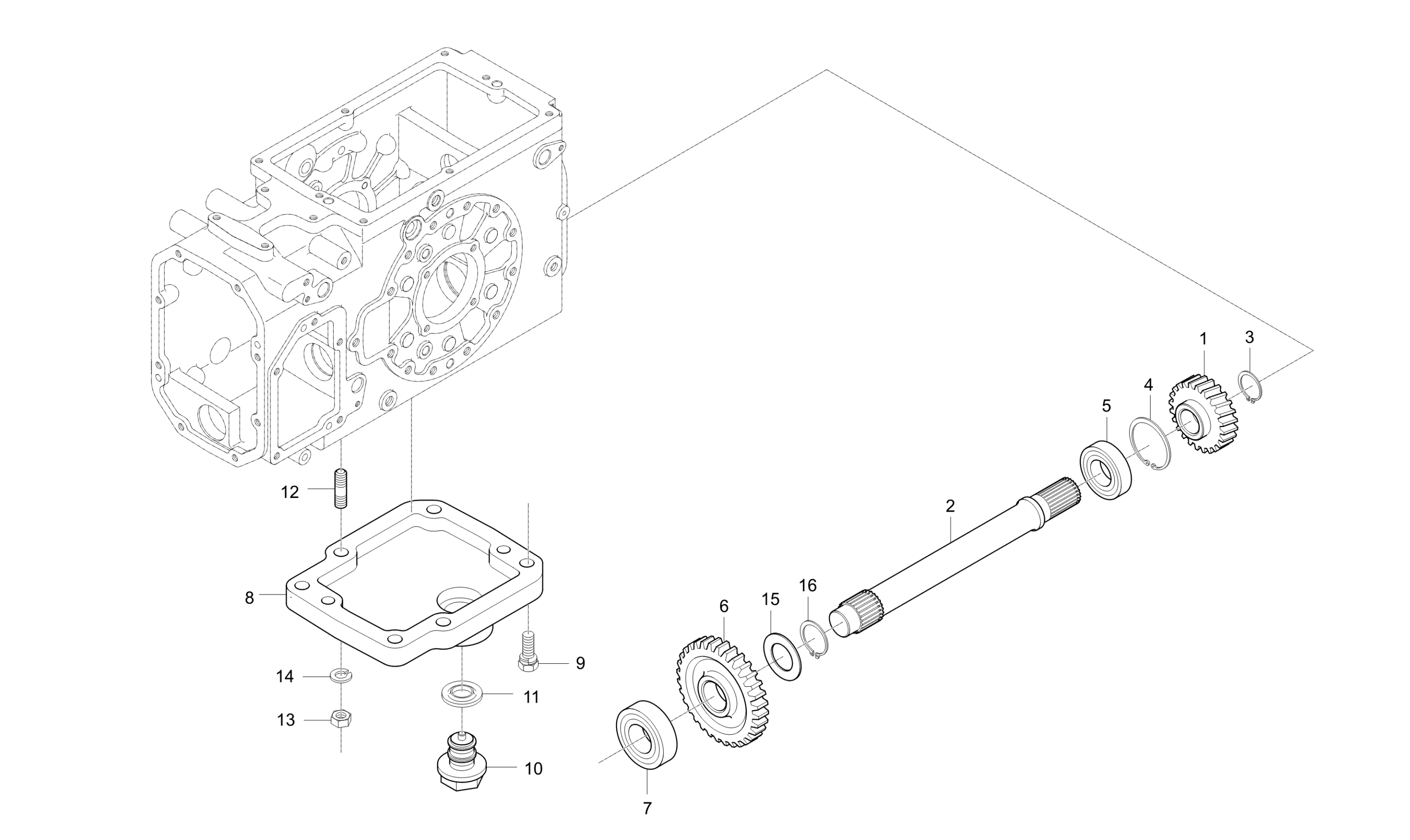

Diagram for MID PTO SHAFT GROUP - CK30M-T260A
  • 1

    GEAR,23(MID PTO)

    • Part No. T2185-24131
    • 1 shown on diagram
    $109.99
  • 2

    SHAFT, COUNTER(MID PTO)

    • Part No. T2185-24141
    • Applied Dates Up to 2006-12-31
    • 1 shown on diagram
    $114.99
  • 3 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 4 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00620
    • DIA62
    • 1 shown on diagram
    $3.99
  • 5

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
  • 6

    GEAR,31(MID PTO) v

    • Part No. T2185-24151
    • Applied Dates Up to 2006-12-31
    • Serial No. Up to G70100180
    • * multiple options for #6
    • 1 shown on diagram
    $76.99
  • 6

    GEAR,31(MID PTO)

    • Part No. T2185-24152
    • Compatibility Call for compat
    • Applied Dates 2007-06-19 and up
    • Serial No. G70100181 and up
    • * multiple options for #6
    • 1 shown on diagram
    $98.99
  • 7 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • Applied Dates 2004-07-02 and up
    • Serial No. Up to G70100180
    • DIA25
    • * multiple options for #7
    • 1 shown on diagram
    $17.99
  • 7 BEARING, BALL 30x55x13

    BEARING, BALL 30x55x13

    • Part No. 08101-06006
    • Compatibility Call for compat
    • Applied Dates 2004-07-02 and up
    • Serial No. G70100181 and up
    • DIA30
    • * multiple options for #7
    • 1 shown on diagram
    $23.99
  • 8

    Mid PTO Cover obs

    • Part No. T2185-24174
    • Applied Dates Up to 2004-05-31
    • 1 shown on diagram
    $0.00
  • 9

    WASHER BOLT

    • Part No. 01133-51035
    • Applied Dates 2004-05-11 and up
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 10

    PLUG,DRAIN

    • Part No. T4260-14271
    • Applied Dates Up to 2007-10-31
    • * multiple options for #10
    • 1 shown on diagram
    $39.99
  • 10 PLUG

    PLUG

    • Part No. T4125-14261
    • Compatibility Interchngable
    • Applied Dates 2007-12-05 and up
    • * multiple options for #10
    • 1 shown on diagram
    $39.99
  • 11 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • Applied Dates 2004-02-12 and up
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 12

    STUD

    • Part No. 01517-51030
    • Applied Dates 2004-05-11 and up
    • 2 shown on diagram
    $4.99
  • 13 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • Applied Dates 2004-05-11 and up
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 14 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • Applied Dates 2004-05-11 and up
    • M10
    • 2 shown on diagram
    $0.79
  • 15 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • Applied Dates 2004-07-02 and up
    • DIA30
    • 1 shown on diagram
    $1.59
  • 16

    WASHER

    • Part No. 38455-2314-1
    • Applied Dates Up to 2006-12-31
    • 1 shown on diagram
    $4.99
