FRONT DRIVING GEAR GROUP - CK30M-T280A

Kioti TRACTOR | CK Series | CK25

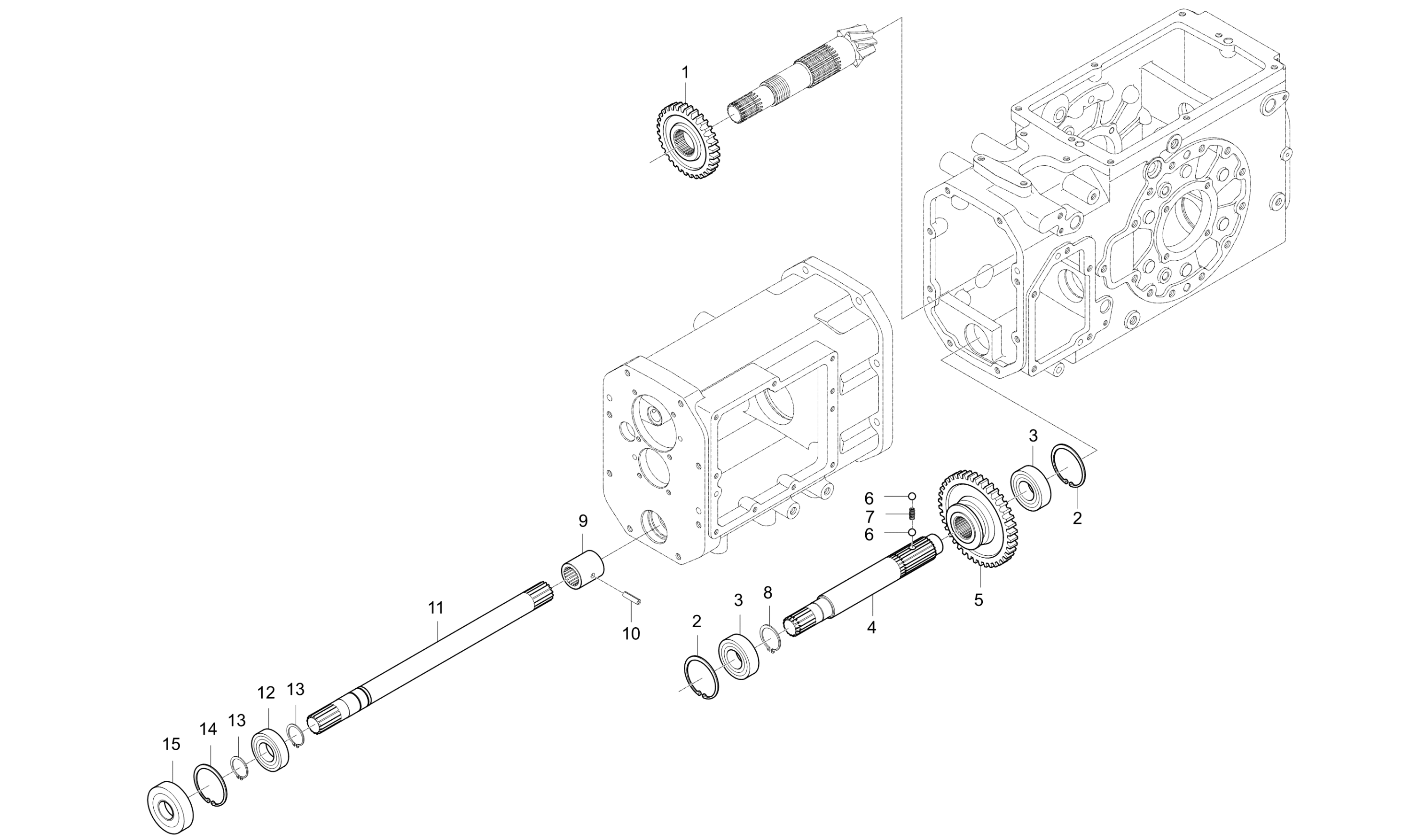

Diagram for FRONT DRIVING GEAR GROUP - CK30M-T280A
  • 1

    GEAR, 30

    • Part No. T2185-44531
    • 1 shown on diagram
    $114.99
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • Applied Dates 2004-07-02 and up
    • Serial No. Up to G70100180
    • DIA52
    • 1 shown on diagram
    $2.49
  • 3 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • Applied Dates 2004-07-02 and up
    • DIA25
    • 2 shown on diagram
    $17.99
  • 4

    SHAFT1,FRONT WHEEL DRIVE

    • Part No. T2185-44561
    • Applied Dates Up to 2006-12-31
    • * multiple options for #4
    • 1 shown on diagram
    $84.99
  • 4

    SHAFT1,FRONT WHEEL DRIVE

    • Part No. T2185-44562
    • Compatibility New repl old
    • Applied Dates 2007-05-07 and up
    • * multiple options for #4
    • 1 shown on diagram
    $114.99
  • 5

    GEAR,39

    • Part No. T2185-44611
    • Applied Dates Up to 2005-06-09
    • * multiple options for #5
    • 1 shown on diagram
    $119.99
  • 5

    GEAR 39

    • Part No. T2185-44612
    • Compatibility Interchngable
    • Applied Dates 2005-08-29 and up
    • * multiple options for #5
    • 1 shown on diagram
    $184.99
  • 6 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • Applied Dates 2004-07-02 and up
    • DIA7.9375
    • 2 shown on diagram
    $0.56
  • 7

    SPRING

    • Part No. T2440-44251
    • Applied Dates 2004-07-02 and up
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 8 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • Applied Dates 2004-07-02 and up
    • DIA30
    • 1 shown on diagram
    $1.59
  • 9 Coupling, 42.7 mm OD

    Coupling, 42.7 mm OD

    • Part No. T4620-44592
    • OD42.7*T1.6
    • 1 shown on diagram
    $39.99

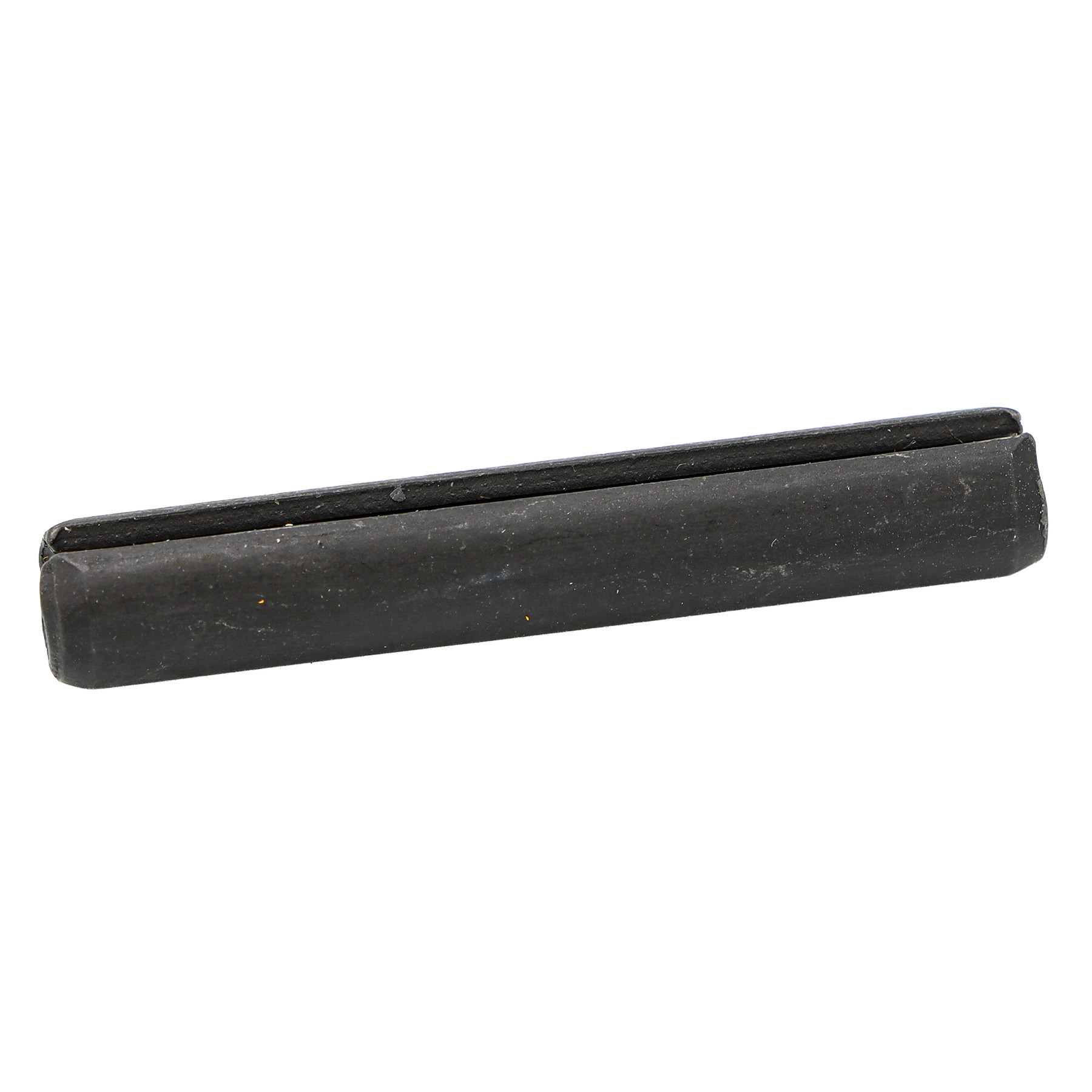

  • 10 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00636
    • 1 shown on diagram
    $0.90
  • 11

    SHAFT2,FRONT WHEEL DRIVE dnr v

    • Part No. T2185-44571
    • Applied Dates Up to 2011-12-31
    • * multiple options for #11
    • 1 shown on diagram
    $129.99
  • 11

    SHAFT 2, FRONT DRIVE v

    • Part No. T2185-44572
    • Compatibility Call for compat
    • Applied Dates 2012-06-18 and up
    • * multiple options for #11
    • 1 shown on diagram
    $139.99
  • 12 BALL BEARING 25x47x12

    BALL BEARING 25x47x12

    • Part No. 08101-06005
    • DIA25
    • 1 shown on diagram
    $16.99
  • 13 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Applied Dates 2004-06-14 to 2007-06-20
    • Serial No. D70100105 to D70100104
    • DIA25
    • * multiple options for #13
    • 2 shown on diagram
    $1.09
  • 13 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Compatibility Call for compat
    • Serial No. Up to 370100001
    • DIA25
    • * multiple options for #13
    • 1 shown on diagram
    $1.09
  • 14

    RING,SNAP

    • Part No. 04611-00470
    • DIA47
    • 1 shown on diagram
    $2.99
  • 15 Oil Seal 25x52x10

    Oil Seal 25x52x10

    • Part No. 09502-55210
    • Applied Dates 2004-07-02 and up
    • DIA25
    • 1 shown on diagram
    $3.49
