CLUTCH LEVER GROUP - CK30M-T110A

Kioti TRACTOR | CK Series | CK25

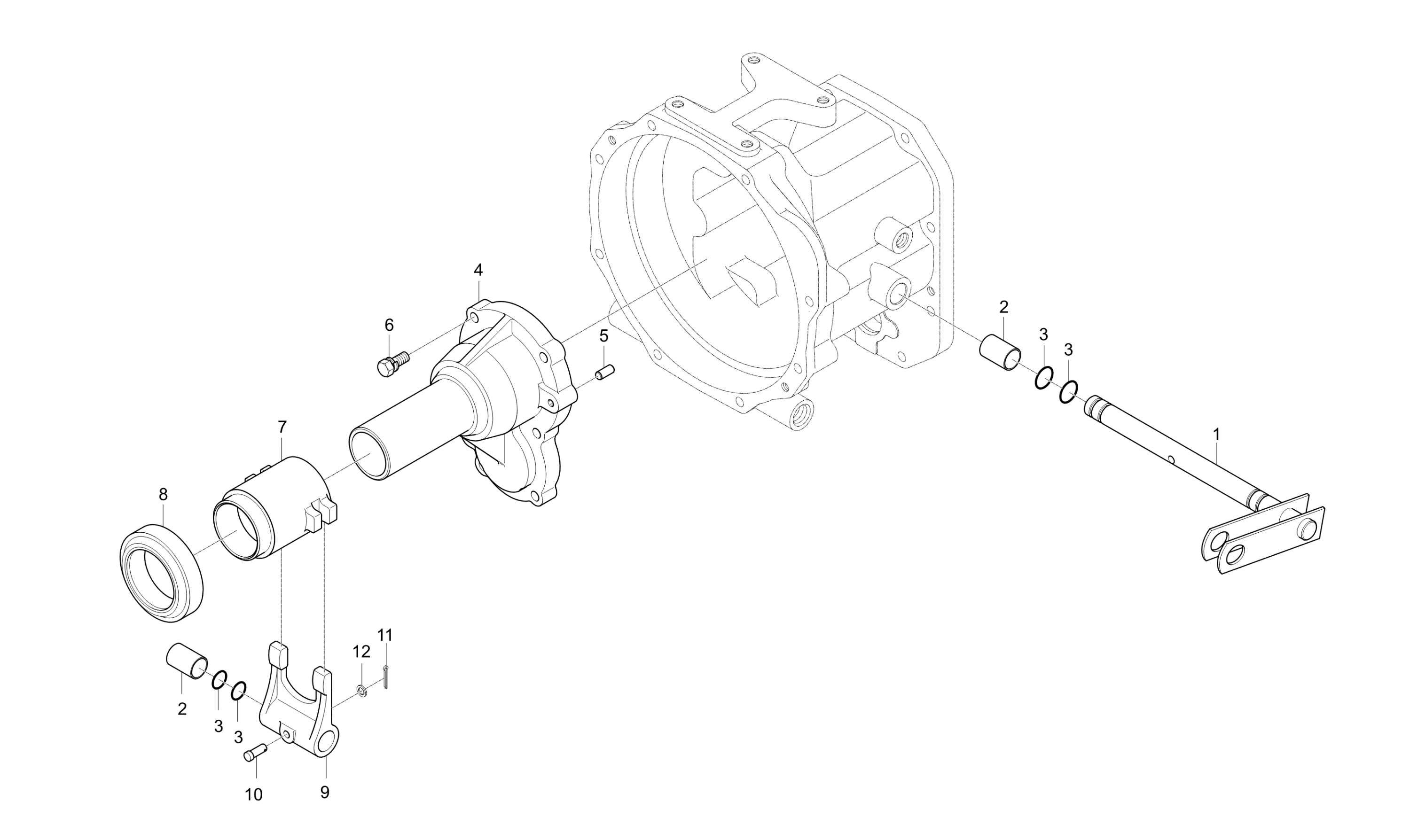

Diagram for CLUTCH LEVER GROUP - CK30M-T110A
  • 1

    Clutch Lever, Replaced by T2185-14714

    • Part No. T2185-14713
    • Applied Dates Up to 2007-08-09
    • * multiple options for #1
    • 1 shown on diagram
    $76.99
  • 1

    LEVER,CLUTCH

    • Part No. T2185-14714
    • Compatibility Interchngable
    • Applied Dates 2007-08-27 and up
    • * multiple options for #1
    • 1 shown on diagram
    $189.99
  • 1

    LEVER, CLUTCH

    • Part No. T2185-14715
    • Compatibility Call for compat
    • Serial No. M70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $75.99

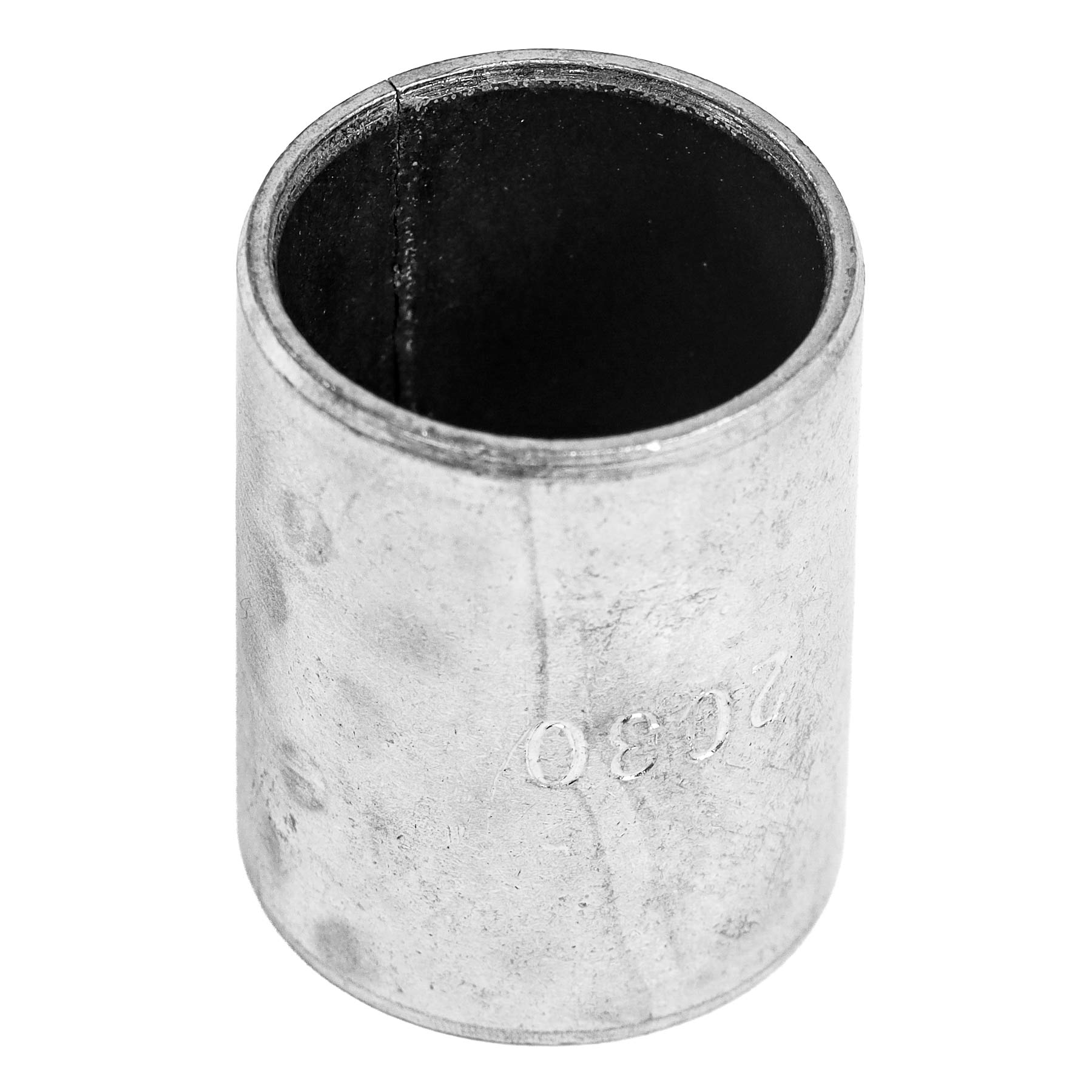

  • 2 BUSH

    BUSH

    • Part No. 08511-02030
    • Applied Dates 2007-08-27 and up
    • 2 shown on diagram
    $4.99
  • 3 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • * multiple options for #3
    • 4 shown on diagram
    $1.09
  • 3 O RING

    O RING

    • Part No. 04811-00160
    • Compatibility Call for compat
    • Serial No. M70100001 and up
    • DIA15.8
    • * multiple options for #3
    • 2 shown on diagram
    $1.09
  • 4

    CASE, PROPELLER SHAFT v

    • Part No. T2185-14751
    • Applied Dates Up to 2004-07-05
    • * multiple options for #4
    • 1 shown on diagram
    $59.99
  • 4

    CASE,PROPELLER SHAFT v

    • Part No. T2185-14752
    • Compatibility New repl old
    • Applied Dates Up to 2009-11-30
    • * multiple options for #4
    • 1 shown on diagram
    $69.99

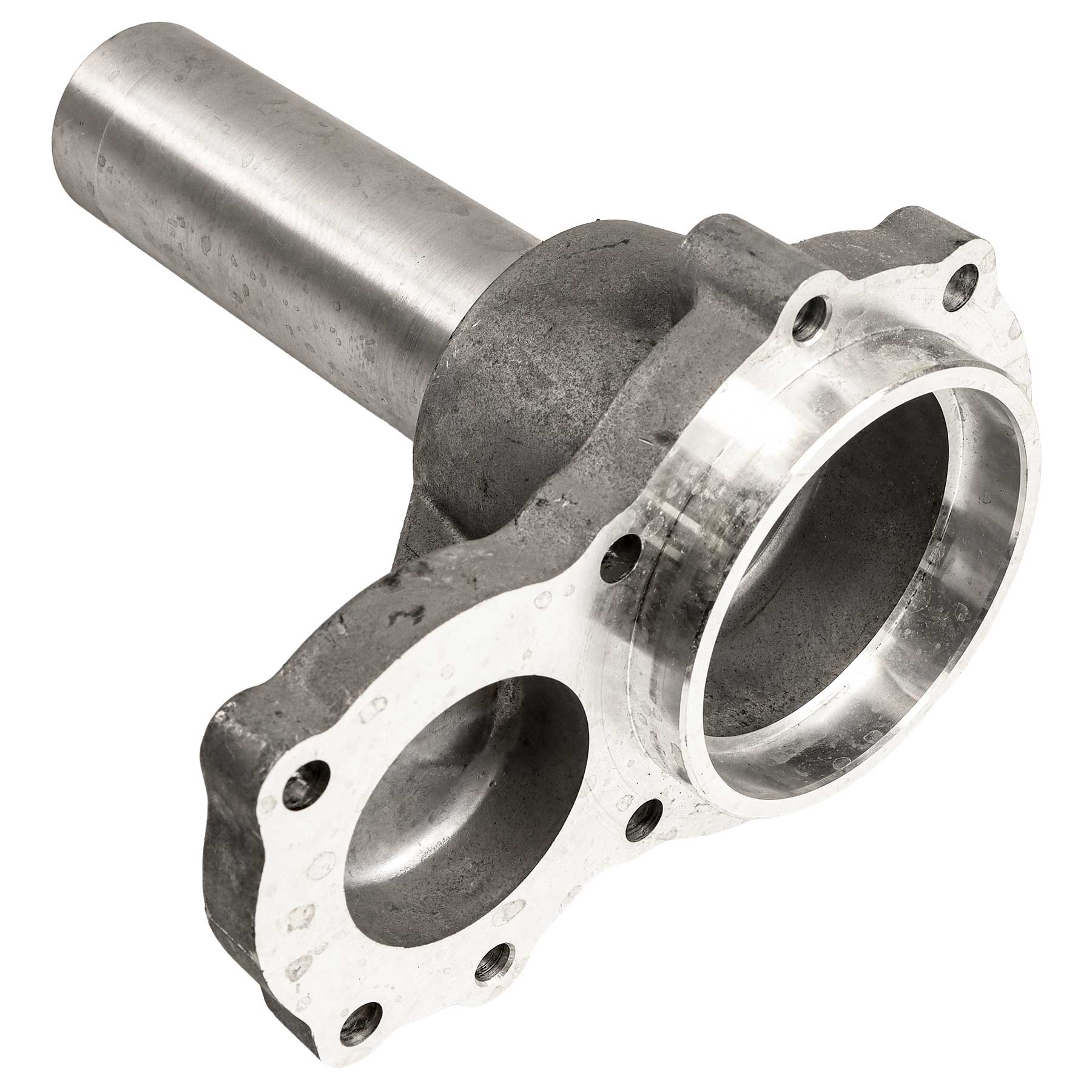

  • 4 CASE, PROPELLAR SHAFT v

    CASE, PROPELLAR SHAFT v

    • Part No. T2185-14753
    • Compatibility New repl old
    • Applied Dates 2009-12-14 and up
    • * multiple options for #4
    • 1 shown on diagram
    $109.99
  • 5 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 6 Bolt With Washer, M8 P1.25 x 28mm

    Bolt With Washer, M8 P1.25 x 28mm

    • Part No. 01123-50828
    • Applied Dates Up to 2004-12-31
    • * multiple options for #6
    • 6 shown on diagram
    $2.49
  • 6 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • Compatibility New repl old
    • Applied Dates 2005-03-14 and up
    • M8XP1.25
    • * multiple options for #6
    • 6 shown on diagram
    $1.99
  • 7

    Clutch Release Hub

    • Part No. T2185-14811
    • 1 shown on diagram
    $119.99
  • 8 Bearing,Thrust Ball

    Bearing,Thrust Ball

    • Part No. T2440-14971
    • TK55-7(NSK)
    • 1 shown on diagram
    $189.99
  • 9

    FORK,CLUTCH RELEASE

    • Part No. T2185-14723
    • Applied Dates 2004-04-26 and up
    • 1 shown on diagram
    $86.99
  • 10

    Pin, Joint M8x40mm

    • Part No. 05112-50840
    • 1 shown on diagram
    $3.49
  • 11

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 1 shown on diagram
    $0.56
  • 12 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
