FRONT DRIVE FORK GROUP - CK30M-T420A

Kioti TRACTOR | CK Series | CK25

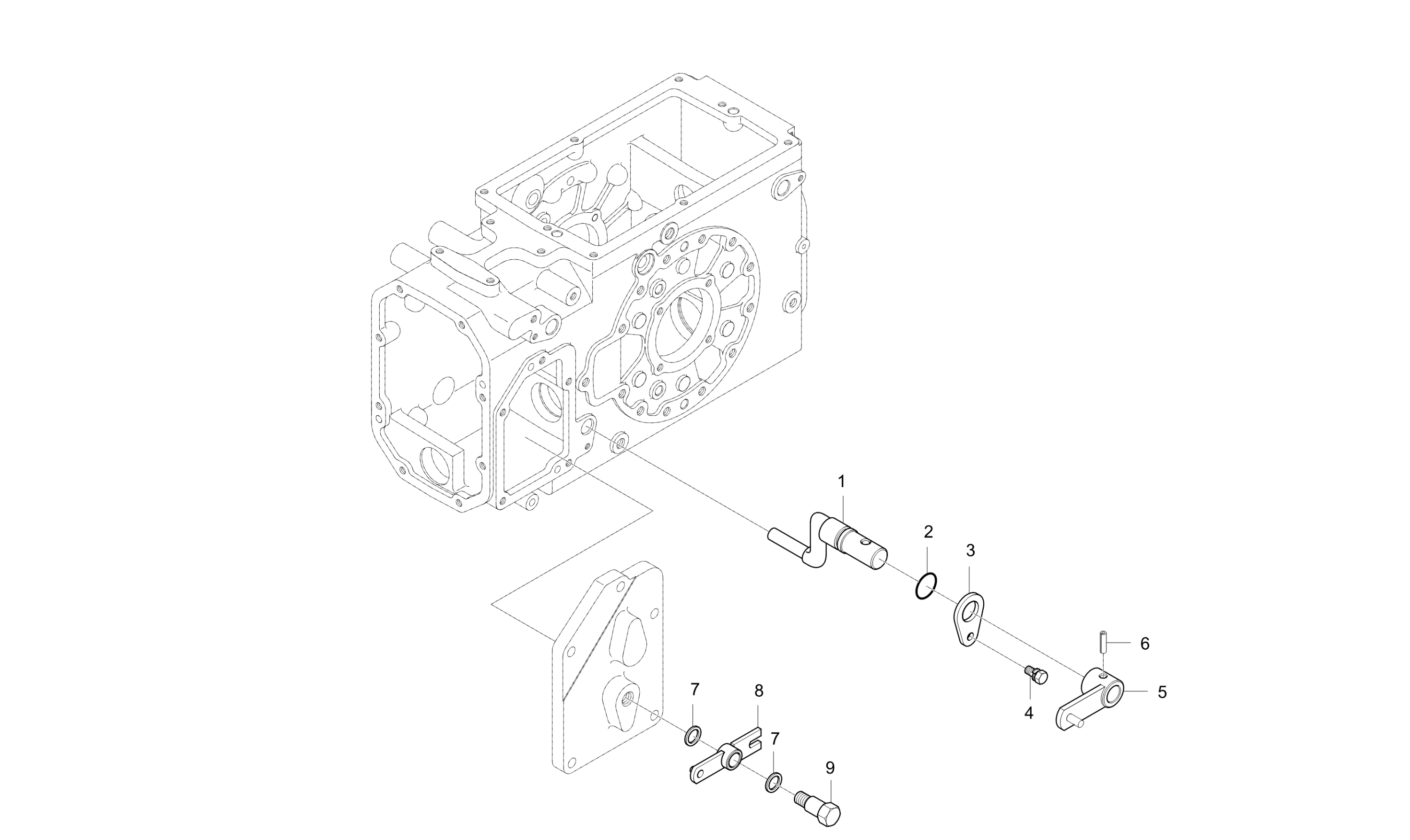

Diagram for FRONT DRIVE FORK GROUP - CK30M-T420A
  • 1

    ARM,FRONT DRIVE v

    • Part No. T2185-44312
    • Applied Dates Up to 2006-12-31
    • Serial No. Up to G70100304
    • * multiple options for #1
    • 1 shown on diagram
    $74.99

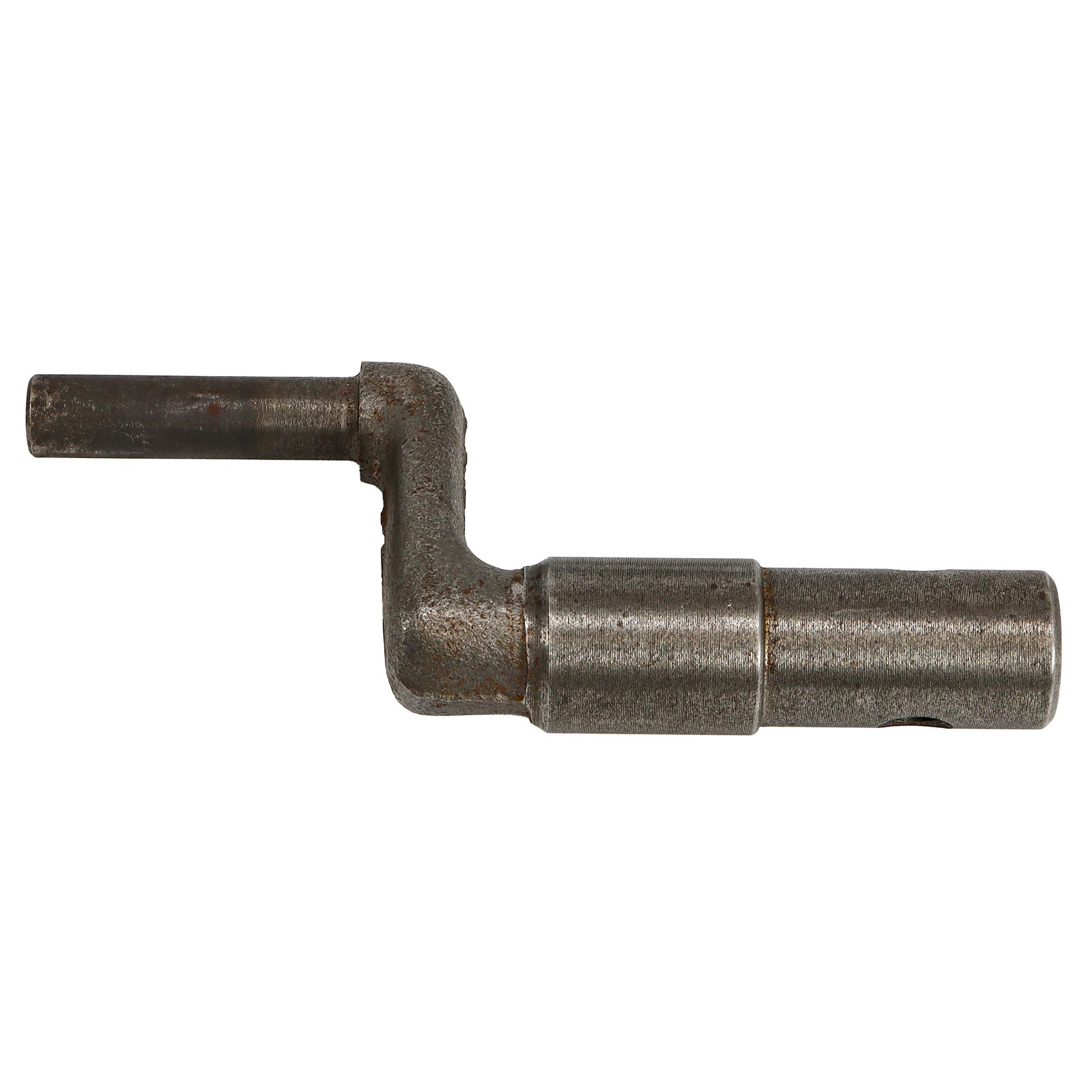

  • 1 ARM,FRONT DRIVE v

    ARM,FRONT DRIVE v

    • Part No. T2185-44313
    • Compatibility Call for compat
    • Applied Dates 2007-08-09 and up
    • Serial No. G70100305 and up
    • * multiple options for #1
    • 1 shown on diagram
    $91.99
  • 2 O RING

    O RING

    • Part No. 04811-00160
    • Applied Dates Up to 2007-04-10
    • Serial No. Up to G70100304
    • DIA15.8
    • * multiple options for #2
    • 1 shown on diagram
    $1.09
  • 2 O RING

    O RING

    • Part No. 04811-00200
    • Compatibility Call for compat
    • Applied Dates 2007-08-09 and up
    • Serial No. G70100305 and up
    • DIA19.8
    • * multiple options for #2
    • 2 shown on diagram
    $1.39
  • 3

    STOPPER

    • Part No. T4620-44331
    • T2.0
    • 1 shown on diagram
    $9.99
  • 4

    Bolt With Washer, M8 P1.25 x 12mm

    • Part No. 01123-50812
    • M8P1.25
    • 1 shown on diagram
    $1.79
  • 5

    LINK1,FRONT DRIVE v

    • Part No. T2185-44763
    • Applied Dates Up to 2005-08-29
    • * multiple options for #5
    • 1 shown on diagram
    $22.99
  • 5

    4wd-Link Arm 1, Replaced by T2185-44764BB

    • Part No. T2185-44764
    • Compatibility New repl old
    • Applied Dates 2006-09-08 and up
    • * multiple options for #5
    • 1 shown on diagram
    $0.00
  • 6 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • Applied Dates 2004-07-02 and up
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
  • 7

    WASHER,SHAFT 2

    • Part No. P5370-41091
    • Applied Dates 2004-10-20 and up
    • 2T
    • 2 shown on diagram
    $1.19
  • 8

    LINK 2, FRONT WHEEL DRIVE

    • Part No. T2185-44773
    • Applied Dates Up to 2005-08-29
    • 1 shown on diagram
    $18.99
  • 9

    Front Drive Shaft

    • Part No. T2185-24332
    • Applied Dates Up to 2005-08-29
    • 1 shown on diagram
    $9.99
