DIFF LOCK FORK GROUP - CK30M-T450A

Kioti TRACTOR | CK Series | CK25

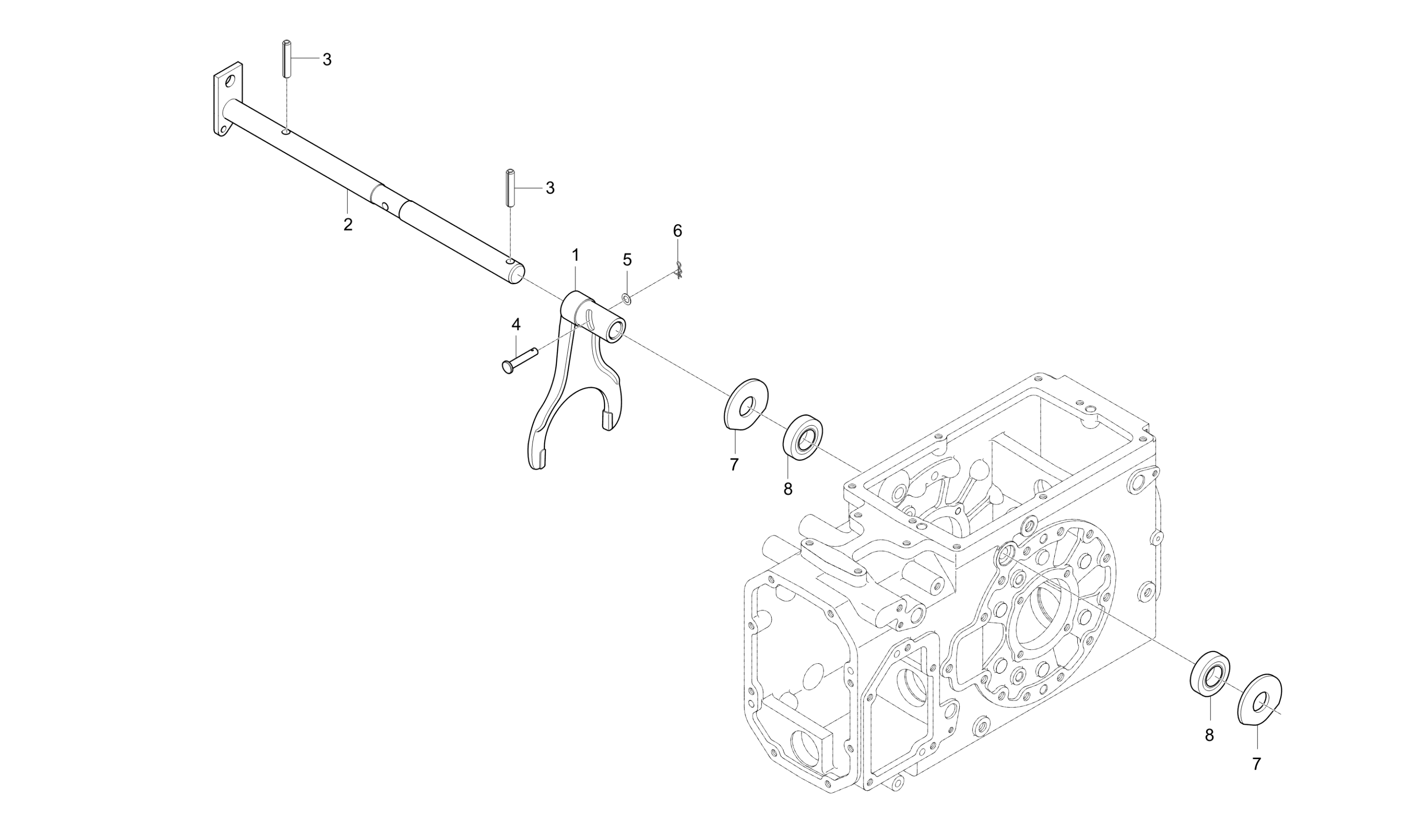

Diagram for DIFF LOCK FORK GROUP - CK30M-T450A
  • 1

    FORK

    • Part No. T2440-26632
    • 1 shown on diagram
    $84.99
  • 2

    SHAFT,DIFF. LOCK FORK

    • Part No. T2185-26682
    • Applied Dates Up to 2007-08-09
    • Serial No. Up to G70100180
    • * multiple options for #2
    • 1 shown on diagram
    $55.99
  • 2

    CAM,DIFFRENTIAL LOCK

    • Part No. T2185-26683
    • Compatibility No interchange
    • Applied Dates Up to 2006-12-31
    • Serial No. G70100181 and up
    • * multiple options for #2
    • 1 shown on diagram
    $38.99
  • 2

    Diffrential Lock Cam

    • Part No. T2185-26684
    • Compatibility Interchngable
    • Applied Dates 2007-10-30 and up
    • * multiple options for #2
    • 1 shown on diagram
    $52.99
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • Applied Dates 2004-07-02 and up
    • Serial No. D70100001 to G70100180
    • DIA6.4XL30
    • * multiple options for #3
    • 2 shown on diagram
    $0.90
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • Compatibility No interchange
    • Applied Dates 2007-05-07 and up
    • Serial No. G70100181 and up
    • DIA6.4XL35
    • * multiple options for #3
    • 2 shown on diagram
    $0.96
  • 4

    PIN

    • Part No. 31355-2662-1
    • DIA6
    • 1 shown on diagram
    $3.99
  • 5 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 6

    CIR CLIP

    • Part No. 52300-3411-1
    • Applied Dates Up to 2010-12-31
    • DIA1.2
    • * multiple options for #6
    • 1 shown on diagram
    $1.49
  • 6

    PIN, SPLIT

    • Part No. 05511-50220
    • Compatibility Interchngable
    • DIA1.8XL20
    • * multiple options for #6
    • 1 shown on diagram
    $0.56
  • 7

    WASHER

    • Part No. 31355-2669-1
    • Applied Dates Up to 2007-05-07
    • T3.2
    • 2 shown on diagram
    $1.99
  • 8 SEAL,OIL

    SEAL,OIL

    • Part No. 09500-16287
    • DIA16
    • 2 shown on diagram
    $4.49
