SHUTTLE FORK GROUP - CK30M-T290A

Kioti TRACTOR | CK Series | CK25

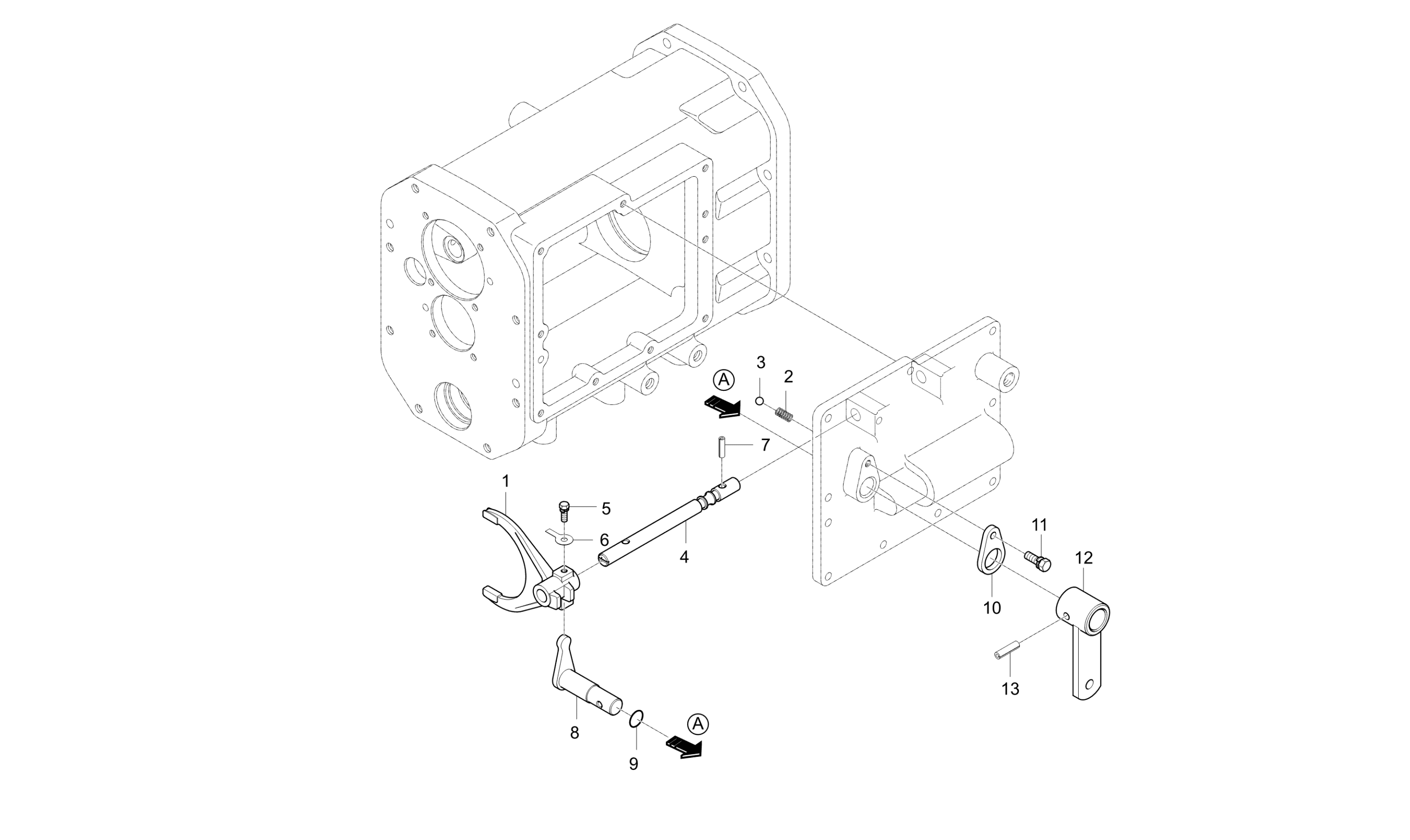

Diagram for SHUTTLE FORK GROUP - CK30M-T290A
  • 1

    FORK, SHIFT(SHUTTLE)

    • Part No. T2185-22151
    • 1 shown on diagram
    $124.99
  • 2 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 3 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • Applied Dates 2004-07-02 and up
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 4

    ROD, FORK(SHUTTLE) obs v

    • Part No. T2185-22161
    • Applied Dates Up to 2004-05-31
    • Serial No. Up to D70100104
    • * multiple options for #4
    • 1 shown on diagram
    $44.99
  • 4

    Fork Rod (Shuttle)

    • Part No. T2185-22162
    • Compatibility No interchange
    • Applied Dates 2004-07-02 and up
    • Serial No. D70100105 and up
    • * multiple options for #4
    • 1 shown on diagram
    $66.99
  • 5

    BOLT

    • Part No. T2610-22171
    • Applied Dates 2004-04-26 and up
    • 1 shown on diagram
    $14.99
  • 6 WASHER v

    WASHER v

    • Part No. 04111-50060
    • Applied Dates 2003-12-30 and up
    • M06
    • 1 shown on diagram
    $1.79
  • 7

    PIN,SPRING

    • Part No. 05411-00620
    • 6P*20
    • 1 shown on diagram
    $1.49
  • 8

    ARM, SHUTTLE SHIFT obs

    • Part No. T2185-22171
    • 1 shown on diagram
    $44.99
  • 9 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
    $1.09
  • 10

    STOPPER

    • Part No. T4620-44331
    • T2.0
    • 1 shown on diagram
    $9.99
  • 11 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2004-05-31 and up
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 12

    LEVER 1 (SHUTTLE)

    • Part No. T2185-22192
    • Applied Dates 2004-04-26 and up
    • 1 shown on diagram
    $28.99
  • 13 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • Applied Dates 2004-07-02 and up
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
