REAR AXLE GROUP - CK30M-T480A

Kioti TRACTOR | CK Series | CK25

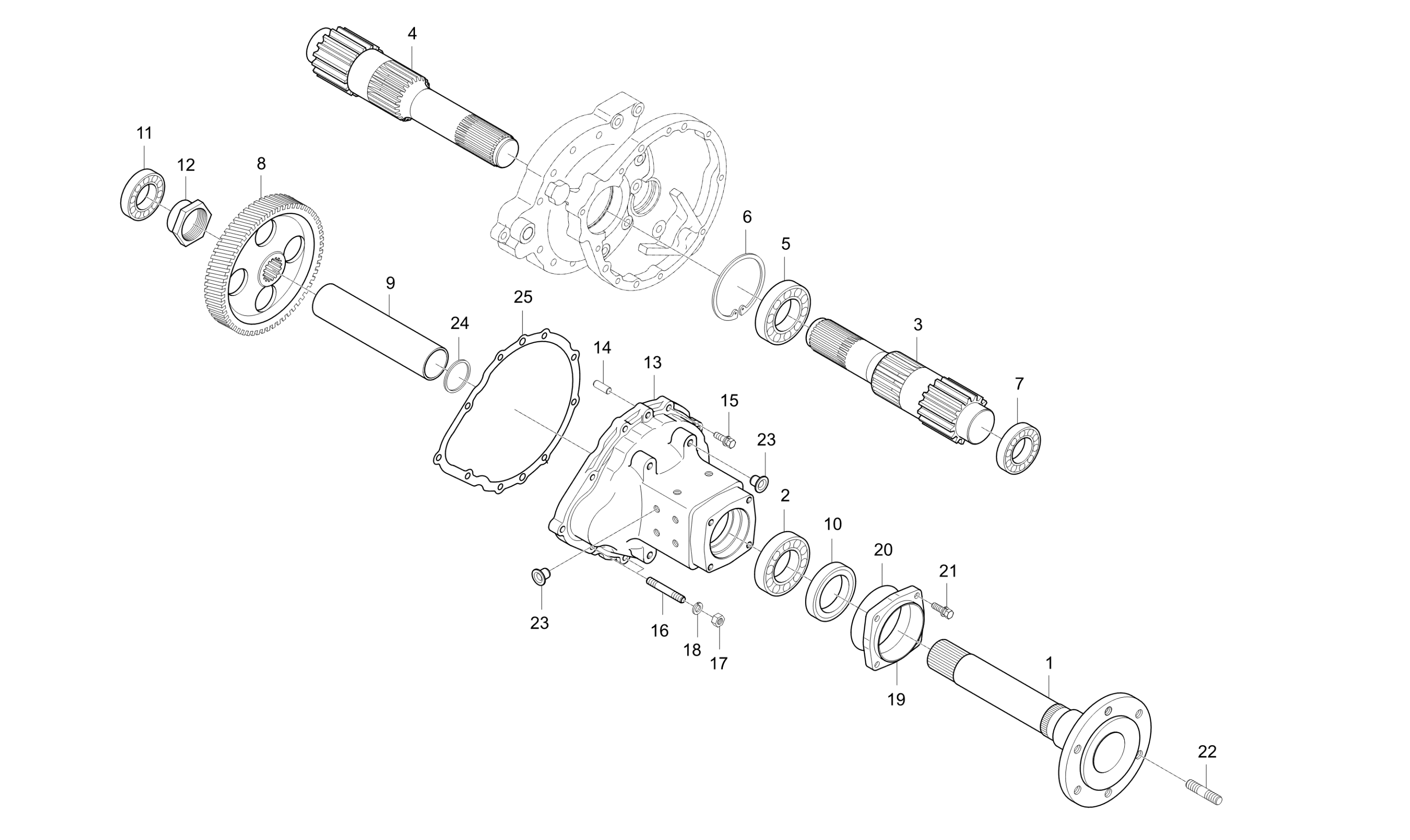

Diagram for REAR AXLE GROUP - CK30M-T480A
  • 1

    AXLE, REAR

    • Part No. T2185-27112
    • Applied Dates 2004-10-20 and up
    • 2 shown on diagram
    $534.99
  • 2 BEARING, BALL 50x90x20

    BEARING, BALL 50x90x20

    • Part No. 08101-06210
    • #6210
    • 2 shown on diagram
    $51.99
  • 3

    10 Gear Shaft (LH)

    • Part No. T2185-26721
    • Applied Dates 2004-05-31 and up
    • 1 shown on diagram
    $254.99
  • 4

    SHAFT, 10 GEAR (RH)

    • Part No. T2185-26712
    • Applied Dates 2004-05-31 and up
    • 1 shown on diagram
    $244.99
  • 5 Ball Bearing 45x85x19mm

    Ball Bearing 45x85x19mm

    • Part No. 08101-06209
    • #6209
    • 2 shown on diagram
    $45.99
  • 6

    RING,SNAP

    • Part No. 04611-00850
    • 2 shown on diagram
    $9.99
  • 7 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 2 shown on diagram
    $28.99
  • 8

    GEAR 55

    • Part No. T2185-26831
    • 2 shown on diagram
    $354.99
  • 9

    SPACER

    • Part No. T2185-27141
    • Applied Dates Up to 2007-02-01
    • Serial No. Up to G70100140
    • DIA60.5*T3.65
    • * multiple options for #9
    • 2 shown on diagram
    $53.99
  • 9

    SPACER

    • Part No. T2185-27142
    • Compatibility No interchange
    • Applied Dates 2007-02-02 and up
    • Serial No. G70100141 and up
    • DIA60.5*T3.65
    • * multiple options for #9
    • 2 shown on diagram
    $53.99
  • 10 OIL SEAL

    OIL SEAL

    • Part No. 36205-4825-2
    • 2 shown on diagram
    $32.99

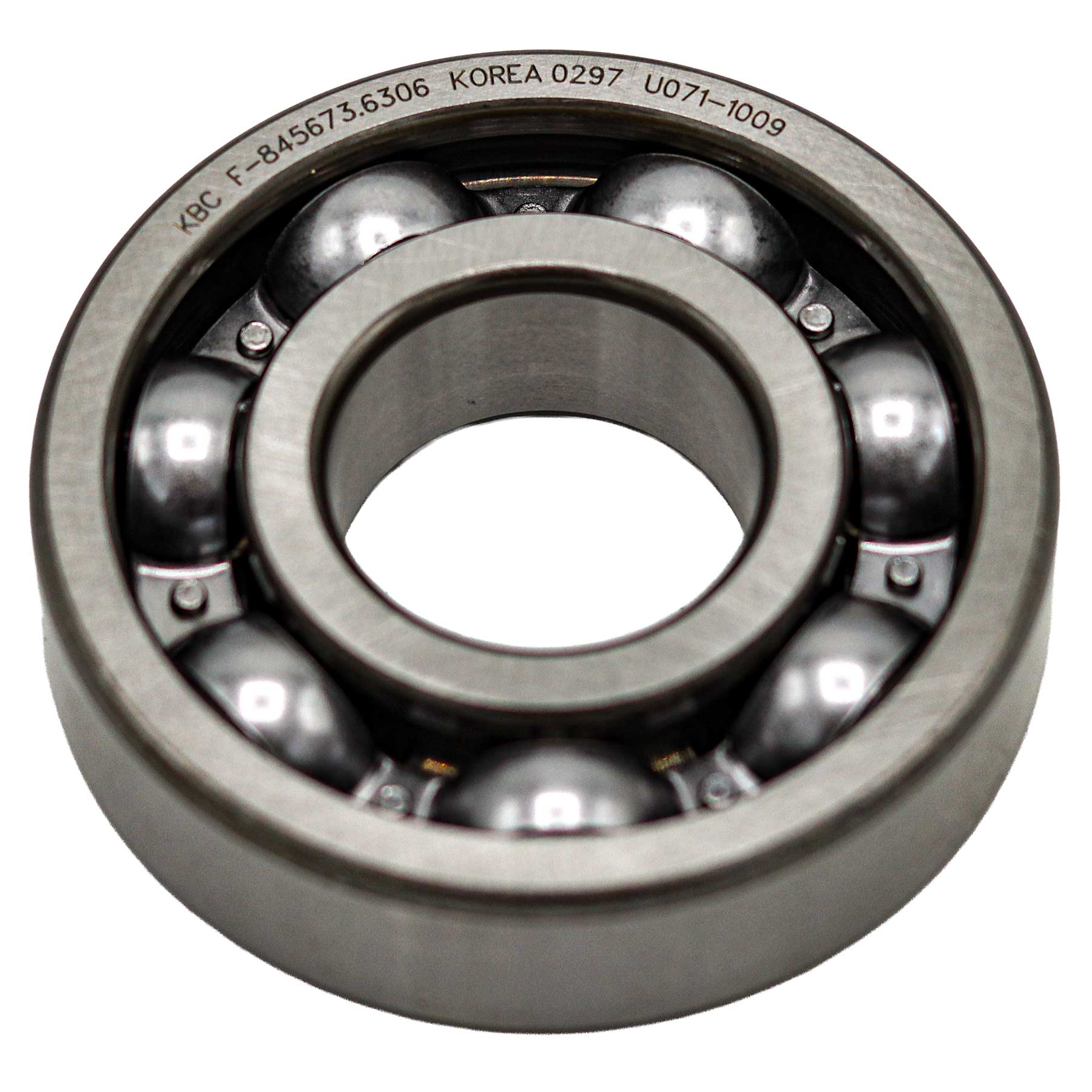

  • 11 BEARING BALL 6306

    BEARING BALL 6306

    • Part No. 38260-2216-1
    • 6306A
    • 2 shown on diagram
    $32.99
  • 12

    NUT, REAR AXLE dnr v

    • Part No. T2185-27201
    • Applied Dates Up to 2008-03-10
    • 2 shown on diagram
    $21.99
  • 13

    CASE, REAR AXLE

    • Part No. T2185-27312
    • Applied Dates 2004-03-22 and up
    • 2 shown on diagram
    $1,029.99
  • 14

    PIN, PARALLEL v

    • Part No. 37305-2817-1
    • 4 shown on diagram
    $9.99
  • 15

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 14 shown on diagram
    $3.49
  • 16

    STUD

    • Part No. T2440-14201
    • Applied Dates Up to 2011-12-31
    • * multiple options for #16
    • 4 shown on diagram
    $12.99
  • 16

    STUD

    • Part No. 01517-51035
    • Compatibility Interchngable
    • M10XP1.25
    • * multiple options for #16
    • 4 shown on diagram
    $5.99
  • 17 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 4 shown on diagram
    $0.98
  • 18 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 19

    REAR AXLE CASE COVER

    • Part No. 38435-2716-1
    • * multiple options for #19
    • 2 shown on diagram
    $44.99
  • 19

    COVER, BEARING v

    • Part No. T4340-27161
    • Compatibility New repl old
    • * multiple options for #19
    • 1 shown on diagram
    $82.99

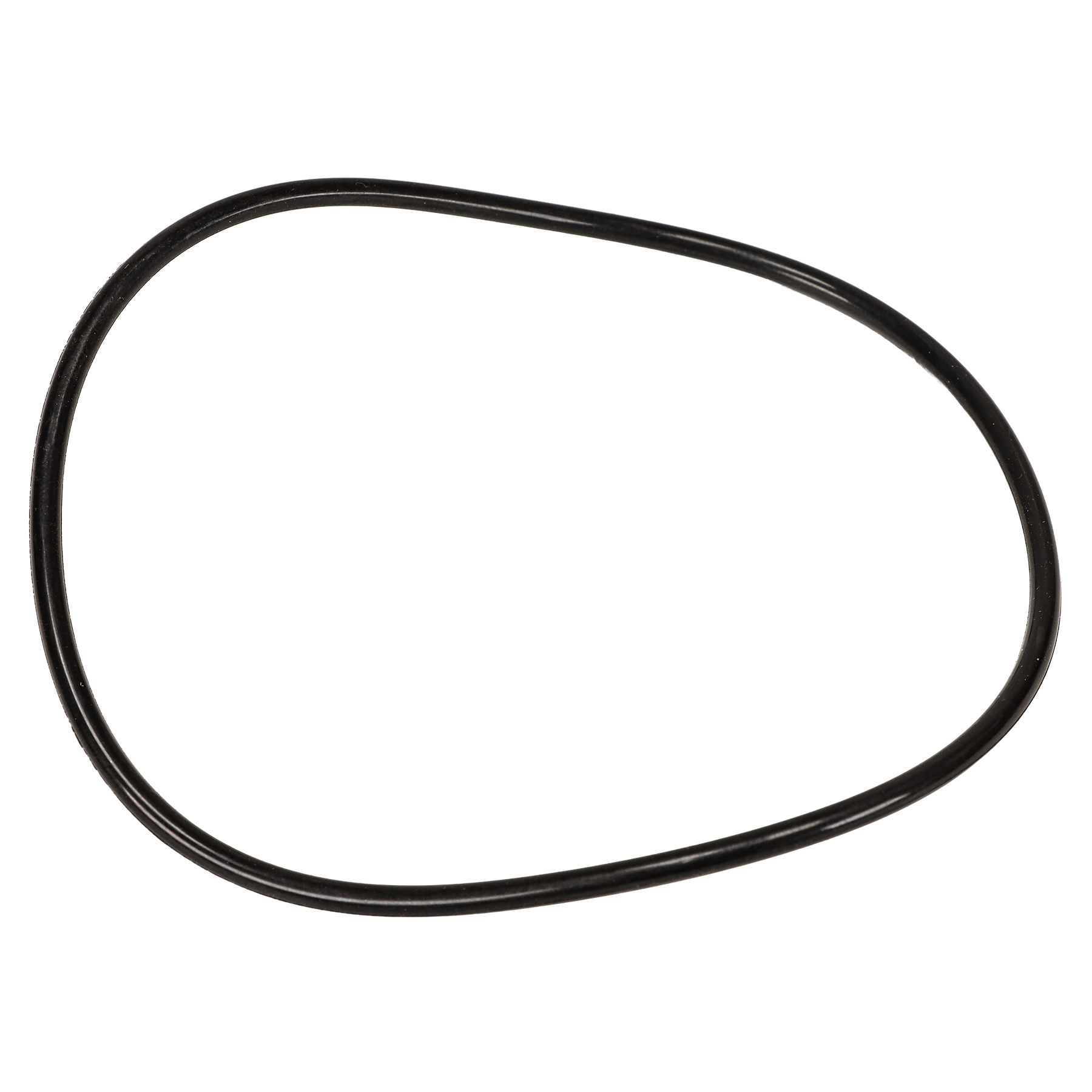

  • 20 O RING

    O RING

    • Part No. 04811-51000
    • 2 shown on diagram
    $2.49
  • 21

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 8 shown on diagram
    $3.49
  • 22

    STUD v

    • Part No. T4340-27121
    • Applied Dates 2006-06-03 to 2007-07-08
    • * multiple options for #22
    • 4 shown on diagram
    $5.99

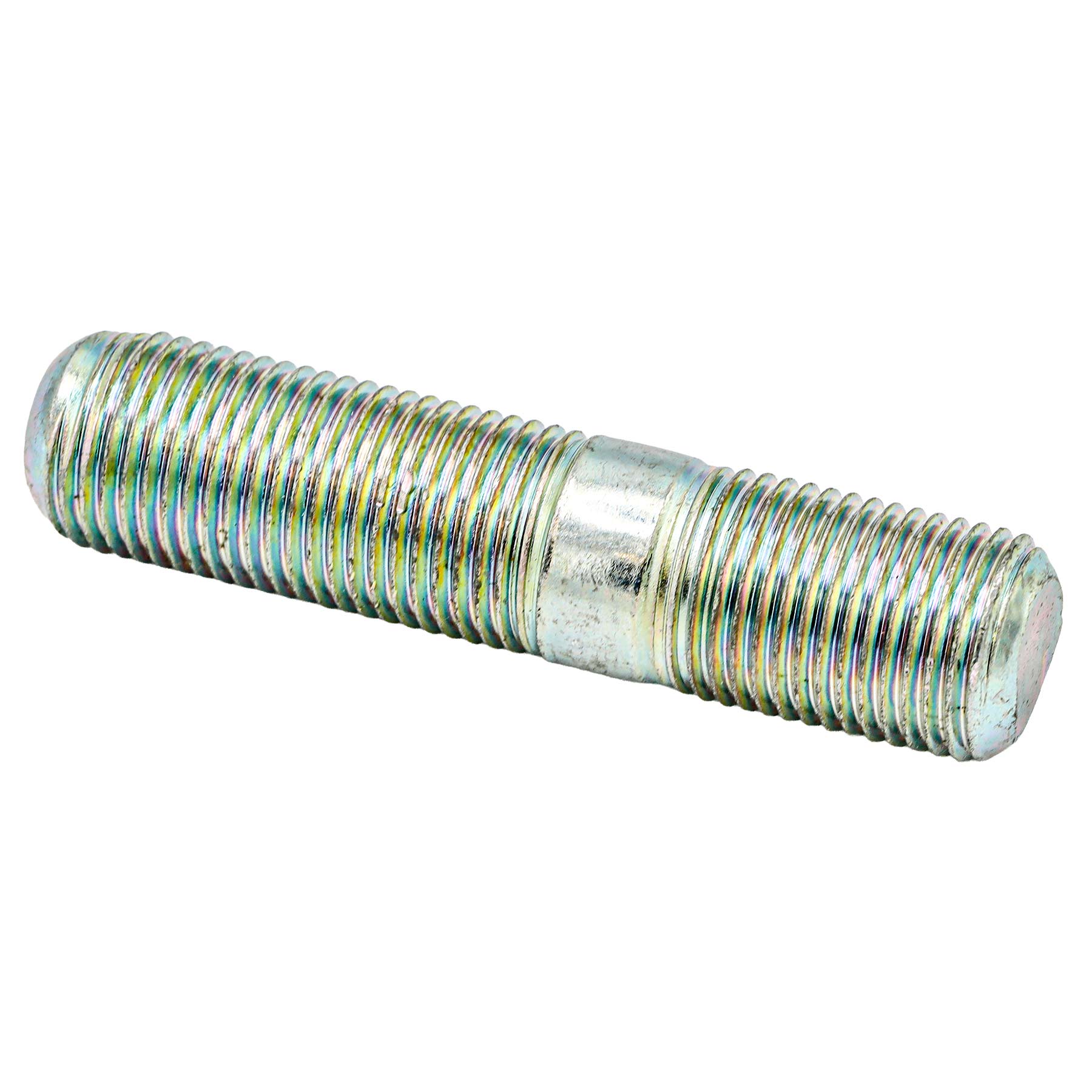

  • 22 STUD M16 P1.5

    STUD M16 P1.5

    • Part No. T4340-27122
    • Compatibility New repl old
    • Applied Dates 2007-07-09 to 2008-06-01
    • * multiple options for #22
    • 4 shown on diagram
    $13.99
  • 23

    PLUG

    • Part No. 32210-2758-1
    • Applied Dates 2004-11-12 and up
    • M12
    • 20 shown on diagram
    $1.59
  • 24

    COLLAR

    • Part No. 32155-2648-1
    • Applied Dates Up to 2007-02-01
    • 2 shown on diagram
    $12.99

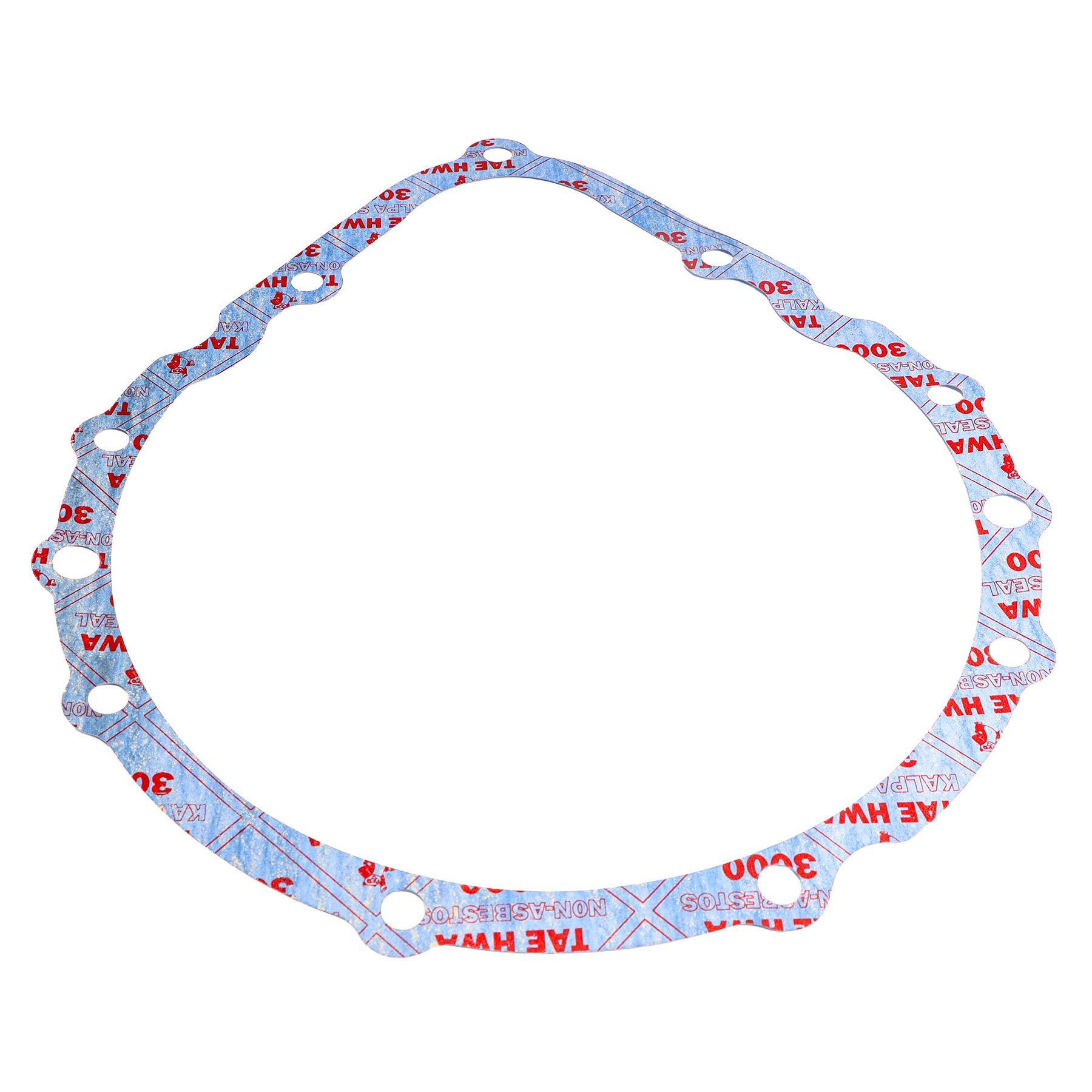

  • 25 PACKING

    PACKING

    • Part No. T2440-27353
    • Applied Dates Up to 2006-12-31
    • T0.5
    • 2 shown on diagram
    $27.99
