SHAFT 2 GROUP - CK30M-T220A

Kioti TRACTOR | CK Series | CK25

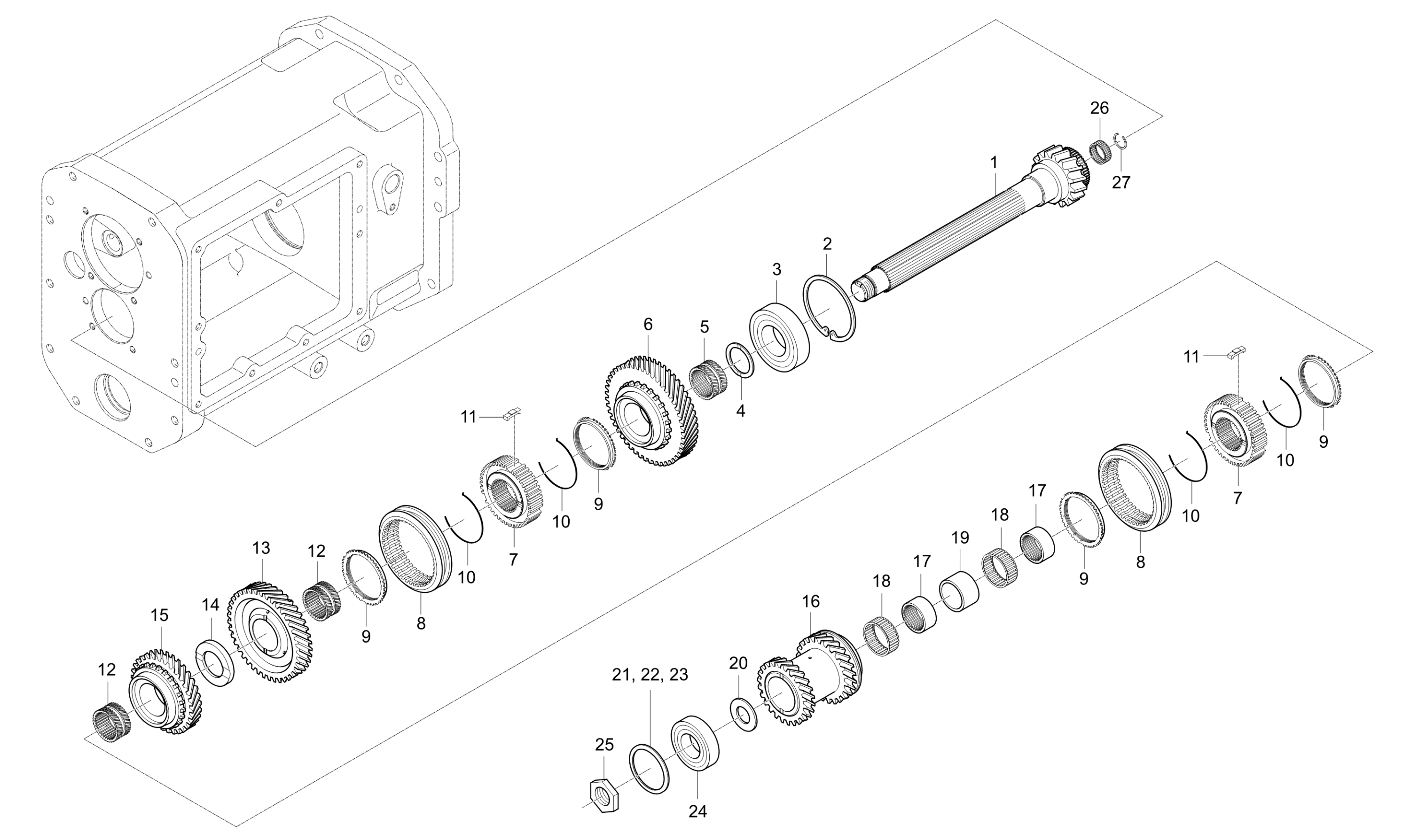

Diagram for SHAFT 2 GROUP - CK30M-T220A
  • 1

    SHAFT,18 GEAR

    • Part No. T2185-21512
    • Applied Dates Up to 2004-07-05
    • * multiple options for #1
    • 1 shown on diagram
    $394.99
  • 1

    SHAFT,18 GEAR

    • Part No. T2185-21513
    • Compatibility New repl old
    • Applied Dates Up to 2004-07-05
    • Serial No. Up to D70100104
    • * multiple options for #1
    • 1 shown on diagram
    $249.99
  • 1

    SHAFT, 18 GEAR

    • Part No. T2185-21514
    • Compatibility No interchange
    • Applied Dates 2004-10-20 and up
    • Serial No. D70100105 and up
    • * multiple options for #1
    • 1 shown on diagram
    $539.99
  • 2 RING,SNAP

    RING,SNAP

    • Part No. 04611-00800
    • DIA80
    • 1 shown on diagram
    $9.49
  • 3 BEARING, BALL 35x80x21

    BEARING, BALL 35x80x21

    • Part No. 08101-06307
    • DIA35
    • 1 shown on diagram
    $41.99

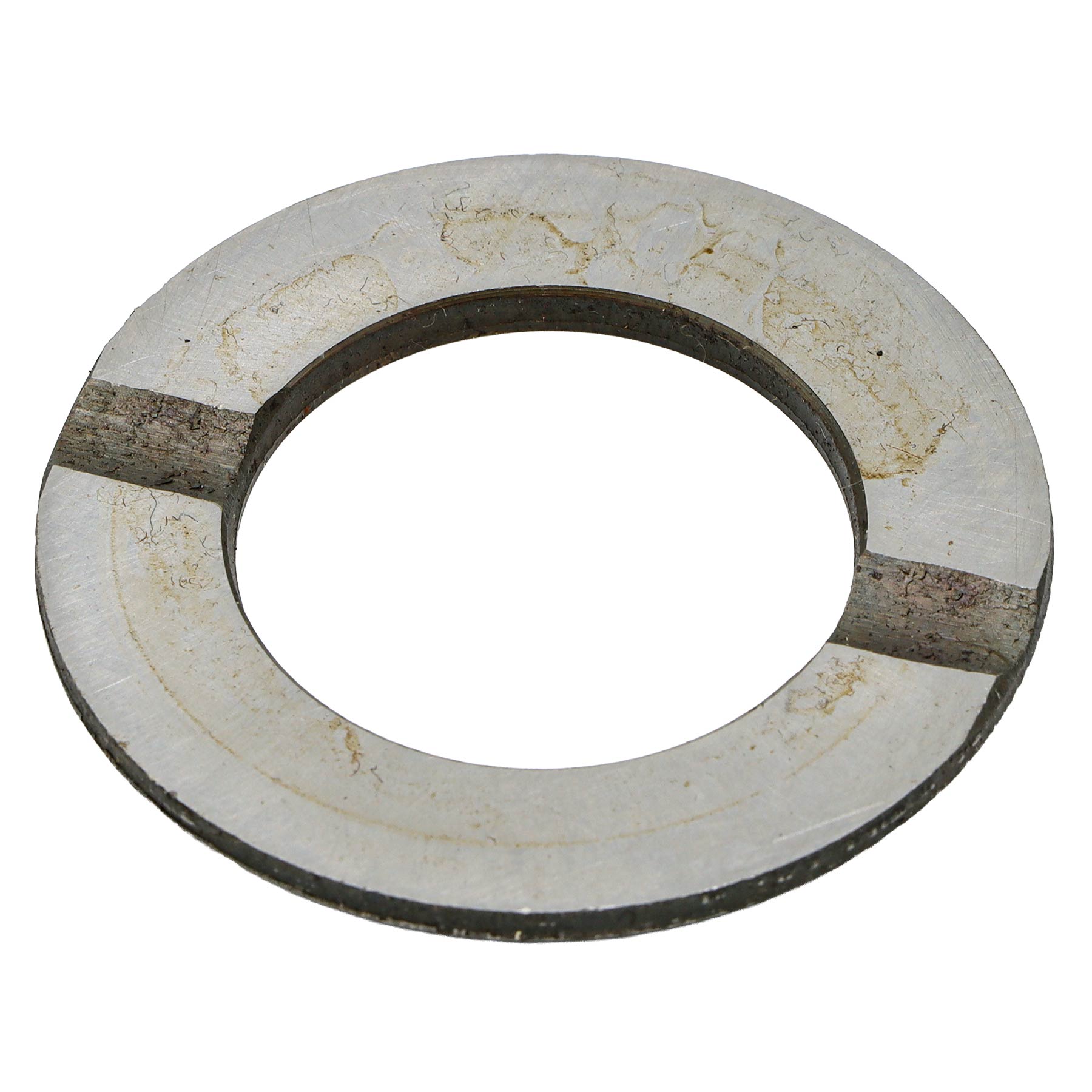

  • 4 COLLAR,THRUST V

    COLLAR,THRUST V

    • Part No. T2305-25191
    • T3.2
    • 1 shown on diagram
    $16.99
  • 5

    RING, INNER

    • Part No. T2185-21531
    • 1 shown on diagram
    $74.99
  • 6

    43 GEAR

    • Part No. T2185-21611
    • 1 shown on diagram
    $219.99
  • 7

    HUB, SYNCHRO

    • Part No. T2185-21651
    • 2 shown on diagram
    $92.99
  • 8

    SHIFTER

    • Part No. T2610-21754
    • 2 shown on diagram
    $144.99
  • 9 RING, SYNCHRONIZER

    RING, SYNCHRONIZER

    • Part No. T4240-21792
    • 4 shown on diagram
    $52.99
  • 10

    SYNCHRONIZER SPRING [NLA]

    • Part No. 38360-2178-1
    • DIA1.2
    • 4 shown on diagram
    $3.99
  • 11 SYNCHRONIZER KEY

    SYNCHRONIZER KEY

    • Part No. T2610-21812
    • 6 shown on diagram
    $6.99
  • 12

    RING,INNER

    • Part No. T2185-21541
    • Applied Dates Up to 2004-12-31
    • Serial No. Up to E70100080
    • * multiple options for #12
    • 2 shown on diagram
    $159.99
  • 12

    RING,INNER

    • Part No. T2440-21901
    • Compatibility No interchange
    • Applied Dates 2005-03-14 and up
    • Serial No. E70100081 and up
    • * multiple options for #12
    • 2 shown on diagram
    $63.99
  • 13

    39 GEAR

    • Part No. T2185-21621
    • 1 shown on diagram
    $209.99
  • 14

    Thrust Collar

    • Part No. T2185-21521
    • 1 shown on diagram
    $44.99
  • 15

    Gear, 33T

    • Part No. T2185-21631
    • 1 shown on diagram
    $599.99
  • 16

    GEAR,26-27 obs

    • Part No. T2185-21641
    • Applied Dates Up to 2003-12-31
    • Serial No. Up to E70100062
    • * multiple options for #16
    • 1 shown on diagram
    $239.99
  • 16

    GEAR,26-27

    • Part No. T2185-21643
    • Compatibility No interchange
    • Applied Dates 2004-10-20 and up
    • Serial No. E70100063 and up
    • * multiple options for #16
    • 1 shown on diagram
    $314.99
  • 17

    INNER RING

    • Part No. 38435-2179-1
    • 2 shown on diagram
    $46.99
  • 18

    BEARING,NEEDLE

    • Part No. 08823-54027
    • NTN,K354027
    • 2 shown on diagram
    $39.99
  • 19

    SPACER

    • Part No. T2185-21561
    • Applied Dates Up to 2003-12-31
    • 1 shown on diagram
    $25.99
  • 20

    COLLAR,THRUST dnr v

    • Part No. T2305-21761
    • Applied Dates Up to 2003-12-31
    • T3.2
    • * multiple options for #20
    • 1 shown on diagram
    $12.99
  • 20

    COLLAR, THRUST v

    • Part No. T2305-21762
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • T3.2
    • * multiple options for #20
    • 1 shown on diagram
    $18.99

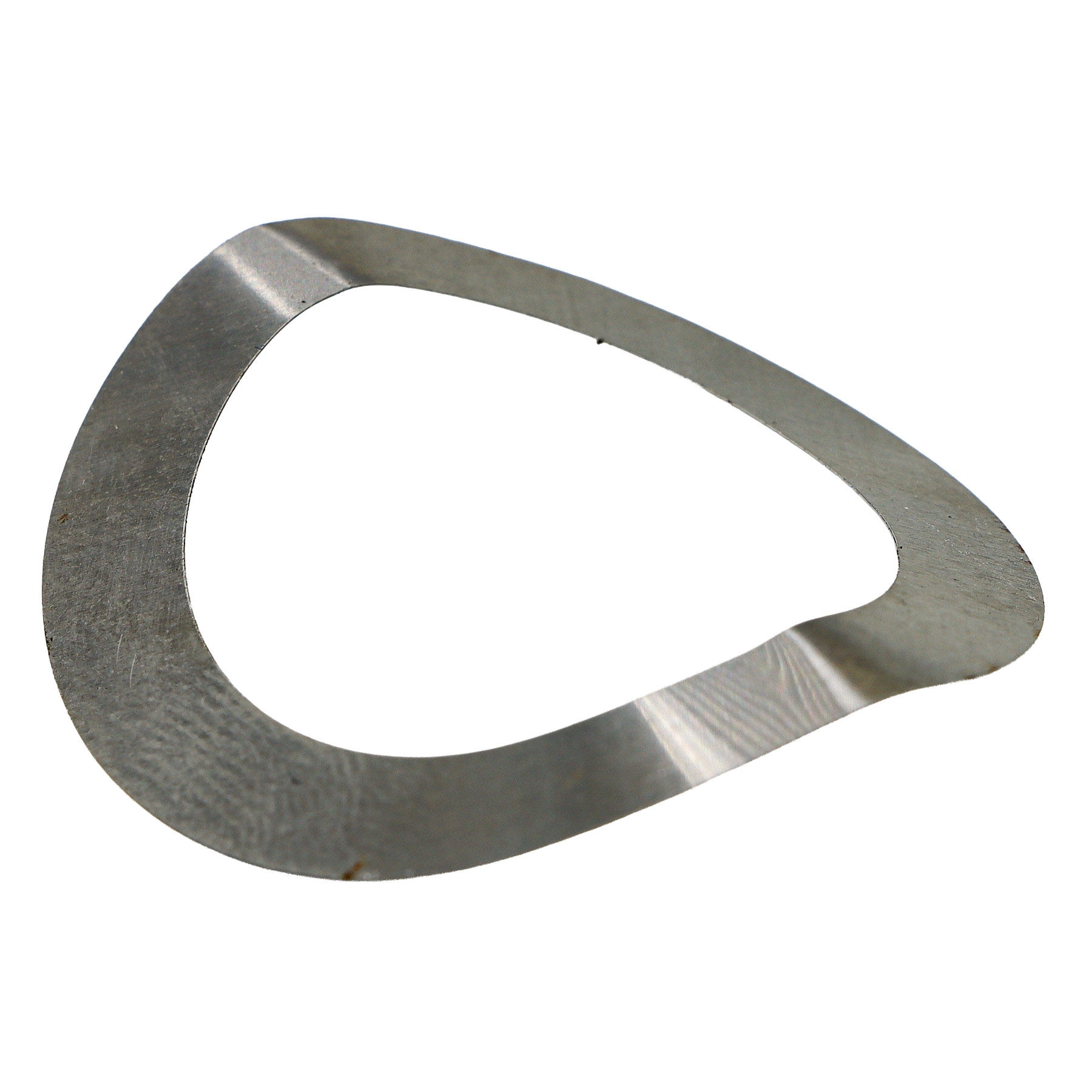

  • 21 SHIM, 0.1

    SHIM, 0.1

    • Part No. T2185-21661
    • Applied Dates Up to 2003-12-31
    • * multiple options for #21
    • 1 shown on diagram
    $1.59
  • 21

    SHIM obs v

    • Part No. K5400-14571
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • T0.1
    • * multiple options for #21
    • 1 shown on diagram
    $2.49
  • 21

    SHIM obs v

    • Part No. K5400-14572
    • Compatibility New repl old
    • T0.1
    • * multiple options for #21
    • 1 shown on diagram
    $3.49

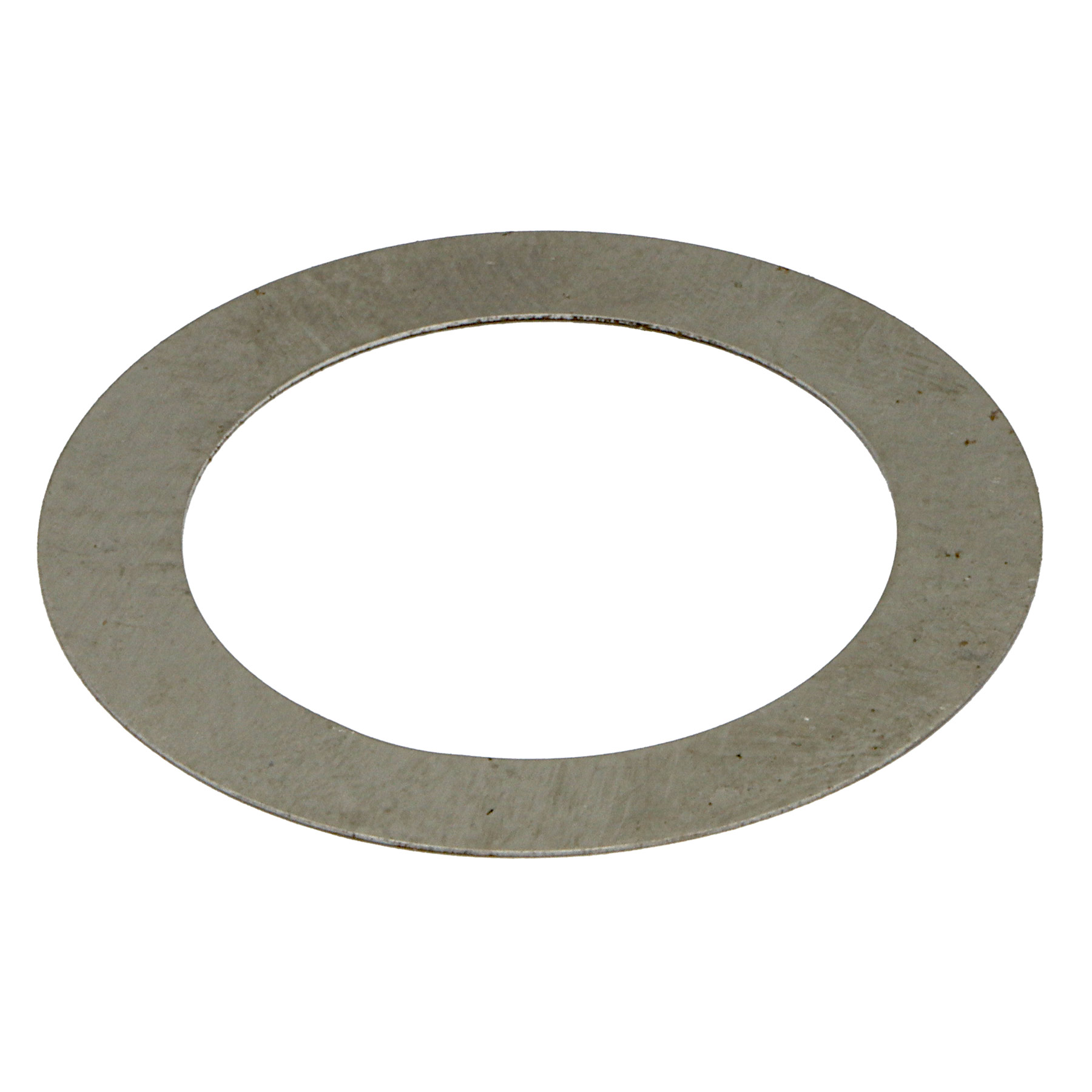

  • 22 SHIM, 0.2

    SHIM, 0.2

    • Part No. T2185-21671
    • Applied Dates Up to 2003-12-31
    • * multiple options for #22
    • 1 shown on diagram
    $1.59
  • 22

    SHIM dnr v

    • Part No. K5400-14581
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • T0.2
    • * multiple options for #22
    • 1 shown on diagram
    $1.09
  • 23

    SHIM 0.4

    • Part No. T2185-21681
    • Applied Dates Up to 2003-12-31
    • * multiple options for #23
    • 1 shown on diagram
    $1.19
  • 23

    SHIM dnr v

    • Part No. K5400-14591
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • T0.5
    • * multiple options for #23
    • 1 shown on diagram
    $1.29
  • 24

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
  • 25 NUT, 24

    NUT, 24

    • Part No. T2350-25361
    • 1 shown on diagram
    $18.99
  • 26

    BEARING,NEEDLE

    • Part No. 15471-2676-2
    • Applied Dates Up to 2004-07-05
    • Serial No. Up to E70100080
    • * multiple options for #26
    • 1 shown on diagram
    $15.99
  • 26

    BEARING, NEEDLE

    • Part No. 08822-02617
    • Compatibility No interchange
    • Applied Dates 2004-10-20 and up
    • Serial No. E70100081 to E70100170
    • KT202617
    • * multiple options for #26
    • 1 shown on diagram
    $18.99
  • 27

    CIR CLIP, EXTERNAL

    • Part No. T2360-44591
    • 1 shown on diagram
    $6.99
