MID CASE GROUP - CK30M-T160A

Kioti TRACTOR | CK Series | CK25

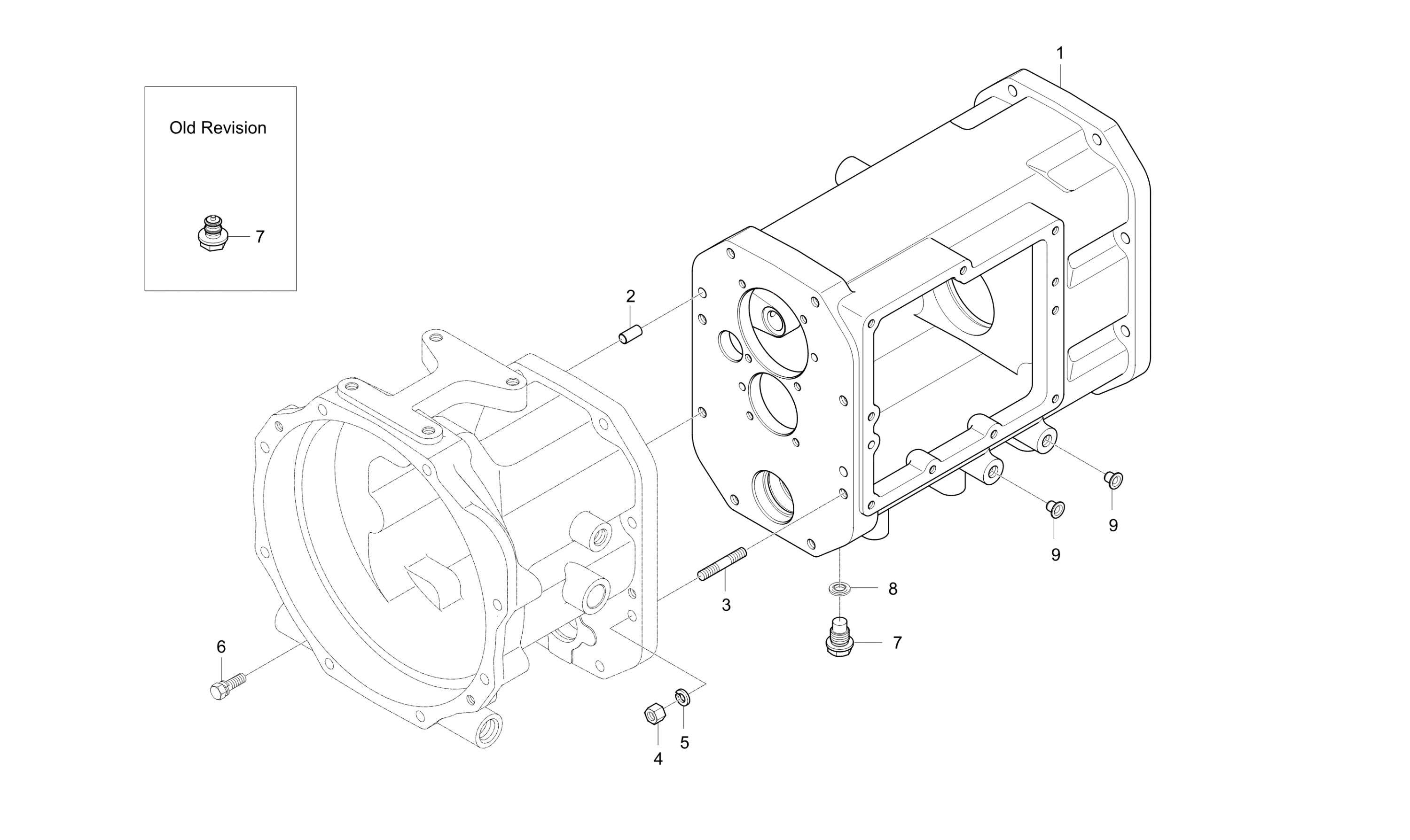

Diagram for MID CASE GROUP - CK30M-T160A
  • 1

    CASE, MIDDLE v

    • Part No. T2185-21153
    • Applied Dates Up to 2004-05-31
    • * multiple options for #1
    • 1 shown on diagram
    $534.99
  • 1

    CASE,MIDDLE v

    • Part No. T2185-21154
    • Compatibility New repl old
    • Applied Dates Up to 2009-11-30
    • * multiple options for #1
    • 1 shown on diagram
    $739.99
  • 1

    CASE MIDDLE v

    • Part No. T2185-21155
    • Compatibility Interchngable
    • Applied Dates 2009-12-14 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,174.99
  • 2

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 3

    STUD

    • Part No. 01517-51035
    • M10XP1.25
    • 2 shown on diagram
    $5.99
  • 4 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 5 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 6

    WASHER BOLT v

    • Part No. 01133-51040
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 7

    PLUG,DRAIN

    • Part No. T4260-14271
    • Applied Dates Up to 2007-08-09
    • * multiple options for #7
    • 1 shown on diagram
    $39.99
  • 7 PLUG

    PLUG

    • Part No. T4125-14261
    • Compatibility Interchngable
    • Applied Dates 2007-12-05 and up
    • * multiple options for #7
    • 1 shown on diagram
    $39.99
  • 7

    PLUG v

    • Part No. T4930-14261
    • Compatibility Interchngable
    • * multiple options for #7
    • 1 shown on diagram
    $7.99
  • 8 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 9

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 11 shown on diagram
    $1.59
