MAIN SHIFT FORK GROUP - CK30M-T310A

Kioti TRACTOR | CK Series | CK25

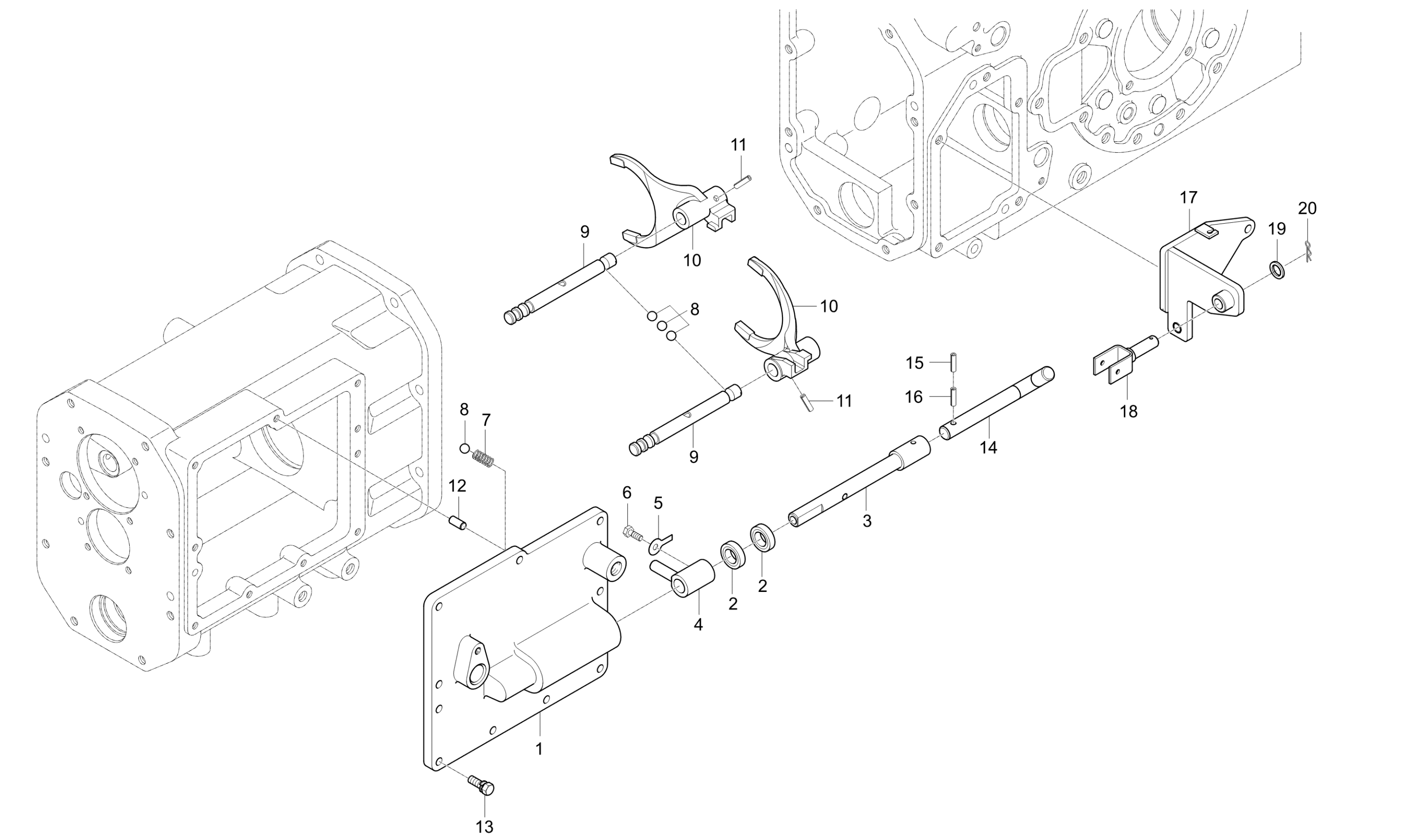

Diagram for MAIN SHIFT FORK GROUP - CK30M-T310A
  • 1

    COVER, MAIN SHIFT

    • Part No. T2185-21213
    • Applied Dates Up to 2003-12-30
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    COVER, MAIN SHIFT

    • Part No. T2185-21214
    • Compatibility Interchngable
    • Applied Dates Up to 2004-05-31
    • Serial No. Up to D70100104
    • * multiple options for #1
    • 1 shown on diagram
    $244.99
  • 1

    COVER,MAIN SHIFT

    • Part No. T2185-21215
    • Compatibility No interchange
    • Applied Dates 2004-07-02 and up
    • Serial No. D70100105 and up
    • * multiple options for #1
    • 1 shown on diagram
    $374.99
  • 2 SEAL,OIL

    SEAL,OIL

    • Part No. 09500-16287
    • DIA16
    • 2 shown on diagram
    $4.49
  • 3

    ROD, SHIFT(MAIN SHIFT)

    • Part No. T2185-21361
    • Applied Dates Up to 2004-10-21
    • Serial No. Up to D70100154
    • * multiple options for #3
    • 1 shown on diagram
    $52.99
  • 3

    Shift Rod ( Main Shift)

    • Part No. T2185-21363
    • Compatibility No interchange
    • Applied Dates Up to 2004-10-21
    • Serial No. D70100155 to D70100194
    • * multiple options for #3
    • 1 shown on diagram
    $37.99
  • 3

    ROD,SHIFT(MAIN SHIFT) v

    • Part No. T2185-21364
    • Compatibility No interchange
    • Applied Dates 2004-12-14 to 2004-12-16
    • Serial No. E70100001 and up
    • * multiple options for #3
    • 1 shown on diagram
    $39.99
  • 3

    ROD, SHIFT(MAIN SHIFT)

    • Part No. T2185-21365
    • Compatibility Interchngable
    • Applied Dates 2005-03-14 and up
    • * multiple options for #3
    • 1 shown on diagram
    $61.99
  • 4

    ARM, SHIFT

    • Part No. T2185-21351
    • 1 shown on diagram
    $31.99
  • 5 WASHER v

    WASHER v

    • Part No. 04111-50060
    • M06
    • 1 shown on diagram
    $1.79
  • 6 BOLT, LOCK v

    BOLT, LOCK v

    • Part No. T4620-21371
    • 1 shown on diagram
    $8.49
  • 7 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 2 shown on diagram
    $3.49
  • 8 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • Applied Dates 2004-07-02 and up
    • DIA7.9375
    • 5 shown on diagram
    $0.56
  • 9

    Fork Rod (Main Shift)

    • Part No. T2185-21261
    • 2 shown on diagram
    $144.99
  • 10

    FORK, MAIN SHIFT(1,2) v

    • Part No. T2185-21241
    • Applied Dates Up to 2003-12-31
    • * multiple options for #10
    • 2 shown on diagram
    $69.99
  • 10

    Main Shift Fork (1,2), Replaced by T2185-21243

    • Part No. T2185-21242
    • Compatibility New repl old
    • Applied Dates Up to 2005-06-09
    • * multiple options for #10
    • 2 shown on diagram
    $0.00
  • 10

    FORK, MAIN SHIFT(1,2)

    • Part No. T2185-21243
    • Compatibility Interchngable
    • Applied Dates 2004-05-25 and up
    • * multiple options for #10
    • 2 shown on diagram
    $144.99
  • 11 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • DIA6.4XL25
    • 2 shown on diagram
    $1.09
  • 12 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 13 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • 9 shown on diagram
    $2.49
  • 14

    ROD2, MAIN SHIFT

    • Part No. T2185-21371
    • Applied Dates Up to 2003-12-30
    • DIA12
    • * multiple options for #14
    • 1 shown on diagram
    $8.99
  • 14

    ROD2, MAIN SHIFT

    • Part No. T2185-21372
    • Compatibility New repl old
    • Applied Dates Up to 2004-10-21
    • Serial No. Up to D70100154
    • DIA12
    • * multiple options for #14
    • 1 shown on diagram
    $9.99
  • 14

    ROD2,MAIN SHIFT v

    • Part No. T2185-21374
    • Compatibility No interchange
    • Applied Dates Up to 2004-10-21
    • Serial No. D70100155 to D70100194
    • DIA12
    • * multiple options for #14
    • 1 shown on diagram
    $8.49
  • 14 ROD2, MAIN SHIFT v

    ROD2, MAIN SHIFT v

    • Part No. T2185-21375
    • Compatibility No interchange
    • Applied Dates 2004-12-14 and up
    • Serial No. E70100001 and up
    • DIA12
    • * multiple options for #14
    • 1 shown on diagram
    $22.99
  • 15 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00325
    • DIA3.3XL25
    • 1 shown on diagram
    $0.62
  • 16 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00525
    • DIA5.4XL25
    • 1 shown on diagram
    $0.90
  • 17

    Bracket, Main Shift

    • Part No. T2185-21324
    • Applied Dates Up to 2004-10-21
    • Serial No. Up to D70100154
    • * multiple options for #17
    • 1 shown on diagram
    $41.99
  • 17

    Bracket, Main Shift

    • Part No. T2185-21324
    • Compatibility No interchange
    • Applied Dates Up to 2004-10-21
    • Serial No. D70100155 to D70100194
    • * multiple options for #17
    • 1 shown on diagram
    $41.99
  • 17

    Main Shift Bracket

    • Part No. T2181-21321
    • Compatibility No interchange
    • Applied Dates 2004-12-14 and up
    • Serial No. E70100001 and up
    • * multiple options for #17
    • 1 shown on diagram
    $62.99
  • 17

    Main Shift Bracket dnr Replaced by T2181-21322BB

    • Part No. T2181-21322
    • Compatibility New repl old
    • Applied Dates 2004-12-14 and up
    • * multiple options for #17
    • 1 shown on diagram
    $86.99
  • 18

    Main Shift Pin (T2350-21332 )

    • Part No. T2350-21332
    • 1 shown on diagram
    $28.99
  • 19 Flat Washer M14

    Flat Washer M14

    • Part No. 04011-50140
    • M14
    • 1 shown on diagram
    $1.19
  • 20 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 1 shown on diagram
    $2.99
