ACCELERATOR GROUP - TC2-G648005

Kioti TRACTOR | CK Series | CK3510SEB

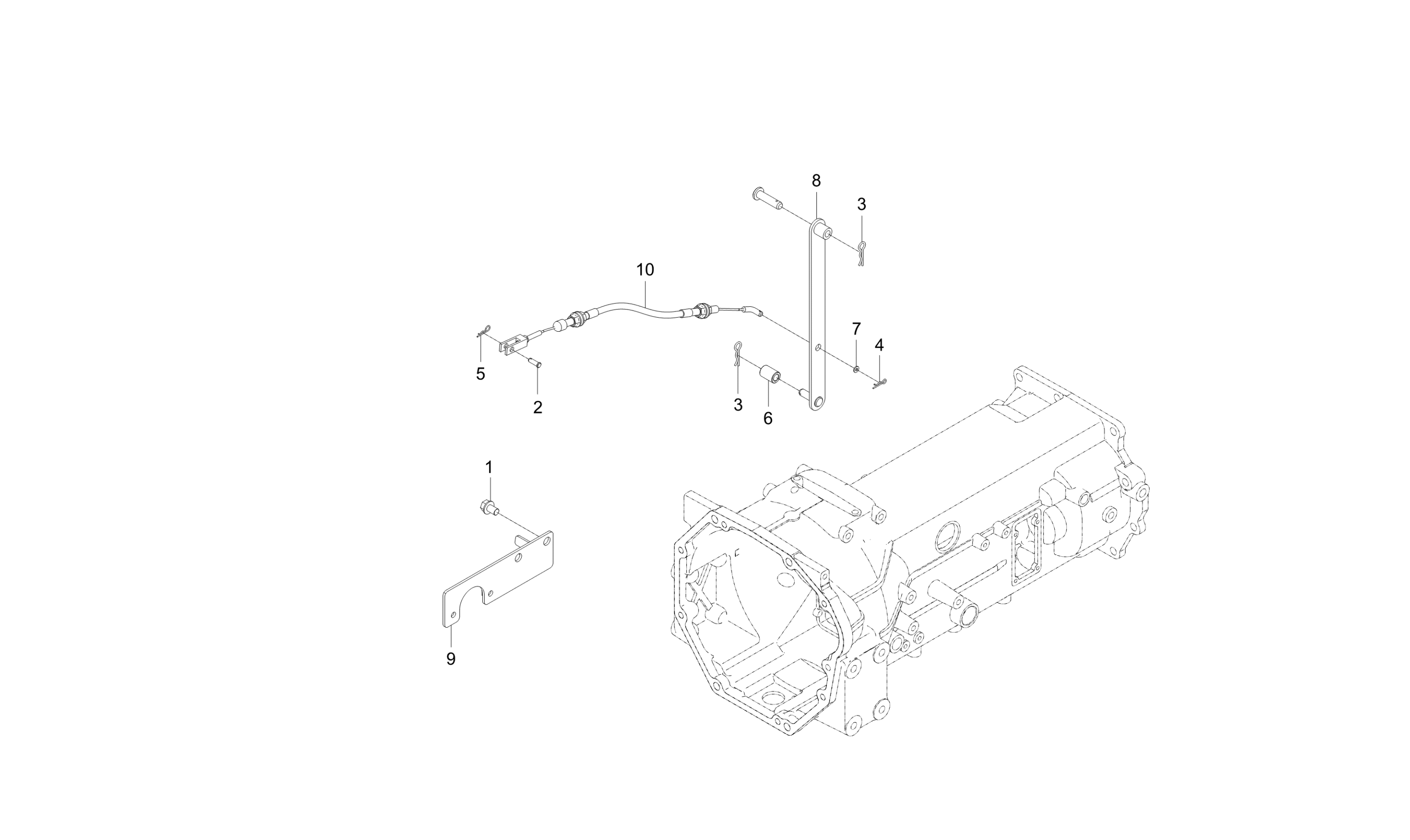

Diagram for ACCELERATOR GROUP - TC2-G648005
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 2

    Pin, Joint M6x16mm

    • Part No. 05122-50616
    • DIA6XL16
    • 1 shown on diagram
    $2.49
  • 3

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 4

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 5

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 6

    SPACER v

    • Part No. T2360-34142
    • DIA14
    • 1 shown on diagram
    $6.49
  • 7
    • Part No. T4930-66751
    • 1 shown on diagram
  • 8

    ACCEL ROD, 2

    • Part No. T5710-81071
    • 1 shown on diagram
    $26.99
  • 9

    BRACKET

    • Part No. T5815-55841
    • Serial No. Up to XJJ700088
    • * multiple options for #9
    • 1 shown on diagram
    $19.99
  • 9

    BRACKET

    • Part No. T5815-55842
    • Compatibility Interchngable
    • Serial No. XJJ700089 and up
    • * multiple options for #9
    • 1 shown on diagram
    $17.99
  • 10

    CABLE, ACLTR-TIER4 dnr v

    • Part No. TC26-0530A
    • * multiple options for #10
    • 1 shown on diagram
    $37.99
  • 10

    CABLE, ACLTR-TIER4 v

    • Part No. TC26-0530B
    • Compatibility New repl old
    • Applied Dates 2018-02-26 and up
    • Serial No. UJJ700117 to WJJ700036
    • * multiple options for #10
    • 1 shown on diagram
    $49.99
