JOYSTICK LEVER GROUP - TC2-G642003

Kioti TRACTOR | CK Series | CK3510SEB

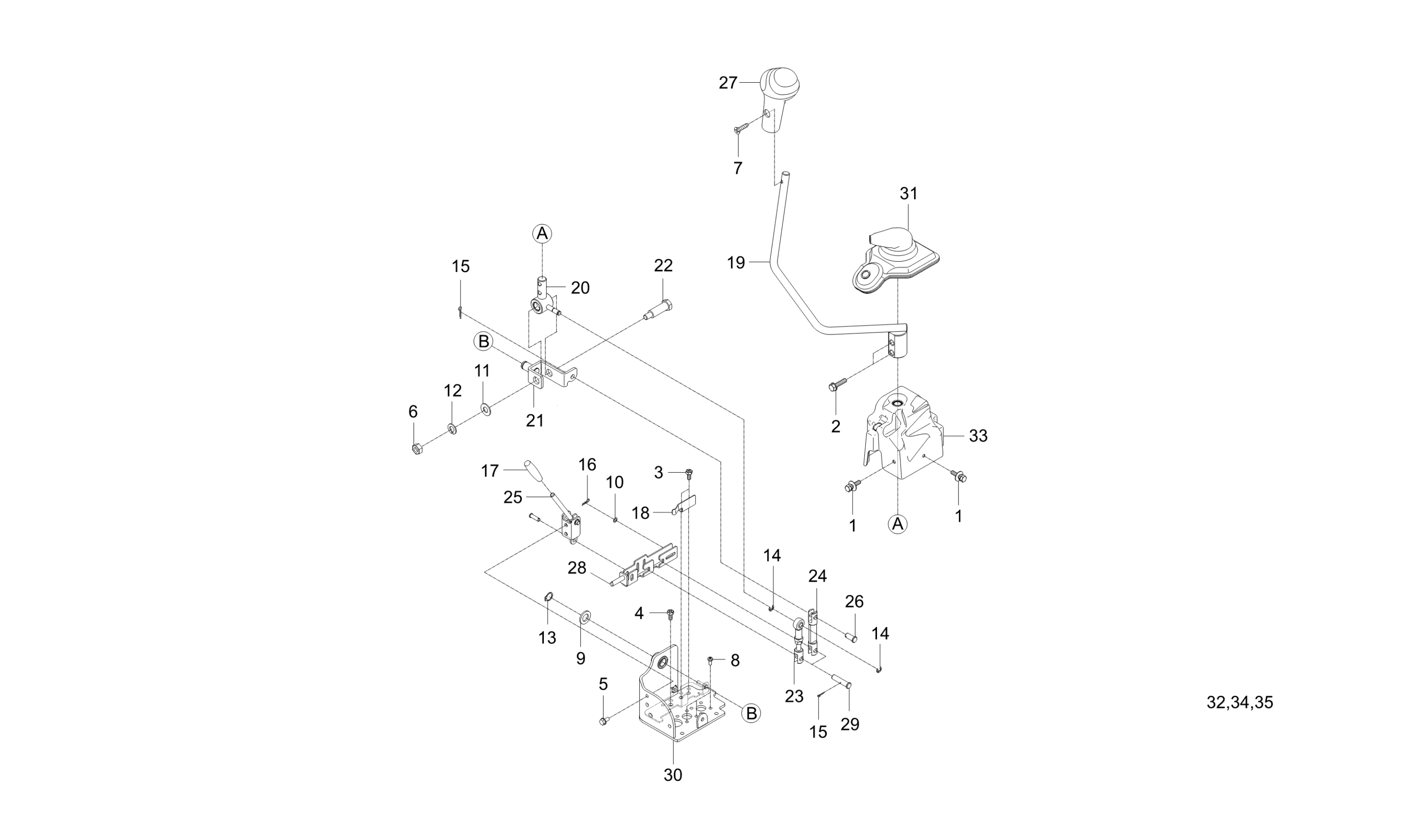

Diagram for JOYSTICK LEVER GROUP - TC2-G642003
  • 1

    BOLT

    • Part No. 01027-50614
    • 4 shown on diagram
    $1.89
  • 2 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • 2 shown on diagram
    $2.49
  • 3

    BOLT

    • Part No. 01202-50620
    • M6XP1.0
    • 3 shown on diagram
    $1.09
  • 4

    BOLT

    • Part No. 01202-50620
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 5 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 6 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 7 SCREW

    SCREW

    • Part No. 03016-50616
    • M6XP1.0
    • 1 shown on diagram
    $0.9
  • 8

    BOLT,SCREW

    • Part No. 03024-50512
    • M5XP0.8
    • 8 shown on diagram
    $0.68
  • 9 Flat Washer M14

    Flat Washer M14

    • Part No. 04011-50140
    • M14
    • 1 shown on diagram
    $1.19
  • 10 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 2 shown on diagram
    $0.67
  • 11 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
  • 12 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 13

    CIR CLIP, EXTERNAL

    • Part No. 04612-00150
    • DIA15
    • 1 shown on diagram
    $0.73
  • 14 RING SNAP

    RING SNAP

    • Part No. 04613-50060
    • DIA06
    • 2 shown on diagram
    $0.67
  • 15

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 3 shown on diagram
    $0.56
  • 16

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 2 shown on diagram
    $1.19
  • 17 GRIP, DARK BLUE CK2610

    GRIP, DARK BLUE CK2610

    • Part No. T2660-71242
    • 1 shown on diagram
    $5.99
  • 18 PLATE SPRING, MOWER DECK

    PLATE SPRING, MOWER DECK

    • Part No. T2555-60741
    • 1 shown on diagram
    $7.49

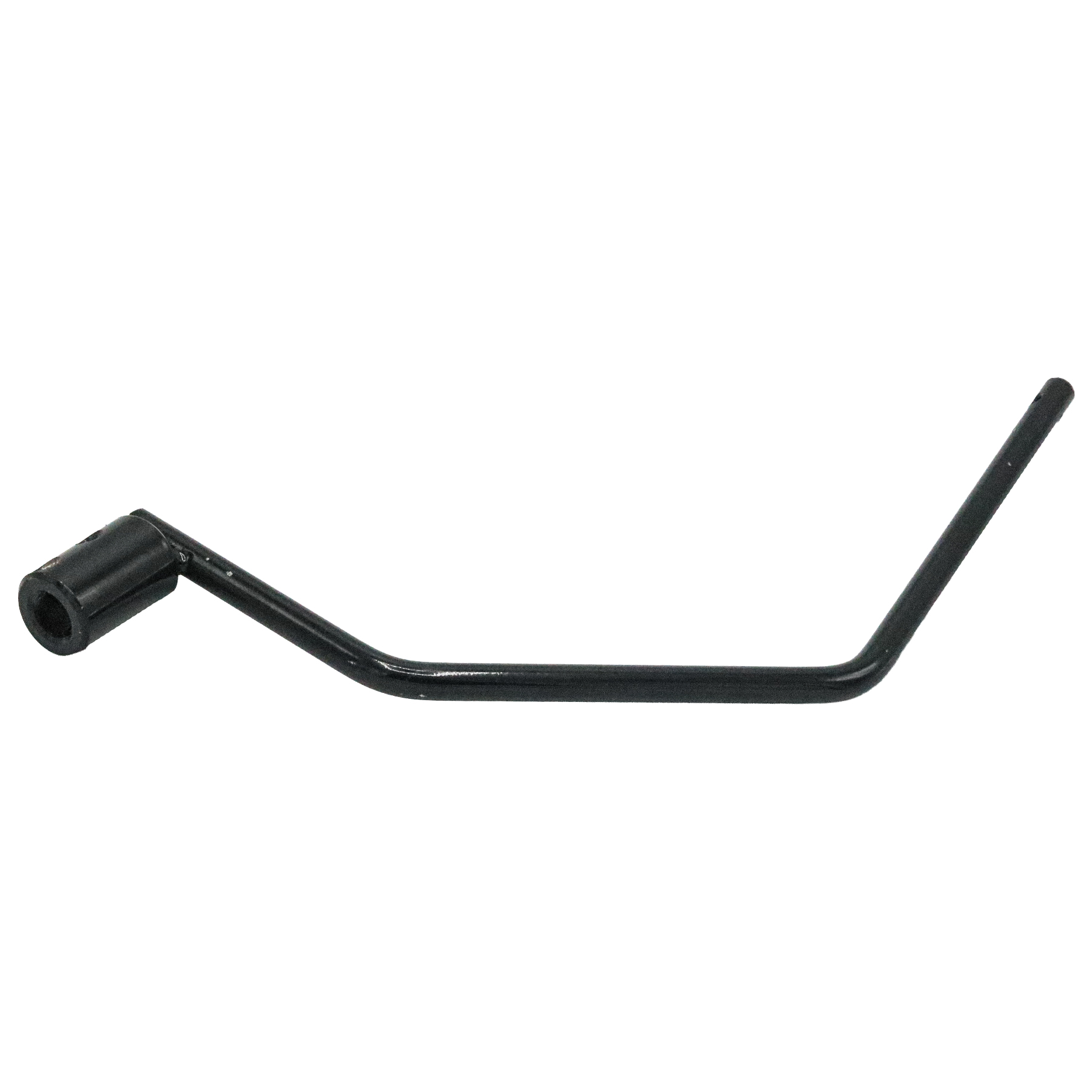

  • 19 LEVER,JOYSTICK

    LEVER,JOYSTICK

    • Part No. T5855-57805
    • 1 shown on diagram
    $66.99
  • 20

    LEVER 1, JOYSTICK

    • Part No. T5855-57813
    • 1 shown on diagram
    $74.99
  • 21 LEVER 2, JOYSTICK

    LEVER 2, JOYSTICK

    • Part No. T5855-57822
    • 1 shown on diagram
    $36.99

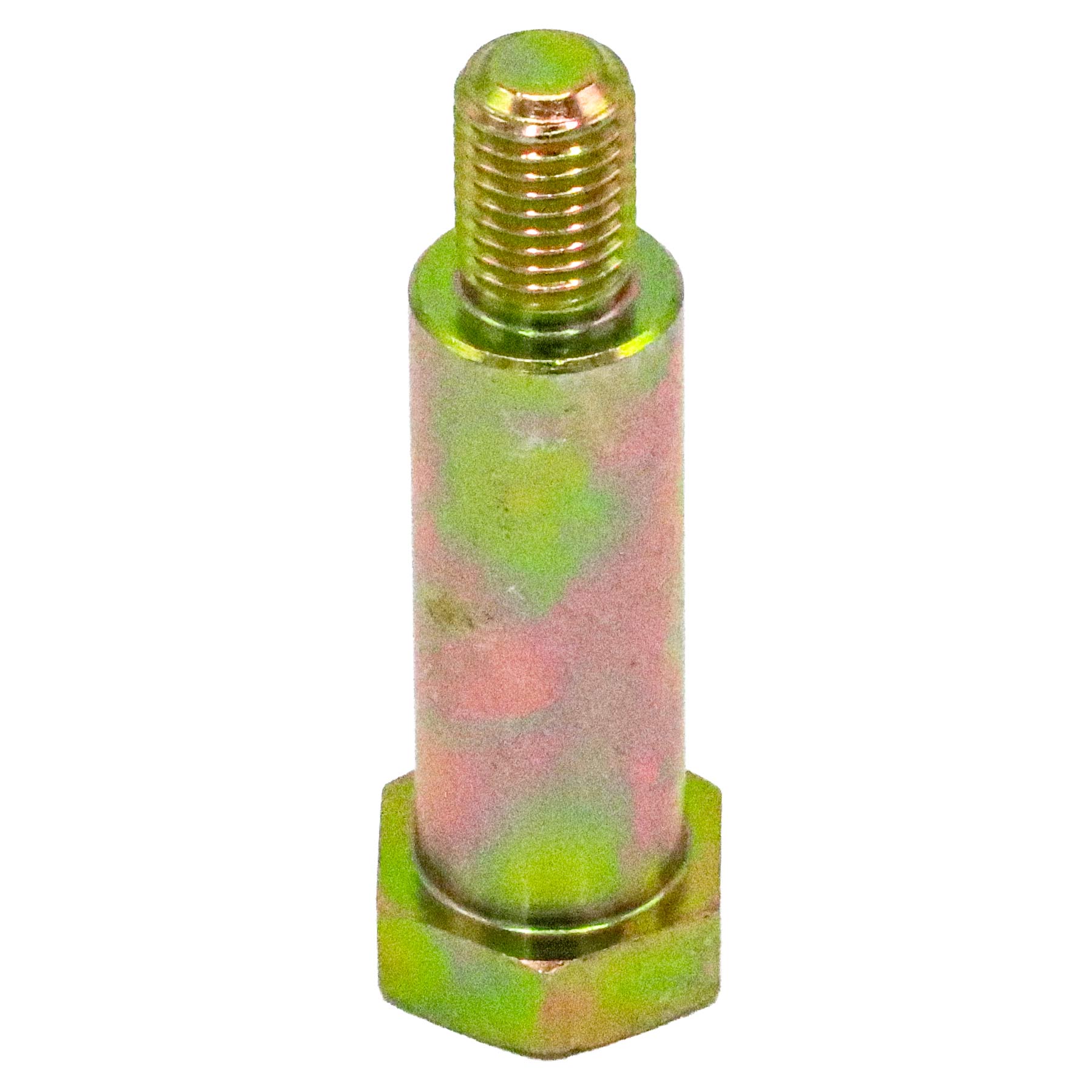

  • 22 SHAFT,JOYSTICK

    SHAFT,JOYSTICK

    • Part No. T5855-57832
    • M10XP1.25
    • 1 shown on diagram
    $24.99
  • 23

    ROD

    • Part No. T5855-57842
    • 1 shown on diagram
    $119.99
  • 24

    ROD2,JOYSTICK

    • Part No. T5855-57853
    • 1 shown on diagram
    $83.99
  • 25

    LEVER3,JOYSTICK

    • Part No. T5855-57866
    • 1 shown on diagram
    $46.99
  • 26

    DOWEL PIN

    • Part No. T5855-57901
    • OD9XL20
    • 1 shown on diagram
    $9.99

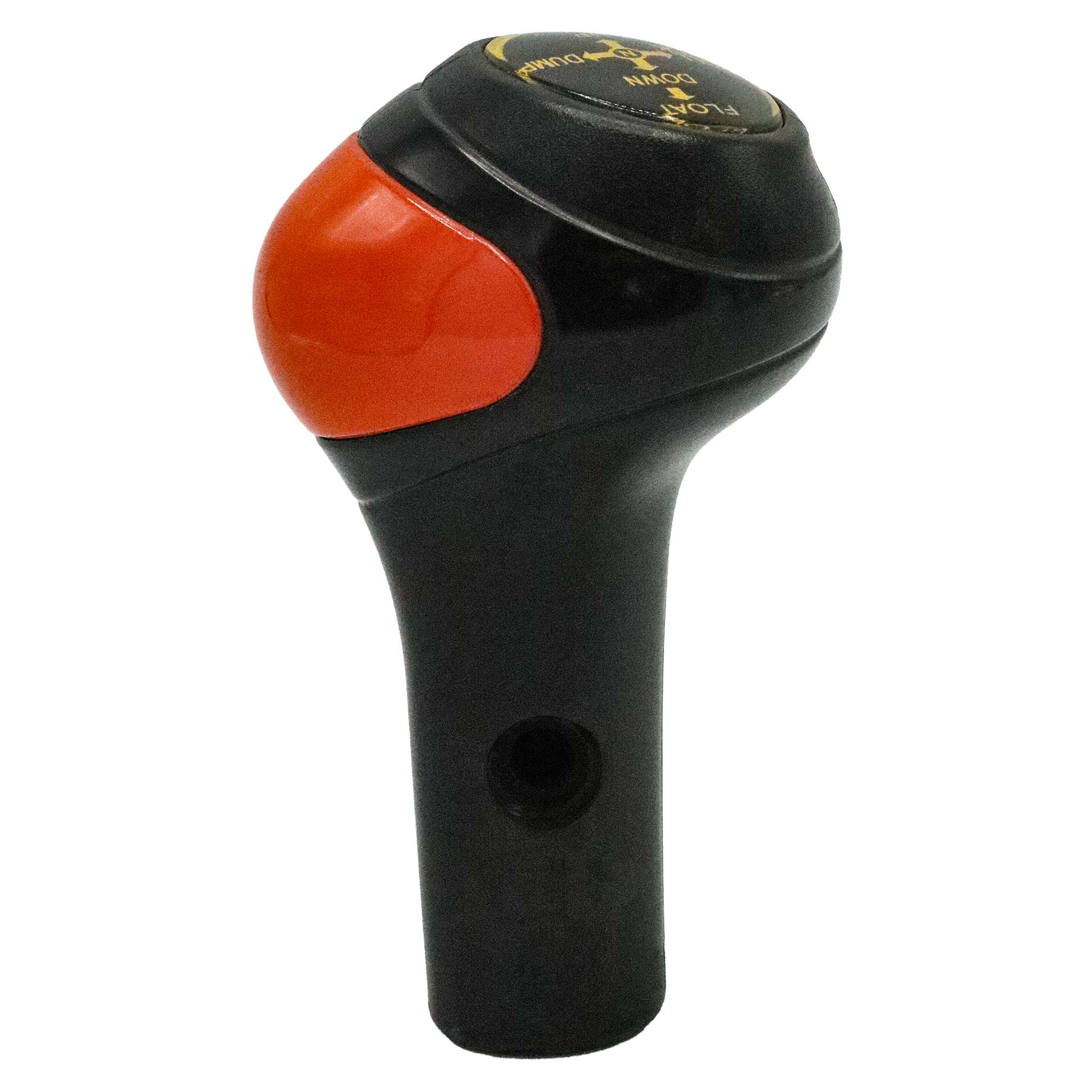

  • 27 GRIP, JOYSTICK

    GRIP, JOYSTICK

    • Part No. T5855-57912
    • 1 shown on diagram
    $42.99
  • 28

    BRACKET

    • Part No. TC26-0086A
    • 1 shown on diagram
    $29.99
  • 29

    JOIN PIN

    • Part No. TC26-0095A
    • OD9XL40
    • 2 shown on diagram
    $9.99
  • 30

    BASE, SUPPORT

    • Part No. TC26-1251A
    • 1 shown on diagram
    $159.99
  • 31

    BELLOWS, JOYSTICK

    • Part No. TC26-0501C
    • Applied Dates 2016-11-15 and up
    • 1 shown on diagram
    $52.99
  • 32

    SPRING

    • Part No. T4157-56111
    • 1 shown on diagram
    $1.89
  • 33

    BOOT, JOYSTICK

    • Part No. T5855-57882
    • 1 shown on diagram
    $83.99
  • 34

    WASHER 1

    • Part No. T4930-66731
    • 1 shown on diagram
    $3.49
  • 35

    WASHER 3

    • Part No. T4930-66751
    • 1 shown on diagram
    $3.99
