BRAKE ROD GROUP - TC2-G646604

Kioti TRACTOR | CK Series | CK3510SEB

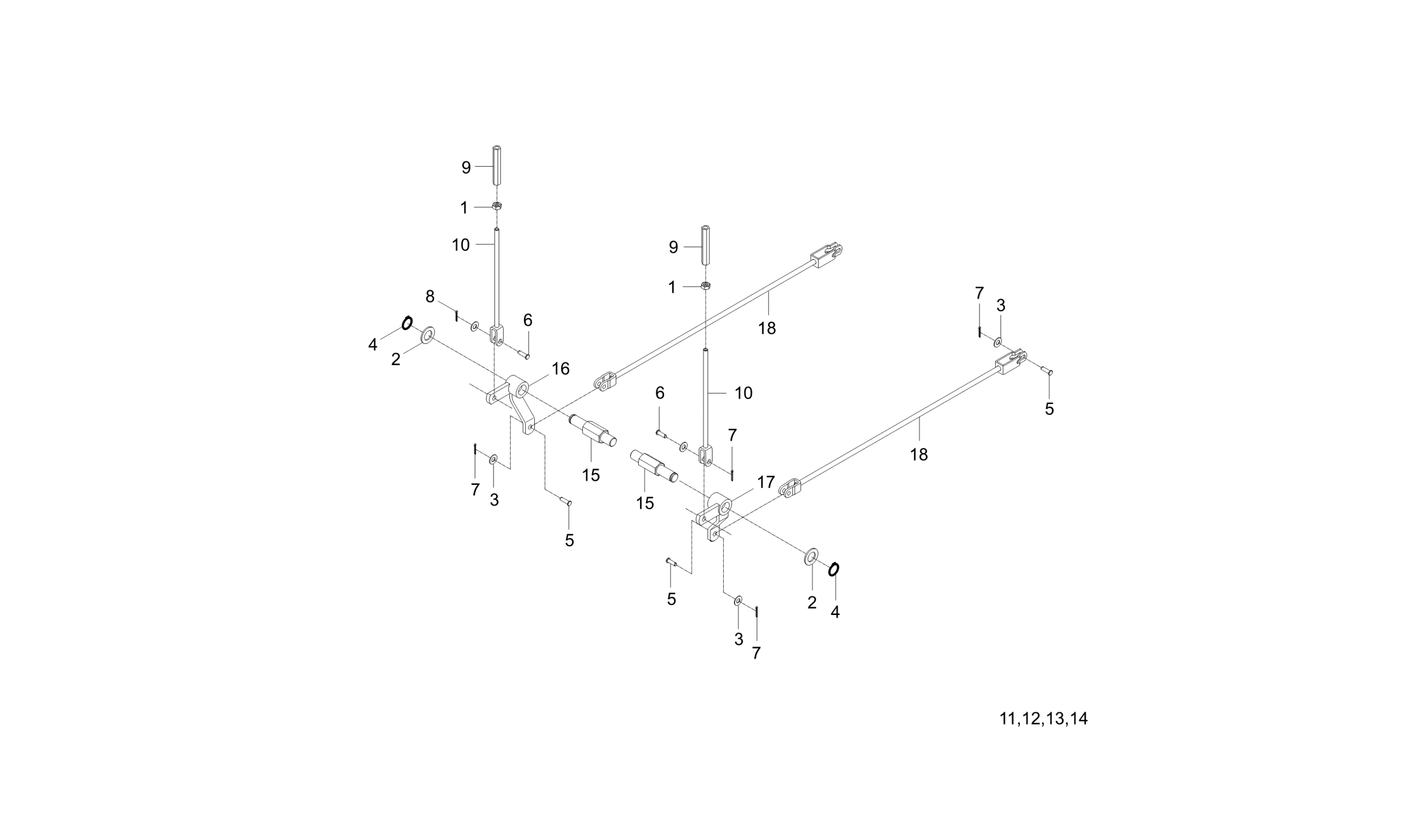

Diagram for BRAKE ROD GROUP - TC2-G646604
  • 1 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 2

    Flat Washer M20

    • Part No. 04011-50200
    • M20
    • 2 shown on diagram
    $1.59
  • 3 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 4 shown on diagram
    $.67
  • 4
    • Part No. 04612-00200
    • DIA20
    • 2 shown on diagram
  • 5 Pin, Joint M8x28mm

    Pin, Joint M8x28mm

    • Part No. 05122-50828
    • DIA8XL28
    • 4 shown on diagram
    $3.49
  • 6
    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
  • 7
    • Part No. 05511-50218
    • DIA1.8XL18
    • 4 shown on diagram
  • 8
    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
  • 9

    TURNBUCKLE

    • Part No. 32350-2898-4
    • HEX14
    • 2 shown on diagram
    $28.99
  • 10

    ROD 1,BRAKE

    • Part No. T2610-55751
    • 2 shown on diagram
    $24.99
  • 11

    CUSHION

    • Part No. T4145-55791
    • 4 shown on diagram
    $1.89
  • 12
    • Part No. T4157-56111
    • 4 shown on diagram
  • 13
    • Part No. T4157-56111
    • 2 shown on diagram
  • 14

    WASHER 1

    • Part No. T4930-66731
    • 2 shown on diagram
    $3.49
  • 15

    SHAFT, BRAKE

    • Part No. TC26-0398A
    • HEX 27
    • 2 shown on diagram
    $31.99
  • 16
    • Part No. TC26-0399A
    • -
    • 1 shown on diagram
  • 17

    LEVER, BRAKE-LH dnr v

    • Part No. TC26-0400A
    • 1 shown on diagram
    $159.99
  • 18

    ROD, BRAKE

    • Part No. TC26-0401A
    • 2 shown on diagram
    $39.99
