FRONT WHEEL DRIVE LEVER GROUP - TC2-G644503

Kioti TRACTOR | CK Series | CK3510SEB

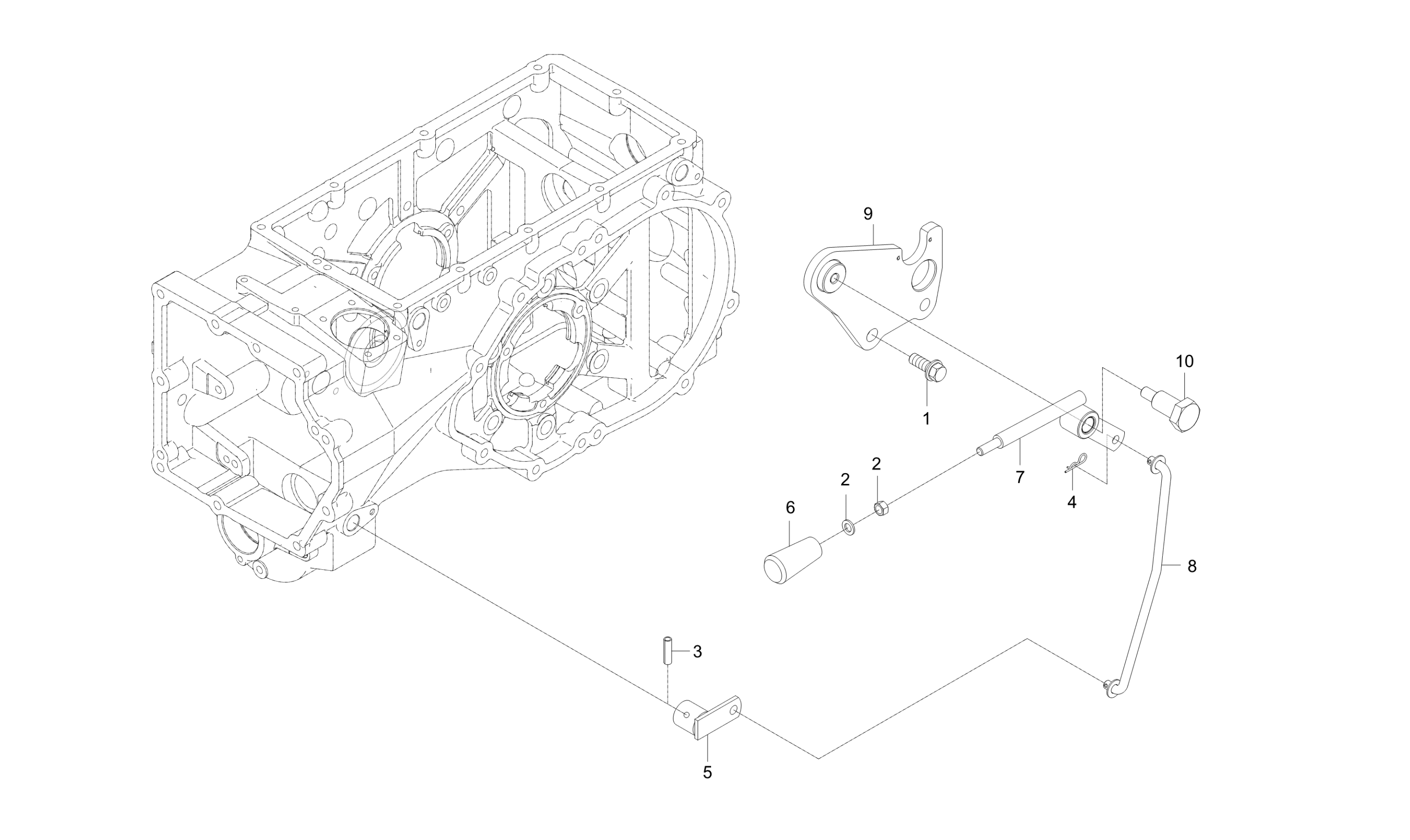

Diagram for FRONT WHEEL DRIVE LEVER GROUP - TC2-G644503
  • 1 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 2 shown on diagram
    $3.49
  • 2 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 3
    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
  • 4

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 5
    • Part No. T2185-44764
    • 1 shown on diagram
  • 6

    GRIP

    • Part No. T5715-53611
    • 1 shown on diagram
    $11.99
  • 7

    LEVER, DRIVE dnr v

    • Part No. T5855-57612
    • Applied Dates 2017-06-30 to 2017-06-29
    • Serial No. Up to WJJ700032
    • * multiple options for #7
    • 1 shown on diagram
    $53.99
  • 7

    4WD LEVER

    • Part No. T5855-57613
    • Compatibility Interchngable
    • Applied Dates 2020-02-10 and up
    • Serial No. WJJ700033 to WJJ700036
    • * multiple options for #7
    • 1 shown on diagram
    $53.99
  • 8
    • Part No. T5855-57632
    • 1 shown on diagram
  • 9
    • Part No. TC26-0489A
    • 1 shown on diagram
  • 10

    BOLT- 4WD

    • Part No. TC26-0490A
    • HEX 27
    • 1 shown on diagram
    $23.99
