POSITION DRAFT CONTROL LEVER GROUP - TC2-G641004

Kioti TRACTOR | CK Series | CK3510SEB

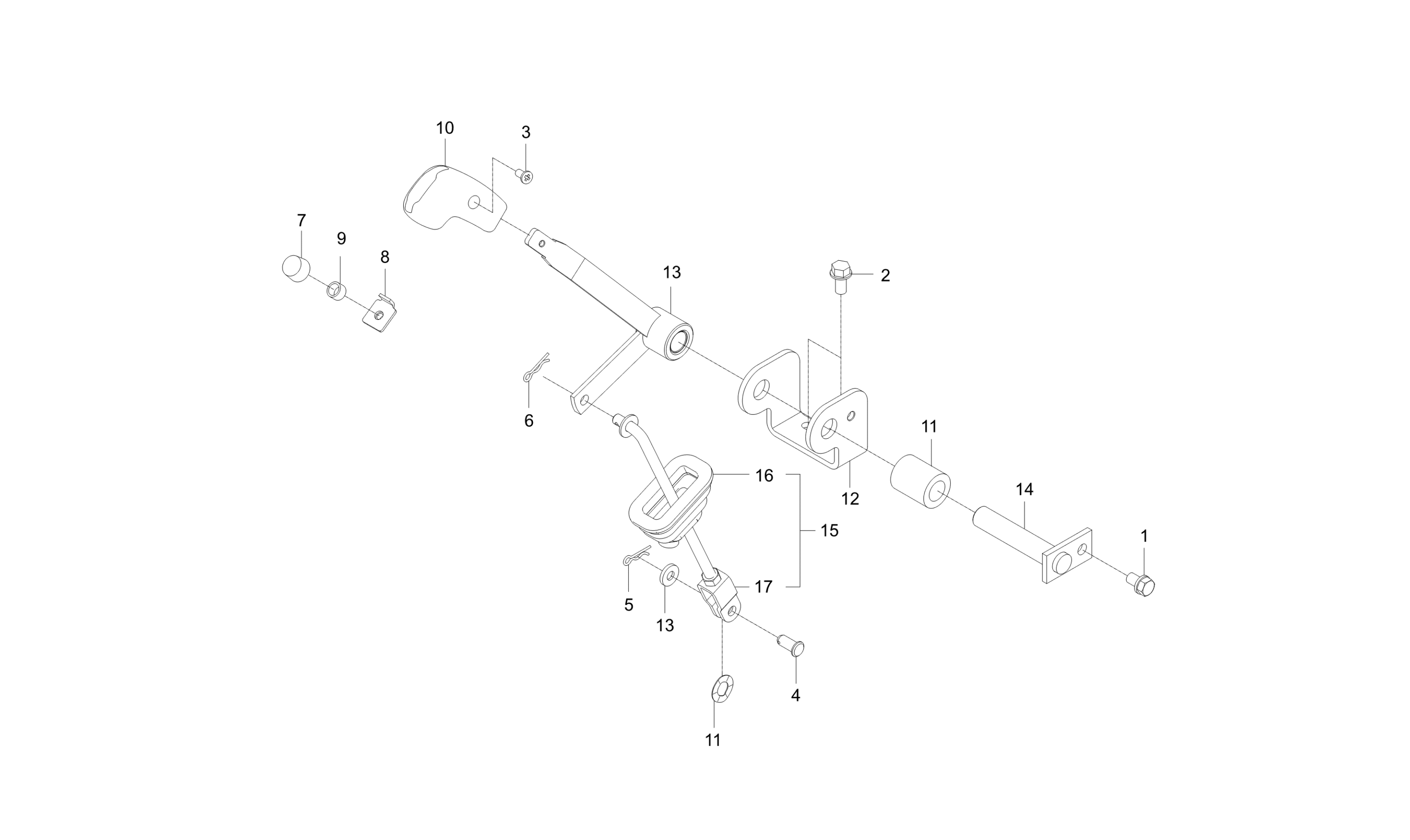

Diagram for POSITION DRAFT CONTROL LEVER GROUP - TC2-G641004
  • 1

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 3 SCREW

    SCREW

    • Part No. 03056-50510
    • M5XP0.8
    • 1 shown on diagram
    $0.62
  • 4

    Pin, Joint M8x16mm

    • Part No. 05122-50816
    • DIA8XL16
    • 1 shown on diagram
    $2.49
  • 5 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 6 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 7 BOLT, RESIN M6 P1.00 x 13 v

    BOLT, RESIN M6 P1.00 x 13 v

    • Part No. 53415-4128-1
    • 1 shown on diagram
    $5.99
  • 8

    Lever Stopper (T2350-95472)

    • Part No. T2350-95472
    • 1 shown on diagram
    $3.49
  • 9

    SPACER

    • Part No. T4520-83301
    • DIA10.5*T2.0
    • 1 shown on diagram
    $4.99
  • 10

    GRIP

    • Part No. T5710-53471
    • 1 shown on diagram
    $19.99
  • 11

    BUSHING

    • Part No. T5715-53471
    • OD28,ID16.5
    • 1 shown on diagram
    $4.99
  • 12

    BRACKET

    • Part No. TC26-0478A
    • Applied Dates Up to 2017-11-30
    • Serial No. UJJ700001 to TJJ700002
    • T4.5
    • * multiple options for #12
    • 1 shown on diagram
    $26.99
  • 12

    BRACKET

    • Part No. TC26-0478B
    • Compatibility Interchngable
    • Applied Dates 2017-12-01 and up
    • Serial No. TJJ700003 to WJJ700036
    • T4.5
    • * multiple options for #12
    • 1 shown on diagram
    $28.99
  • 13

    LEVER, CONTROL POSITION

    • Part No. TC26-0479A
    • 1 shown on diagram
    $49.99
  • 14

    SHAFT

    • Part No. TC26-0578A
    • 1 shown on diagram
    $14.99
  • 15

    ROD, CONTROL POSITION v

    • Part No. TC26-0480A
    • 1 shown on diagram
    $29.99
  • 16

    BOOT

    • Part No. T4880-64672
    • 1 shown on diagram
    $21.99
  • 17

    ROD, CONTROL POSITION v

    • Part No. TC26-0480A
    • 1 shown on diagram
    $29.99
