FUEL TANK GROUP - TC2-G671007

Kioti TRACTOR | CK Series | CK3510SEB

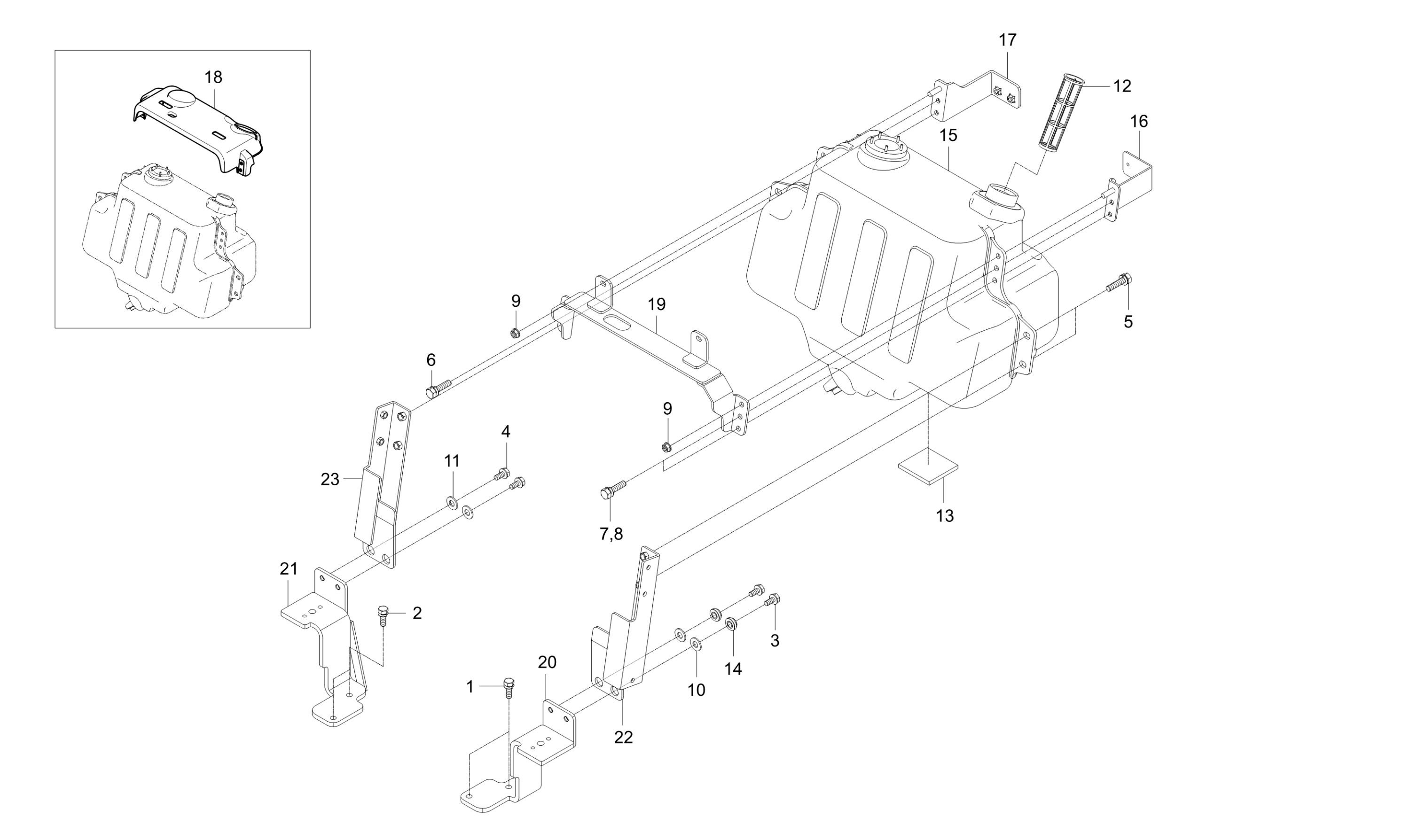

Diagram for FUEL TANK GROUP - TC2-G671007
  • 1 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 2 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 3 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • Applied Dates Up to 2019-06-04
    • Serial No. Up to VJJ700008
    • M10XP1.25
    • * multiple options for #3
    • 2 shown on diagram
    $2.99
  • 3 BOLT

    BOLT

    • Part No. 01133-51025
    • Compatibility Interchngable
    • Applied Dates 2019-06-05 to 2017-11-15
    • Serial No. VJJ700009 to WJJ700036
    • M10XP1.25
    • * multiple options for #3
    • 2 shown on diagram
    $3.49
  • 4 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • * multiple options for #4
    • 2 shown on diagram
    $2.99
  • 4 BOLT

    BOLT

    • Part No. 01133-51025
    • Compatibility Interchngable
    • M10XP1.25
    • * multiple options for #4
    • 2 shown on diagram
    $3.49
  • 5

    BOLT WITH WASHER v

    • Part No. 01135-51025
    • M8*1.25
    • 4 shown on diagram
    $3.49
  • 6 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 2 shown on diagram
    $1.89
  • 7 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 8 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 9
    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
  • 10

    Flat Washer M10

    • Part No. 04015-50100
    • M10
    • 2 shown on diagram
    $1.09
  • 11

    Flat Washer M10

    • Part No. 04015-50100
    • M10
    • 2 shown on diagram
    $1.09
  • 12
    • Part No. T4686-41351
    • 1 shown on diagram

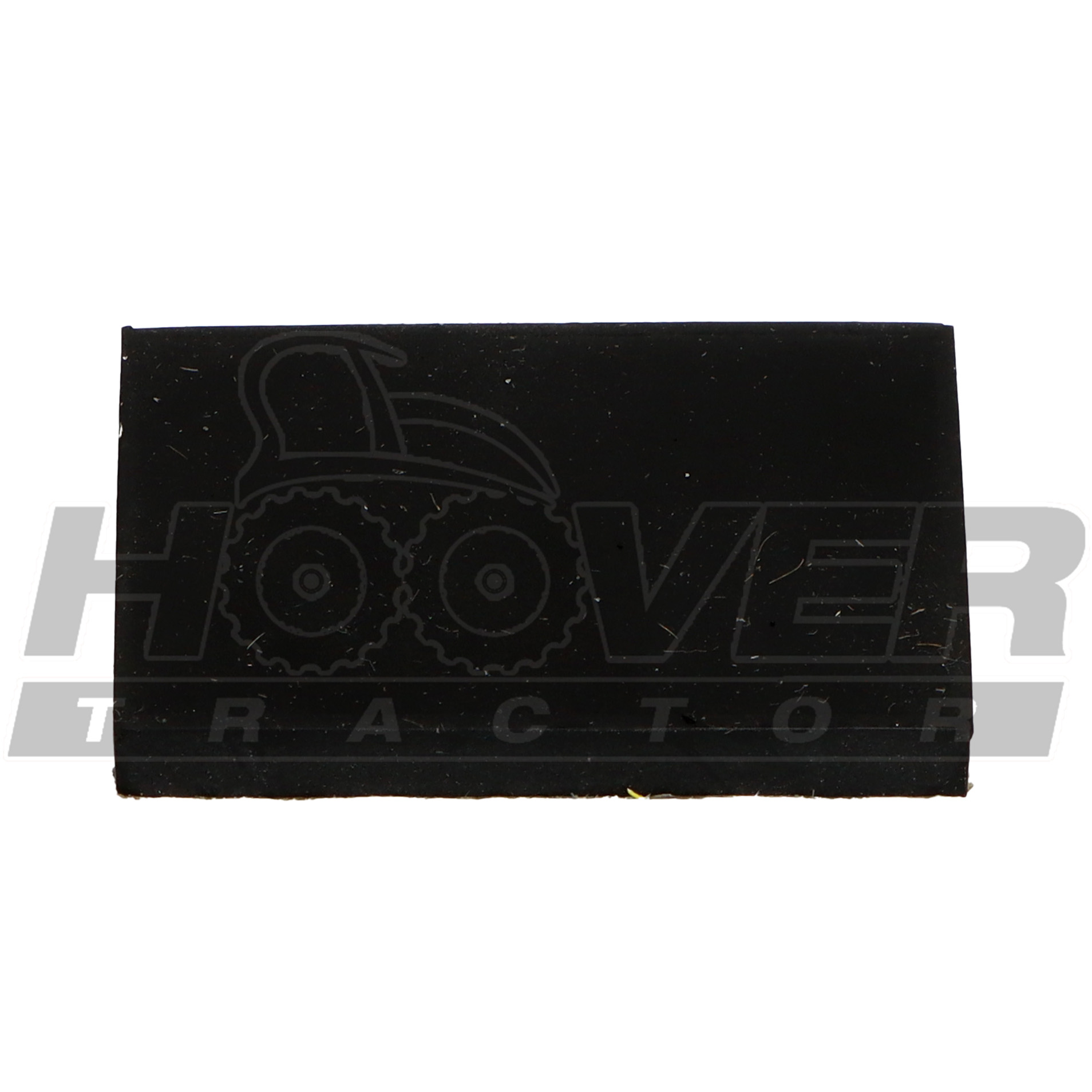

  • 13 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T4810-55312
    • 1 shown on diagram
    $2.49
  • 14

    BUSHING

    • Part No. T5520-80531
    • 4 shown on diagram
    $7.49
  • 15

    FUEL TANK

    • Part No. T5855-52213
    • 1 shown on diagram
    $434.99
  • 16

    BRACKET, FUEL TANK-LH dnr v.

    • Part No. T5855-52223
    • 1 shown on diagram
    $54.99
  • 17

    BRACKET, FUEL TANK-RH dnr v.

    • Part No. T5855-52233
    • 1 shown on diagram
    $69.99
  • 18

    SHEILD,FUEL TANK

    • Part No. T5858-52211
    • 1 shown on diagram
    $44.99
  • 19

    BRACKET, NUMBER

    • Part No. TC26-0007B
    • 1 shown on diagram
    $124.99
  • 20

    SUPPORT, FUEL TANK-LWR LH

    • Part No. TC26-0740B
    • 1 shown on diagram
    $159.99
  • 21
    • Part No. TC26-0743B
    • 1 shown on diagram
  • 22

    SUPPORT, FUEL TANK-UPR LH

    • Part No. TC26-0746A
    • 1 shown on diagram
    $57.99
  • 23

    SUPPORT, FUEL TANK-UPR RH

    • Part No. TC26-0749A
    • 1 shown on diagram
    $57.99
