BONNET SIDE COVER GROUP - TC2-G615701

Kioti TRACTOR | CK Series | CK3510SEB

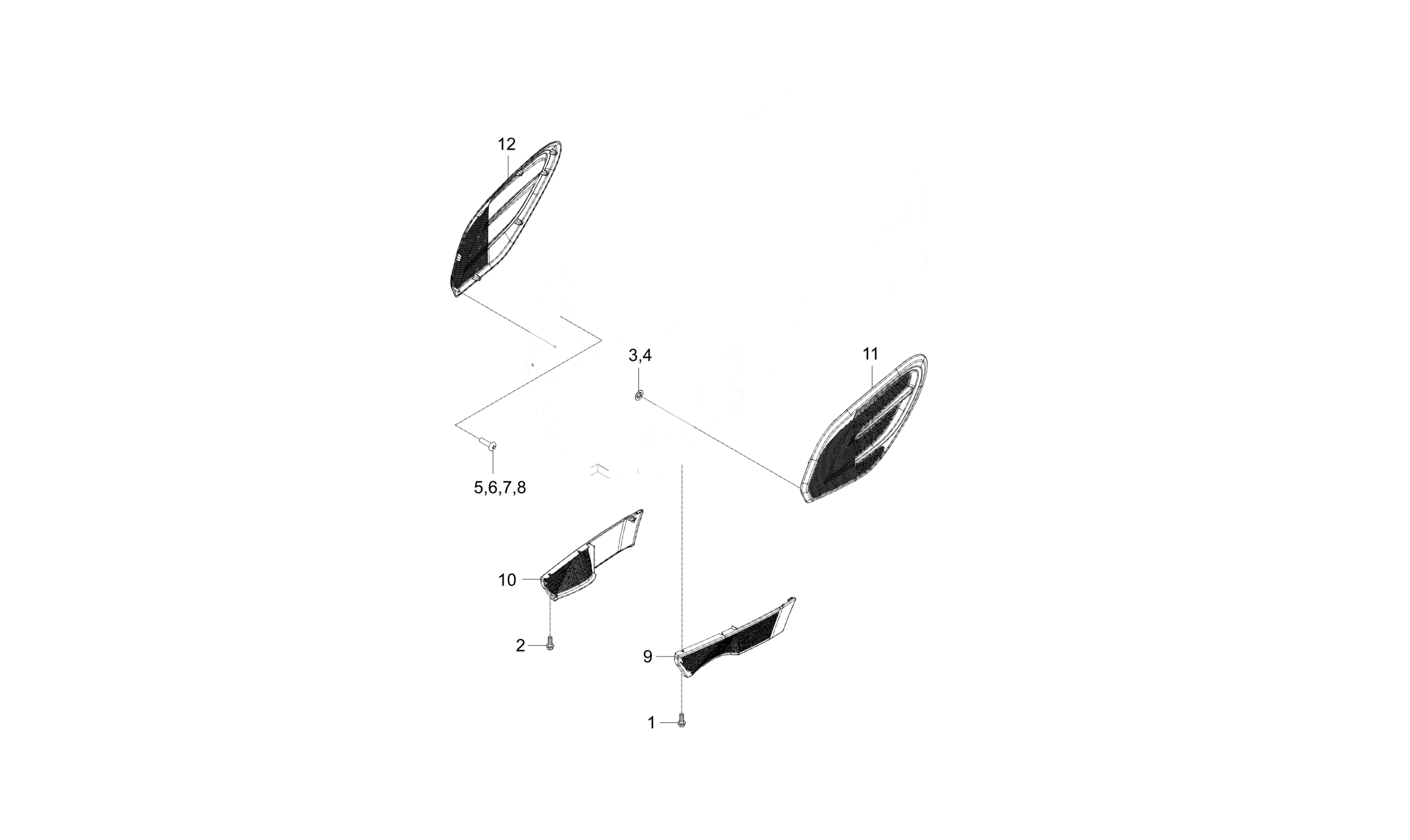

Diagram for BONNET SIDE COVER GROUP - TC2-G615701
  • 1

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 2

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 3 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 1 shown on diagram
    $1.39
  • 4 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 1 shown on diagram
    $1.39
  • 5

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 3 shown on diagram
    $0.29
  • 6

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 7 shown on diagram
    $0.29
  • 7

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 7 shown on diagram
    $0.29
  • 8

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 3 shown on diagram
    $0.29

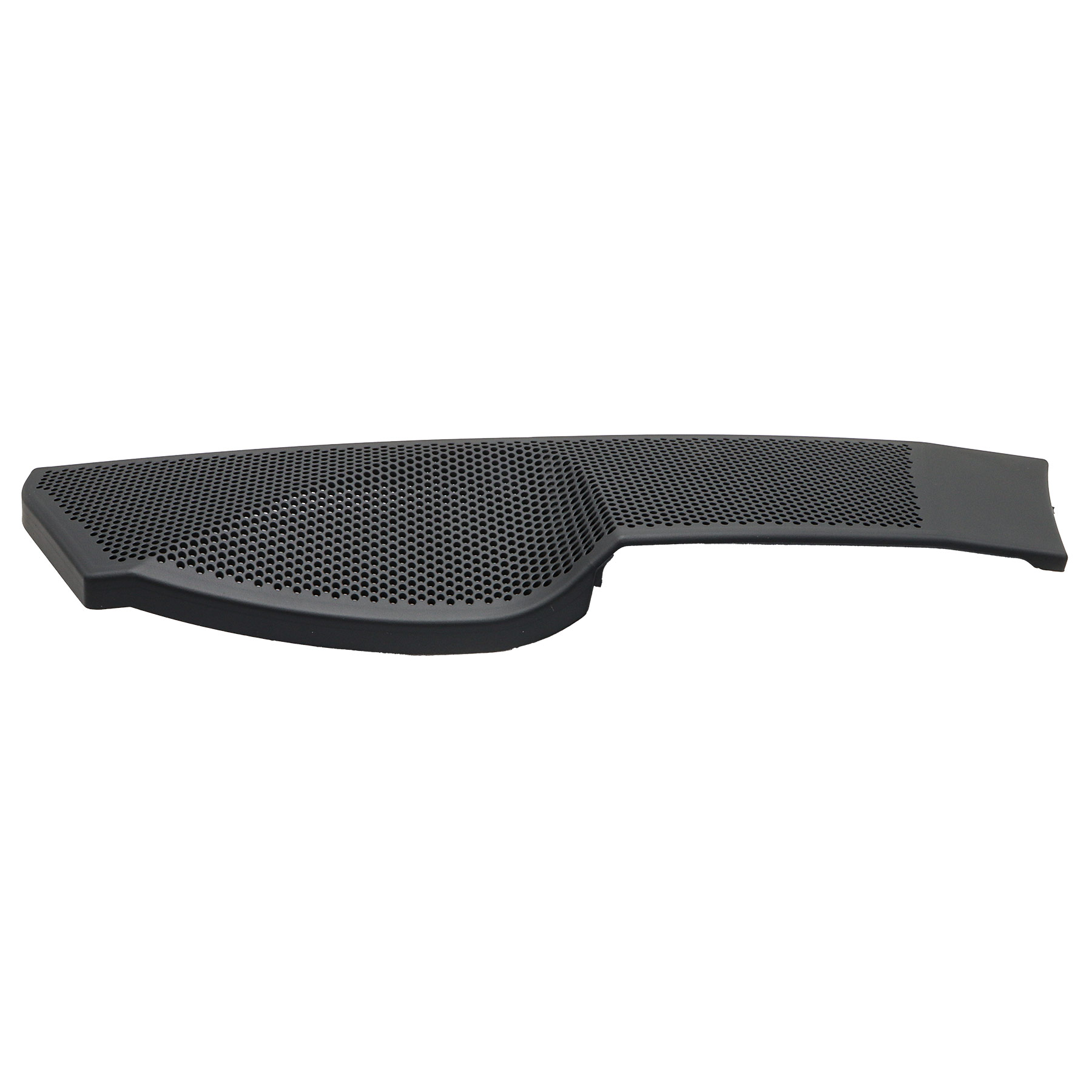

  • 9 SIDE GRILL, LH,LWR

    SIDE GRILL, LH,LWR

    • Part No. T5818-51051
    • T3.0
    • 1 shown on diagram
    $51.99

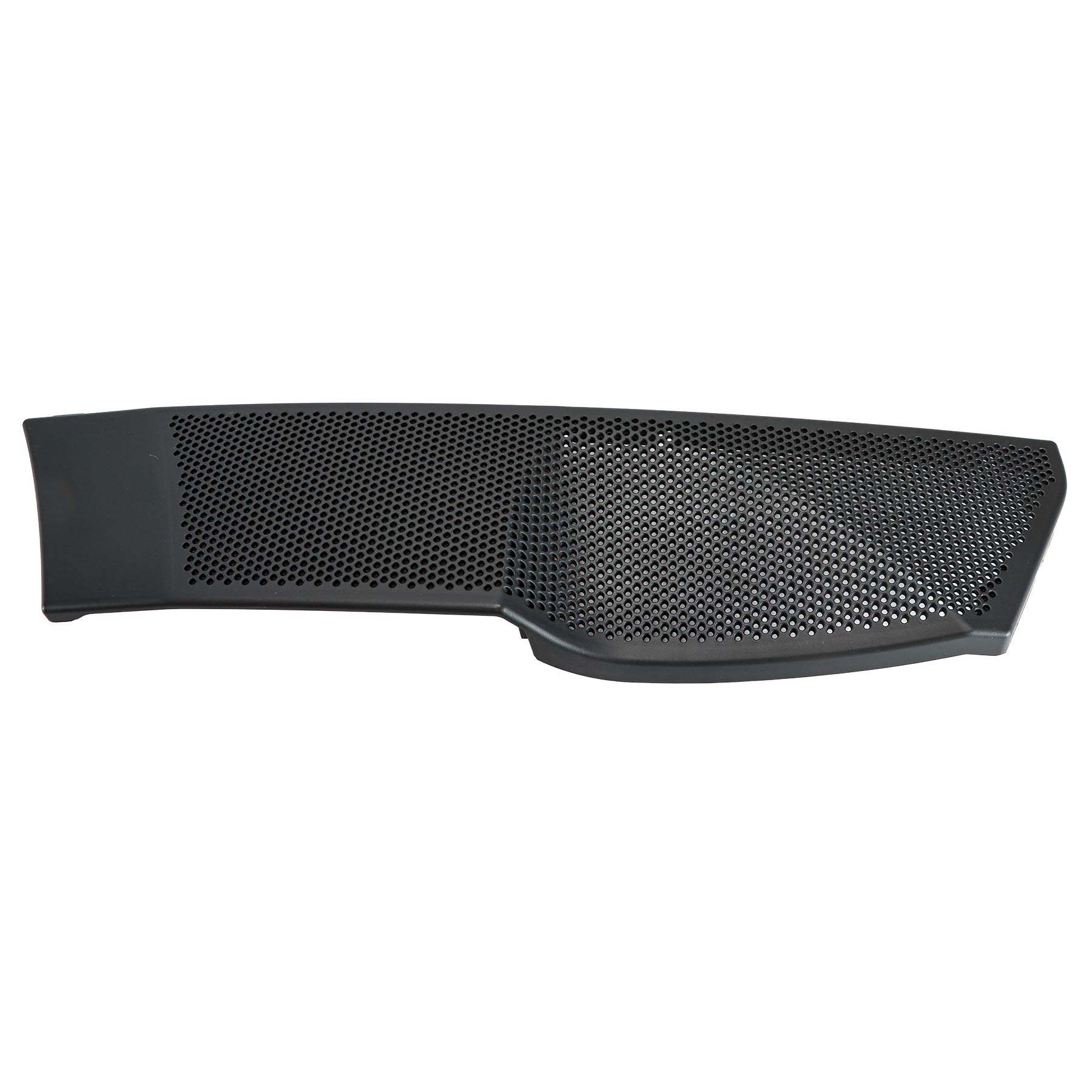

  • 10 SIDE GRILL, RH,LWR

    SIDE GRILL, RH,LWR

    • Part No. T5818-51061
    • T3.0
    • 1 shown on diagram
    $49.99
  • 11
    • Part No. T5858-51862
    • -
    • 1 shown on diagram
  • 12
    • Part No. T5858-51872
    • -
    • 1 shown on diagram
