SHUTTLE LEVER GROUP - TC2-G644001

Kioti TRACTOR | CK Series | CK3510SEB

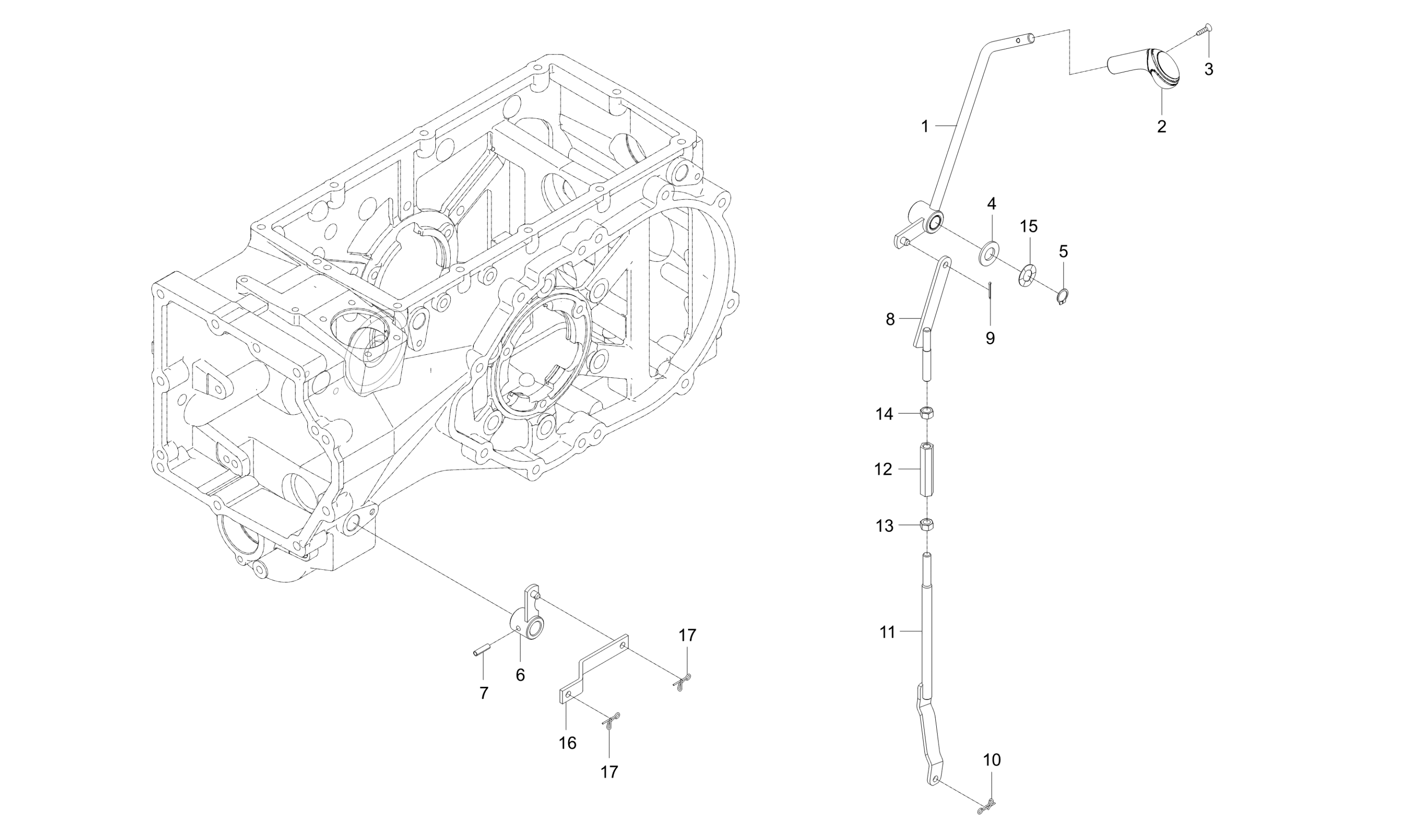

Diagram for SHUTTLE LEVER GROUP - TC2-G644001
  • 1

    LEVER, SHUTTLE-US v

    • Part No. TC26-1384B
    • 1 shown on diagram
    $61.99
  • 2

    GRIP

    • Part No. T5750-80251
    • 1 shown on diagram
    $47.99

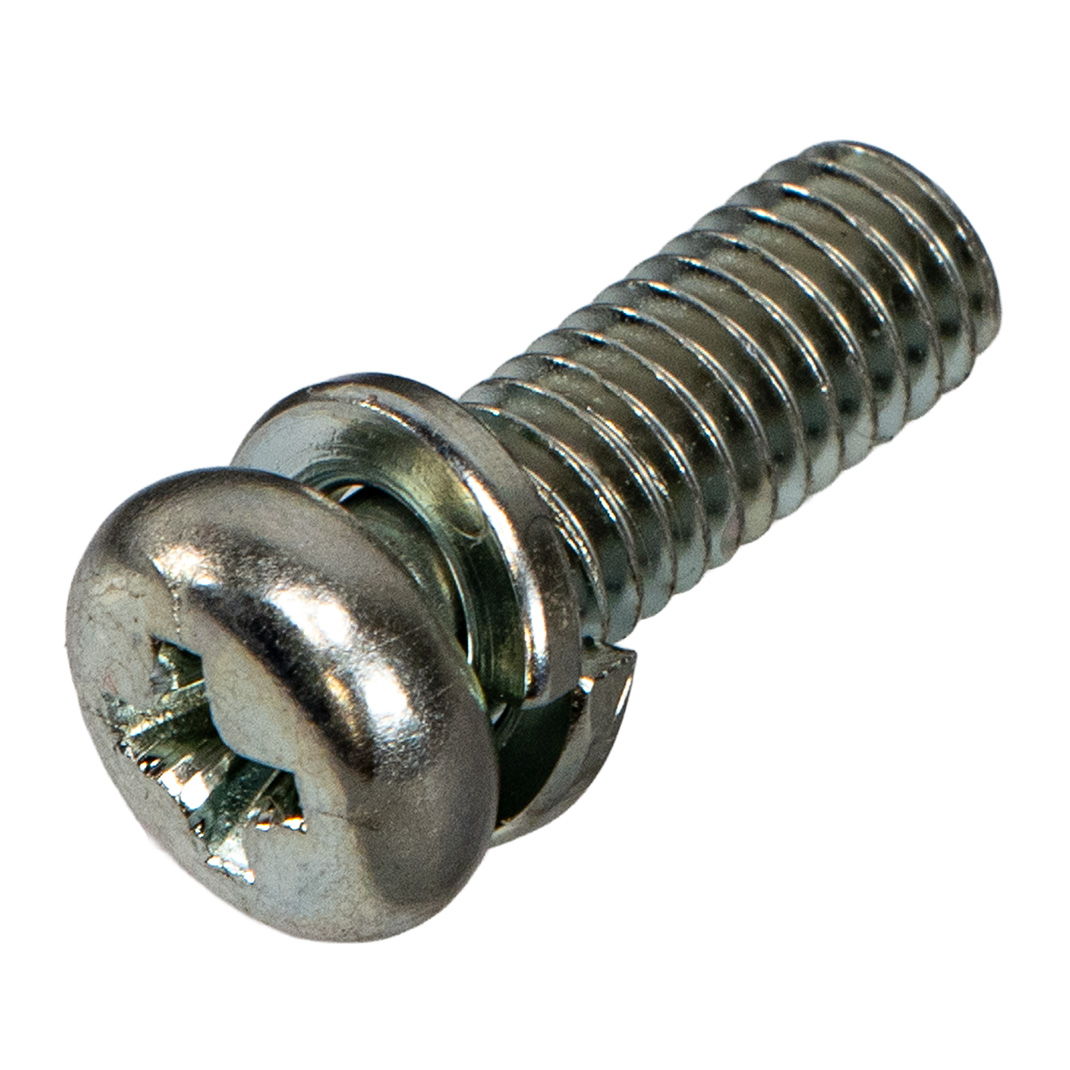

  • 3 BOLT,SCREW

    BOLT,SCREW

    • Part No. 03024-50514
    • 1 shown on diagram
    $.79
  • 4

    Flat Washer M16

    • Part No. 04013-50160
    • M16
    • 1 shown on diagram
    $1.59
  • 5 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • DIA16
    • 1 shown on diagram
    $.85
  • 6
    • Part No. TC26-1539A
    • -
    • 1 shown on diagram
  • 7
    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
  • 8

    ROD, SHUTTLE-UPR

    • Part No. TC26-1472A
    • 1 shown on diagram
    $27.99
  • 9
    • Part No. 05511-50218
    • DIA1.8XL18
    • 1 shown on diagram
  • 10

    SNAP PIN

    • Part No. 52300-3412-1
    • DIA1.6
    • 1 shown on diagram
    $1.19
  • 11
    • Part No. TC26-1546A
    • 1 shown on diagram
  • 12

    TURNBUCKLE v

    • Part No. 55311-3156-1
    • HEX14*75
    • 1 shown on diagram
    $15.99
  • 13
    • Part No. 55311-3155-1
    • 1 shown on diagram
  • 14 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 15

    WASHER, PLATE SPRING

    • Part No. TC26-1438A
    • T0.3
    • 1 shown on diagram
    $1.49
  • 16
    • Part No. TC26-1541A
    • 19XT4.5 Flat Iron
    • 1 shown on diagram
  • 17

    SNAP PIN

    • Part No. 52300-3412-1
    • DIA1.6
    • 2 shown on diagram
    $1.19
