ACCELERATOR LEVER GROUP - TC2-G648106

Kioti TRACTOR | CK Series | CK3510SEB

Diagram for ACCELERATOR LEVER GROUP - TC2-G648106
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Applied Dates 2018-06-27 to 2018-06-26
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 2 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98

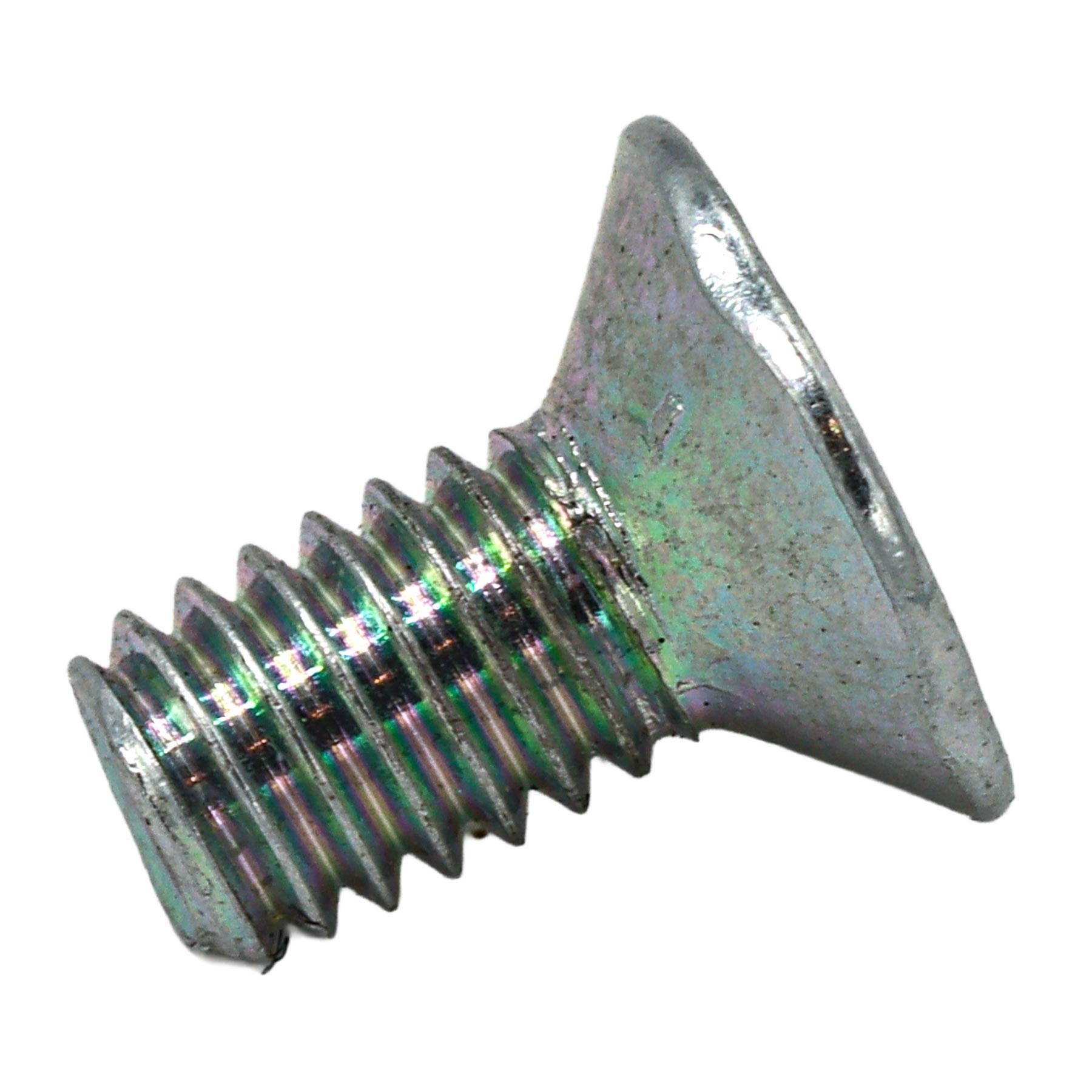

  • 3 FLAT HEAD SCREW M4 P0.7

    FLAT HEAD SCREW M4 P0.7

    • Part No. 03056-50408
    • M4XP0.7
    • 1 shown on diagram
    $0.46
  • 4 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • Applied Dates 2018-02-13 and up
    • M10
    • 1 shown on diagram
    $.73
  • 5

    PIN, SNAP

    • Part No. 05525-50600
    • Applied Dates 2018-09-07 and up
    • DIA6
    • 1 shown on diagram
    $1.19
  • 6

    SNAP PIN

    • Part No. 52300-3412-1
    • DIA1.6
    • 1 shown on diagram
    $1.19

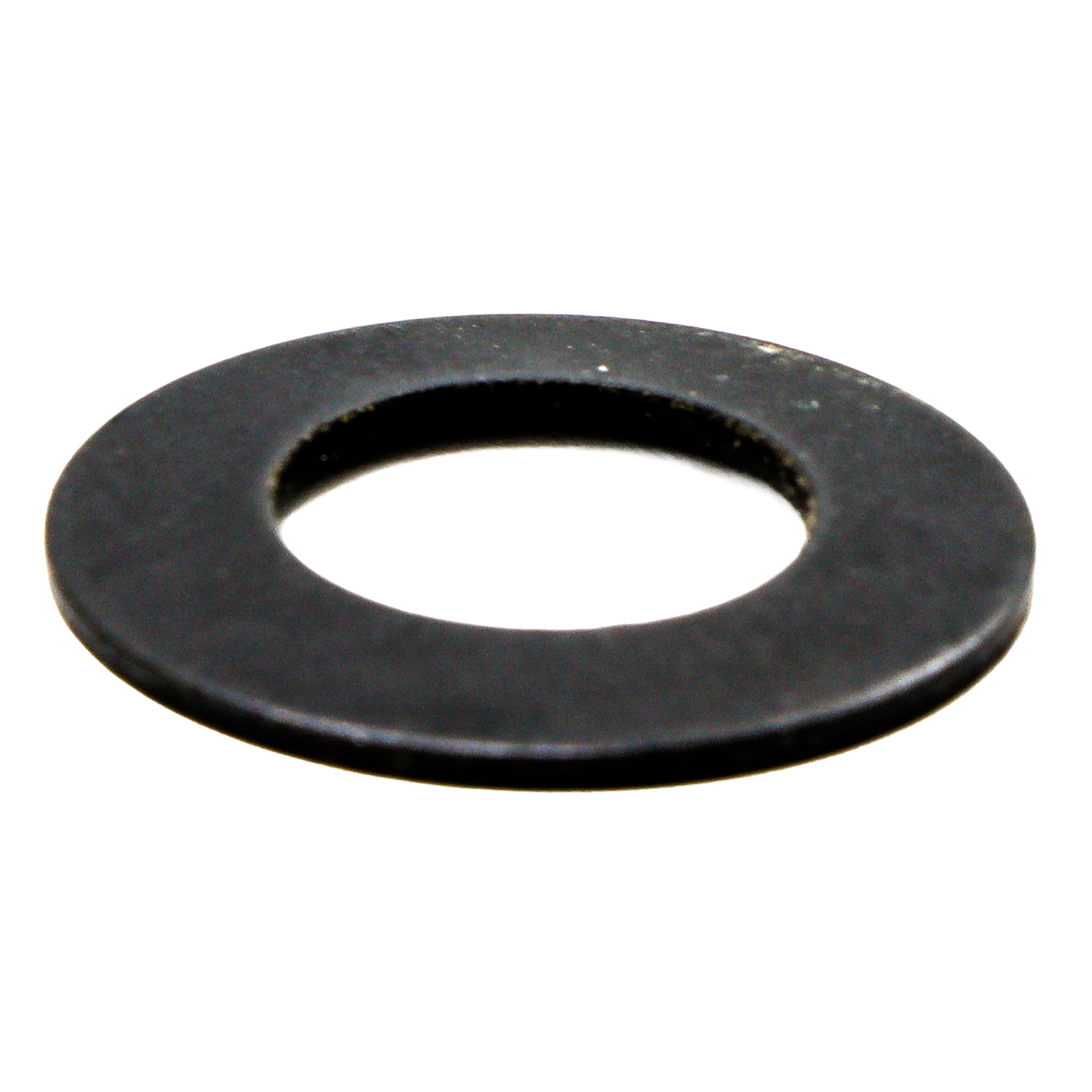

  • 7 SPRING WASHER

    SPRING WASHER

    • Part No. T4668-83301
    • 2 shown on diagram
    $1.69
  • 8

    WASHER 2

    • Part No. T4930-66741
    • 1 shown on diagram
    $3.49
  • 9
    • Part No. T5750-81091
    • Applied Dates 2020-02-07 and up
    • -
    • 1 shown on diagram
  • 10

    BRACKET, ACLTR dnr v

    • Part No. T5710-81012
    • Applied Dates 2019-09-03 and up
    • 1 shown on diagram
    $19.99
  • 11

    LEVER, HAND ACCEL

    • Part No. T5710-81031
    • 1 shown on diagram
    $17.99
  • 12

    ACCEL ROD, 1

    • Part No. T5710-81051
    • 1 shown on diagram
    $14.99
