INSTRUMENT PANEL FRAME GROUP(ROPS SHUTTL - TC2-G652012

Kioti TRACTOR | CK Series | CK3510SEB

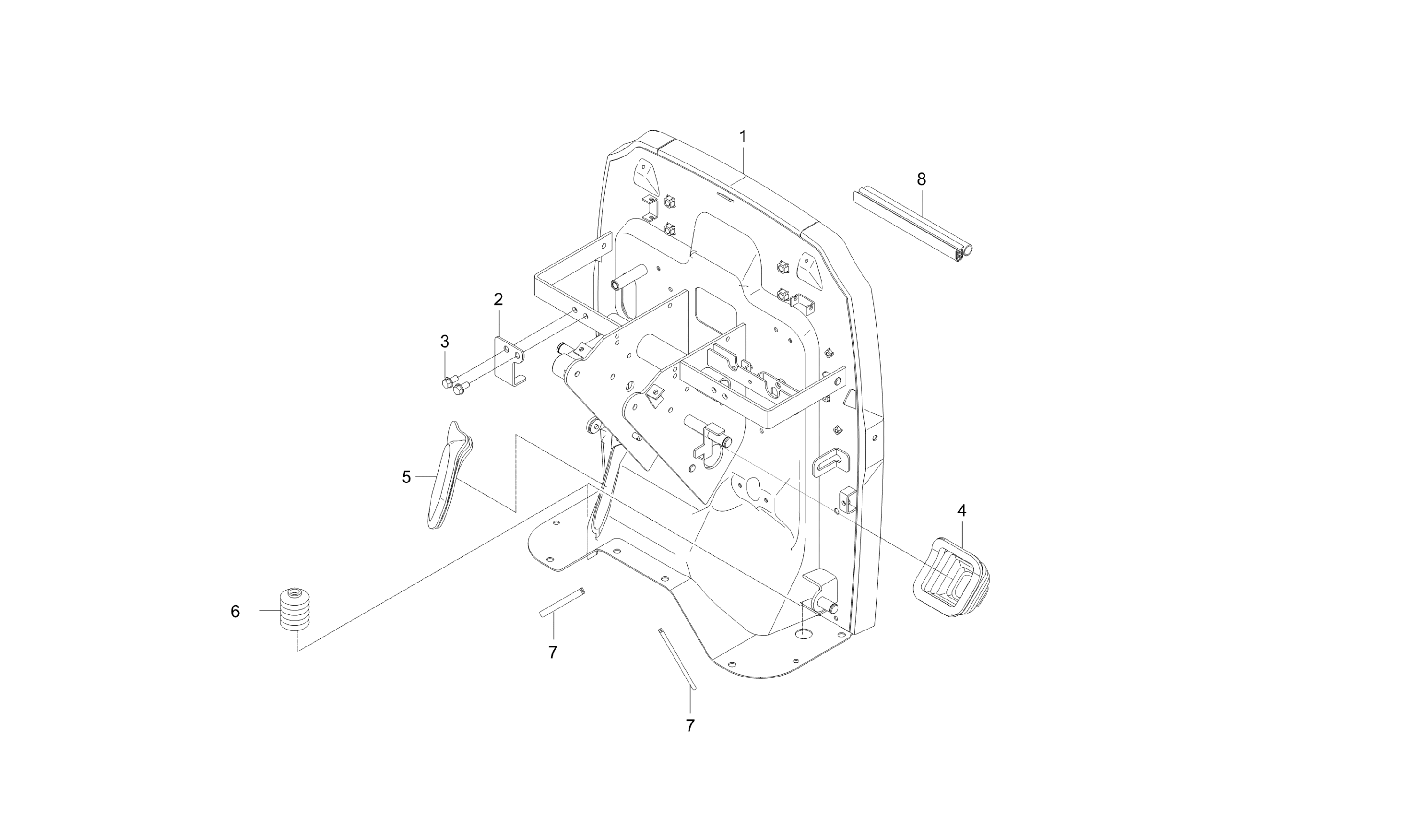

Diagram for INSTRUMENT PANEL FRAME GROUP(ROPS SHUTTL - TC2-G652012
  • 1
    • Part No. TC26-1373A
    • * multiple options for #1
    • 1 shown on diagram
  • 1

    ASSY FRAME, INSTPN-ROPS SHUTTLE

    • Part No. TC26-1373B
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1

    ASSY FRAME, INSTPN-ROPS SHUTTLE

    • Part No. TC26-1373C
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $799.99
  • 2

    PLATE, SWITCH

    • Part No. T5710-80782
    • T3.0
    • 1 shown on diagram
    $5.99
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 4

    BOOT

    • Part No. T5715-80681
    • T1.2
    • 1 shown on diagram
    $33.99
  • 5

    COVER, FRAME RUBBER-1

    • Part No. TC26-1362A
    • T3.0
    • 1 shown on diagram
    $29.99
  • 6

    JABARA

    • Part No. T4620-55821
    • 2 shown on diagram
    $16.99
  • 7
    • Part No. T5620-50291
    • 2 shown on diagram
  • 8
    • Part No. T5710-80651
    • N
    • 1 shown on diagram
