FRONT AXLE FRAME GROUP - TC2-G621003

Kioti TRACTOR | CK Series | CK3510SEB

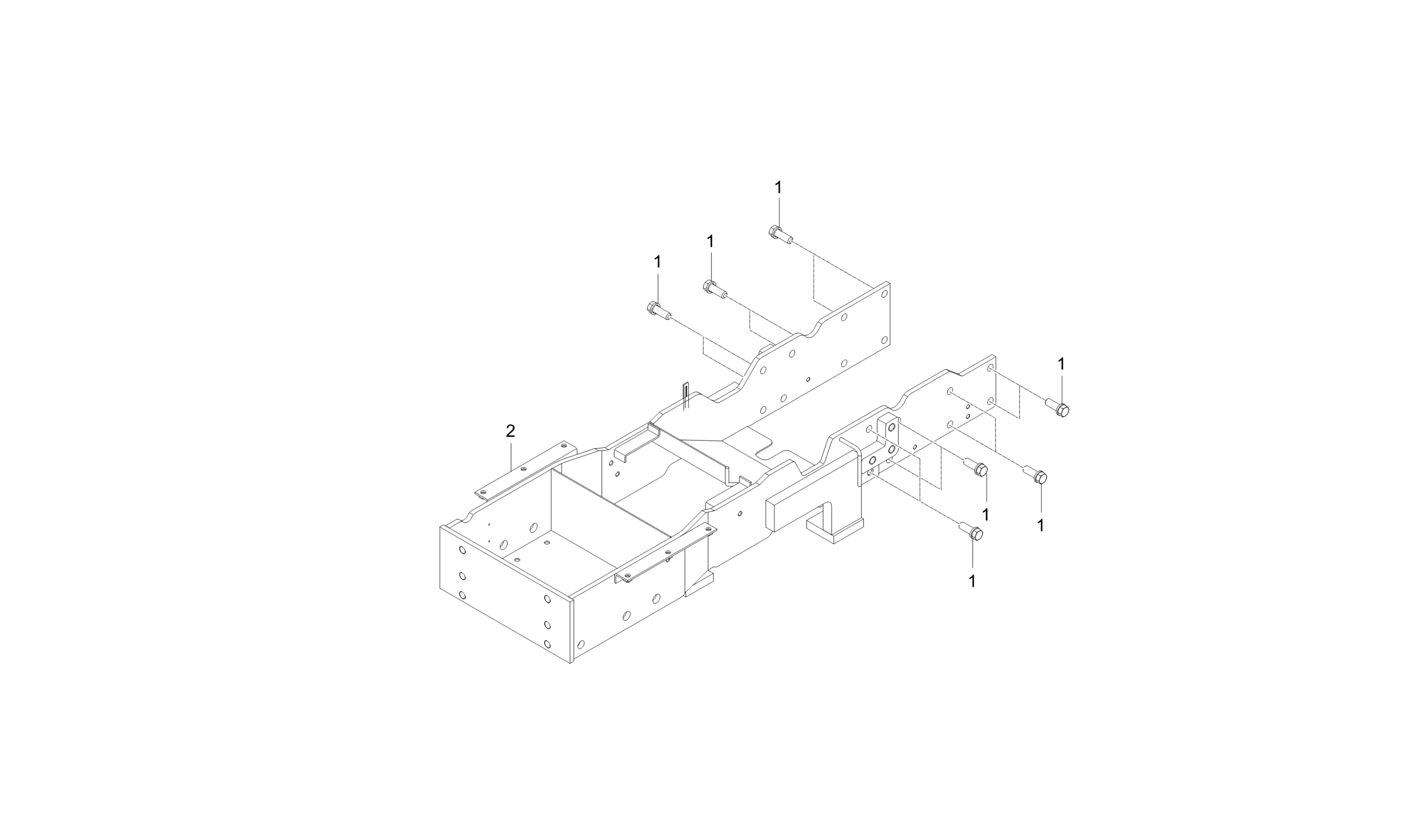

Diagram for FRONT AXLE FRAME GROUP - TC2-G621003
  • 1

    BOLT v

    • Part No. 01177-51235
    • M12XP1.25
    • 16 shown on diagram
    $3.49
  • 2

    TRK FRAME, FRONT AXLE dnr v

    • Part No. TC26-0425D
    • Applied Dates 2017-10-11 and up
    • Serial No. TJJ700003 to WJJ700032
    • * multiple options for #2
    • 1 shown on diagram
    $949.99
  • 2

    FRAME, FRONT AXLE dnr v, Replaced by TC26-0425EBB

    • Part No. TC26-0425E
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $.00
