SEAT GROUP - TC2-G661013

Kioti TRACTOR | CK Series | CK3510SEB

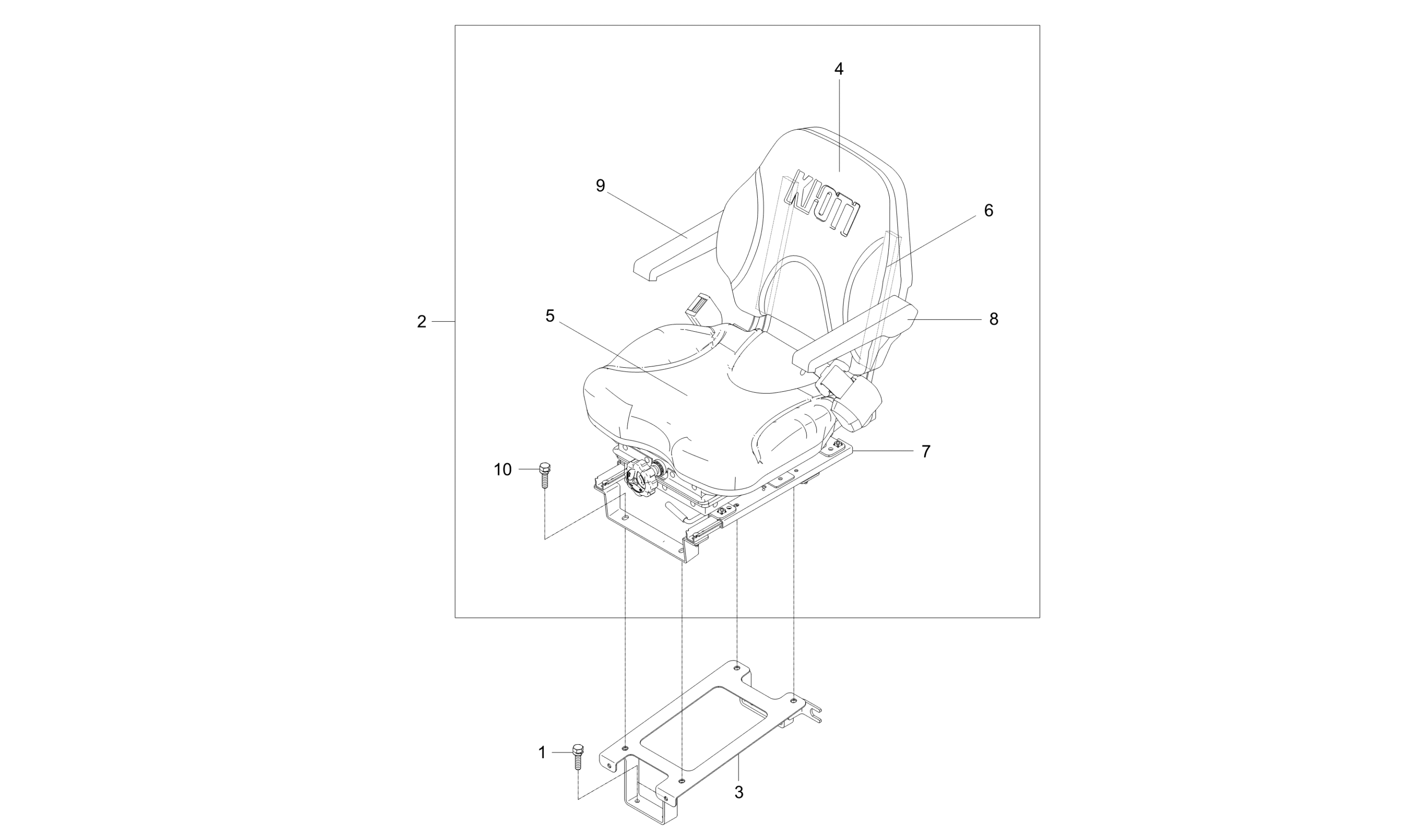

Diagram for SEAT GROUP - TC2-G661013
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 12 shown on diagram
    $1.79
  • 2

    ASSY SEAT-US dnr v

    • Part No. TC26-1259A
    • Applied Dates 2016-07-25 to 2018-02-22
    • Serial No. UJJ700001 to UJJ700116
    • * multiple options for #2
    • 1 shown on diagram
    $1624.99
  • 2

    ASSY SEAT – US

    • Part No. TC26-1259B
    • Compatibility New repl old
    • Applied Dates 2018-02-23 and up
    • Serial No. UJJ700117 to VJJ700016
    • * multiple options for #2
    • 1 shown on diagram
    $1824.99
  • 3

    PLATE, SEAT FLOOR

    • Part No. TC26-0538A
    • Applied Dates Up to 2020-06-08
    • 1 shown on diagram
    $66.99
  • 4 BACK PAD ASSY

    BACK PAD ASSY

    • Part No. T5715-52411001
    • 1 shown on diagram
    $339.99
  • 5 CUSHION PAD ASSY

    CUSHION PAD ASSY

    • Part No. T5715-52411002
    • 1 shown on diagram
    $339.99
  • 6

    ASSY BODY, FRAME

    • Part No. TC26-1261A
    • 1 shown on diagram
    $239.99
  • 7

    ASSY SUSPENSION

    • Part No. TC26-1262A
    • 1 shown on diagram
    $944.99
  • 8

    ASSY ARMREST LH

    • Part No. TC26-1263A
    • 1 shown on diagram
    $269.99
  • 9

    ASSY ARMREST RH

    • Part No. TC26-1264A
    • 1 shown on diagram
    $269.99
  • 10

    BOLT, FLANGE

    • Part No. TC26-1265A
    • 4 shown on diagram
    $9.99
