COOLANT RESERVIOR GROUP - TC2-G612701

Kioti TRACTOR | CK Series | CK3510SEB

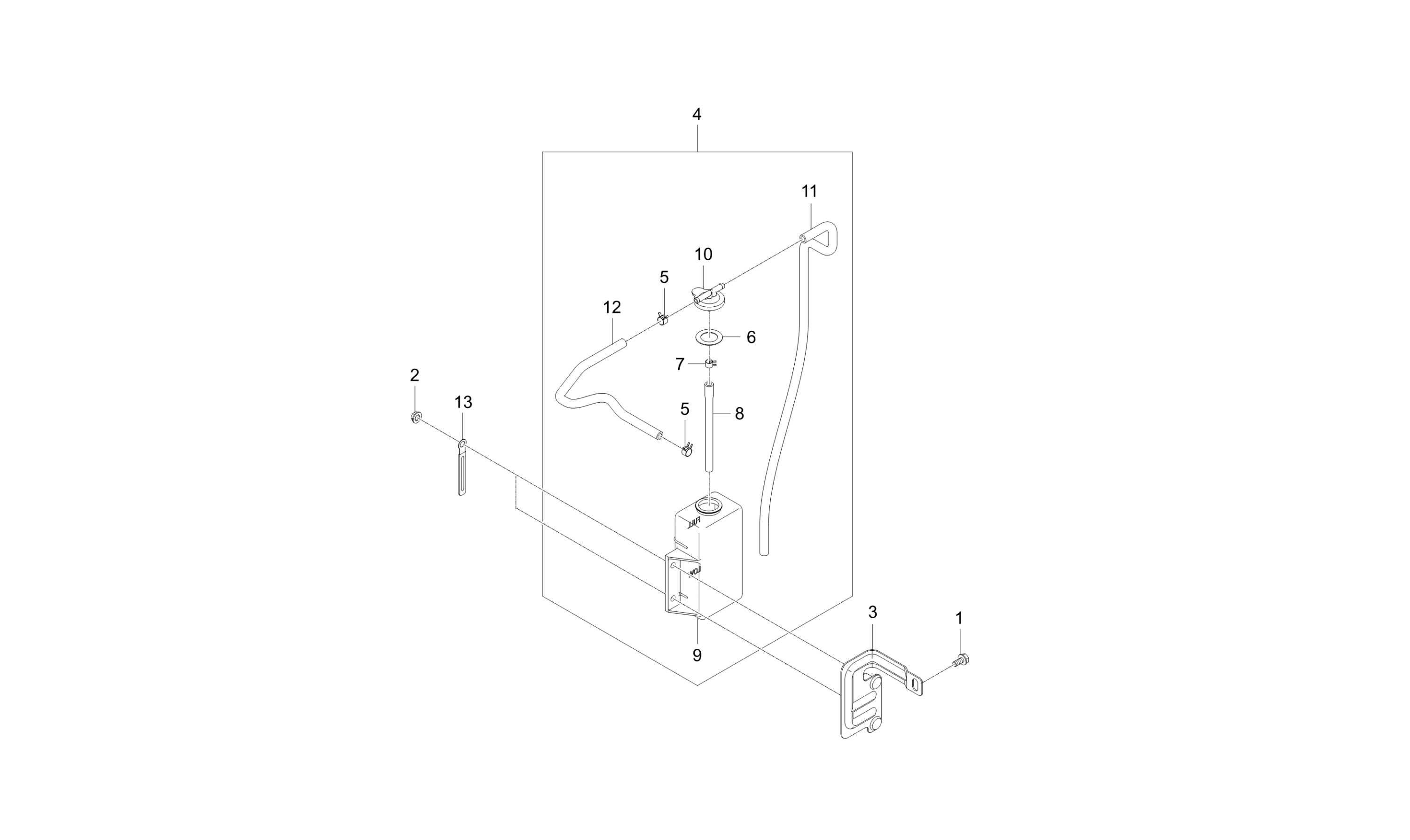

Diagram for COOLANT RESERVIOR GROUP - TC2-G612701
  • 1

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 2
    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
  • 3

    BRACKET

    • Part No. T5855-50532
    • Applied Dates Up to 2019-03-31
    • Serial No. Up to VJJ700008
    • * multiple options for #3
    • 1 shown on diagram
    $34.99
  • 3

    BRACKET

    • Part No. TC26-1624A
    • Compatibility Interchngable
    • Applied Dates 2019-04-01 to 2019-07-31
    • Serial No. VJJ700009 to VJJ700032
    • * multiple options for #3
    • 1 shown on diagram
    $28.99
  • 3

    BRACKET

    • Part No. TC26-1615A
    • Compatibility Interchngable
    • Applied Dates 2019-08-01 and up
    • Serial No. VJJ700033 to WJJ700036
    • * multiple options for #3
    • 1 shown on diagram
    $14.99
  • 4

    ASSY RESERVOIR, RADIATOR

    • Part No. TC26-0421B
    • 1 shown on diagram
    $61.99
  • 5

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 2 shown on diagram
    $1.49
  • 6

    PACKING

    • Part No. 15532-7243-2
    • 1 shown on diagram
    $3.49
  • 7

    CLIP, HOSE

    • Part No. 54821-3818-2
    • 1 shown on diagram
    $0.59
  • 8
    • Part No. T2350-13602006
    • -
    • 1 shown on diagram
  • 9 TANK, WATER

    TANK, WATER

    • Part No. T2350-13612
    • 1 shown on diagram
    $37.99
  • 10 CAP, DOUBLE BARB

    CAP, DOUBLE BARB

    • Part No. T5525-50721
    • 1 shown on diagram
    $7.99
  • 11

    HOSE, OVER FLOW-1 obs v

    • Part No. T5855-50521002
    • L=750
    • 1 shown on diagram
    $15.99
  • 12

    HOSE, COOLING WATER AUTO RETURN obs v

    • Part No. TC26-0651B
    • L=800 400
    • 1 shown on diagram
    $9.49
  • 13

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
