SEAT GROUP - TC2-G661023

Kioti TRACTOR | CK Series | CK3510SEB

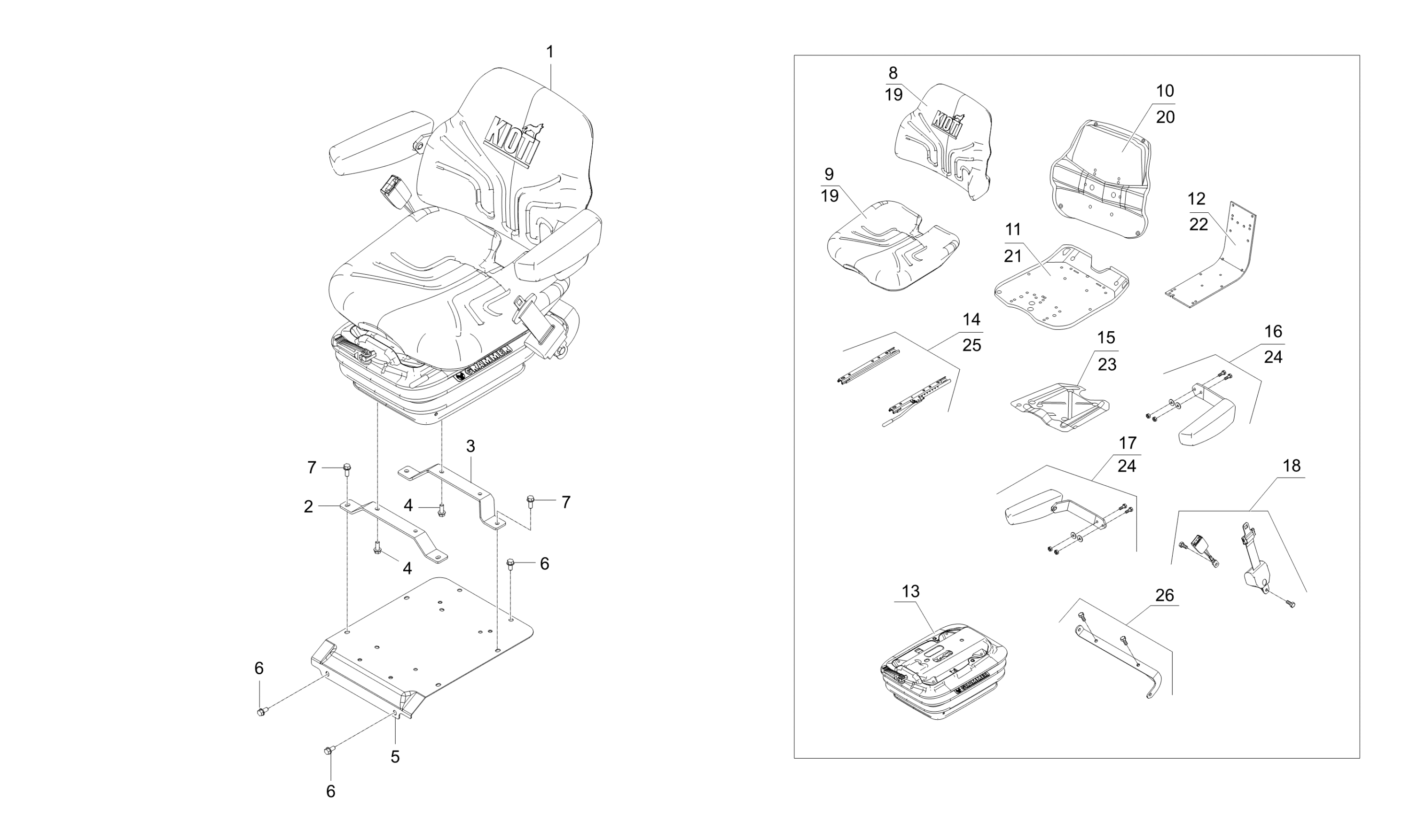

Diagram for SEAT GROUP - TC2-G661023
  • 1

    ASSY SEAT-US

    • Part No. TC26-1720A
    • Serial No. VJJ700017 to XJJ700335
    • * multiple options for #1
    • 1 shown on diagram
    $1944.99
  • 1

    ASSY SEAT-US

    • Part No. TC26-1720B
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1

    ASSY SEAT-US

    • Part No. TC26-1720C
    • Compatibility New repl old
    • Serial No. XJJ700336 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1944.99
  • 2
    • Part No. TC26-1736A
    • Applied Dates 2019-07-08 to 2019-11-06
    • Serial No. VJJ700017 to VJJ700088
    • T4.5
    • * multiple options for #2
    • 1 shown on diagram
  • 2
    • Part No. TC26-1736B
    • Compatibility New repl old
    • Applied Dates 2019-11-07 and up
    • Serial No. VJJ700089 to WJJ700036
    • T4.5
    • * multiple options for #2
    • 1 shown on diagram
  • 3

    BRAKET, SEAT MOUNTING – REAR

    • Part No. TC26-1737A
    • Applied Dates 2019-07-01 to 2019-11-06
    • Serial No. VJJ700017 to VJJ700088
    • T4.5
    • * multiple options for #3
    • 1 shown on diagram
    $.00
  • 3
    • Part No. TC26-1737B
    • Compatibility New repl old
    • Applied Dates 2019-11-07 and up
    • Serial No. VJJ700089 to WJJ700036
    • T4.5
    • * multiple options for #3
    • 1 shown on diagram
  • 4
    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
  • 5
    • Part No. TC26-0538A
    • -
    • * multiple options for #5
    • 1 shown on diagram
  • 5

    PLATE, SEAT FLOOR

    • Part No. TC26-0538B
    • Compatibility Interchngable
    • Serial No. WJJ700097 and up
    • * multiple options for #5
    • 1 shown on diagram
    $66.99
  • 6 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 7
    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
  • 8
    • Part No. TC26-1769A
    • * multiple options for #8
    • 1 shown on diagram

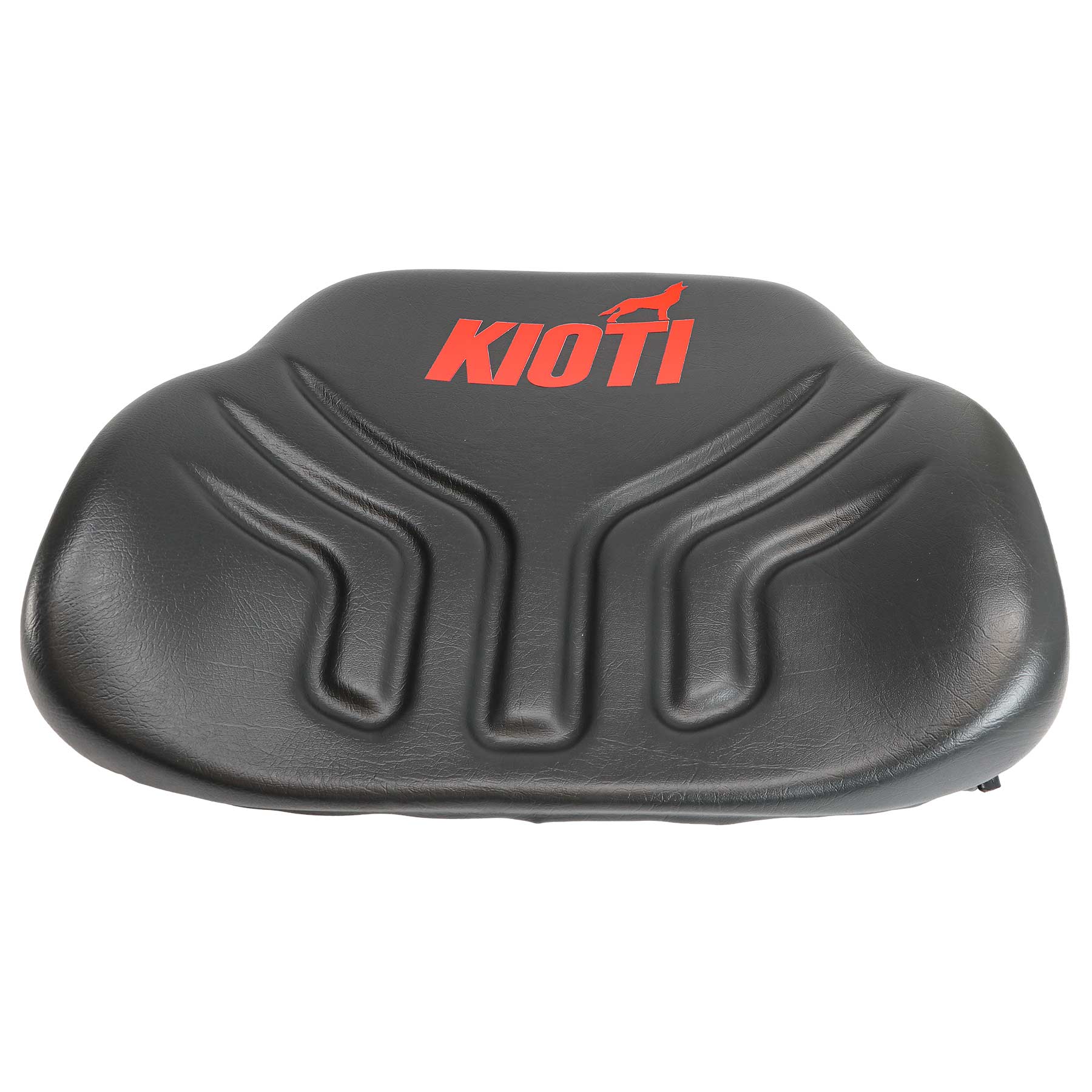

  • 8 CUSHION, BACK-CPL dnr v

    CUSHION, BACK-CPL dnr v

    • Part No. TC26-1769B
    • Compatibility New repl old
    • * multiple options for #8
    • 1 shown on diagram
    $479.99
  • 9
    • Part No. TC26-1772A
    • 1 shown on diagram
  • 10

    SEAT, BACK-CPL

    • Part No. TC26-1773A
    • 1 shown on diagram
    $279.99
  • 11

    SEAT-PAN CPL

    • Part No. TC26-1774A
    • * multiple options for #11
    • 1 shown on diagram
    $379.99
  • 11

    SEAT PAN CPL v

    • Part No. TC26-1774B
    • Compatibility New repl old
    • * multiple options for #11
    • 1 shown on diagram
    $379.99
  • 12
    • Part No. TC26-1775A
    • 1 shown on diagram
  • 13

    SUSPENSION-MSG283 CPL

    • Part No. TC26-1778A
    • 1 shown on diagram
    $1799.99
  • 14
    • Part No. TC26-1780A
    • 1 shown on diagram
  • 15
    • Part No. TC26-1781A
    • 1 shown on diagram
  • 16

    ARMREST-RH CPL

    • Part No. TC26-1782A
    • 1 shown on diagram
    $299.99
  • 17
    • Part No. TC26-1783A
    • 1 shown on diagram
  • 18

    BELT, SEAT-CPL

    • Part No. TC26-1784A
    • 1 shown on diagram
    $359.99
  • 19

    FASTENER EA=6 PCS BACKREST CUSHION CPL

    • Part No. TC26-1786A
    • 1 shown on diagram
    $25.99
  • 20

    FASTENER SET=4 BACKREST CPL

    • Part No. TC26-1787A
    • 1 shown on diagram
    $57.99
  • 21

    FASTENER-SEAT PAN CPL

    • Part No. TC26-1788A
    • 1 shown on diagram
    $154.99
  • 22
    • Part No. TC26-1789A
    • 1 shown on diagram
  • 23

    FASTENER-SEAT SWITCH CPL

    • Part No. TC26-1790A
    • 1 shown on diagram
    $99.99
  • 24

    FASTENER – ARM REST HARDWARE

    • Part No. TC26-1791A
    • 1 shown on diagram
    $53.99
  • 25

    FASTENER-SLIDE RAIL CPL

    • Part No. TC26-1792A
    • 1 shown on diagram
    $169.99
  • 26

    BRACKET,BELT-SEAT CPL

    • Part No. TD26-1146A
    • 1 shown on diagram
    $259.99
