STEP SEAT FRAME GROUP(MEC) - TC2-G633027

Kioti TRACTOR | CK Series | CK3510SEB

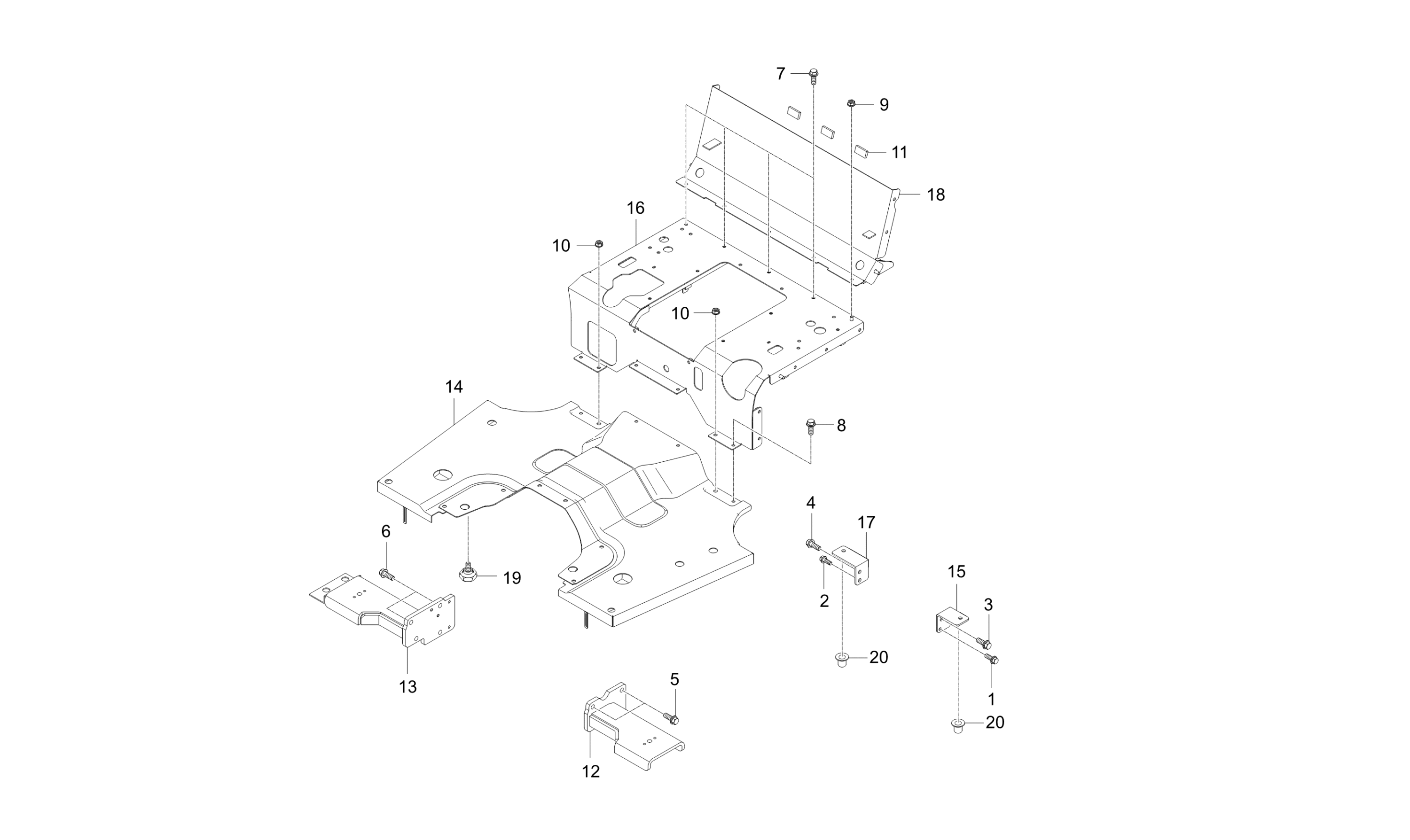

Diagram for STEP SEAT FRAME GROUP(MEC) - TC2-G633027
  • 1 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 2 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 3

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 4

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 5
    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
  • 6
    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 9
    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
  • 10

    NUT

    • Part No. 02771-50100
    • M10*1.25
    • 2 shown on diagram
    $0.73
  • 11

    SPONGE

    • Part No. TC26-0001A
    • Low Foam PU Foam
    • 3 shown on diagram
    $3.99
  • 12

    SUPPORT, STEP-LH FR

    • Part No. TC26-0704C
    • 1 shown on diagram
    $214.99
  • 13

    SUPPORT, STEP-RH FR

    • Part No. TC26-0706B
    • 1 shown on diagram
    $244.99
  • 14

    ASSY FLOOR-MEC dnr v

    • Part No. TC26-0708C
    • Applied Dates Up to 2017-09-30
    • Serial No. UJJ700001 to TJJ700002
    • * multiple options for #14
    • 1 shown on diagram
    $299.99
  • 14

    ASSY FLOOR- SHUTTLE

    • Part No. TC26-1551A
    • Compatibility New repl old
    • Applied Dates 2017-10-01 and up
    • Serial No. TJJ700003 to VJJ700088
    • * multiple options for #14
    • 1 shown on diagram
    $579.99
  • 14

    ASSY FLOOR-SHUTTLE

    • Part No. TC26-1551AOE
    • Compatibility New repl old
    • * multiple options for #14
    • 1 shown on diagram
    $579.99
  • 15

    SUPPORT, STEP-MID LH

    • Part No. TC26-0716A
    • 1 shown on diagram
    $22.99
  • 16

    PLATE, SEAT FLOOR-MEC dnr v

    • Part No. TC26-0722D
    • Applied Dates Up to 2017-12-25
    • Serial No. UJJ700001 to TJJ700030
    • * multiple options for #16
    • 1 shown on diagram
    $314.99
  • 16

    PLATE, SEAT FLOOR MEC v

    • Part No. TC26-0722E
    • Compatibility New repl old
    • Applied Dates 2017-12-26 and up
    • Serial No. TJJ700031 to WJJ700036
    • * multiple options for #16
    • 1 shown on diagram
    $464.99
  • 17

    SUPPORT, STEP-MID RH

    • Part No. TC26-0798A
    • 1 shown on diagram
    $35.99
  • 18

    PLATE, SEAT FLOOR-RR

    • Part No. TC26-1348A
    • 1 shown on diagram
    $179.99
  • 19

    STOPPER

    • Part No. T5710-51951
    • 2 shown on diagram
    $16.99
  • 20

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 2 shown on diagram
    $1.59
