BONNET GROUP - TC2-G615512

Kioti TRACTOR | CK Series | CK3510SEB

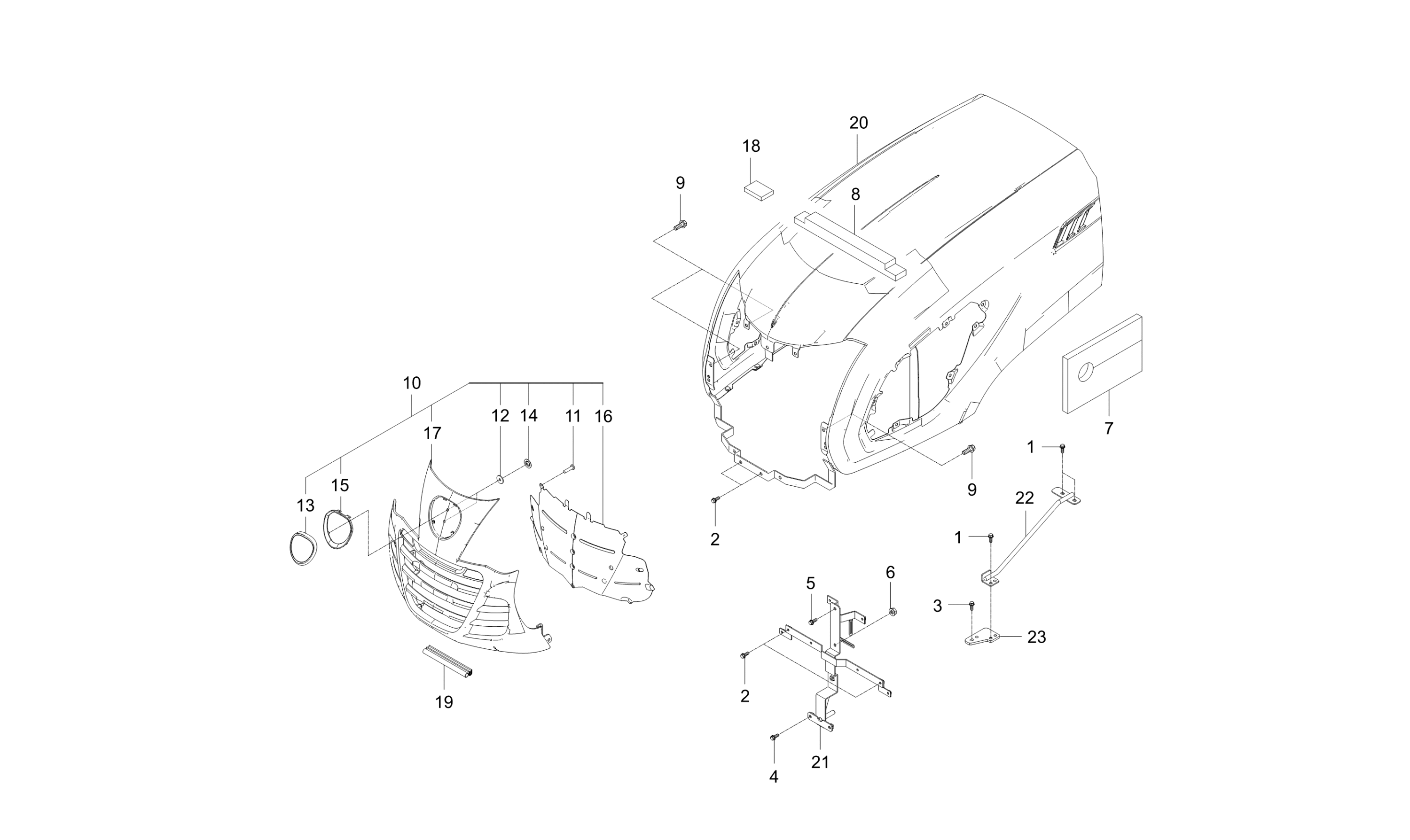

Diagram for BONNET GROUP - TC2-G615512
  • 1 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 2

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 3 shown on diagram
    $1.79
  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 5 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 6
    • Part No. 02751-50060
    • M6XP1.0
    • 3 shown on diagram
  • 7

    PLATE,HEAT

    • Part No. T4665-50382
    • 1 shown on diagram
    $62.99
  • 8

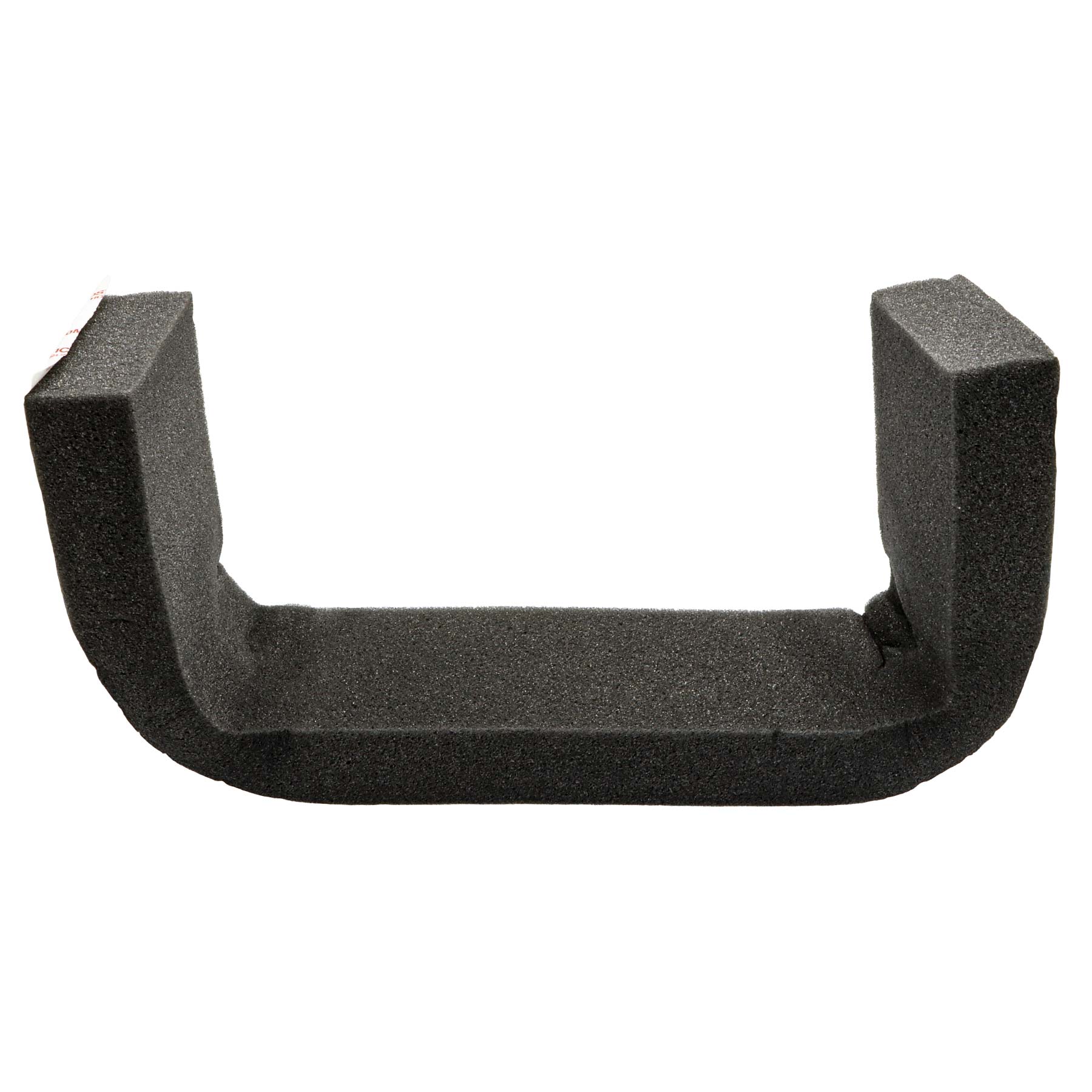

    SPONGE

    • Part No. T5525-50441
    • Applied Dates Up to 2019-12-08
    • Serial No. Up to VJJ700088
    • * multiple options for #8
    • 1 shown on diagram
    $76.99
  • 8 SPONGE

    SPONGE

    • Part No. TC26-1801A
    • Compatibility Interchngable
    • Applied Dates 2019-12-09 and up
    • Serial No. VJJ700089 to WJJ700036
    • * multiple options for #8
    • 1 shown on diagram
    $29.99
  • 9

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 6 shown on diagram
    $0.29
  • 10
    • Part No. T5850-51851
    • N
    • 1 shown on diagram
  • 11

    SCREW

    • Part No. 38430-1827-1
    • 20 shown on diagram
    $0.46
  • 12
    • Part No. 82KC-0641
    • 2 shown on diagram
  • 13 EMBLEM

    EMBLEM

    • Part No. T2185-51462
    • 1 shown on diagram
    $29.99
  • 14 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 2 shown on diagram
    $1.39
  • 15

    BEGEL, EMBLEM

    • Part No. T5710-51092
    • 1 shown on diagram
    $31.99
  • 16

    GRILLE,BONNET

    • Part No. T5818-51851
    • 1 shown on diagram
    $159.99
  • 17

    GRILL, BONNET

    • Part No. T5858-51852
    • 1 shown on diagram
    $154.99
  • 18 SPONGE, 4

    SPONGE, 4

    • Part No. T5855-50542
    • 95X60, T2
    • 2 shown on diagram
    $3.99
  • 19
    • Part No. T5855-51861
    • 1 shown on diagram
  • 20

    TRK ASSY BONNET dnr v

    • Part No. TC26-0426B
    • Applied Dates 2017-05-18 to 2019-12-08
    • Serial No. Up to VJJ700088
    • * multiple options for #20
    • 1 shown on diagram
    $844.99
  • 20

    TRK – BONNET ASSY dnr v

    • Part No. TC26-0426BOE
    • Compatibility New repl old
    • * multiple options for #20
    • 1 shown on diagram
    $864.99
  • 20

    TRK ASSY BONNET

    • Part No. TC26-0426COE
    • Compatibility Interchngable
    • * multiple options for #20
    • 1 shown on diagram
    $864.99
  • 21

    PLATE, BONNET REINFMT-FR

    • Part No. TC26-0427A
    • 1 shown on diagram
    $159.99
  • 22

    GUIDE, HARNESS

    • Part No. TC26-0431A
    • * multiple options for #22
    • 1 shown on diagram
    $25.99
  • 22

    GUIDE, HARNESS dnr v

    • Part No. TC26-0431B
    • Compatibility Interchngable
    • Serial No. WJJ700169 and up
    • * multiple options for #22
    • 1 shown on diagram
    $22.99
  • 23

    BRACKET-TIER4

    • Part No. TC26-0693B
    • T6.0
    • 1 shown on diagram
    $21.99
